Description

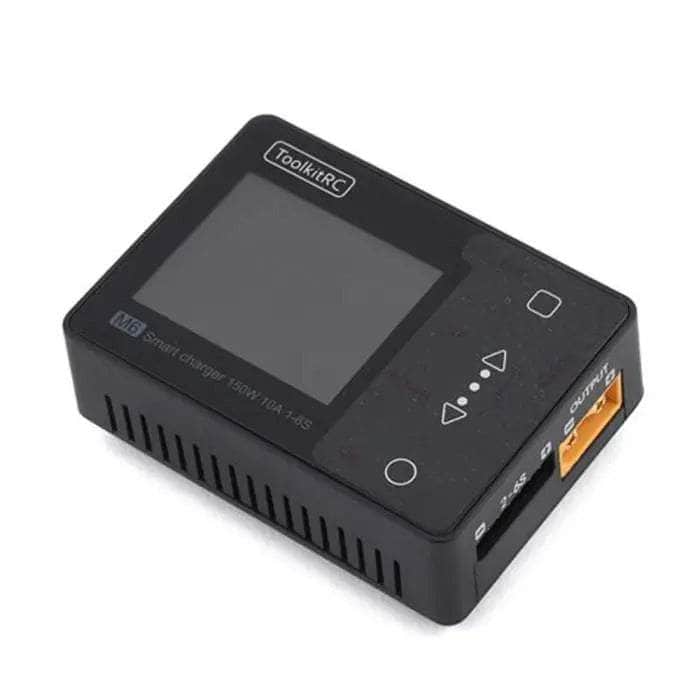

The newly designed ToolkitRC M6 is the perfect multifunctional Charger that does not sacrifice features & is small enough to fit in your pocket!

Check out all our chargers and charging accessories and our selection of ToolkitRC products!

Features

• Lipo, LiHV, LiFe Lion1-6S. NiMh 1-16s. PB1-12s battery charging and discharging and balance management
• Charging current: Maximum 10A @150W
• Discharge Current: Recovery MAX 10A @150W normal mode MAX2A @8W
• Lithium battery full voltage can be set (TVC)
• Can measure battery voltage, battery internal resistance, and manages lithium battery balance
• Measurement of signal values such as PWM/PPM/SBUS with accuracy of up to 1us
• Can output PWM/PPM/SBUS standard signal with accuracy up to 1 microseconds
• Constant current & constant voltage source output. You can customize 1-28v constant voltage & 1-10A constant current
• Can be adapted to many mainstream UAV batteries, which are automatically activated and charged.
• USB 2.1A @5.0V output for charging mobile devices

Small in size, Big in features

The M6 is 50% smaller than the M8 yet still retains mores of the function of the M8

Smooth Touch

Capacitive touch keys for longer life. Sliding operation makes it easier to use

Small design, easy to use

Extreme space saving compact design. Adjustable viewing angle for easy use

Keep Cool

New cooling system ensures cool and efficient operation

Specifications

Charger

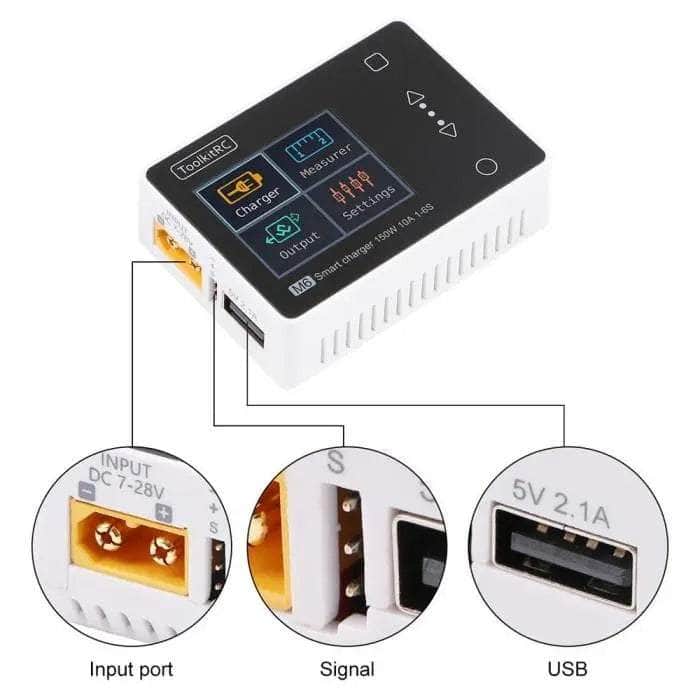

• Input voltage: 7.0-28.0V  @MAX 12A
• Type of battery: Lipo  LiHV  LiFe @1-6S, NiMh @1-16S, Pb @1-10S
• Balance current: 400mA @2-6S
• Charger power: 150W @MAX 10A
• Discharge power:150W @MAX 10A Recycle mode, 8W @2A Normal mode
• USB: 2.1A @5.0V or Upgrade

Measurer

• PWM: 880-2200us @20-400Hz
• PPM: 880-2200us x 8CH @20-50Hz
• SBUS: 880-2200us x 16CH @20-100Hz
• Voltage: 1.0-5.0V @1-6S
• Internal resistance: 10-100mR @1-6S

Output

• PWM: 500-2500us @20-1000Hz
• PPM: 880-2200us x 8CH @20-50Hz
• SBUS: 880-2200us x 16CH @20-100Hz
• Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
• OverCurrent Cutoff time: 50ms

General

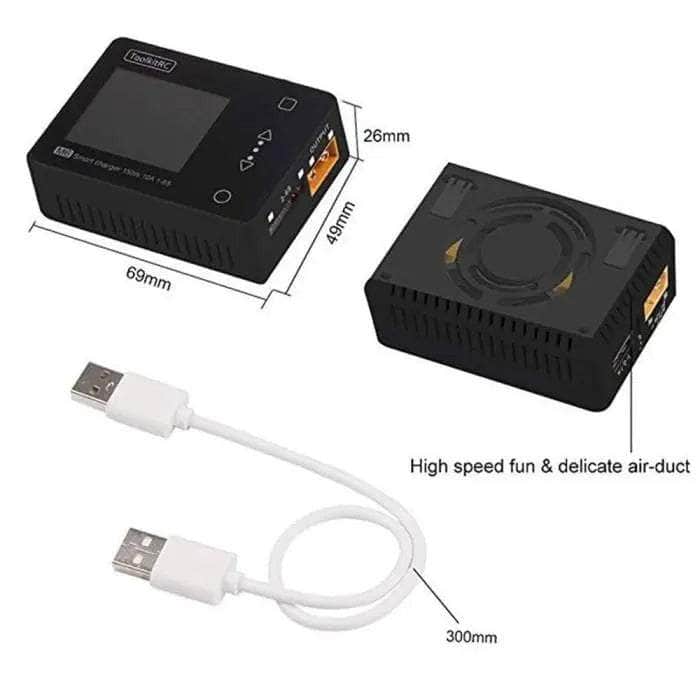

• Dimensions: 70x50x26 mm
• Weight: 80g
• LCD: TFT 1.8inch LCD 160x128 Pixel

M6 DOWNLOADS

Includes

• 1x ToolkitRC M6 150W 10A Multifunctional Charger - Black
