Description

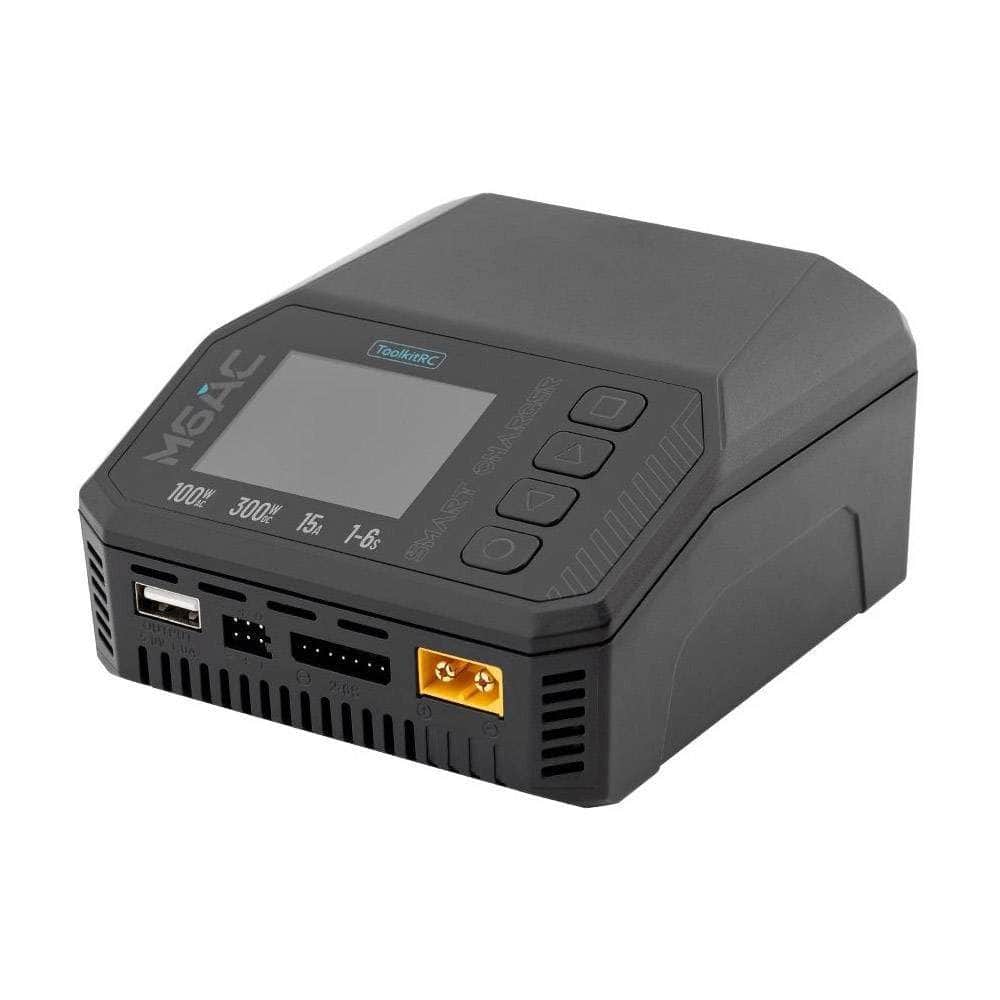

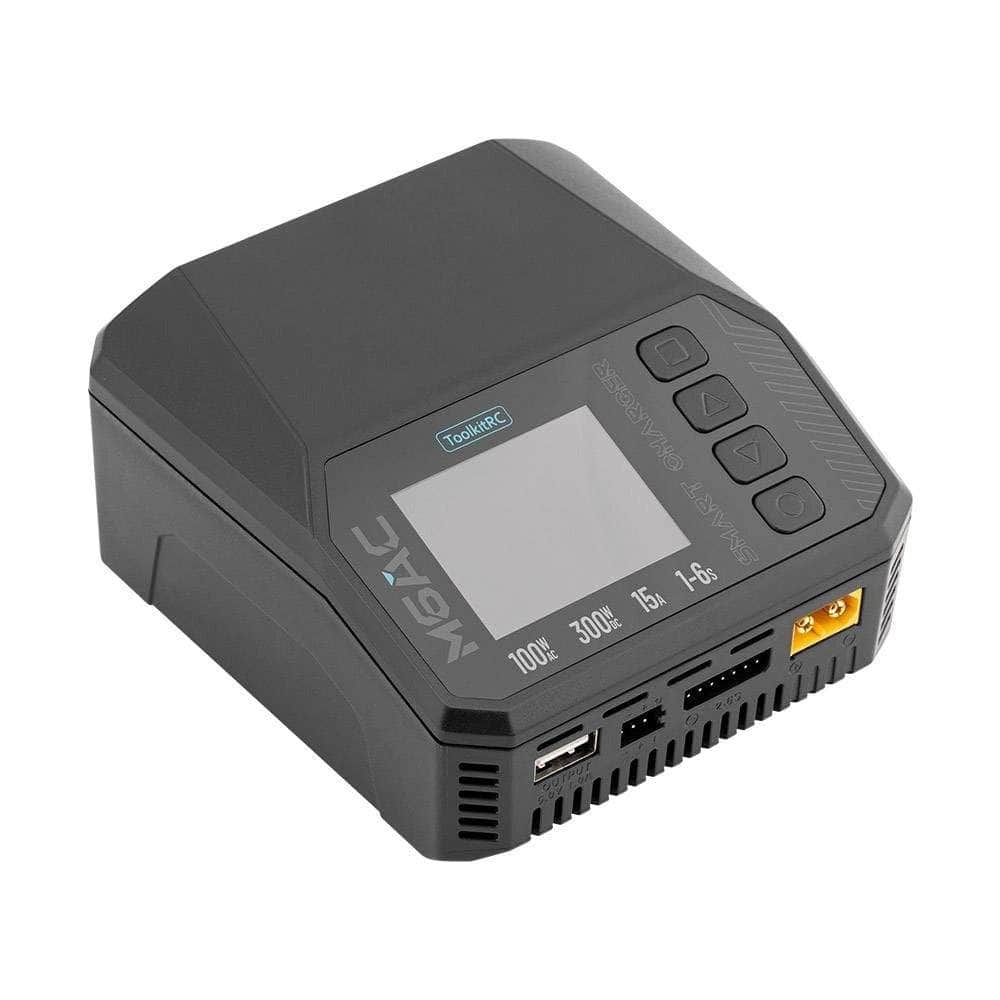

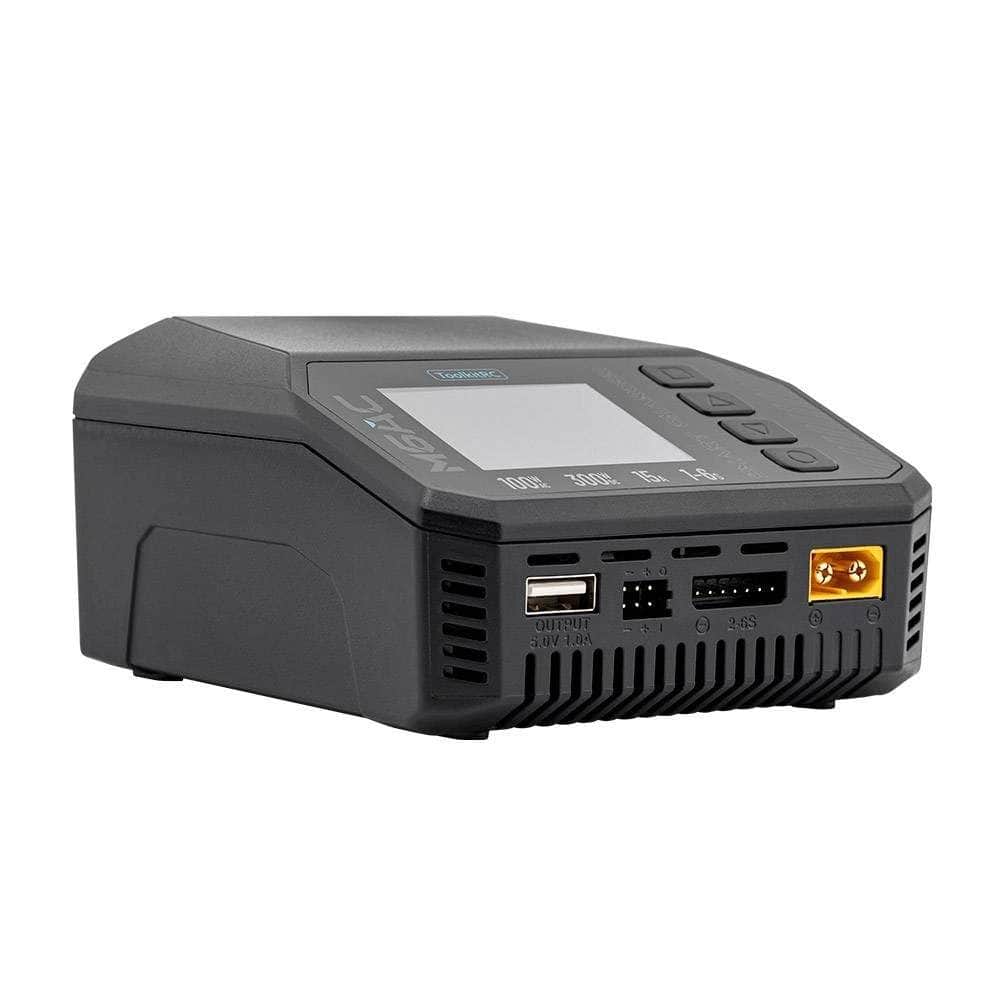

The ToolkitRC M6AC is a small but and feature packed charger! Perfect for FPV pilots and RC enthusiasts, with an impressive 300W output and 15A charging current, this AC charger handles 1-6S LiPo batteries. ToolkitRC chargers have reliable electronics and efficiently charge every time. The user-friendly interface makes this ready for home or in the field!

Check out our other Battery Chargers and Accessories, and all our ToolkitRC products!

Features

• Wide Battery Compatibility
• Multifunctional Capability
• User-Friendly Interface
• Reliable Performance
• High-Power Output
• XT60 Connection
• Compact Design


Specifications

DISCHARGING POWER

• Internal Resistance Measurement: 0.1mΩ-99mΩ @ 1-6S
• USB-A Output: 5.0V/1.0A @ 10W or upgrade
• Voltage Range: 1.0V-5.0V @ 1-6S
• Recycle Mode: 0.1-15A @ 300W
• Internal Mode: 0.1-3A @ 15W

OUTPUT

• Power Output: 0.5-15A @ 1-28V (Mode: CC+CV)
• SBUS Output: 880us-2200us × 16 CH @ 74Hz
• PPM Output: 880us-2200us × 8 CH @ 50Hz
• PWM Output: 500us-2500us @ 20-1000Hz

MEASURER

• SBUS: 880us-2200us × 16 CH @ 20-100Hz
• PPM: 880us-2200us × 8 CH @ 20-50Hz
• PWM: 880us-2200us @ 20-400Hz

CHARGER

• Charging Power: 0.1-15A @ 300W
• Balance Current: 1000mA @ 4.2V
• Balance Accuracy: <0.005V
• Battery Types Supported:

  • LiPo, LiHV, LiFe, LiIon, LTO @ 1-6S
  • NiMH @ 1-16S, Pb @ 1-10S

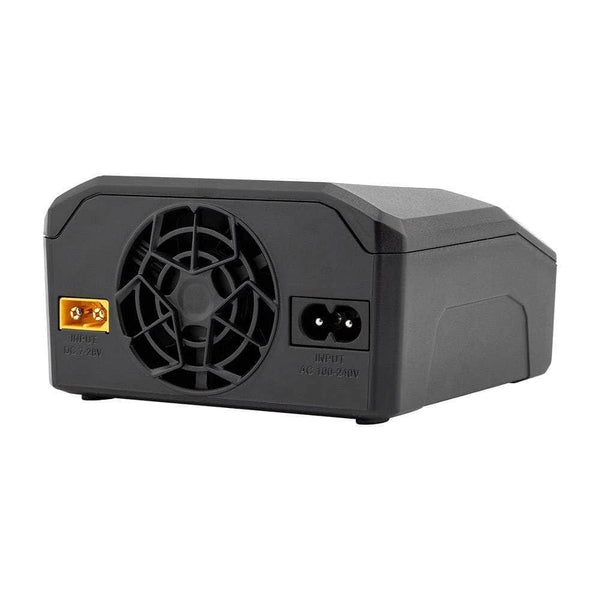

• Input Voltage:

  • AC: 100-240V @ MAX 120W
  • DC: 7-35V @ MAX 30A

DIMENSIONS

• LCD: IPS 2.0″ LCD, 320×240 px
• Product Size: 108×106×60mm
• Packing Size: 144×158×63mm
• Packaging Weight: 510g
• Product Weight: 350g

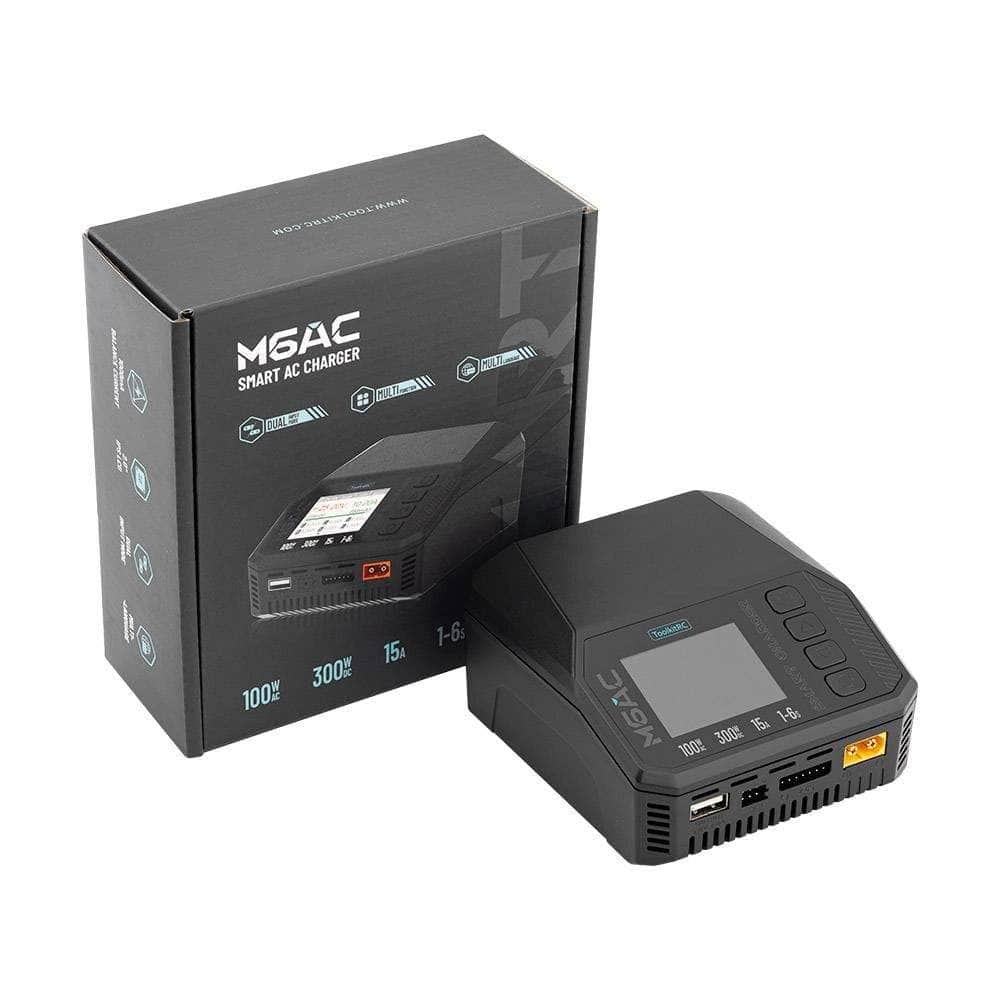

Includes

• 1x ToolkitRC M6AC 300W 15A 1-6S AC Charger - XT60
• 1x Screen Protector
• 1x AC Input Cable
• 1x Quick Manual
• 1x USB Cable
