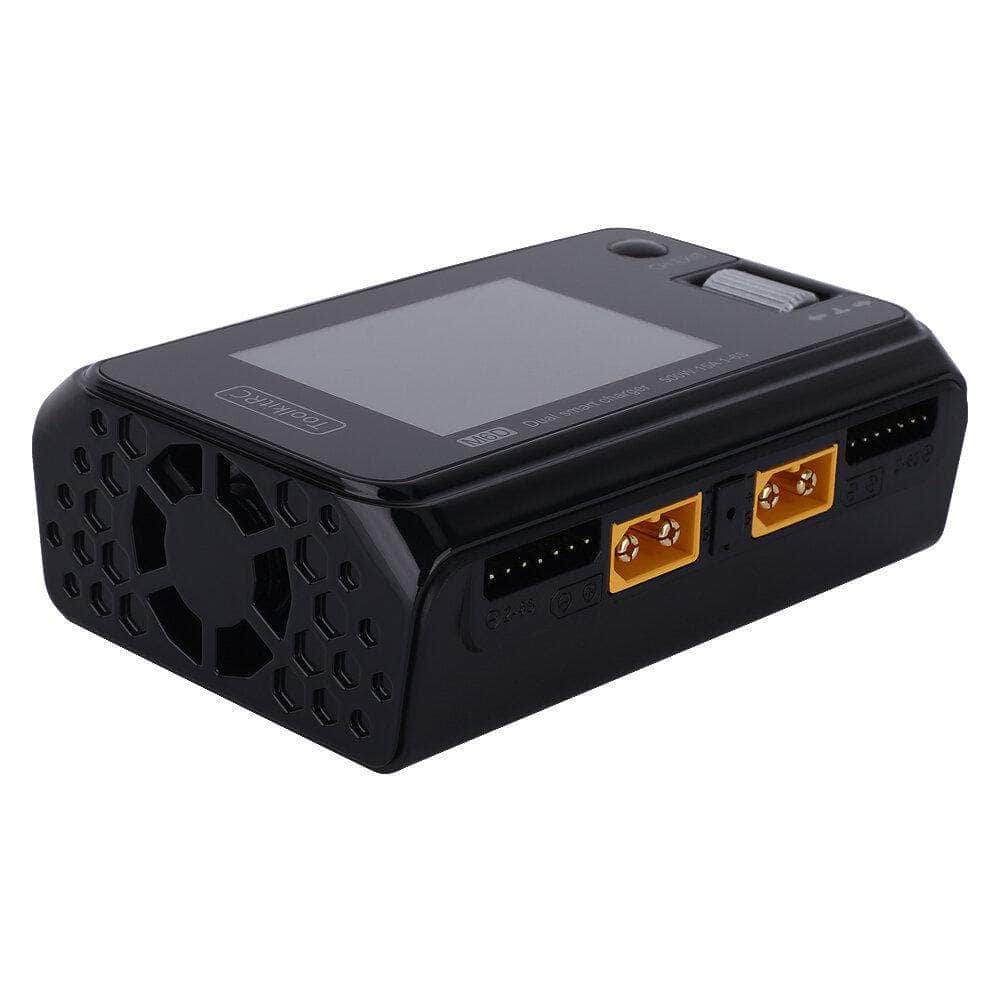

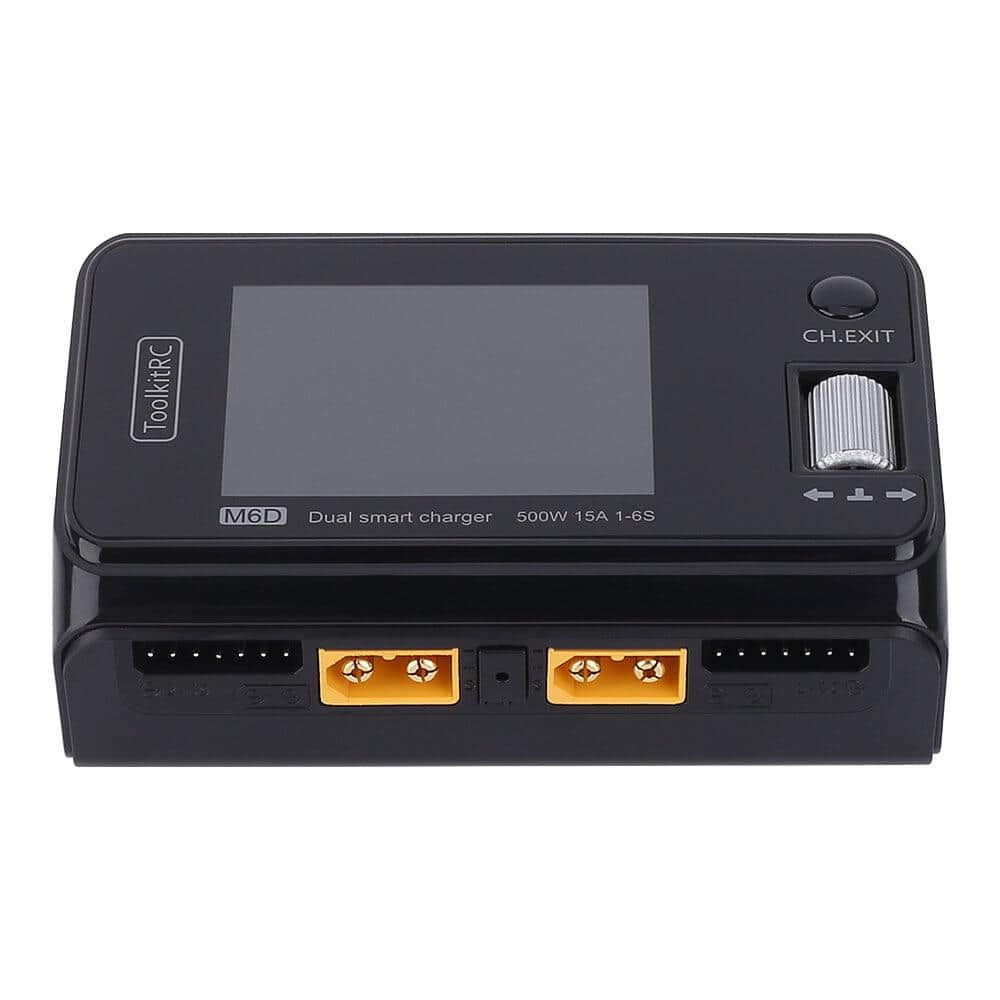

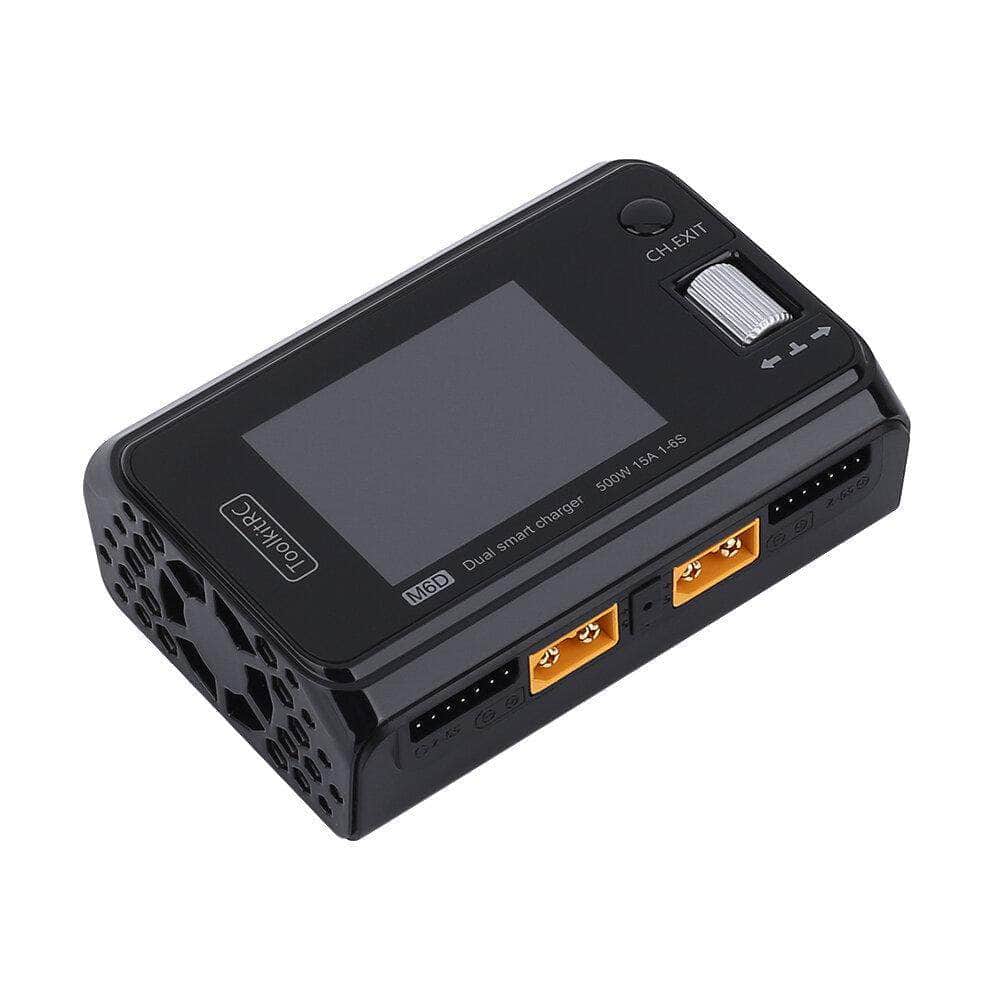

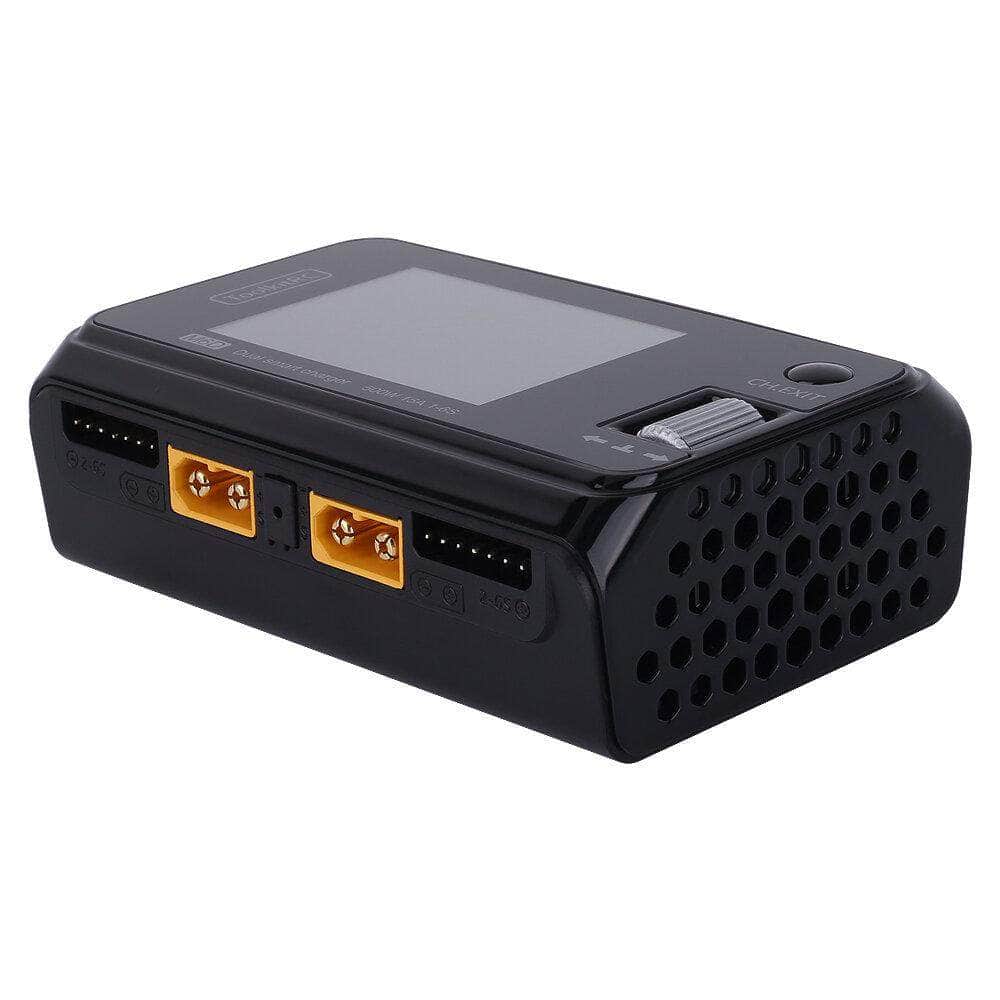

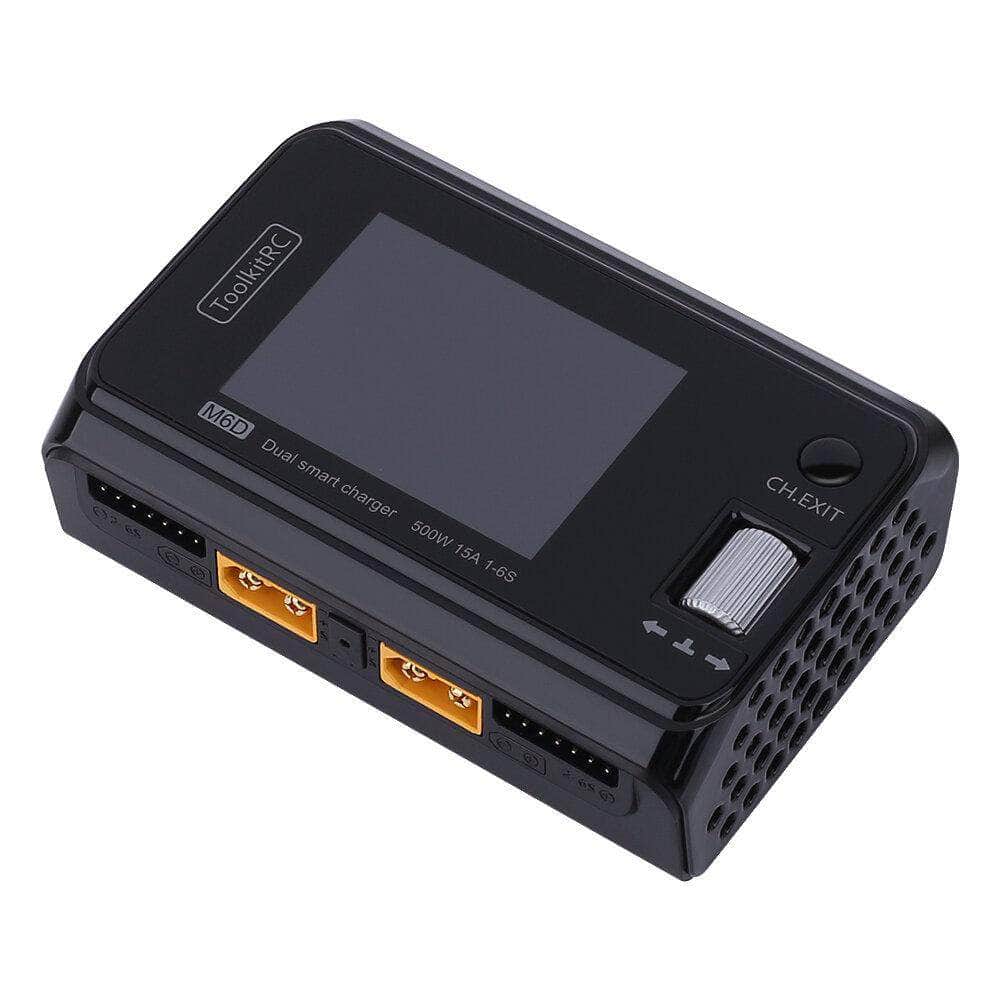

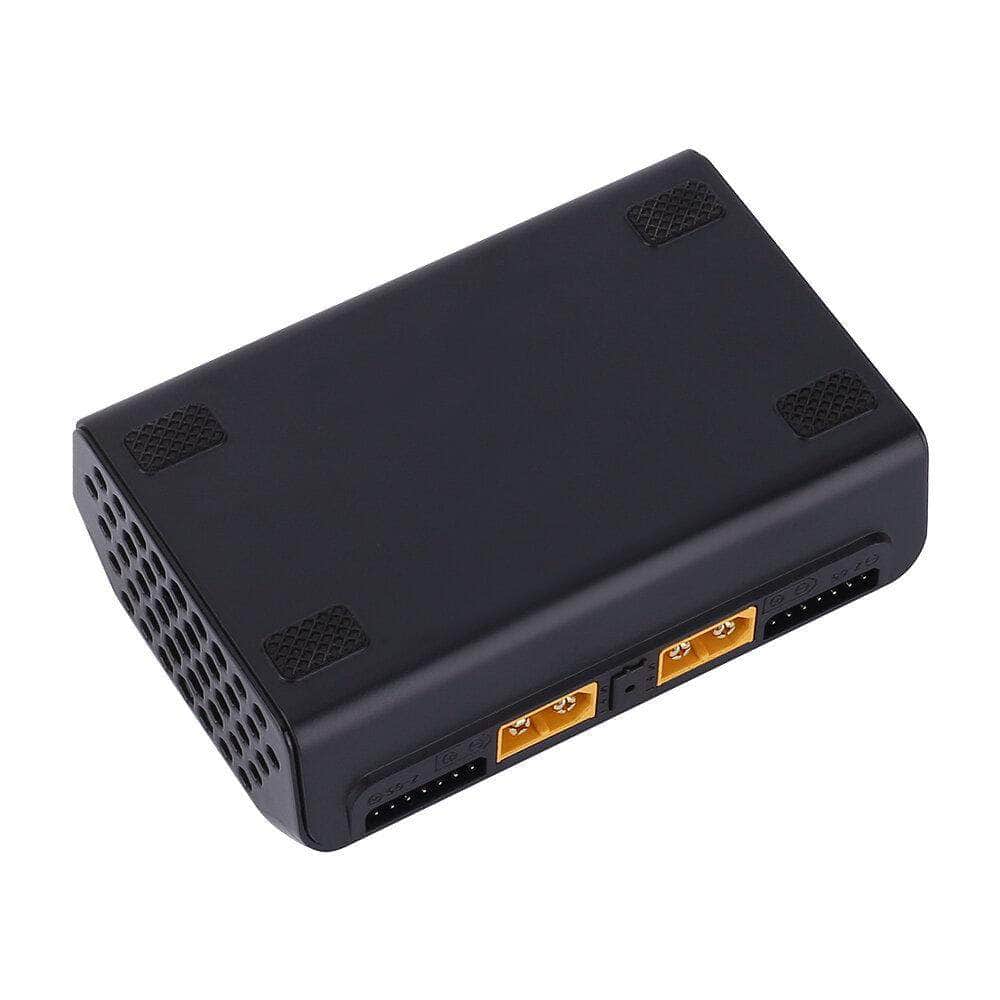

ToolkitRC M6D 500W 15A 1-6S Dual Channel DC Smart Charger

ToolkitRC M6D 500W 15A 1-6S Dual Channel DC Smart Charger

$83.99
$83.99
In stock
In stock
Add To Wishlist
View full details

Details

Description

Pre-orders shipping ASAP!!

The ToolkitRC M6D is a great option to safely charge multiple batteries at the same time.

A power supply is required to use this charger, check out the RDQ 360W and 500W power supplies.

Check out our other Battery Chargers and Accessories, and all our ToolkitRC products!

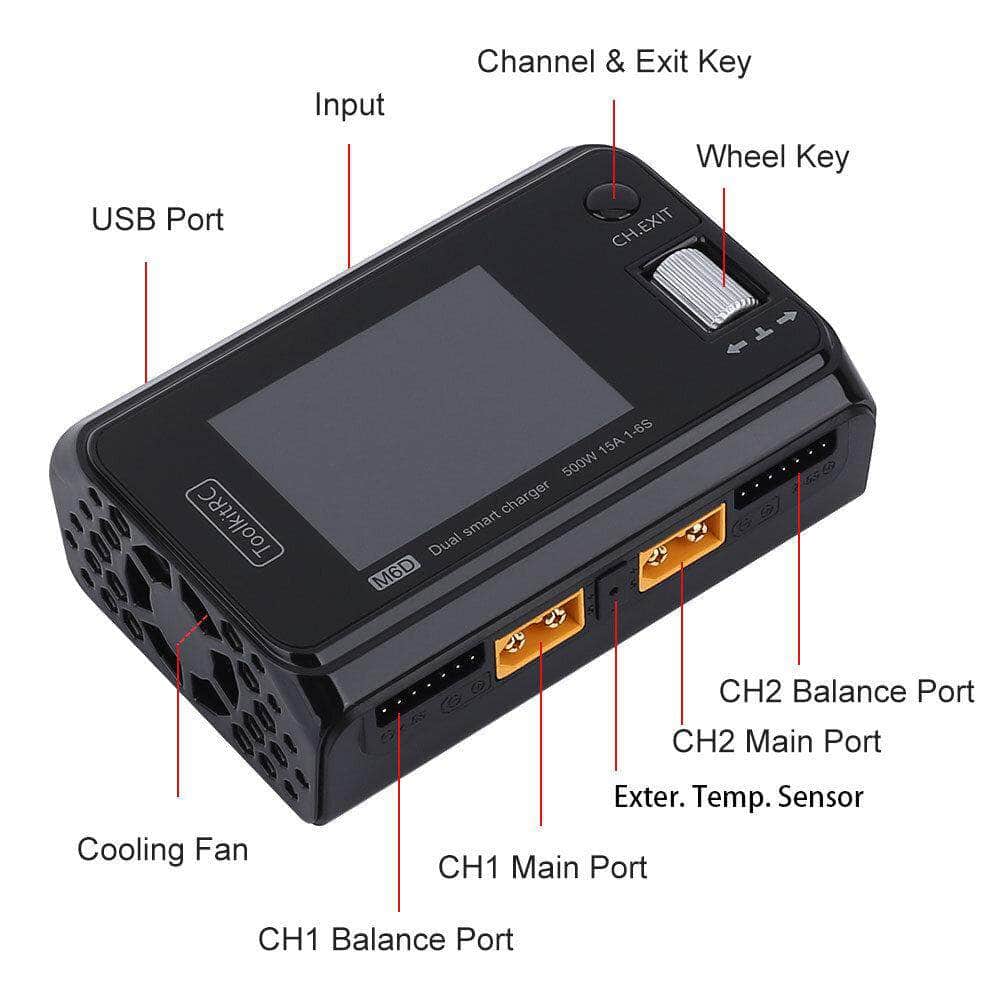

Features

  • 2.4" LCD screen
  • Dual channel
  • Asynchronous and synchronous modes
  • Cell checker
  • USB 5V output

Specifications

  • Input: 7-28V@MAX30A
  • Battery Type:
    • LiPo LiHV LiFe Lion@1-6S
    • NiMh @1-16S Pb @1-10S
  • Bal Cur. : 800mA @2-6S
  • Accuracy: <0.005V
  • Charging Power:
    • 0.1-15A@250W *2（Asynchronous mode）
    • 0.1-25A@500W（Synchronous mode）
  • Discharging Power:
    • 0.1-15A@250W*2 Recycle Mode
    • 0.1-3A@12W*2 Normal Mode
  • USB: 2.1A@5V upgrade@USB3.0
  • Battery Voltage: 1.0V-5.0V @1-6S
  • Battery Internal Resistance: 1-100mR @1-6S

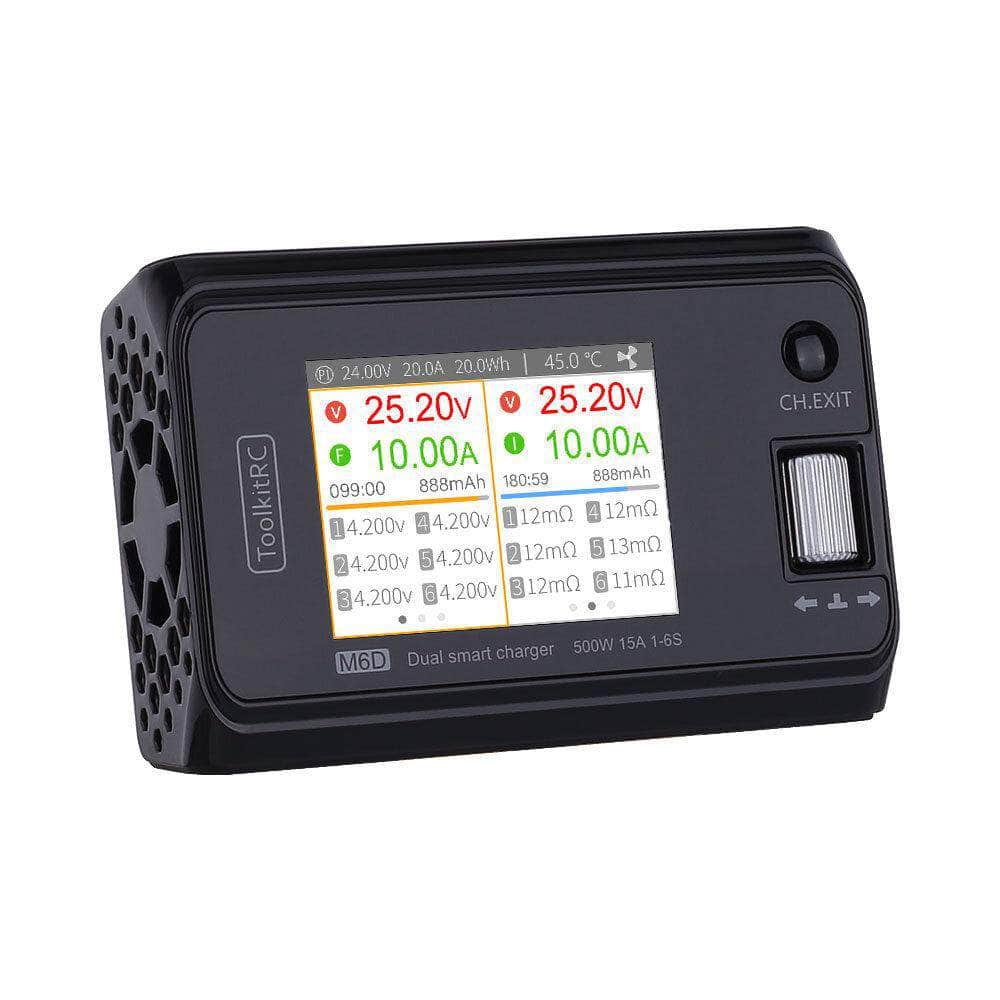

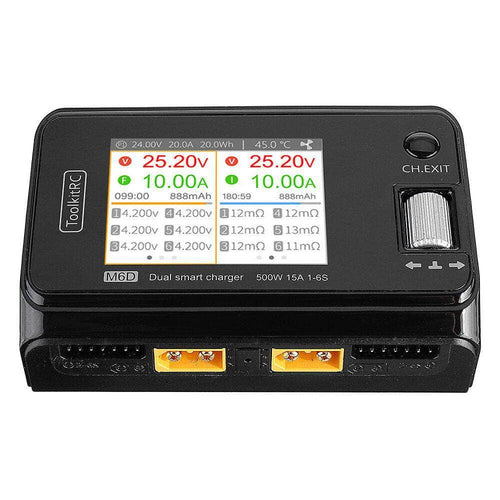

  • Display: LCD IPS 2.4 inch 320*240 resolution
  • Size: 98mm*68mm*35mm
  • Weight: 220g
  • Size: 108.5mm*80.5mm*46mm
  • Weight: 300g

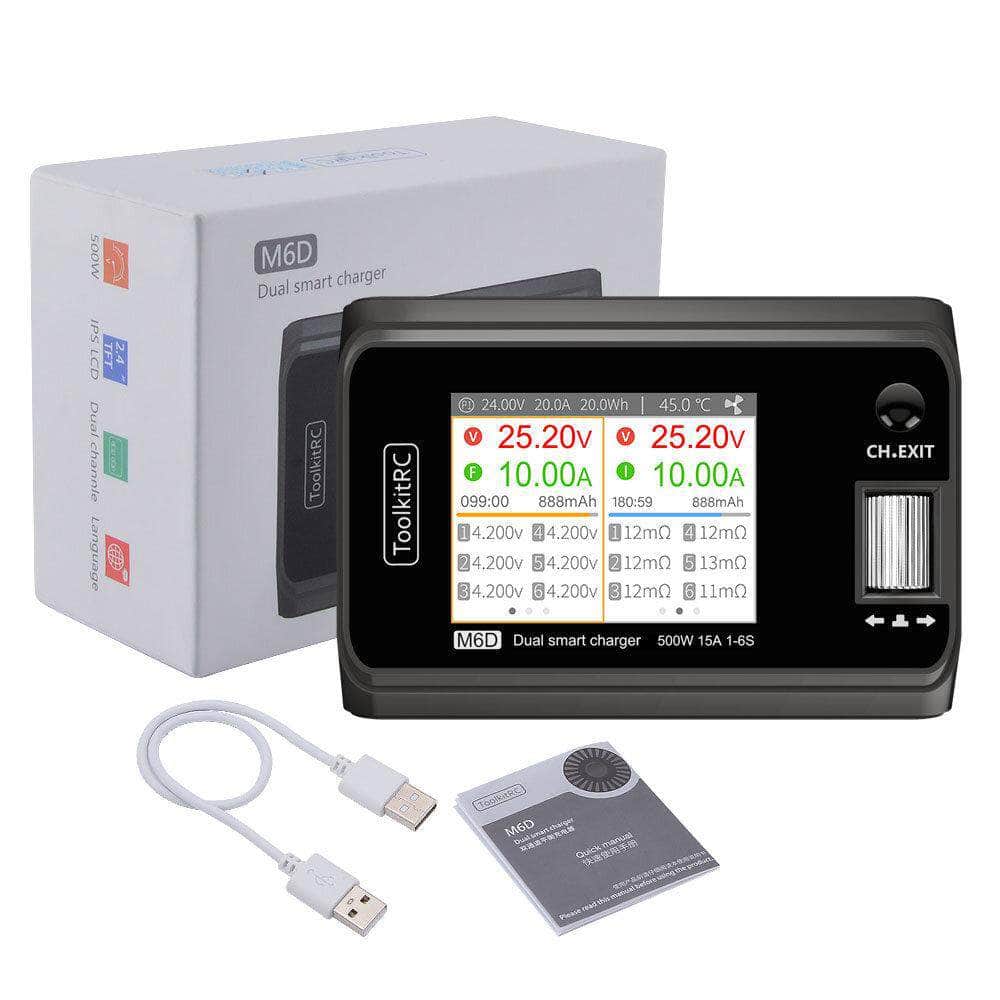

Includes

  • 1x ToolkitRC M6D 500W 15A 1-6S Dual Channel DC Smart Charger

ToolkitRC M6D Dual Channel 500W 25A DC Battery Charger for Sale


    More Info

    • SKU: 13186
    • Barcode: 6972969830001


    Overall rating: 4.8349514 / 5 from 103 reviews.

    AI Generated Review Summary

    The ToolkitRC M6D 500W 15A 1-6S Dual Channel DC Smart Charger is highly praised for its excellent quality, dual-channel charging capability, and user-friendly interface. Customers appreciate its compact size and the ability to charge multiple batteries simultaneously. The charger's impressive build quality and feature-rich design make it a top choice for users.

    Summary topics

    • Charging Performance: 70%
    • Build Quality: 9%
    • Portability: 8%
    • Dual-Channel Feature: 10%
    • User Interface: 6%

    Review topics: [size, quality, charger, packs, battery, features, interface, price, power, screen, display, use, shipping, unit, form factor, protection, set, companion, device, works, issues, channels, feedback, voltage].

    Review highlights

    • "This little battery charger is awesome and has some real quality to it." — Adam S.
    • "Impressed with the quality, features and price." — leithalweapon
    • "compact size, bright screen couldn't ask for a better charger other the it should include two xt60 plugs ." — Trevor H.

    Reviews

    Works as expected!

    "Great charger so much so I purchased a 2nd after I broke the screen on my first one."

    — Michael B. (5/5)

    "REALLY NICE CHARGER VERY NICE INTERFERANCE CAN CHARGE BOTH BATTERIES AT ONE TIME"

    — Recuenco, (5/5)

    Nice charger

    "Highly recommend. I had the isdt charger for years and the scroll wheel was messed up as soon as i started using it."

    — Jason H. (5/5)

    +++

    "+++"

    — GERARDO P. (5/5)

    Ext. Temp. sensor port design flaw. No support.

    "External temperature sensor feature is unusable because the plastic case was designed such as there is not enough room to insert the connectors. Look at attached photo, the key slots for the Futaba connectors stop before the bottom. So I tried using a JR connector without the key tab Futaba connectors have, but it also doesn't fit because the port's 3 side walls also have a step which makes the hole too narrow! only one of those steps is visible in the photo. ToolkitRC often ignored my emails and then stopped responding completely. They gave no solution."

    — flat-earther (1/5)

    Great charger

    "This is the 2nd M6D charger I’ve purchased from GetFPV. They are my go-to chargers for my 5-6S 5000mAh batteries. With the proper power supply they do a great job keeping me flying!"

    — Eric U. (5/5)

    Great small charger!

    "Great small charger!"

    — Alexander H. (5/5)

    Works well with multiple devices.

    "Works well with multiple devices. Charge fast."

    — Vadym F. (5/5)

    Seems to get the job

    "Seems to get the job done. Can't really complain."

    — Jeff W. (5/5)

    Very good

    "Very good"

    — Andri U. (5/5)

    Q&A

    Can I use this with 12v 3A power supply?
    Input voltage for M6D range is 7 to 24 V DC@ max 30 amps so you could use a 12v, 3 A power supply but charging power is limited to 36 watts this means that you can max parallel charge 2 4S 1100 pack at 1 amp or 1 6S pack at 1 amps , my advise is to get a more powerfull supply for around $ 24 at get fpv (Power Supply for Battery Charger - 360w 15A 24V w/ XT60) , hope this help
    How do I charge 2s batteries with XT30 connector with this?
    you will need to get an (xt30female to xt60female adapter), they are rather inexpensive and you can probably find them here.
