ToolKitRC M7 200W 10A 2-6S DC Smart Charger & Diagnostic Tool

ToolKitRC M7 200W 10A 2-6S DC Smart Charger & Diagnostic Tool

$39.99
$39.99
Add To Wishlist
View full details

Details

Description

The ToolkitRC M6 has been reinvented and is better than ever!

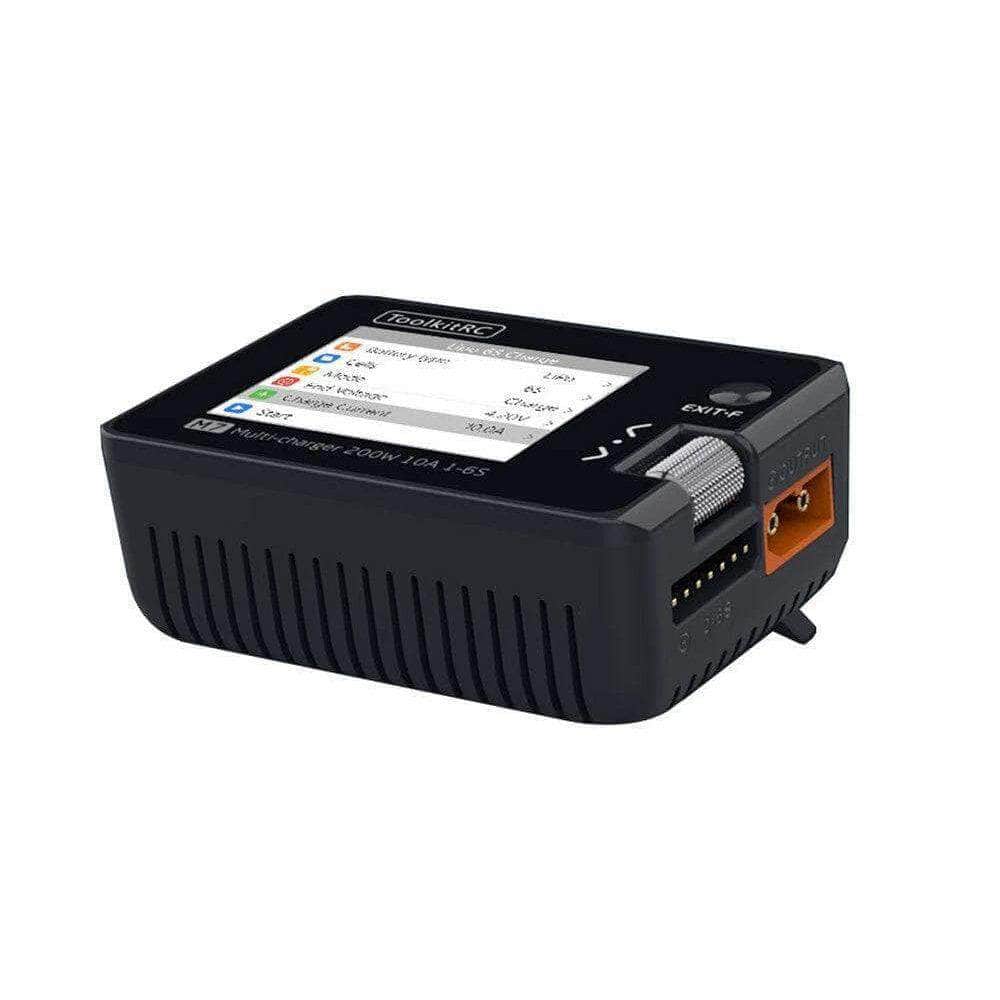

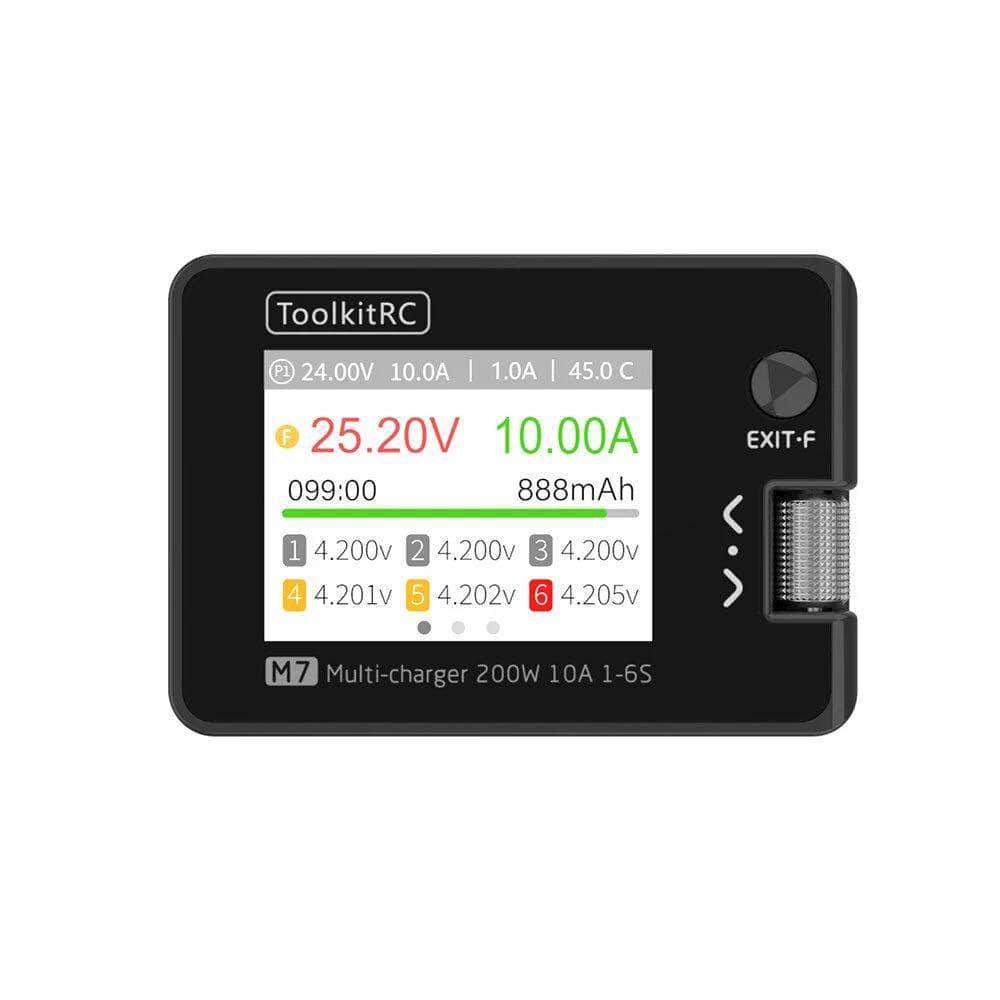

This charger is equipped with a full-color IPS LCD screen that is easily navigatable with its smooth roller selector. The M7 is the same size as its predecessor and is 33% more powerful with a max output of 200W and 10A!

Check out all our chargers and charging accessories and our selection of ToolkitRC products!

Features

  • Battery Charger
  • Cell Checker
  • Servo Tester
  • PWM, PPM.SBUS Input/output & Receiver tester
  • Viable AMP/volt DC Power supply (Required external DC input
  • Lithium battery cut-off voltage can be set (TVC function)
  • Measure battery voltage, internal resistance, balance
  • Measure PWM / PPM / xBUS signal values, Accuracy 1ms
  • Output PWM / PPM / xBUS standard signal, Accuracy 1ms
  • Customizable 1-28V constant voltage, 1-10A constant current
  • Charge the drone battery, activate and charge.
  • Multi-language optional
  • USB 2.1A@5.0V Output，for Mobile devices

Specifications

  • LCD: IPS  2.0inch
  • LCD: 320*240 Pixel

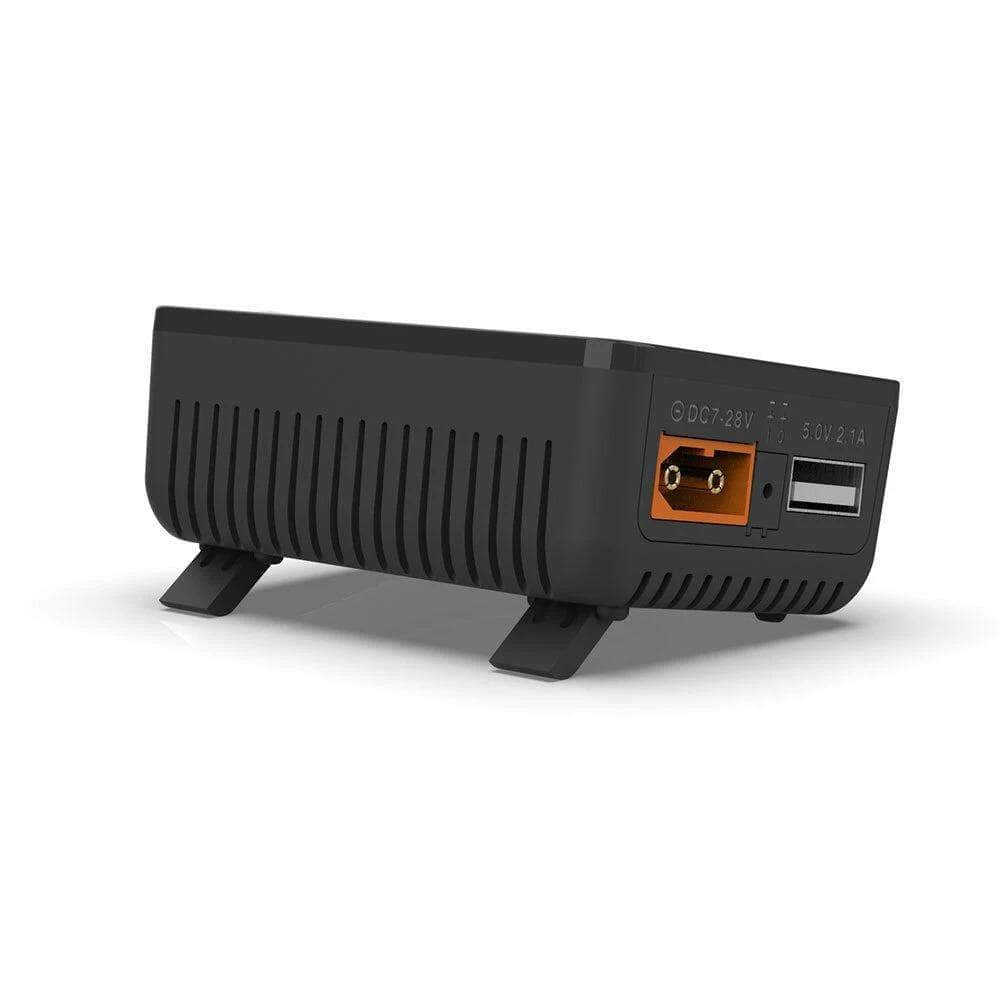

  • Input voltage: 7.0-28.0V  @MAX 12A
  • Type of battery:
    • Lipo  LiHV  LiFe Lion@1-6
    • NiMh @1-16S   Pb @1-10S
  • Balance current: 400mA @2-6S
  • Charger power:
  • 200W @MAX 10A
  • Discharge power:
    • 200W  @MAX 10A Recycle mode
    • 10W@3A Normal mode
  • USB: 2.1A @5.0V or Upgrade
  • Product size: 73*51*27 mm
  • Product weight: 90g
  • Pack size: 84*79*39 mm
  • Pack weight: 150g
Input
  • PWM: 880-2200us @20-400Hz
  • PPM: 880-2200us*8CH @20-50Hz
  • SBUS: 880-2200us*16CH @20-100Hz
  • Voltage: 1.0-5.0V @1-6S
  • Internal resistance: 1-99mR @1-6S
  • ESC: 200W@10A       PWM Output
Output
  • PWM: 500-2500us @20-1000Hz
  • PPM: 880-2200us*8CH @20-50Hz
  • SBUS: 880-2200us*16CH @20-100Hz
  • Power supply: 1.0-28.0V  @1.0-10A  mode:CC+CV
  • OverCurrent Cutoff time: <5ms

Includes

  • 1x ToolKitRC M7 200W 10A 1-6S DC Smart Charger & Diagnostic Tool

More Info

  • SKU: 15906
  • Barcode: 6972969830063


Overall rating: 4.714286 / 5 from 42 reviews.

AI Generated Review Summary

The ToolKitRC M7 200W 10A 2-6S DC Smart Charger & Diagnostic Tool is a highly appreciated portable charger with a full-color IPS LCD screen, praised for its compact design, ease of use, and powerful performance. It is well-regarded for its value and features, making it a great choice for users needing a reliable and efficient charging solution.

Summary topics

  • Charging Performance: 56%
  • Value for Cost: 12%
  • User Interface: 17%

Review topics: ["charger","interface","battery","issues","output","features","power","works","screen","unit","board","checker","tape"].

Review highlights

  • "Overall great features for a small and portable unit!" — Cameron F.
  • "The compact size combined with the easy to use, bright and colorful interface makes it my most used charger." — James M.
  • "It really is an amazing little unit that can charge lipos up to 6s, discharge and storage plus much more." — Atilio A.

Reviews

Good

"Works as intended."

— Sandis A. (5/5)

Works great except for 1 thing.

"its amazingly great actually. i charge everything just fine, i clipped a 90w laptop charger and put on an xt60 connector (i cannot charge full 200w obviously with this power-supply!), but at 1C as recommended by my batteries to charge its great. the ONLY downside is that on my 6S batteries i put on a connector protector for 6s balance leads. which makes them too fat to fit close enough to the Xt60 connection. So i cannot charge MY 6s batteries on this, YOU will be able too, especially if you use a balance breakout board."

— joseph b. (5/5)

Great charger for multiple usage.

"Works as expected."

— Vadym F. (5/5)

Badass charger. I don’t miss my old Q6

"This is a dreamy little charger. I’m glad you had it in stock."

— Todd B. (5/5)

M7 review

"Easy to use and a good way to build out a smart charger from a series or parallel board"

— John M. (5/5)

East to use and safe

"I just got into fpv and this product is perfect! Tells you everything even more info than you need. A recommend this product 🔥"

— Javier S. (5/5)

I love it, I didn't

"I love it, I didn't know that it discharges as well."

— Seth S. (5/5)

Excellent

"Excellent"

— Beann C. (5/5)

M7

"Easy to use menu, have only used it a couple of times. So far satisfied with product. I bought it to use with my 1S batteries to storage charge them in conjunction with the Fractal Engineering Series board."

— Barrett F. (5/5)

Nice field Charger/checker. Recommended!!

"Excellent assistance from Blake and Karthik (GETFPV customer service)"

— Larry B. (5/5)
