Description

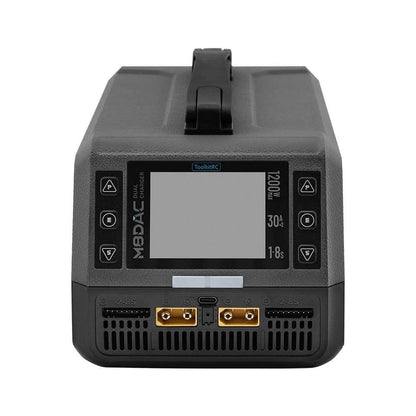

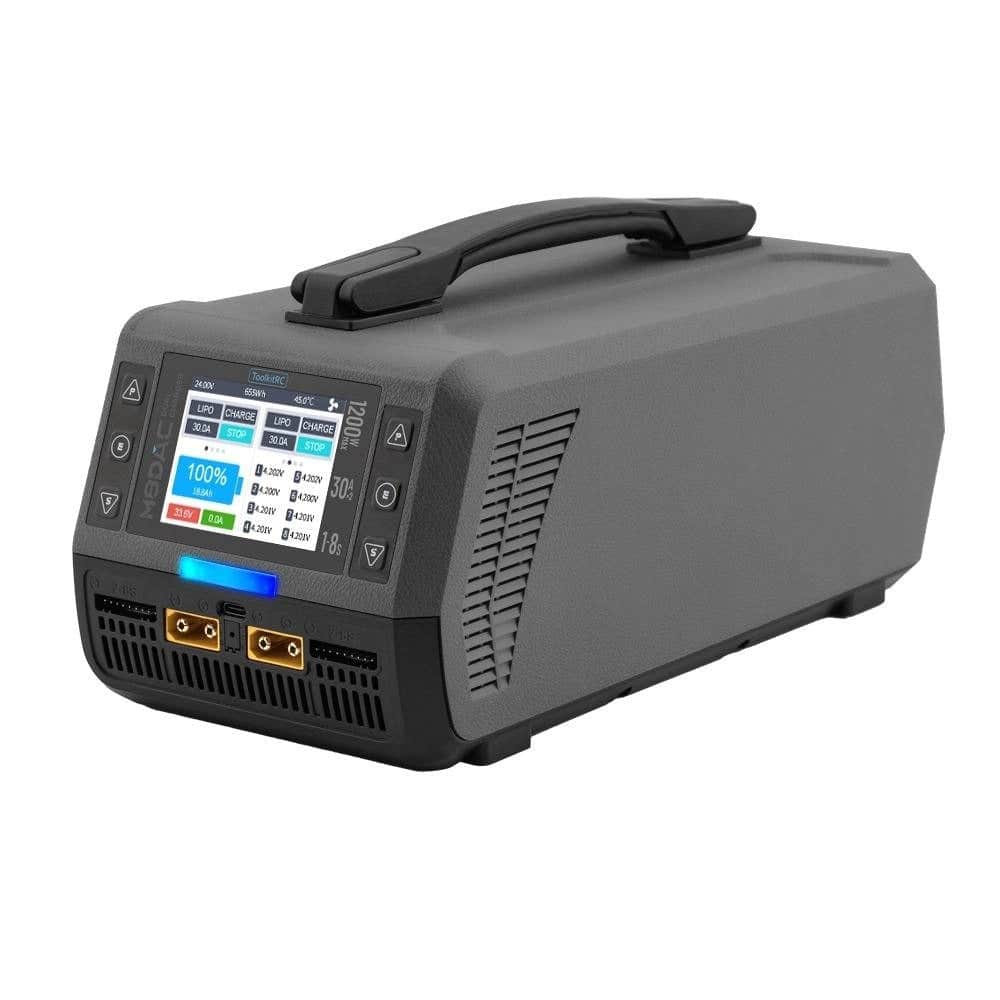

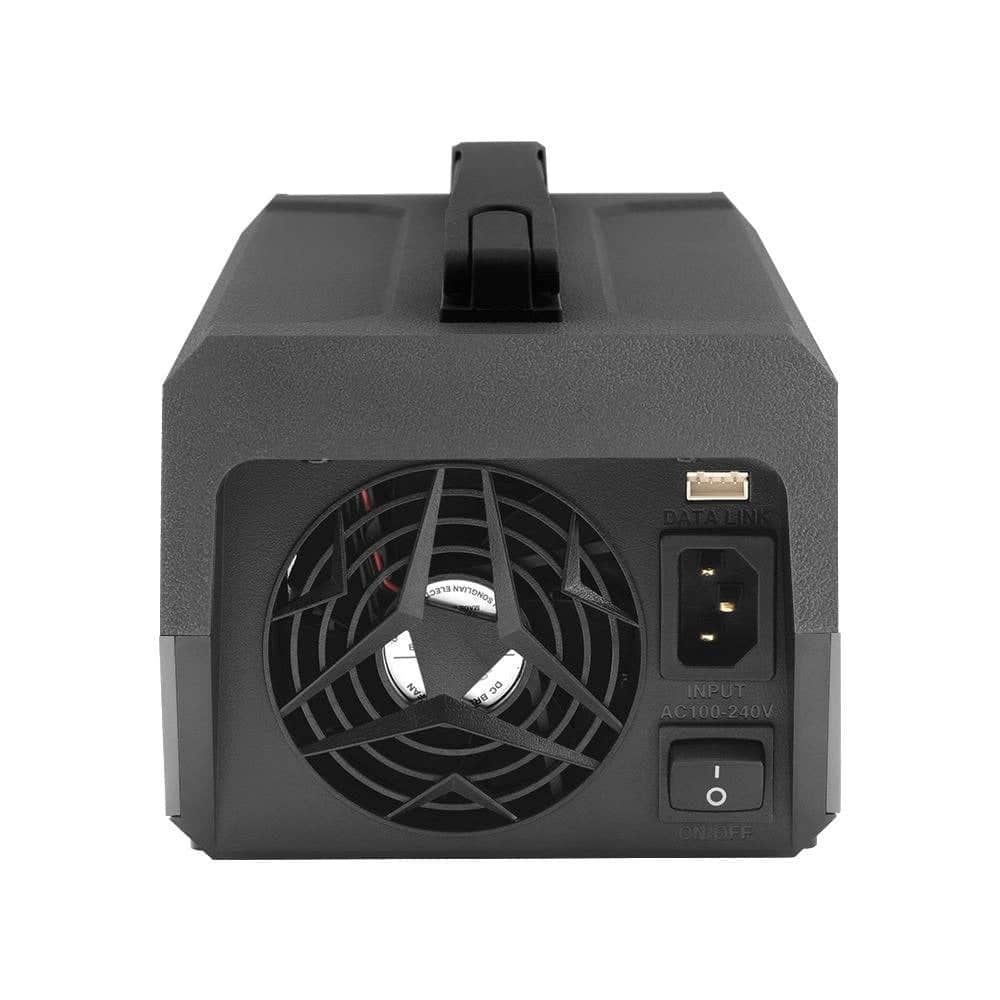

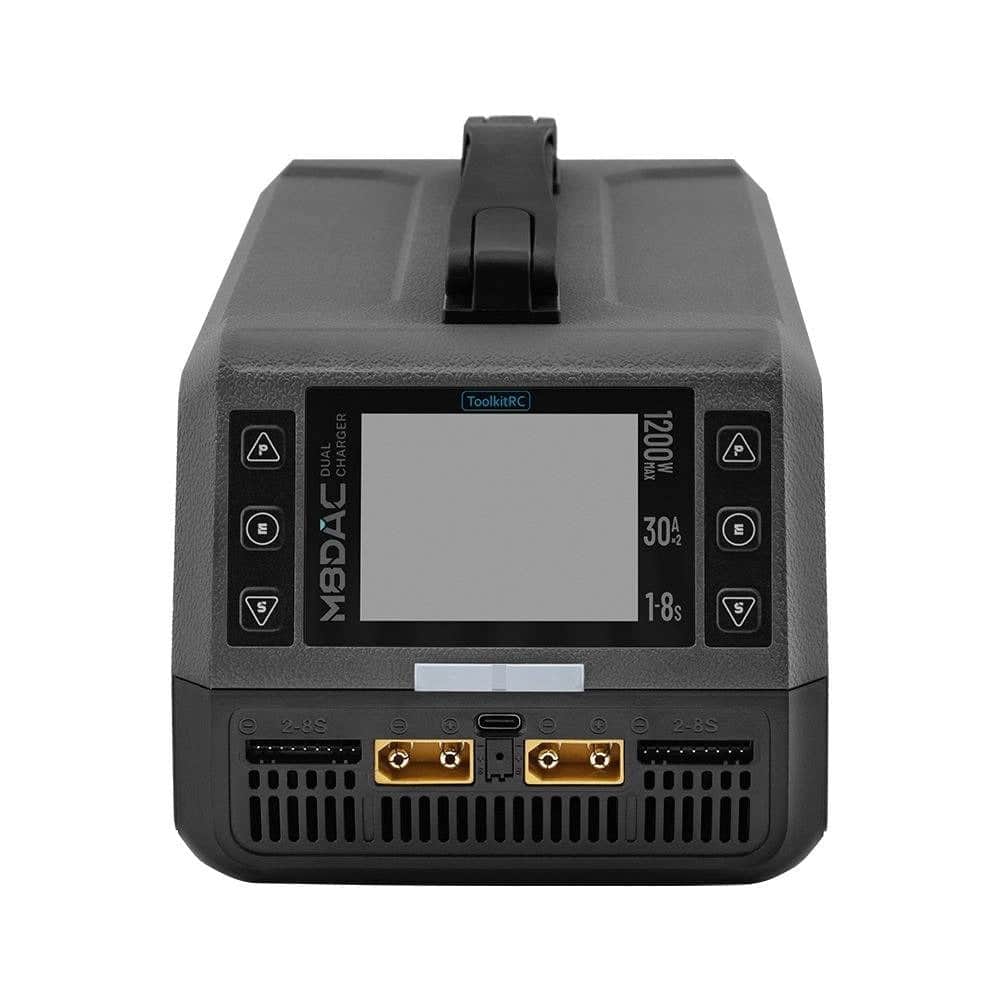

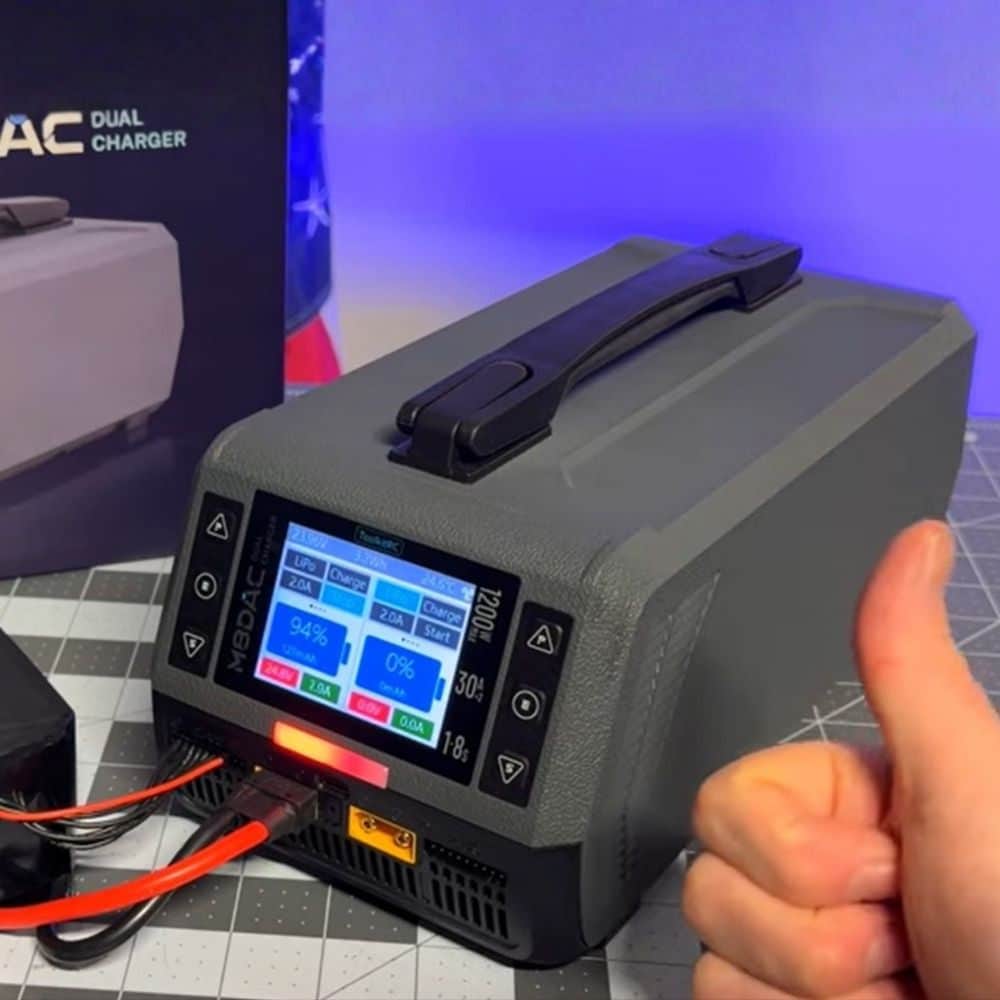

The ToolkitRC M8DAC is a powerful dual-channel smart charger designed for hobbyists and professionals managing high-capacity LiPo/LiHV batteries. It delivers up to 1200W of total charging power with intelligent distribution across its channels, supports 1-8S packs, and includes precise balance, storage, and discharge functions for comprehensive battery care. Featuring a bright 2.8″ IPS display, dynamic status indicators, and robust safety protections, the M8DAC makes monitoring and controlling your charge sessions easy and efficient.

Check out our other Battery Chargers and Accessories, and all our ToolkitRC products!

Features

• Powerful dual output, with smart power distribution

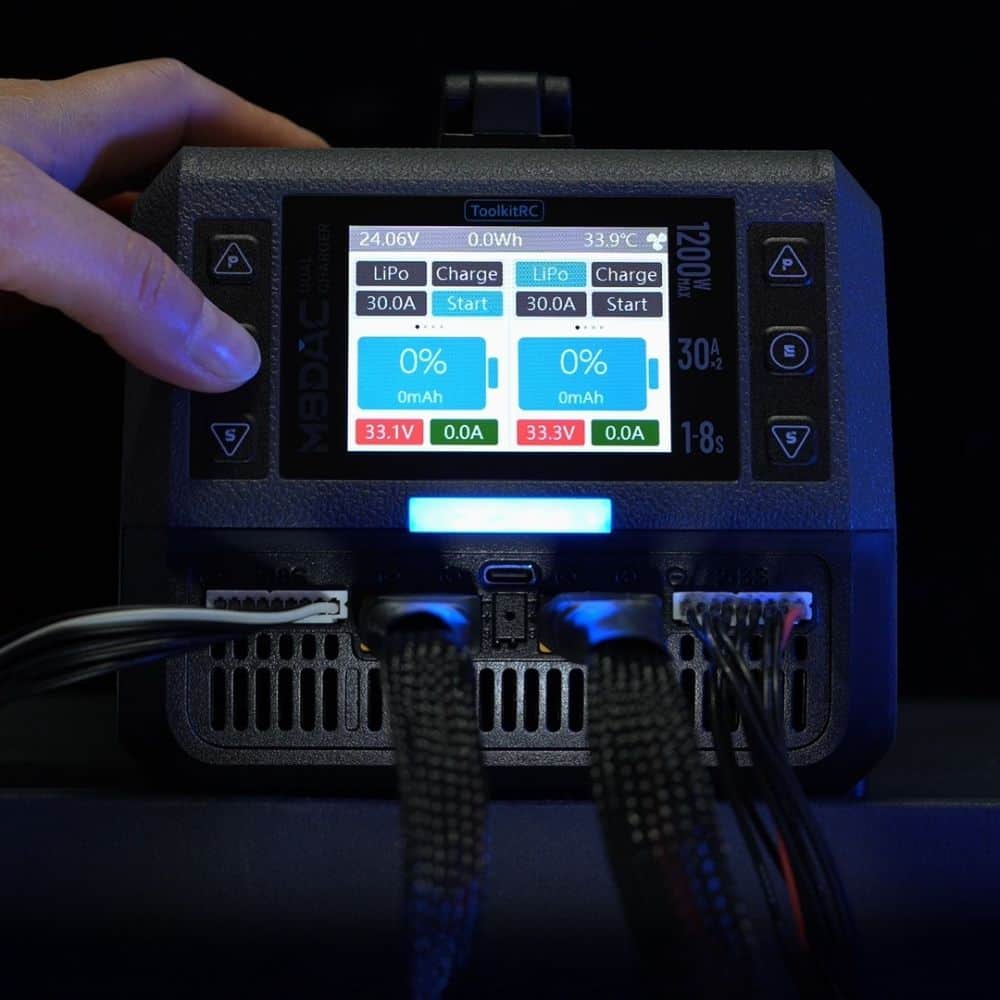

• Simple & comprehensive UI with 2.8″ IPS display
• 65W fast charger

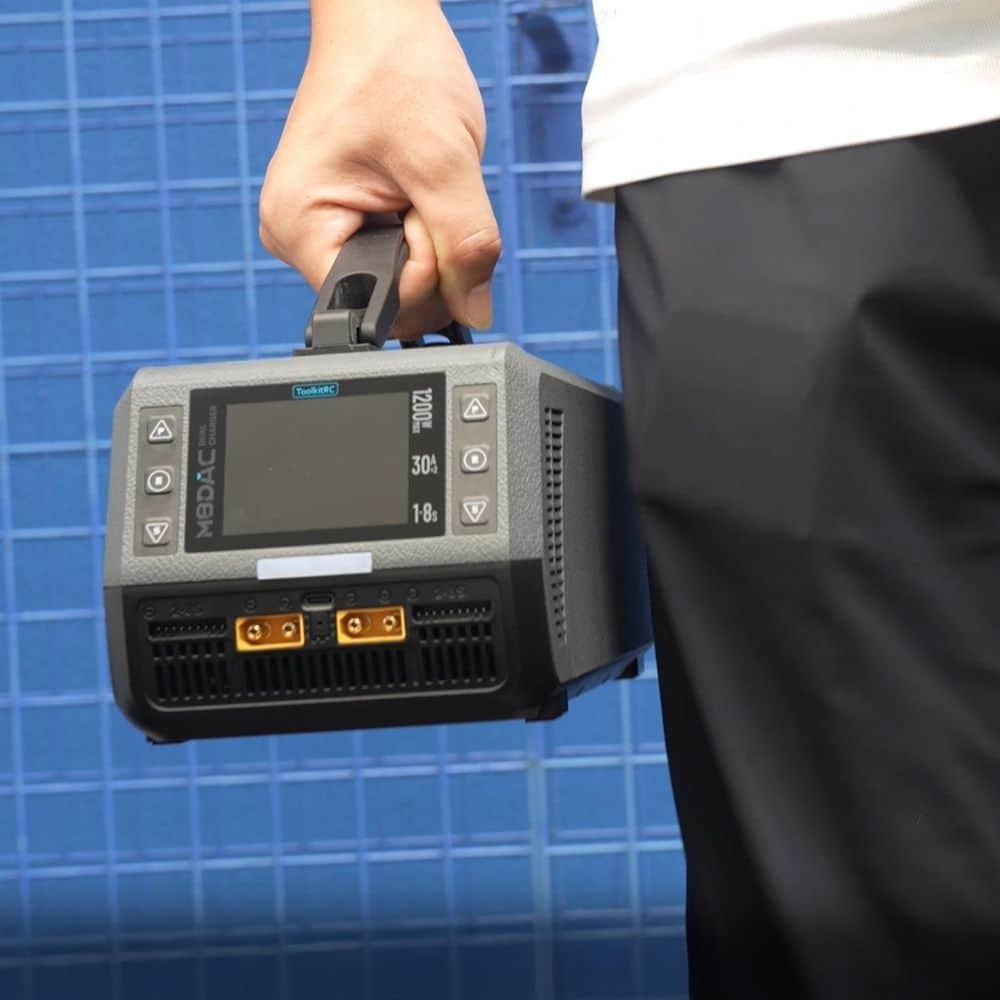

• Convenient carrying handle
• Dynamic light strip indicates real-time charging status
• Automated fan speed adjustments
• Short Circuit Protection / Voltage Protection / Reverse Polarity Safeguard / Current Protection / Capacity Protection / Temperature Protection / Time-Out Protection / Cut-Off Protection / V0 Flame-Retardant
• 100-240V wide voltage input, adaptable to global voltage standards

Specifications

• Input Voltage: AC 100-240V @ MAX 1300W
• Battery Type: LiPo LiHV@ 1-8S
• Charging Power: 1.0-30.0A @ 600W×2 ASYC; 1.0-50.0A @ 1200W SYNC
• Discharging Power: 1.0-5.0A @ 50W×2 ASYC; 1.0-10.0A @ 100W SYNC
• Balance Current: 2000mA @4.2V
• Type-C Output: 5-20V@ 65W PD/QC/PPS/AFC/SCP
• Internal Resistance: 1mΩ-9.9Ω @1-8S
• Output Connector: 2x XT90 male port; 1x Type C
• Dimensions: 280 x 138 x 142mm
• Weight: 2350g

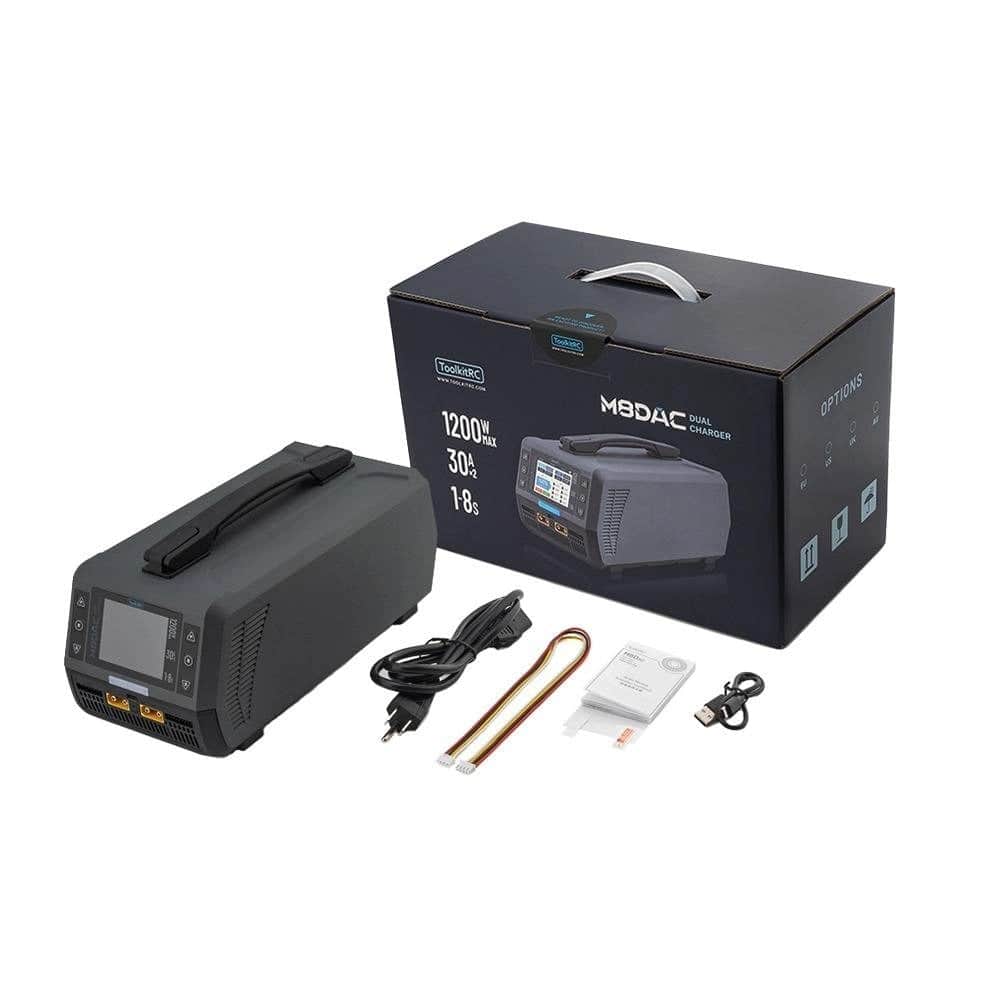

Includes

• 1x ToolkitRC M8DAC 1200W 50A Dual Output Charger
• 1x AC Input Cable
• 1x USB Cable
• 1x Signal Cable
• 1x Quick Manual
• 1x Screen Protector
