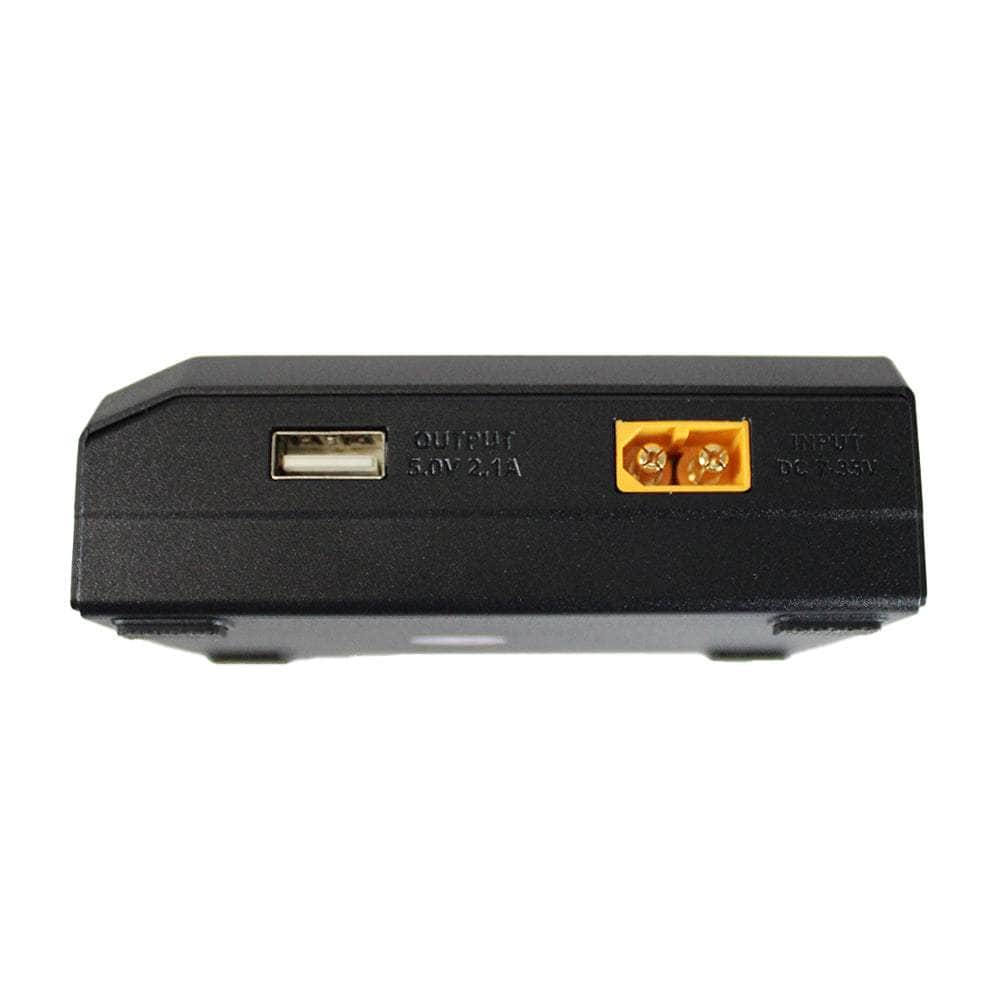

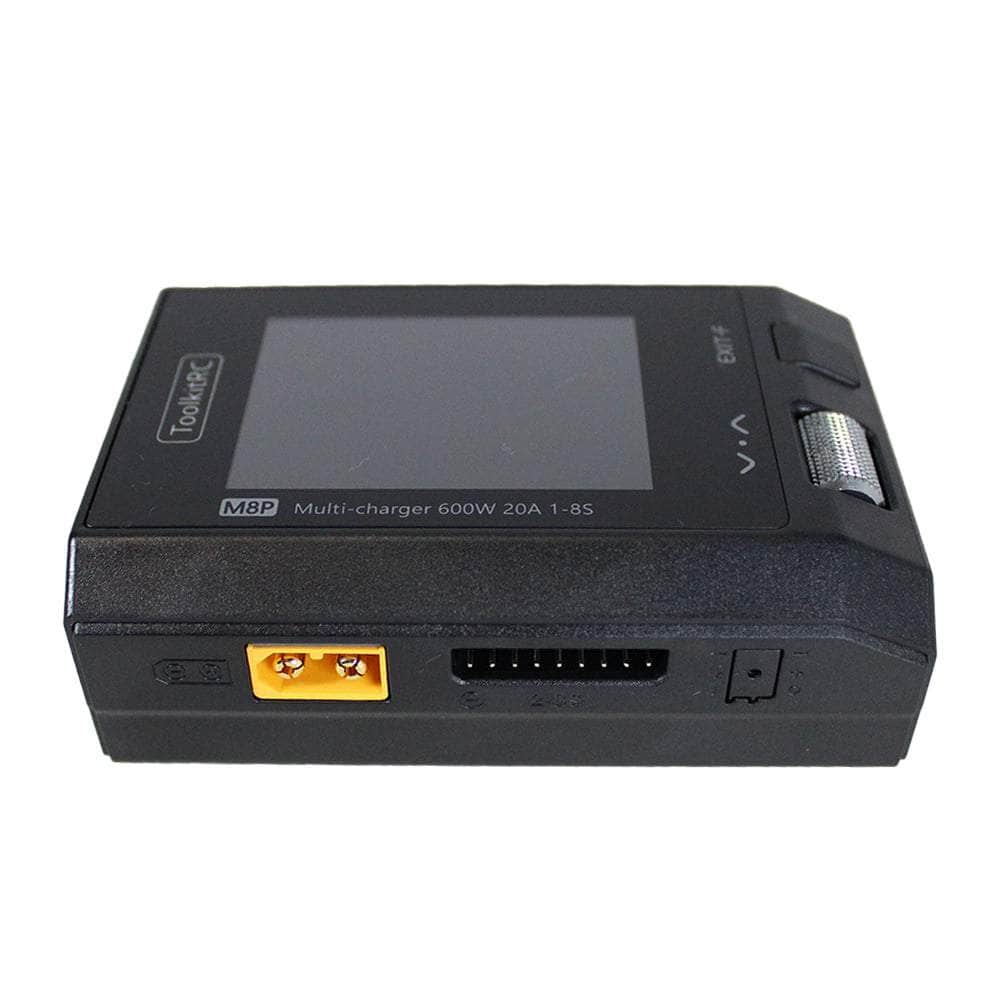

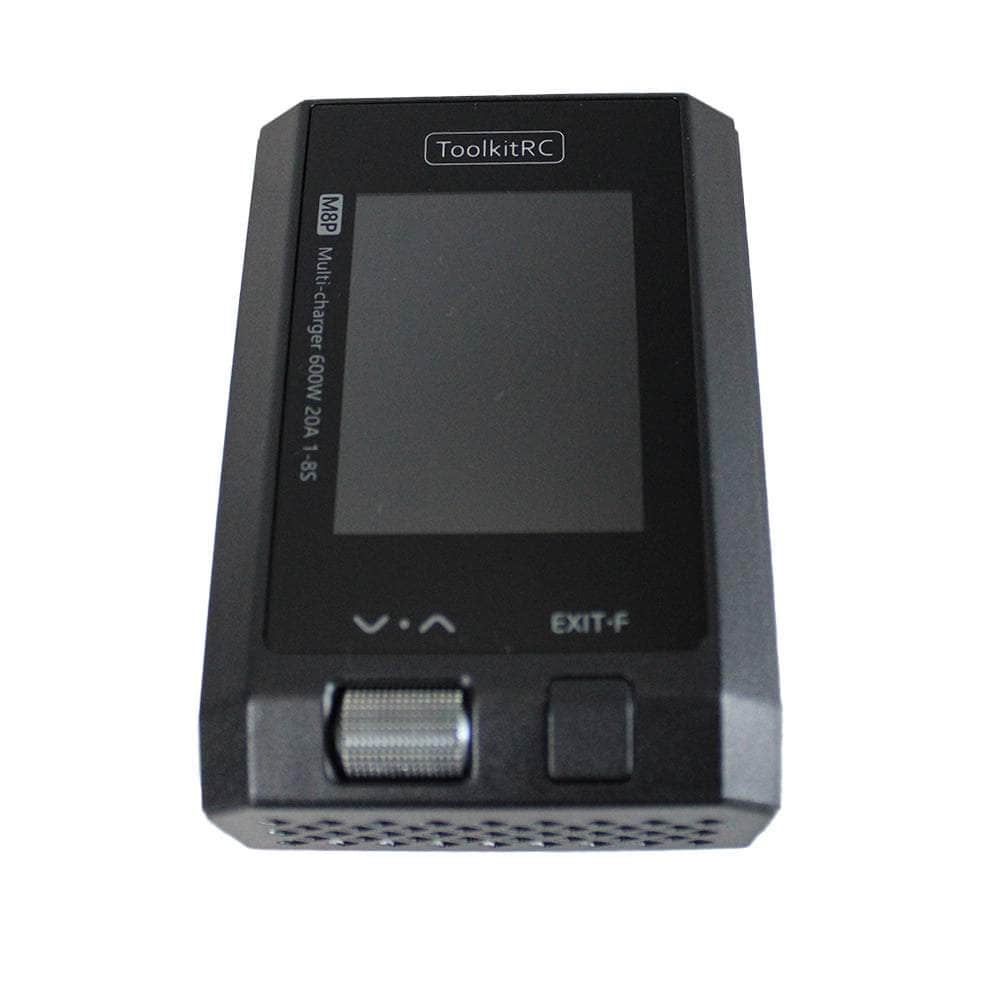

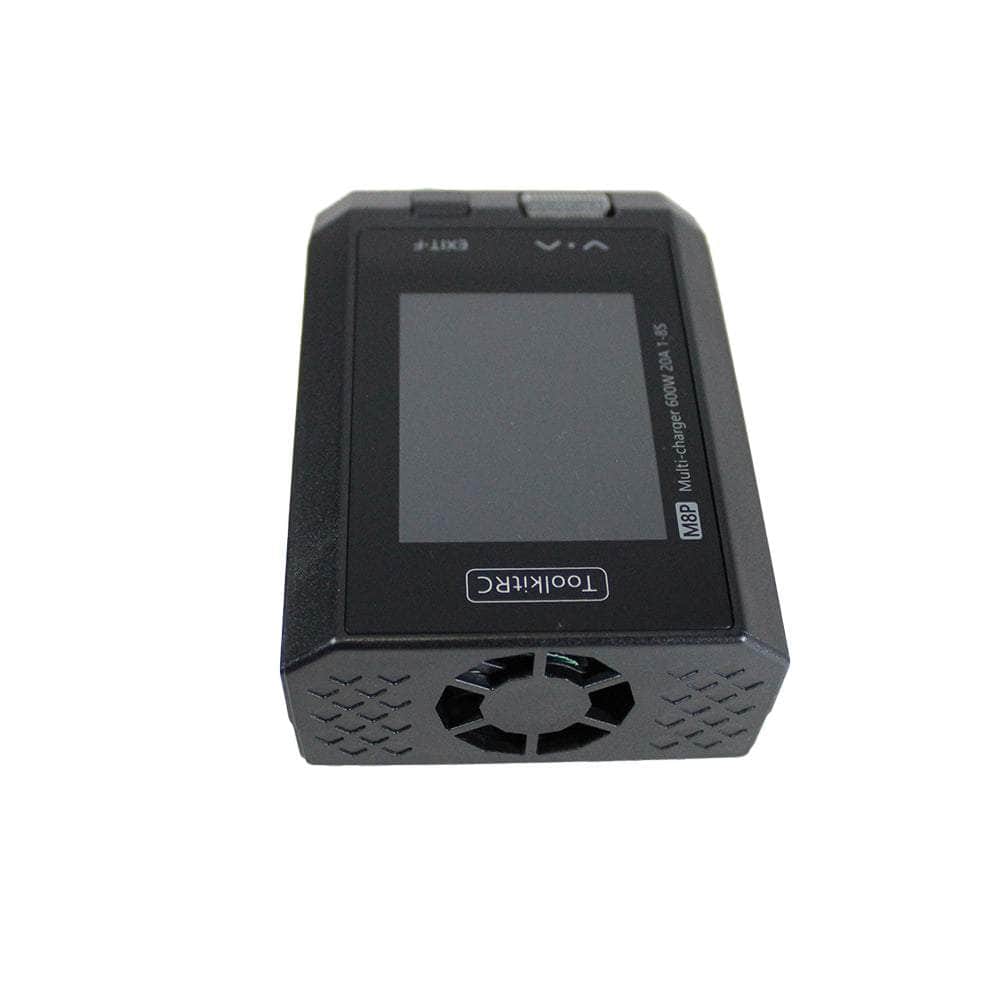

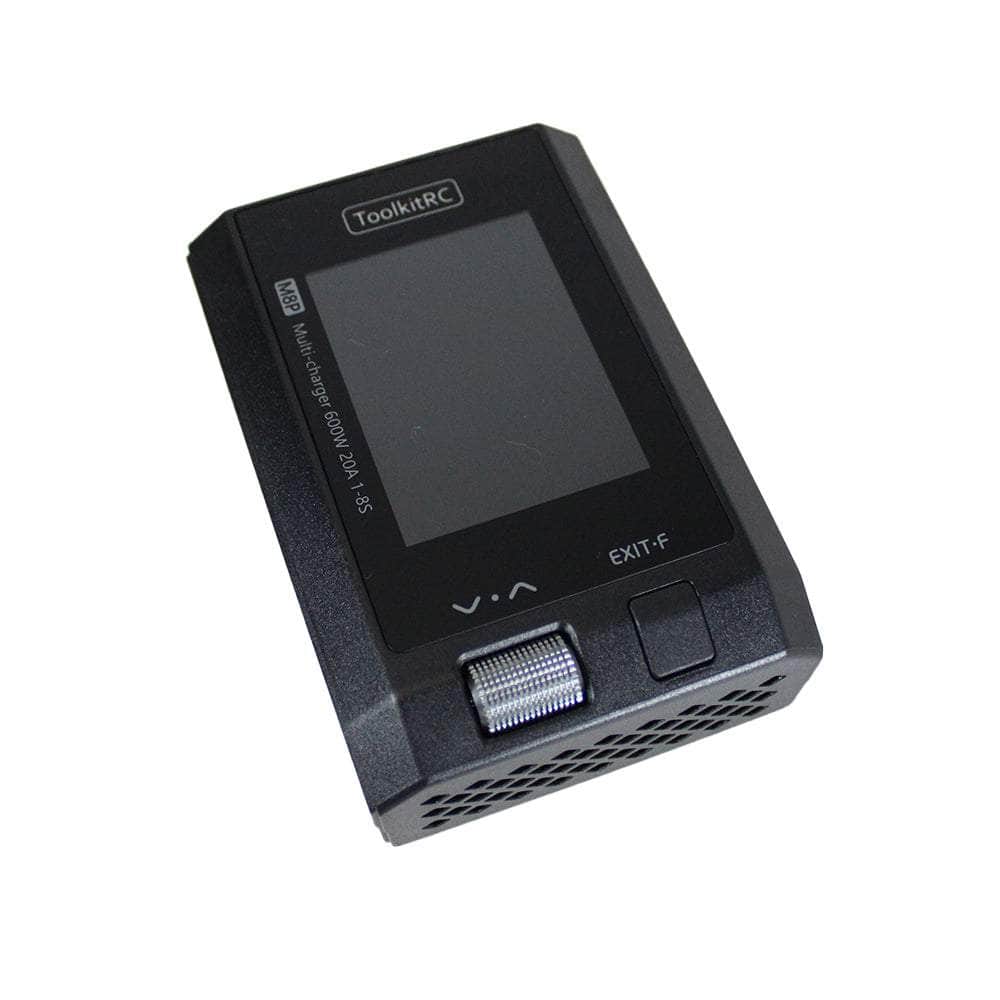

The ToolKitRC M8P DC charger is an essential tool for all your battery needs. With a 600W power output and a balance charge of 1-8S, you'll be able to charge all types of batteries quickly and efficiently. The XT60 connector ensures you can charge quickly and safely.
Check out our other Battery Chargers and Accessories, and all our ToolkitRC products!
Specification
Charging
- Input 7-35V: @MAX25A
- Battery Type: LiPo LiHV LiFe Lion LTO @ 1-8S NiMh @1-20S Pb @1-10S
- Charging Power: 0.1-20A@600W
- Discharging Power: 0.1-20A @ 600W Recycle External
- Discharging Power: 0.1-3A @ 20W Normal mode
- Balance current: 1000mA@4.2V
- USB: 5.0V @ 2.1A upgrade
Measuring
- PWM: 880us-2200us @20-400Hz
- PPM: 880us-2200us*8Ch @20-50hz
- SBUS: 880us-2200us*16ch @20-100Hz
- Voltage: 1.0V-5.0V @1-8S
- IR: 1-99mR @1-8S
- ESC: 1-20A@1-35V MAX600W
Output
- PWM: 500us-2500us @20-1000Hz
- PPM: 880us-2200us*8ch @50hz
- SBUS: 880us-2200us*16ch @74Hz
- Power: 1-20A @ 1-35V Mode: CC+CV
- LCD Display: 2.4 IPS RGB 320x240 pixel
Dimensions
- Product size 100x71x34mm
- Product weight 200g
Includes
- 1x ToolKitRC M8P 600W 20A 1-8S Balance DC Charger - XT60
