Description

Introducing the ToolkitRC M9 Multifunctional Charger! Not only is this charger capable of handling all you charging needs, it also functions as a signal source & signal tester!

Check out all our chargers and charging accessories and our selection of ToolkitRC products!

Features

• Customizable Voice Alerts and Welcome Screen
• DC Output - 600W 2-8S Capable

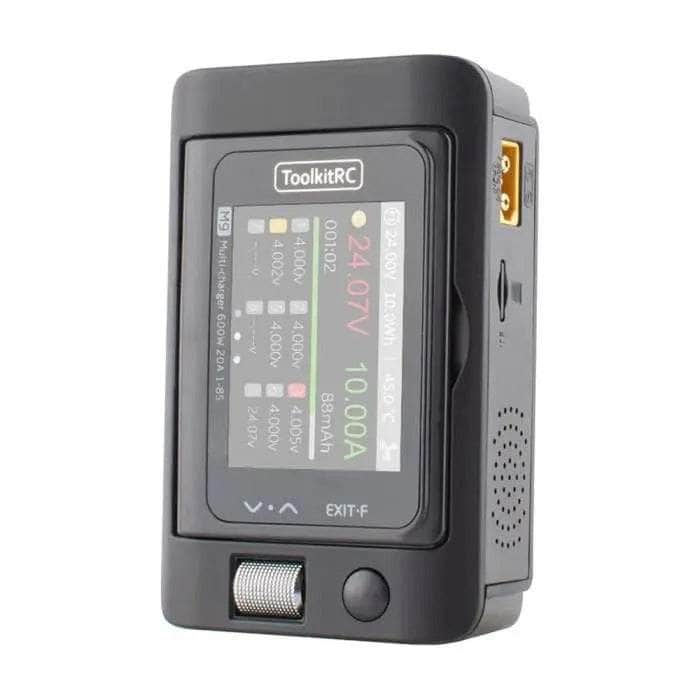

• 2.4" Multi-Angle Color Display
• Dual USB Fast Charging
• Balance Charger
• Signal Source
• Battery Meter
• Signal Tester
• Watt Meter

Customizable voice alerts and welcome screen

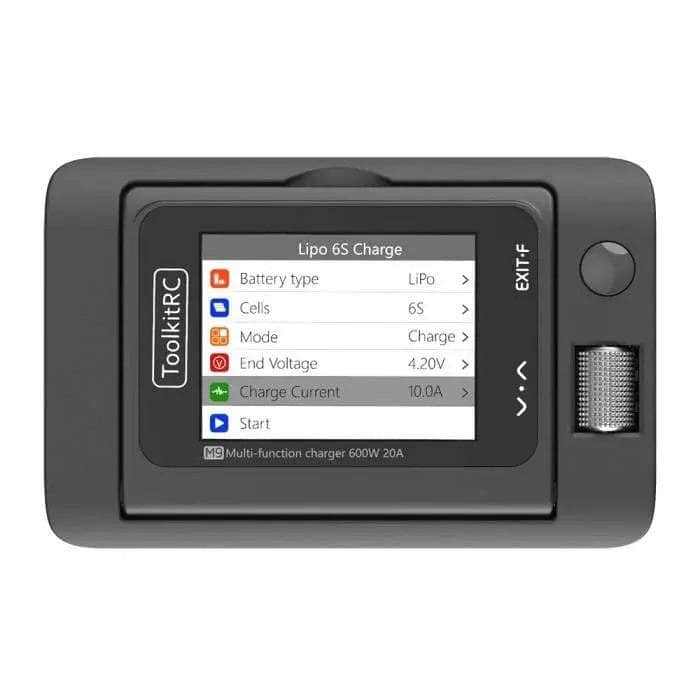

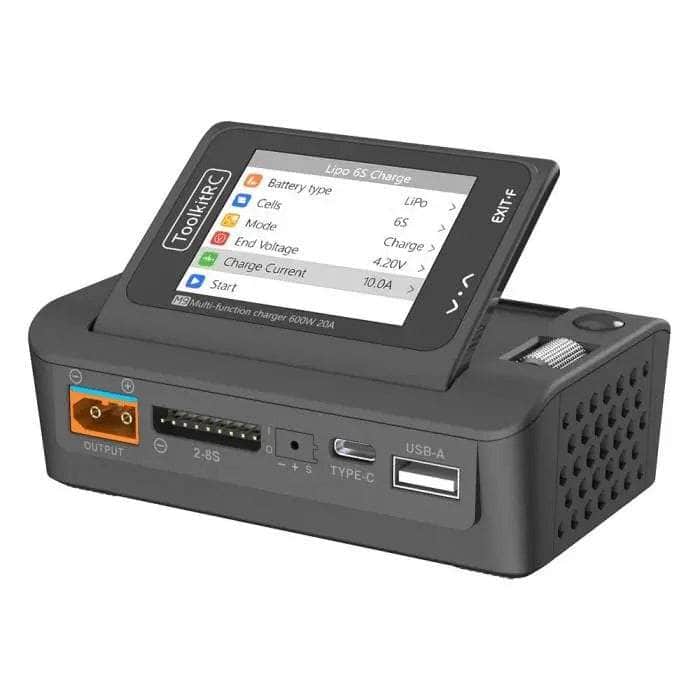

Multi-angle display

0-85 degree screen angles for easy viewing

Massive 600W output

2-8S capable, with automatic cell balancing

Dual USB fast charging

65W maximum USB-C/USB-A output for mobile devices

All in one functionality

Declutter your work space with this true multi-functional device

Specifications

Charger

• Input voltage: 7.0-35.0V @MAX 25A
• Battery type: Lipo LiHV LiFe Lion LTO@1-8S / NiMh @1-20S Pb @1-10S
• Balance current: 1000mA @ 4.2V
• Charging power: 600W @MAX 20A
• Discharge power: 600W @MAX 20A Recycle mode / 20W@3A Normal mode
• USB: 65W@5.0-20.0V or Upgrade by USB-A

Measure

• PWM: 880-2200us @ 20-400Hz
• PPM: 880-2200us x 8CH @ 20-50Hz
• SBUS: 880-2200us x 16CH @ 20-100Hz
• Voltage: 1.0-5.0V @ 1-8S
• Internal resistance: 0.1 mR-99R @ 1-8S
• ESC: 600W @ 20A

Output

• PWM: 500-2500us @ 20-1000Hz
• PPM: 880-2200us x 8CH @ 20-50Hz
• SBUS: 880-2200us x 16CH @ 20-100Hz
• Power supply: 880-2200us x 16CH @ 20-100Hz
• Overcurrent response: <5ms

General

• Product size: 108*71*36mm
• Product weight: 235g
• Packing size: 135*81*44mm
• Packaging weight: 330g
• LCD: IPS 2.4 inch LCD 320*240

M9 DOWNLOADS

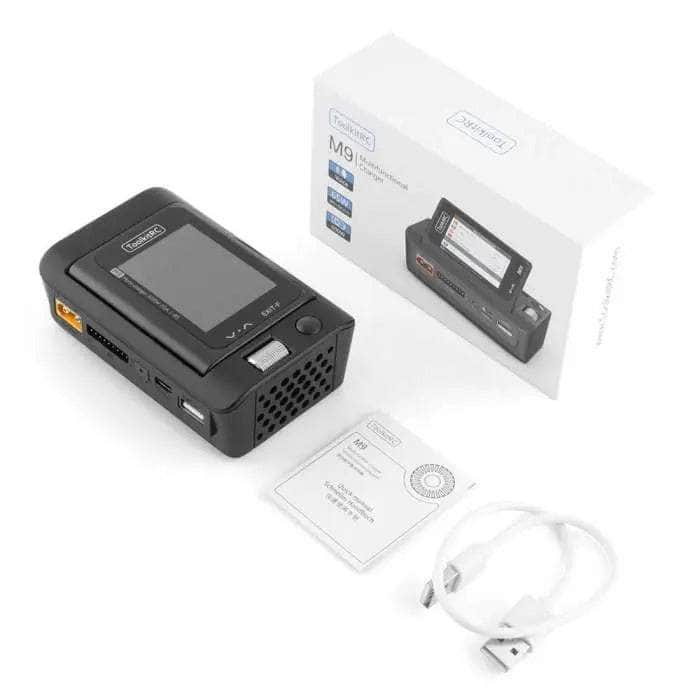

Includes

• 1x ToolkitRC M9 600W 20A Multifunctional Charger
