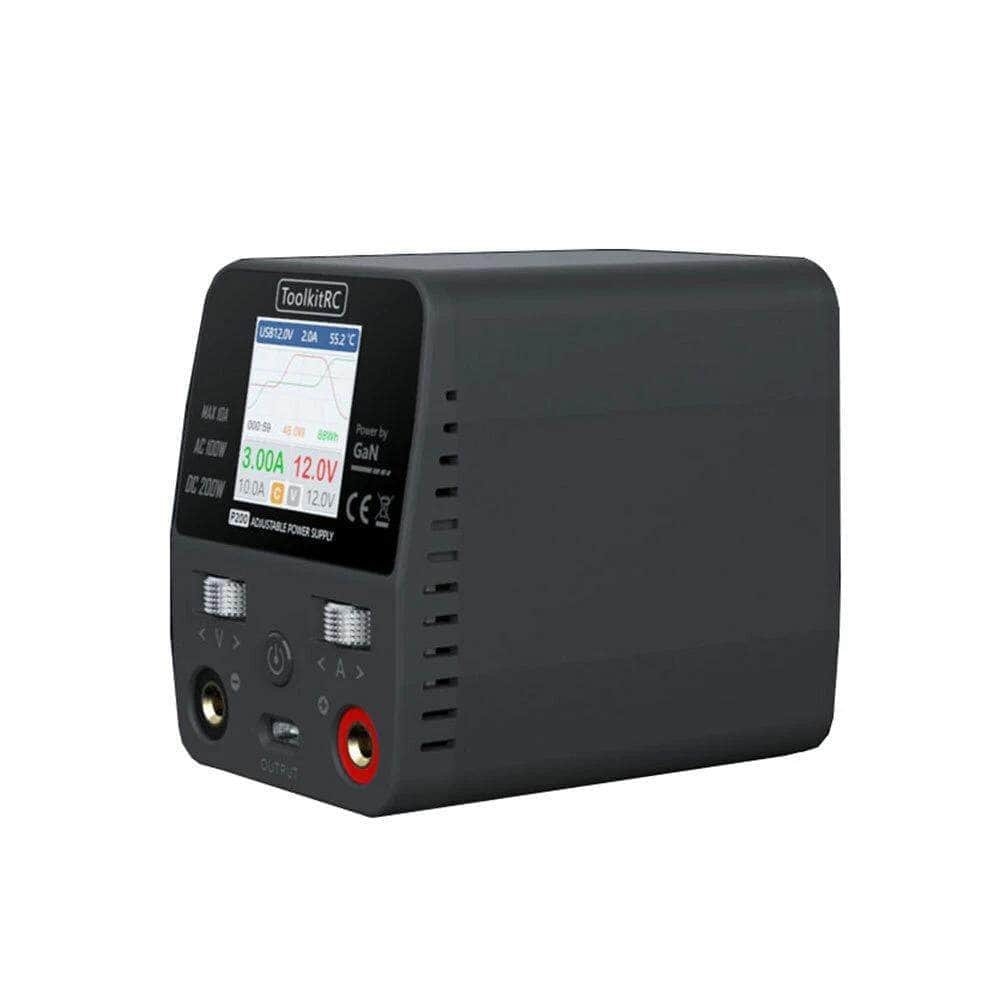

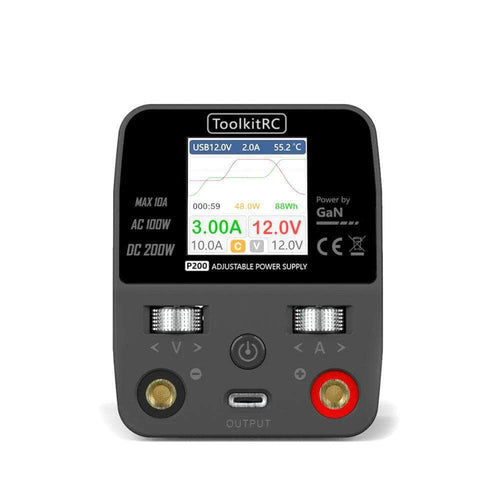

ToolkitRC P200 V2 Mini 30V 10A 200W Adjustable Power Supply - XT60

ToolkitRC P200 V2 Mini 30V 10A 200W Adjustable Power Supply - XT60

Regular price $95.99
Sale price $95.99 Regular price
In stock
In stock
Add To Wishlist
View full details

Details

Description

Advanced charging protocols require a USB-C to USB-C cable (not included)

This extra small power supply has a whopping 200W and the V2 has loads of features. It is a high quality fully adjustable power supply that will deliver the voltage and amperage you need with accuracy. The USB output supports multiple protocols along with data transfer.

Check out all our Chargers & Charging Accessories and all our ToolkitRC products!

ToolkitRC P200 V2 Mini 30V 10A 200W Adjustable Power Supply - XT60

Specifications

PARAMETER

  • Protection time: <1ms (Short circuit, OC ,OV)
  • TYPE-C output: 5.0-20.0V @MAX 65W
  • Control cycle: 8ms
  • TYPE-C protocol
  • PD 3.0/PD2.0/PPS/QC4/QC3.0/QC2.0
  • AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
  • Main output
    • 1.0-10.0A @MAX AC 100W / DC 200W
    • 1.0-30.0V @MAX AC 100W / DC 200W

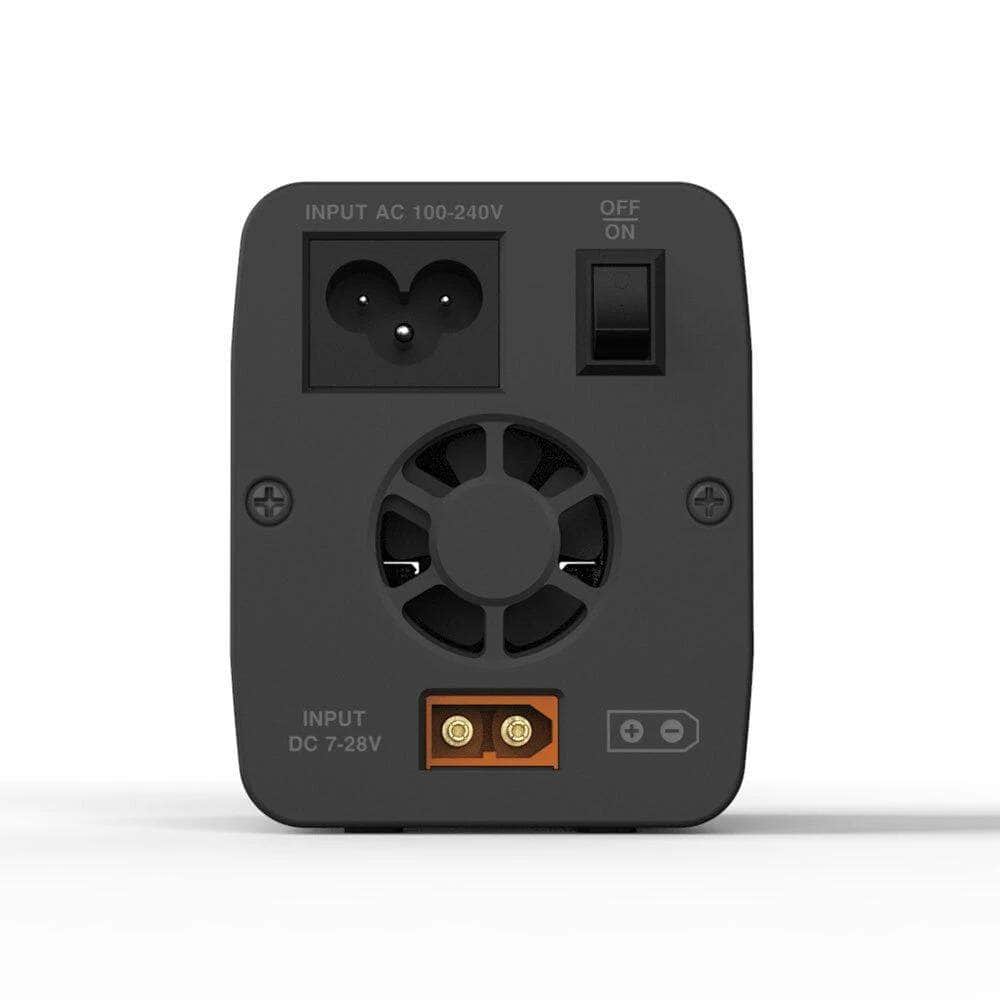

  • Input voltage
    • DC 7-28V@MAX 10A 200W
    • AC 100-240V@MAX 100W



GENERAL

  • USB port: TYPE-C Fast charge ci; upgrade
  • Main port: 4.0mm banana female port
  • LCD: IPS 1.54" 240x240 resolution
  • Product size: 110x63x78 mm
  • Pack size: 160x150x73 mm
  • Product weight: 360g
  • Pack weight: 670g

Includes

  • 1x ToolkitRC P200 V2 Mini 30V 10A 200W Adjustable Power Supply - XT60

More Info

  • SKU: 21994
  • Barcode: 6972969830346


Overall rating: 4.142857 / 5 from 7 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["fit","power","psu","lipo"].

Review highlights

Reviews

Love this little thing.

"Does exactly what I need it to do and fits perfectly on my desk. It does come with an XT60 to banana plug now which is nice but you will have to buy/make one for any other one. So far this thing is great."

Mike R. (5/5)

Stopped working after about a year

"This stopped providing constant voltage after about a year of light use."

Michael (1/5)

It's tiny and works great

"It's tiny and works great 👍"

John T. (5/5)

Great compact power supply!!

"Fits nicely on my desk without taking up too much space. Great when a lipo is not readily available to charge your goggles or quad, or anything else,"

Salman J. (4/5)

Works great, very handy to

"Works great, very handy to finally have a power supply on my bench"

Christopher J. (5/5)

Great for what I got this for

"Binding receivers and testing components during a build. Perfect for my use."

Marc P. (5/5)

Great little desktop PSU

"Almost perfect little desktop PSU. Great for testing and substituting lipos. The convenience of not worrying about running a lipo down whether it's a 1S 200 mAh, 4S 10000 mAh, or 6S 5000 mAh. The only downside was trying to calibrate the input/output voltages. It took some time to try and calibrate them to match my multimeter, but once I finally did I can finally feel rest assured that the voltages set are correct as mine was off about 0.2V. If only this could support more than 10 amps then it would probably be the perfect little desktop PSU...even if it was bigger."

Danny (4/5)
