Description

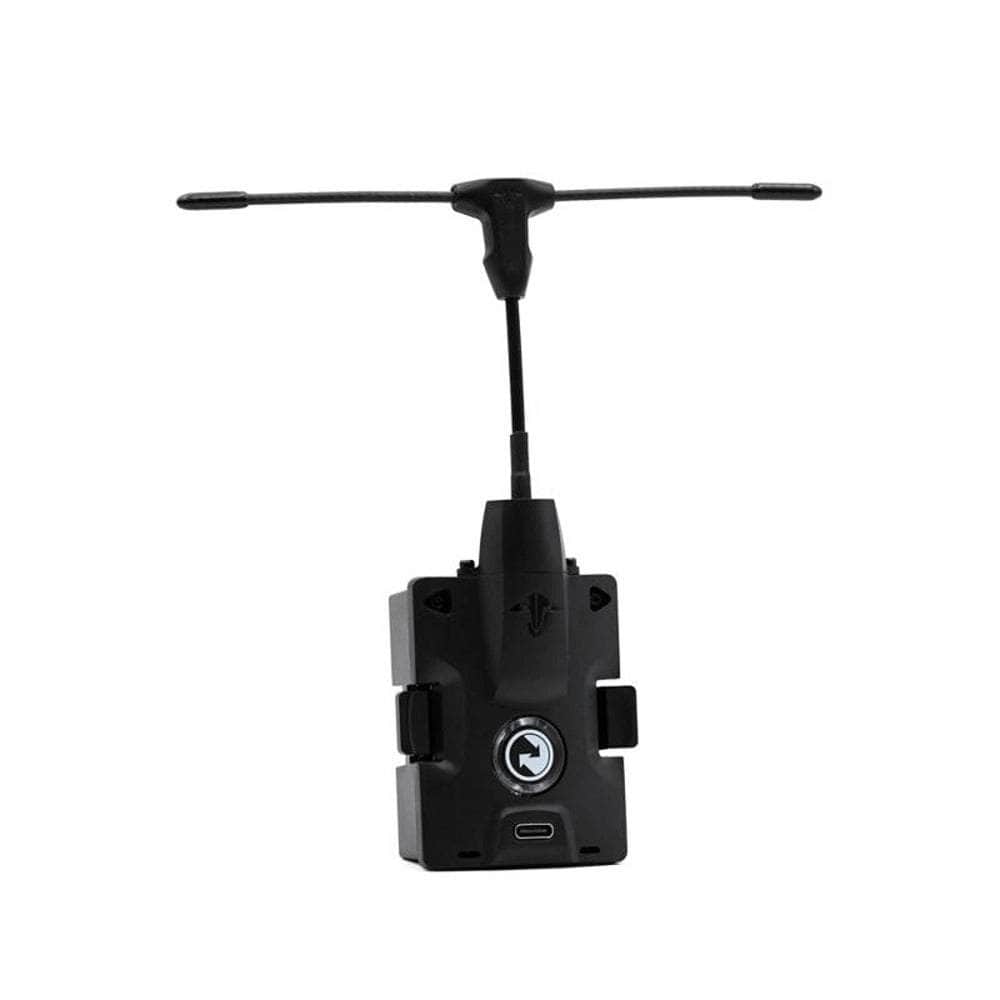

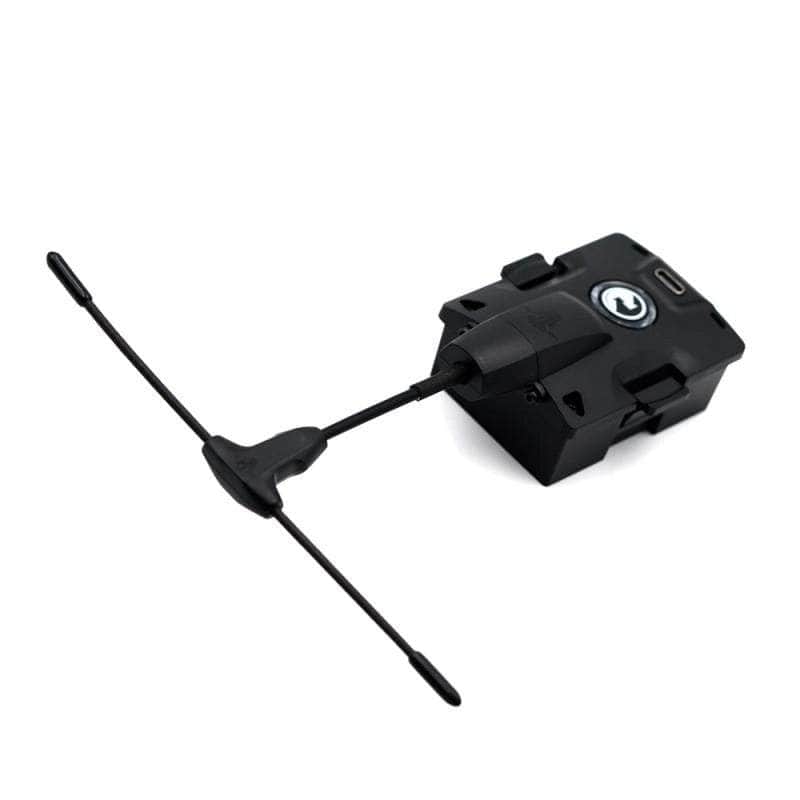

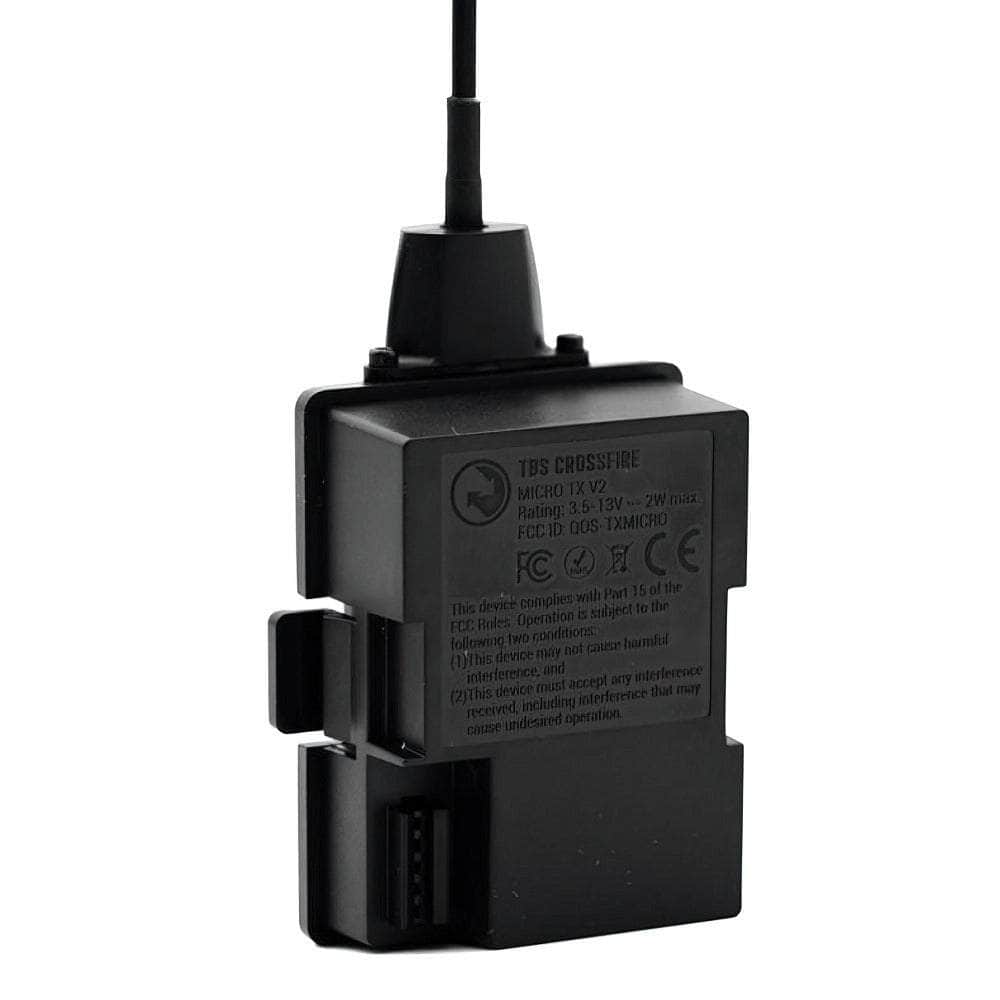

The NDAA Version of the Triumph Crossfire Micro TX Module V2 pushes the boundaries of long-range R/C technology, delivering self-healing, two-way communication, and range beyond imagination. Built on cutting-edge RF technology with -130dB sensitivity and full RF-side diversity, it ensures a rock-solid control link — even for the tiniest FPV quads. The Triumph Crossfire prioritizes low latency, real-time telemetry, interference resistance, and user-friendly setup, striking the perfect balance between performance and reliability. With a range to spare, it leverages that extra capacity for enhanced functionality — making it more than just a long-range link. NDAA-Compliant for added security and compatibility.

Check out everything NDAA Compliant and all of our RC Transmitters!

Features

• Easy Binding & Configuration
• Multiple Channel Outputs
• Two-Way Communication
• Compact Micro-Receiver
• Self-Healing Technology
• Multi-Pilot Capability
• Adjustable RF Power
• Link Health Indicator
• Adaptive Bandwidth
• Long-Range Control
• Ultra-Low Latency
• Receiver Options
• NDAA Compliant
• Noise Immunity

V2 Updates

• Simplified PCB Design for better performance
• More features will be introduced later
• USB Type-C

BOILED DOWN TO SIMPLICITY

The Crossfire Micro TX V2 borrows core technology from its larger counterpart but is a JR-module transmitter streamlined to the most sought-after features — all at a killer price! For those aiming for extreme long-range flights beyond 15–20 km, the Crossfire TX remains the top choice. However, for pilots looking to penetrate buildings, fly mini quads, or explore their surroundings a few kilometers away, the Micro TX is the perfect companion. It can still reach up to 40 km, just like its bigger brother — but at less than half the price.

TELEMETRY/CRSF
As a modern R/C link, the Triumph Crossfire has built-in telemetry. Two-way communication unlocks new possibilities — from streaming MAVLink to your smart device (note: MAVLink streaming is not supported for the Crossfire Micro TX!) to updating firmware, setting your video transmitter channel, or adjusting flight control parameters such as PIDs. Adaptive bandwidth dynamically controls transmission speed or optimizes for maximum range. CRSF is a proprietary Triumph communication protocol between the Crossfire and R/C or flight control systems. It delivers ultra-low latency with incredible bandwidth — 3x faster and 6x more data than any comparable protocol! With such tight integration, the Triumph Crossfire is the logical choice for anyone flying Betaflight, KiSS, or ArduPilot/Pixhawk platforms.

Specifications

• Frequency Bands: 868MHz (EU, Russia) / 915MHz (USA, Asia, Australia)
• Power consumption: 1.1W (@10mW) - 2W (@100mW)
• Dimensions: 65 x 48 x 22 mm (JR module size)
• Manufacturer: Triumph Manufacturing
• Input Voltage: 6.0 - 13V
• NDAA Compliant: Yes
• Connector: USB-C
• Weight: 48g

Links

• Latest OpenTX LUA Scripts for Crossfire
• Triumph Crossfire Micro TX Quickstart Guide
• Triumph Agent X (for software updates)
• Triumph Crossfire Manual (German)
• Triumph Crossfire Manual

Includes

• 1x Triumph Crossfire Micro Transmitter - NDAA
• 1x Triumph Crossfire Stock Tx Antenna V2
