Details
Description

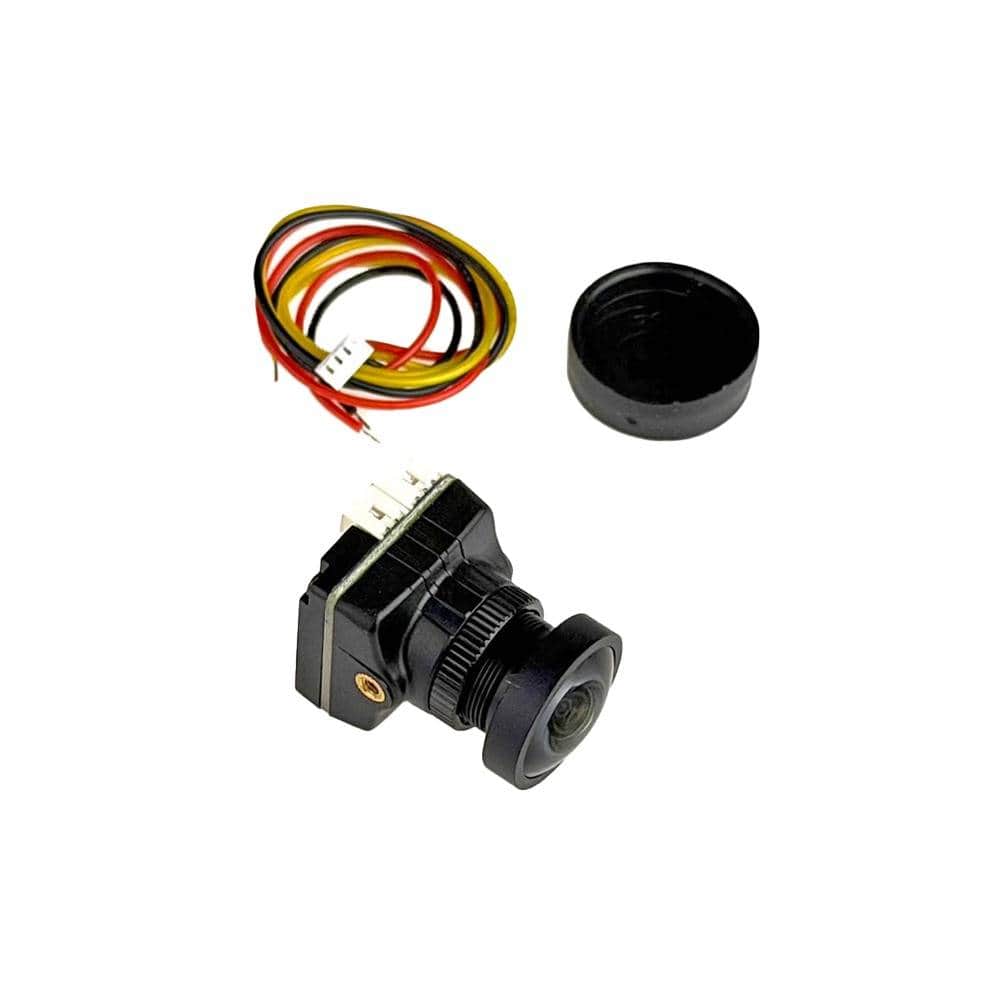

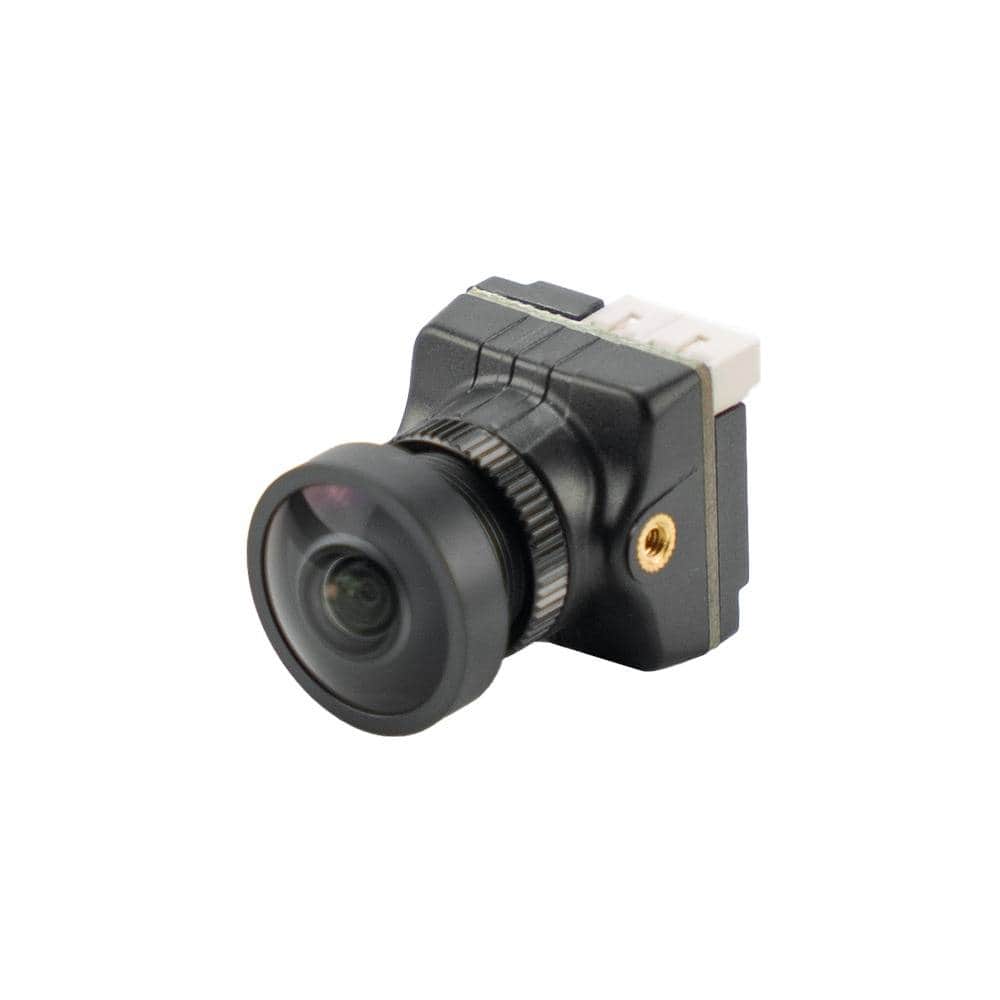

The Triumph Vanguard NDAA Analog FPV Camera is an ultra-high-sensitivity micro camera designed for daytime, low-light, and night sUAS operations. This 19x19mm camera incorporates a 1/2.8" 2MP back-illuminated sensor with starlight night vision capabilities, delivering crisp, high-contrast video feeds in dark environments like abandoned structures, dense canopy, or twilight flights.
Check out all our Mini FPV Cameras and everything NDAA Compliant!
Features
- Back-illuminated starlight sensor maintains image contrast in near-total darkness
- 1000TVL analog video resolution in a micro 19x19mm form factor
- Interchangeable M12 optics fit standard M12 camera lenses and filters for custom FOV requirements
- Built to handle a wide range of 5V-28V input power range
Specifications
- Brand/Manufacturer: Triumph Manufacturing Corporation
- Model Name: Vanguard Analog FPV Camera
- Compliance: NDAA Compliant
- Image Sensor: 1/2.8" 2MP Back-Illuminated Sensor
- Resolution: 1000TVL+
- Light Sensitivity: 11,390 mV/Lux-Second (Starlight Night Vision Effect)
- Signal-to-Noise Ratio (SNR): >50 dB
- Field of View (FOV): 125° Diagonal / 107° Horizontal / 56° Vertical
- Screen Aspect Ratio: 16:9 | 4:3 Switchable
- Video Signal System: NTSC / PAL Switchable
- Lens System: Interchangeable M12 Lens with Tuning Gear
- Power Input Range: DC 5V-28V
- Current Draw: 90mA @ 12V, 250mA @ 5V

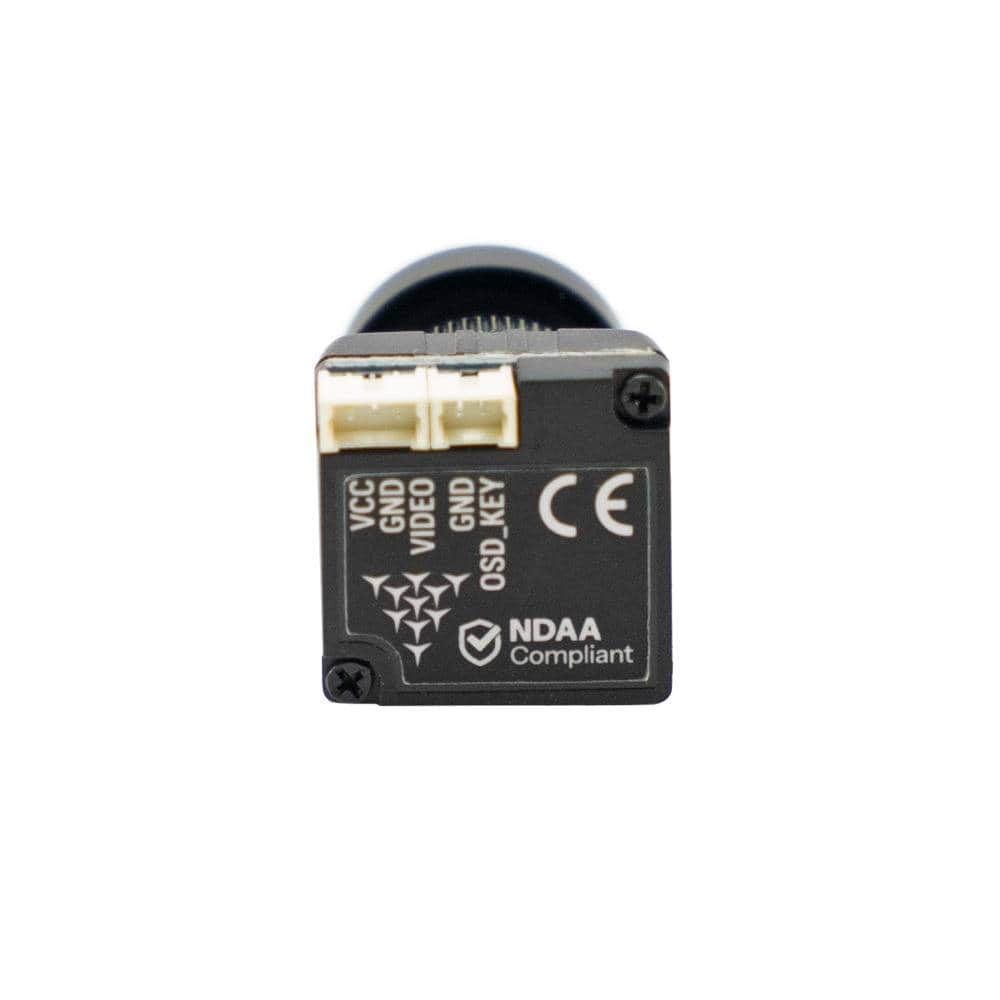

- Integrated OSD: Yes (Joystick Control Interface)
- Body/Casing Material: ABS Plastic
- Mounting Pattern: Standard Micro 19 mm x 19 mm (Dual M2 Side Threading)
- Dimensions: 19 mm x 19 mm x 27 mm
- Net Weight: 8.5 g
Includes
- 1x Triumph Vanguard FPV Camera - NDAA
More Info
- SKU: G25137US1Z
- Barcode: 723326381690
