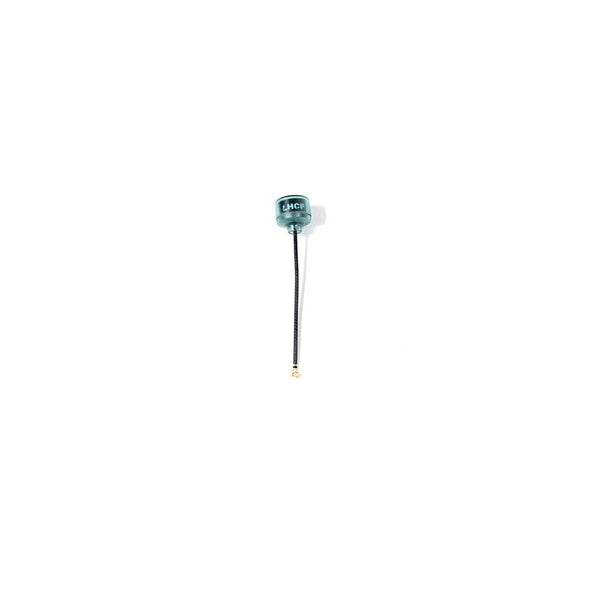

TrueRC Core 5.8GHz 85mm U.FL Antenna - Teal - Choose Your Polarization
Introducing the Core 5.8GHz by TrueRC, yet another amazing VTX antenna to see. This one comes with a U.FL connector for a easy pop in, and flexible 85mm length wire. Choose your configuration for your polarization between RHCP and LHCP, with nice injection molded teal top.
The CORE 5.8 is a distillation of all those years working with drones enthusiasts and professionals alike. This omnidirectional antenna start with a refined RF design that provide excellent consistency within units and various cables configurations. TrueRC team then added a very durable outer shell that protect the antenna from the inevitable crashes.
- Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing

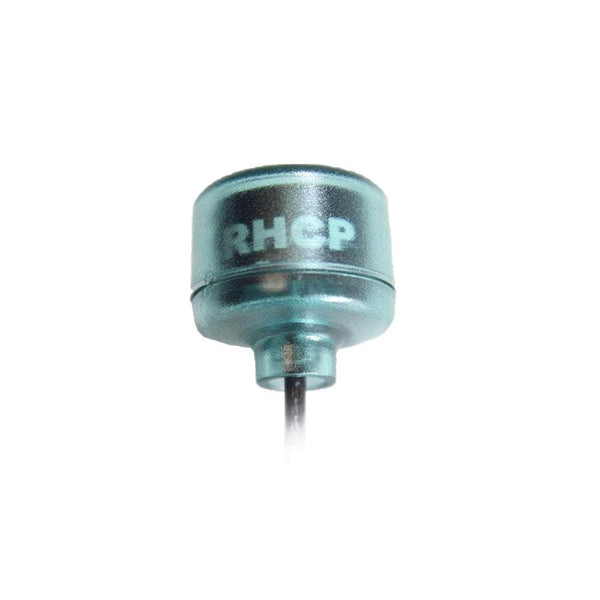

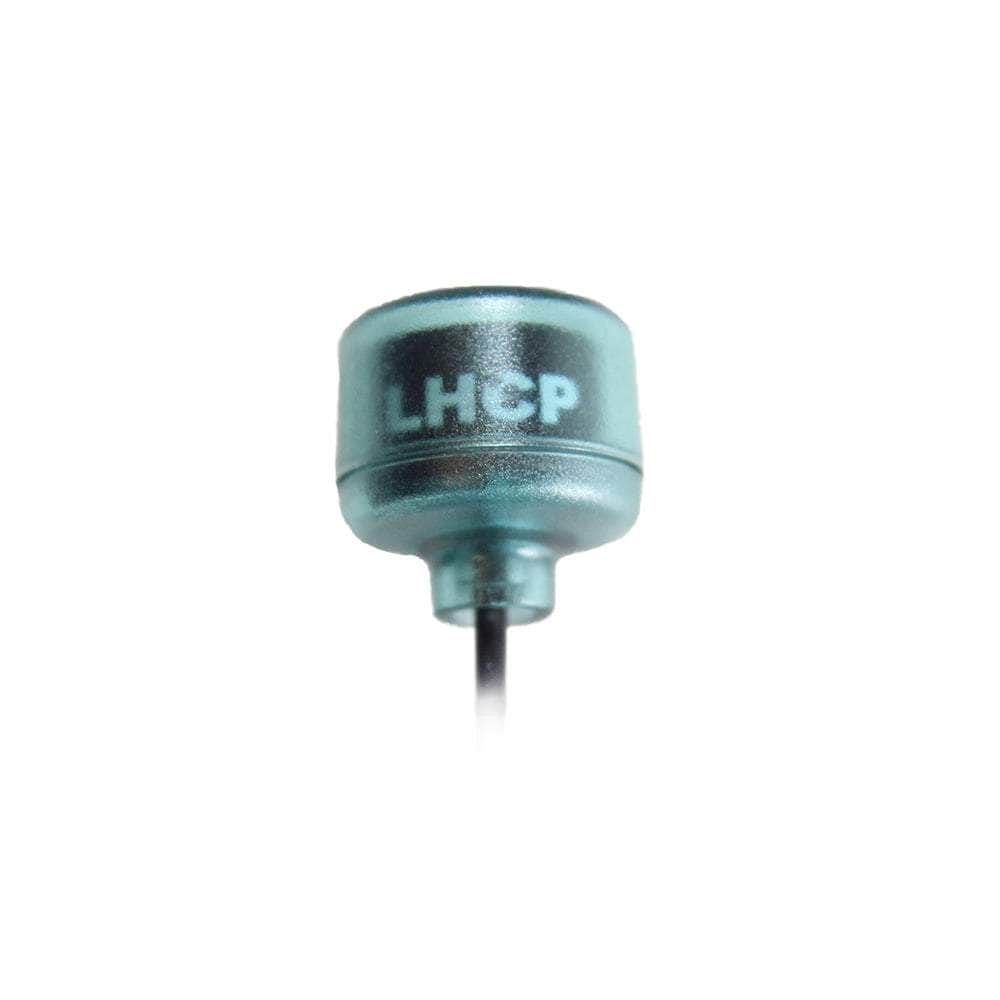

- Clear indication of polarization direction
- Smooth radiation pattern with even gain in all directions
- Excellent axial ratio and efficiency
- Flexible coax cable option that deflect impacts
- U.FL connector for a easy pop in
- Gain: 1.9dBic
- Polarization: LHCP/RHCP
- Cross-Polar Rejection: -10 to -20dB
- Bandwidth: 5.5GHz-6.1GHz
- Radiation Efficiency: 98%
- SWR: <=1.2:1
- Weight: 2.5g
- Dimensions(head): 16.9mm dia. x 13.1mm height.
- Length: 85mm
- Cable: TrueRC RG316S/RG402/RG178 coax
- Connector: U.FL
- 1x TrueRC Core 5.8GHz 85mm U.FL Antenna - Teal - Choose Your Polarization
