so far so good TrueRC
"so far so good TrueRC makes great antennas and fairly durable as well. would buy again"
Details
Description

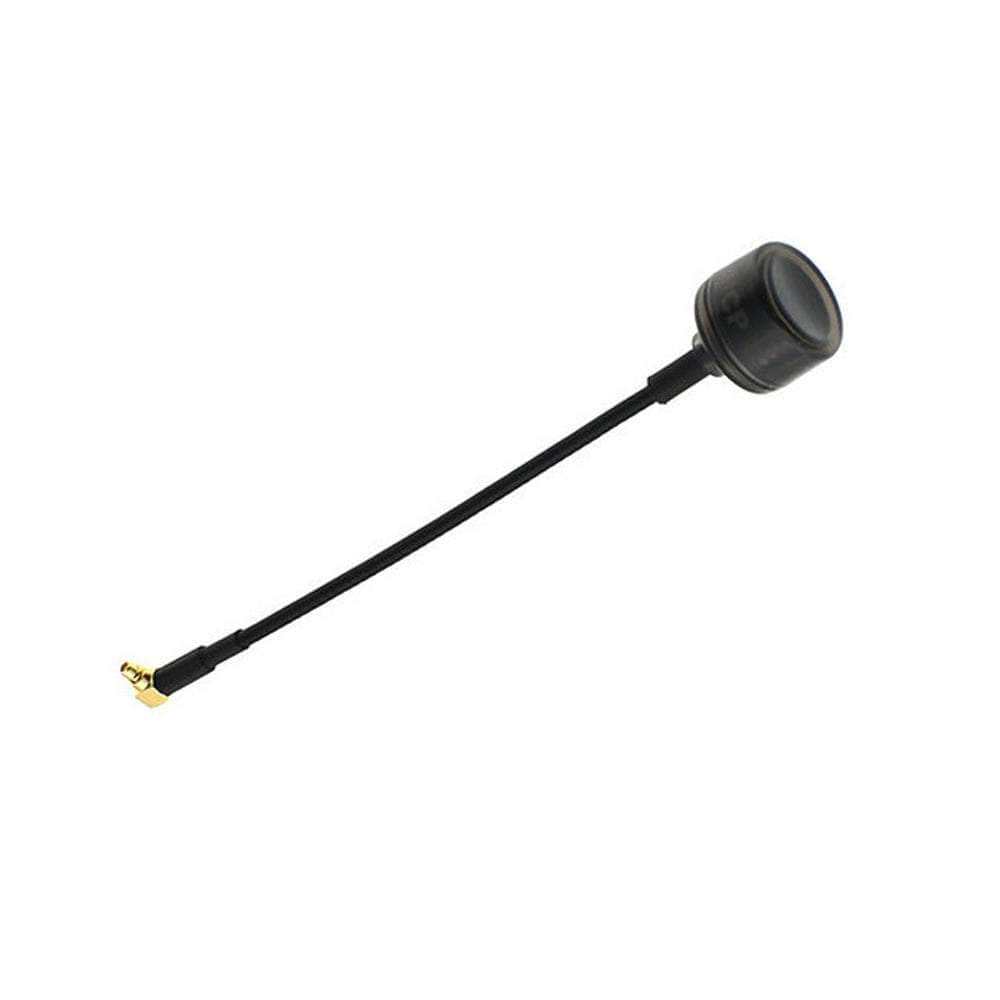

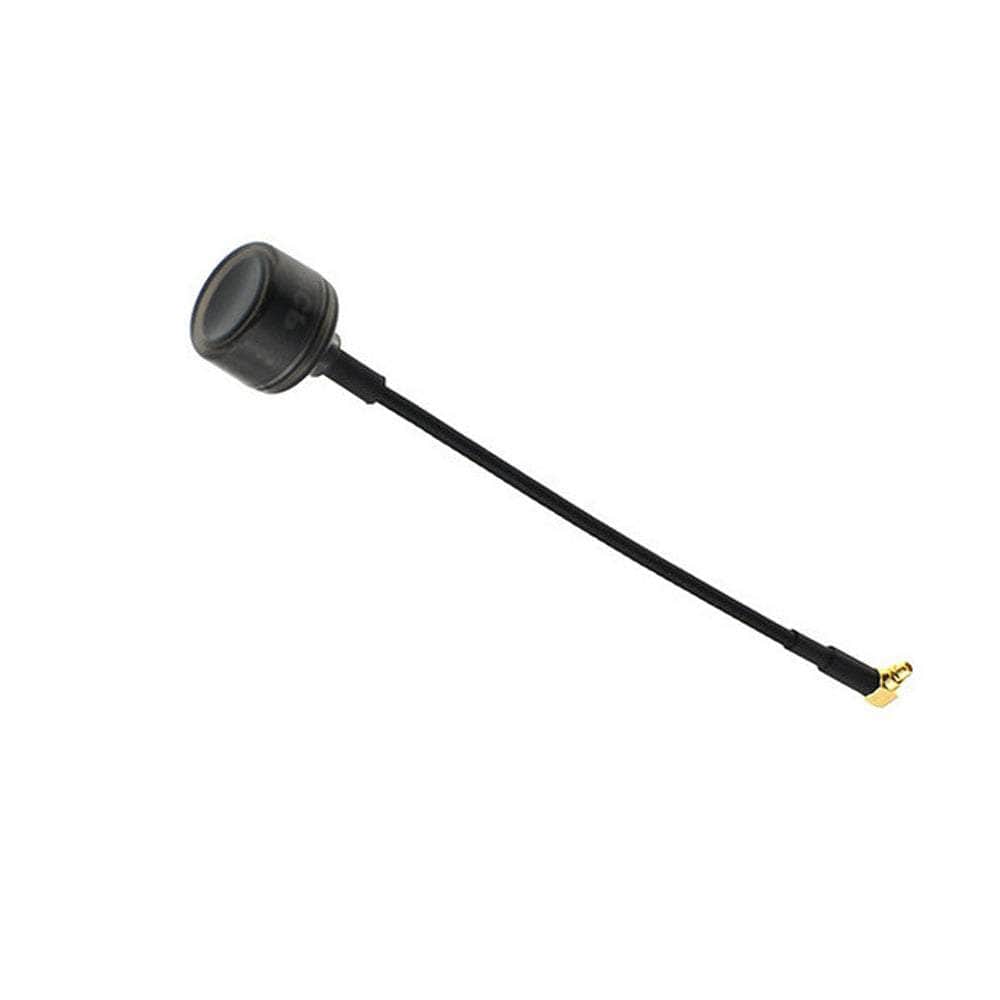

This TrueRC Core 5.8GHz 85mm MMCX 90° Antenna provides optimal, high-performance signal quality for FPV drone flights. The innovative design and lightweight materials make this RHCP antenna both robust and durable.
The CORE 5.8 is a distillation of all those years working with drone enthusiasts and professionals alike. This omnidirectional antenna starts with a refined RF design that provides excellent consistency within units and various cable configurations. TrueRC team then added a very durable outer shell that protects the antenna from inevitable crashes.
Check out our ever-expanding selection of VTX antennas and our range of TrueRC gear!
FEATURES
- Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
- Clear indication of polarization direction
- Smooth radiation pattern with even gain in all directions
- Excellent axial ratio and efficiency
- Flexible coax cable option that deflect impacts
- Exclusive knurled True-SMA for easy tightening
SPECIFICATIONS:
- Gain: 1.9dbic
- Polarization: RHCP
- Cross-Polar Rejection: -10 to -20dB (1.9%)
- Bandwidth: 5.5Hz-6.1GHz
- Radiation Efficiency: 98%
- SWR: <=1.2:1
- Dimensions(head): 16.9mm dia. x 13.1mm height.
- Weight: 4grams
- Length: 85mm
- Connector: 90°-MMCX
Includes
- 1x TrueRC Core 5.8GHz 85mm MMCX 90° Antenna - Grey - RHCP
More Info
- SKU: TRUE-CORE58-MMCX-90-85-GREY-RHCP
- Barcode: 608597254990
