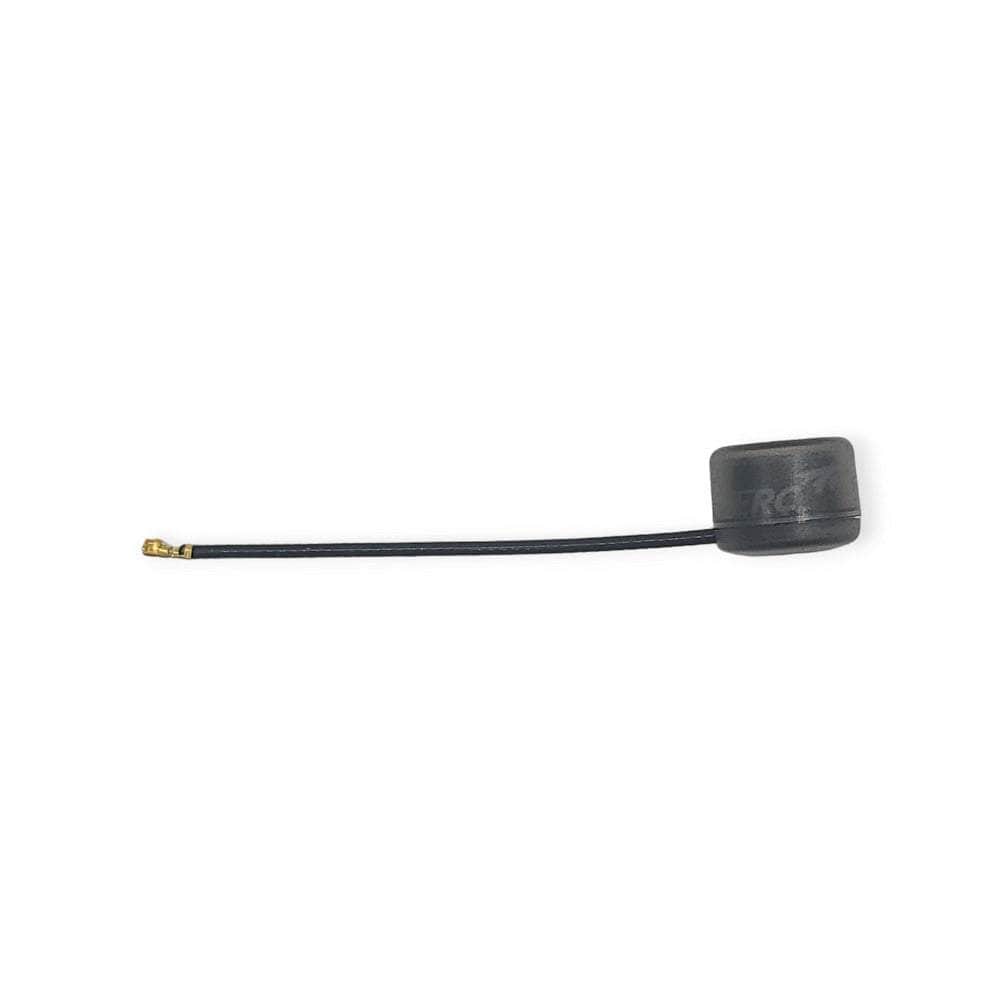

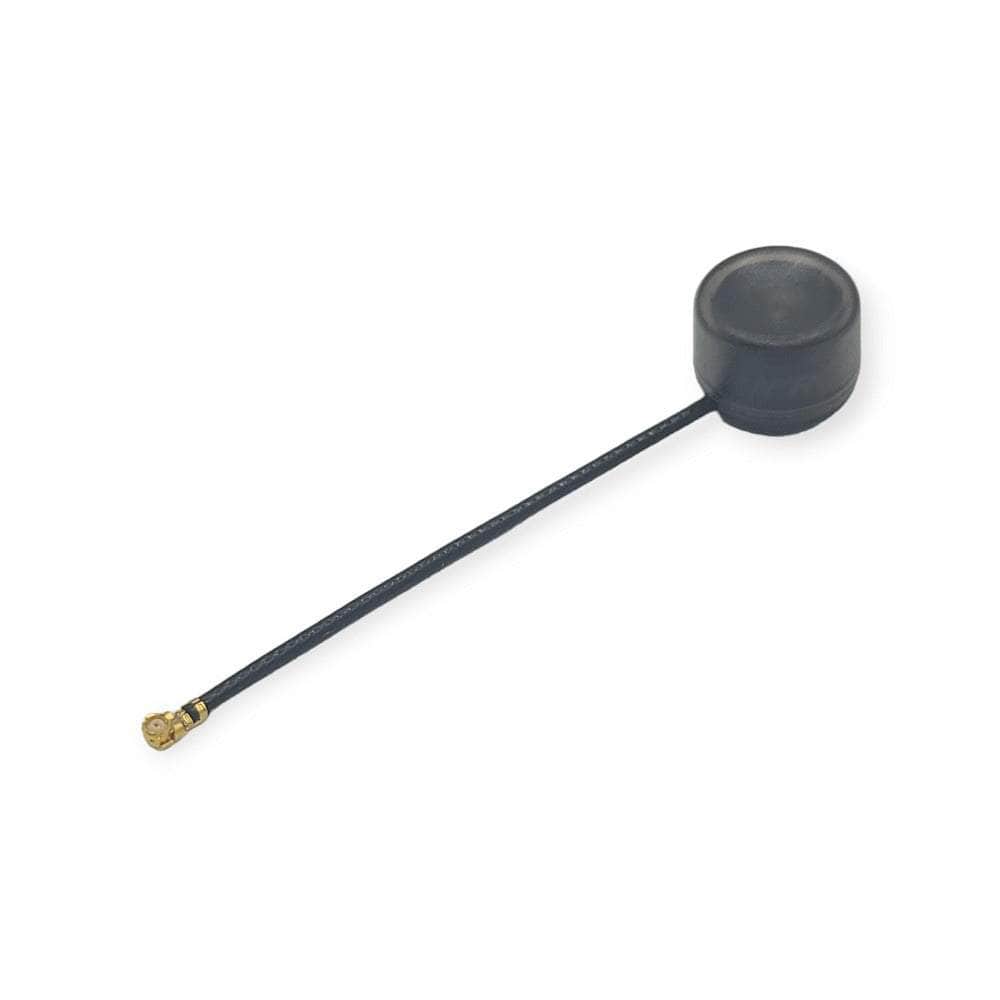

TrueRC Core 5.8GHz 85mm Side Feed U.FL Antenna - Grey - RHCP
This TrueRC Core 5.8GHz U.FL antenna has an 85mm side feed and features right-hand circular polarization (RHCP). Its performance is optimized for high-frequency FPV radio systems, providing an impressive axial ratio of <1.2. This product promises effective signal reception and reliable connection over long distance.
The CORE 5.8 is a distillation of all those years working with drone enthusiasts and professionals alike. This omnidirectional antenna starts with a refined RF design that provides excellent consistency within units and various cable configurations. TrueRC team then added a very durable outer shell that protects the antenna from inevitable crashes.
- Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
- Clear indication of polarization direction
- Smooth radiation pattern with even gain in all directions
- Excellent axial ratio and efficiency
- Side exit cable for novel mounting options
- Exclusive knurled True-SMA for easy tightening
- Gain: 1.9dbic
- Polarization: RHCP
- Cross-Polar Rejection: -10 to -20dB (1.9%)
- Bandwidth: 5.5Hz-6.1GHz
- Radiation Efficiency: 98%
- SWR: <=1.2:1
- Dimensions(head): 16.9mm dia. x 13.1mm height.
- Weight: 2.3grams
- Length: 85mm
- Connector: UFL
- TrueRC Core 5.8GHz 85mm Side Feed U.FL Antenna - Grey - RHCP
