Description

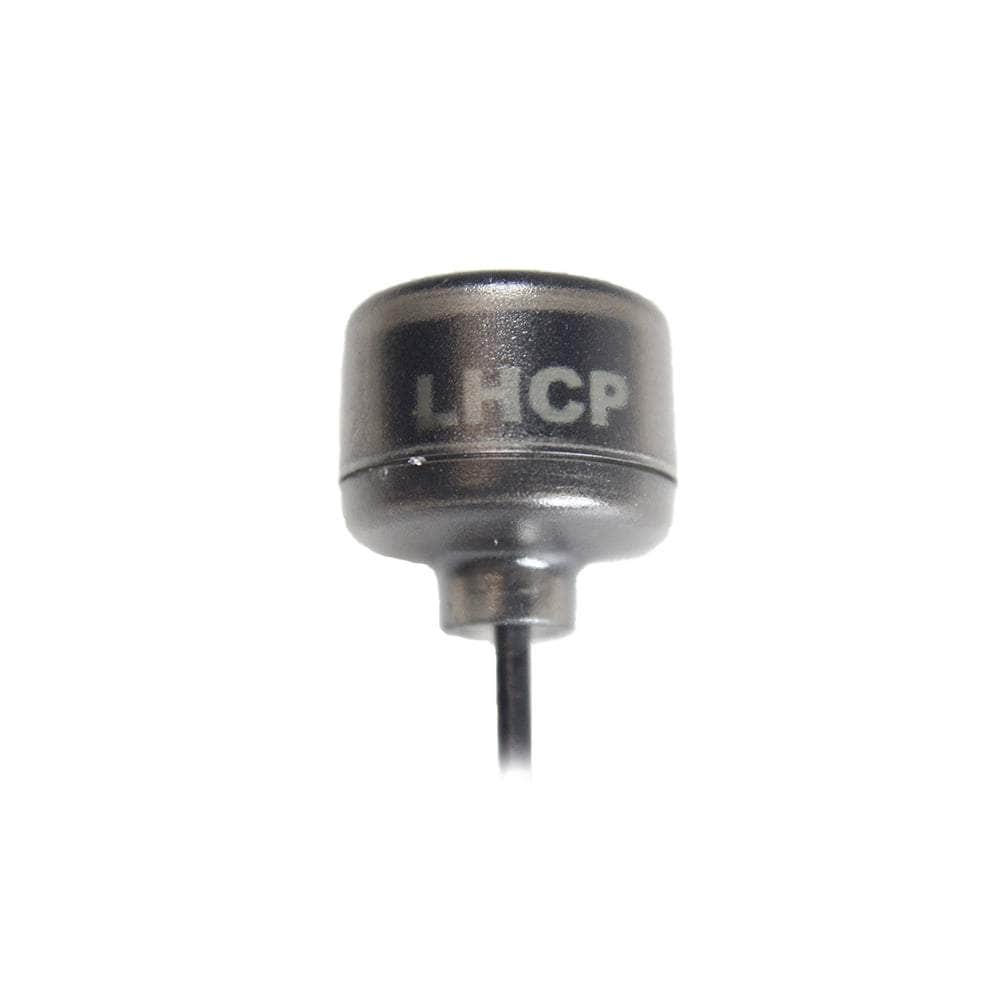

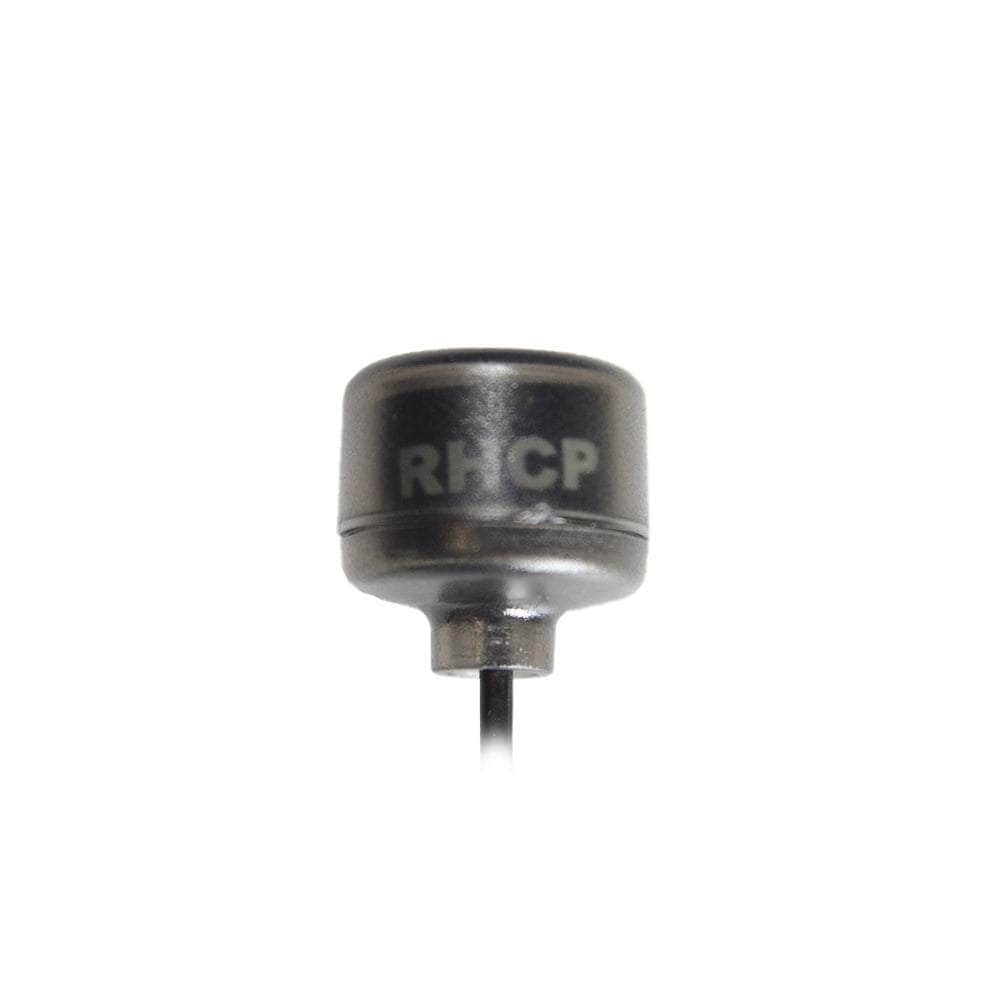

Introducing the Core 5.8GHz by TrueRC, yet another amazing VTX antenna to see. This one comes with a U.FL connector for a easy pop in, flexible 85mm wire, and a nice injection molded grey top.

The CORE 5.8 is a distillation of all those years working with drones enthusiasts and professionals alike. This omnidirectional antenna start with a refined RF design that provide excellent consistency within units and various cables configurations. TrueRC team then added a very durable outer shell that protect the antenna from the inevitable crashes.

Check out our ever-expanding selection of VTX antennas and our range of TrueRC gear!

Features

• Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
• Clear indication of polarization direction
• Smooth radiation pattern with even gain in all directions
• Excellent axial ratio and efficiency
• Flexible coax cable option that deflect impacts
• U.FL connector for a easy pop in

Specifications

• Gain: 1.9dBic
• Polarization: LHCP/RHCP
• Cross-Polar Rejection: -10 to -20dB
• Bandwidth: 5.5GHz-6.1GHz
• Radiation Efficiency: 98%
• SWR: <=1.2:1
• Weight: 2.5g
• Dimensions(head): 16.9mm dia. x 13.1mm height.
• Length: 85mm
• Cable: TrueRC RG316S/RG402/RG178 coax
• Connector: U.FL

Includes

• 1x TrueRC Core 5.8GHz 85mm U.FL Antenna - Grey - Choose Version
