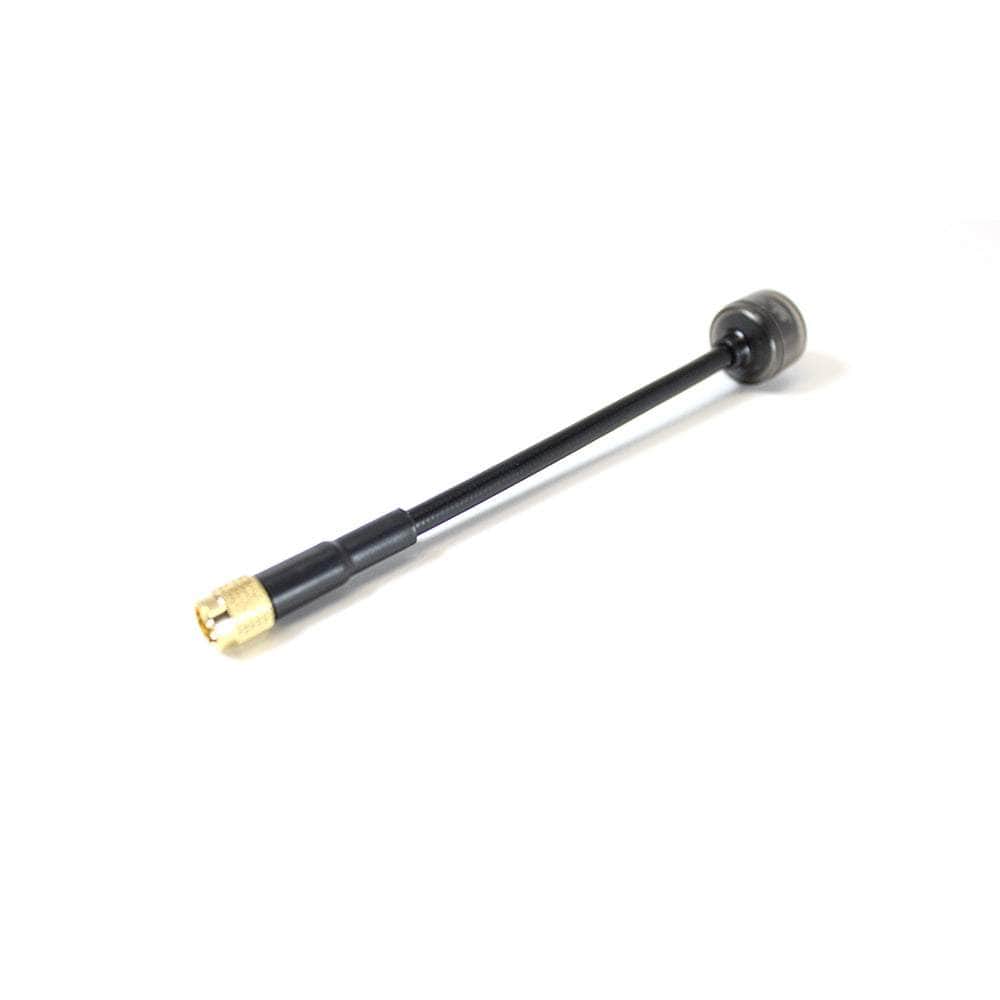

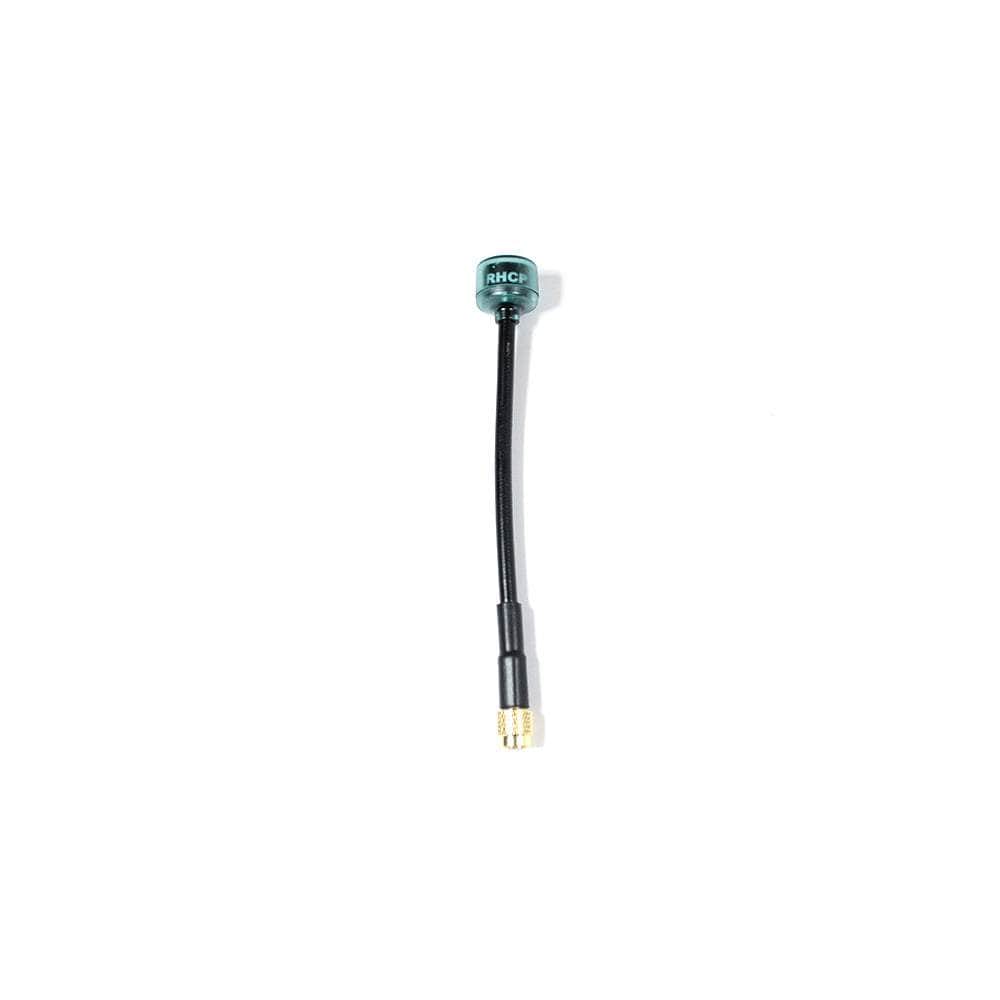

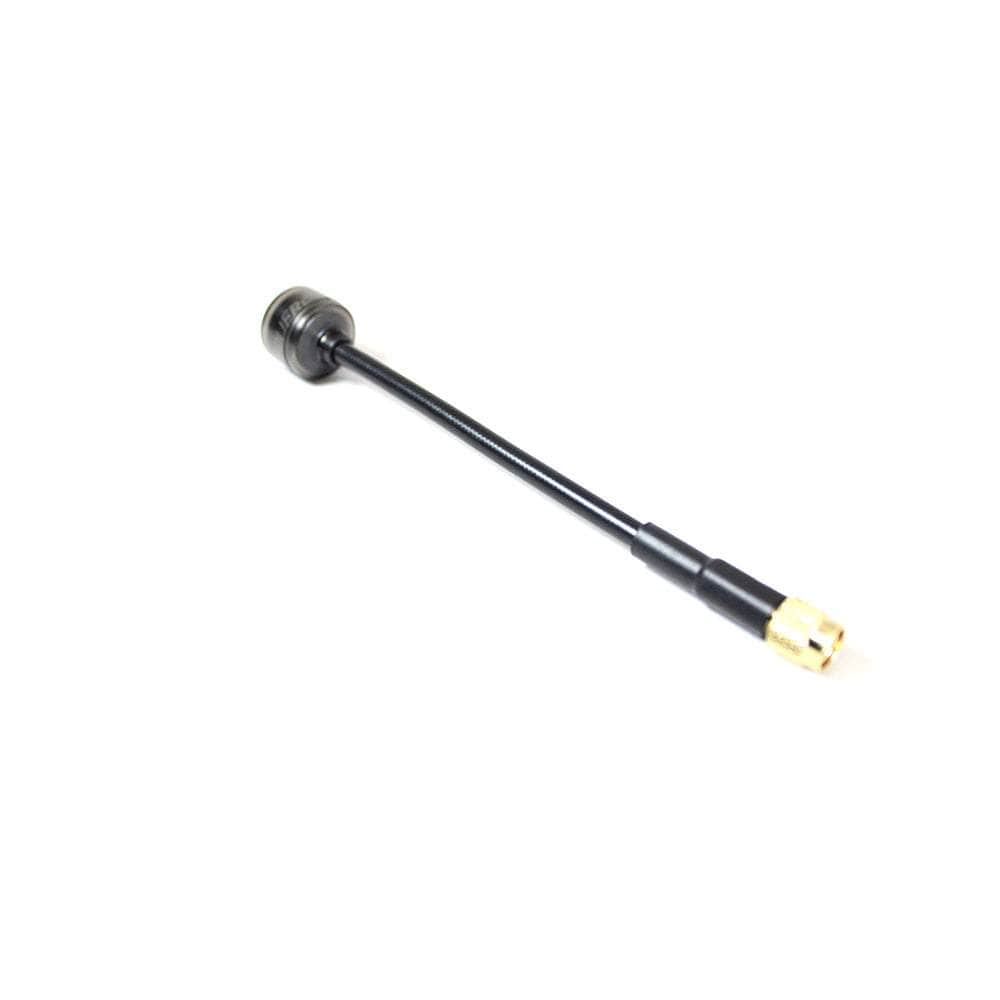

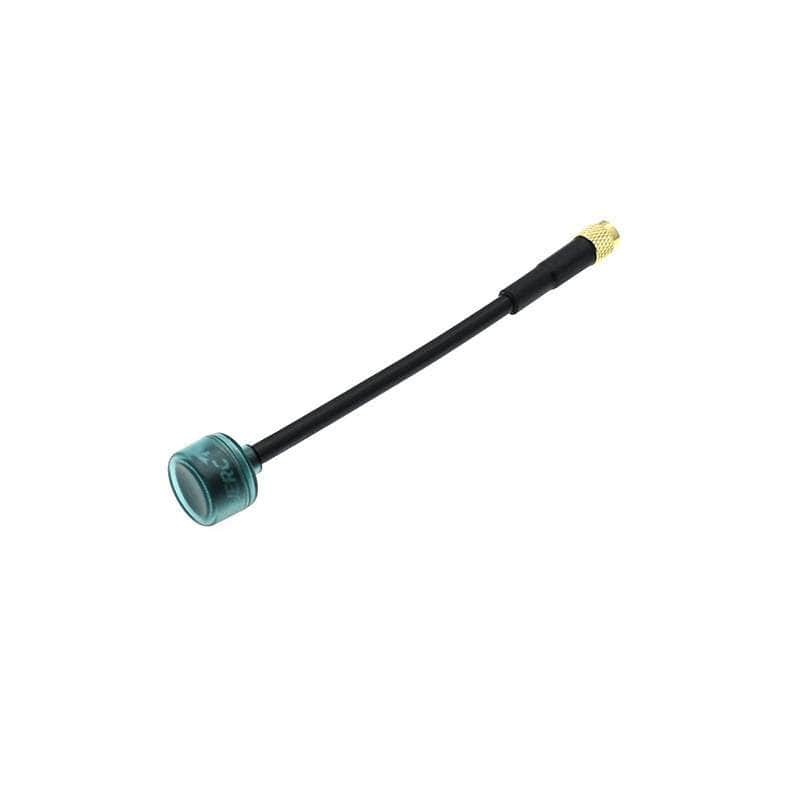

TrueRC Core 5.8GHz 125mm RHCP SMA Antenna - Choose Color

Original price $14.99 - Original price $14.99
Original price
$14.99 - $14.99
Current price $14.99
In Stock
Pre Order
Coming Soon
Color: Teal
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

The CORE 5.8 is a distillation of all those years working with drones enthusiasts and professionals alike. This omnidirectional antenna start with a refined RF design that provide excellent consistency within units and various cables configurations. TrueRC team then added a very durable outer shell that protect the antenna from the inevitable crashes. As well as hard & rigid 125mm length wire. This antenna is RHCP, with nice injection molded teal or grey top.

Check out our ever-expanding selection of VTX antennas and our range of TrueRC gear!


  • Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
  • Clear indication of polarization direction
  • Smooth radiation pattern with even gain in all directions
  • Excellent axial ratio and efficiency
  • Flexible coax cable option that deflect impacts
  • Exclusive knurled True-SMA for easy tightening


  • Gain: 1.9dBic
  • Polarization: RHCP
  • Cross-Polar Rejection: -10 to -20dB
  • Bandwidth: 5.5GHz-6.1GHz
  • Radiation Efficiency: 98%
  • SWR: <=1.2:1
  • Weight: 10.6g
  • Dimensions(head): 16.9mm dia. x 13.1mm height.
  • Length: 125mm
  • Cable: TrueRC RG316S/RG402/RG178 coax
  • Connector: Reinforced True-SMA


  • 1x TrueRC CORE 5.8GHz SMA Antenna - 125mm - RHCP - Choose Color
