Description

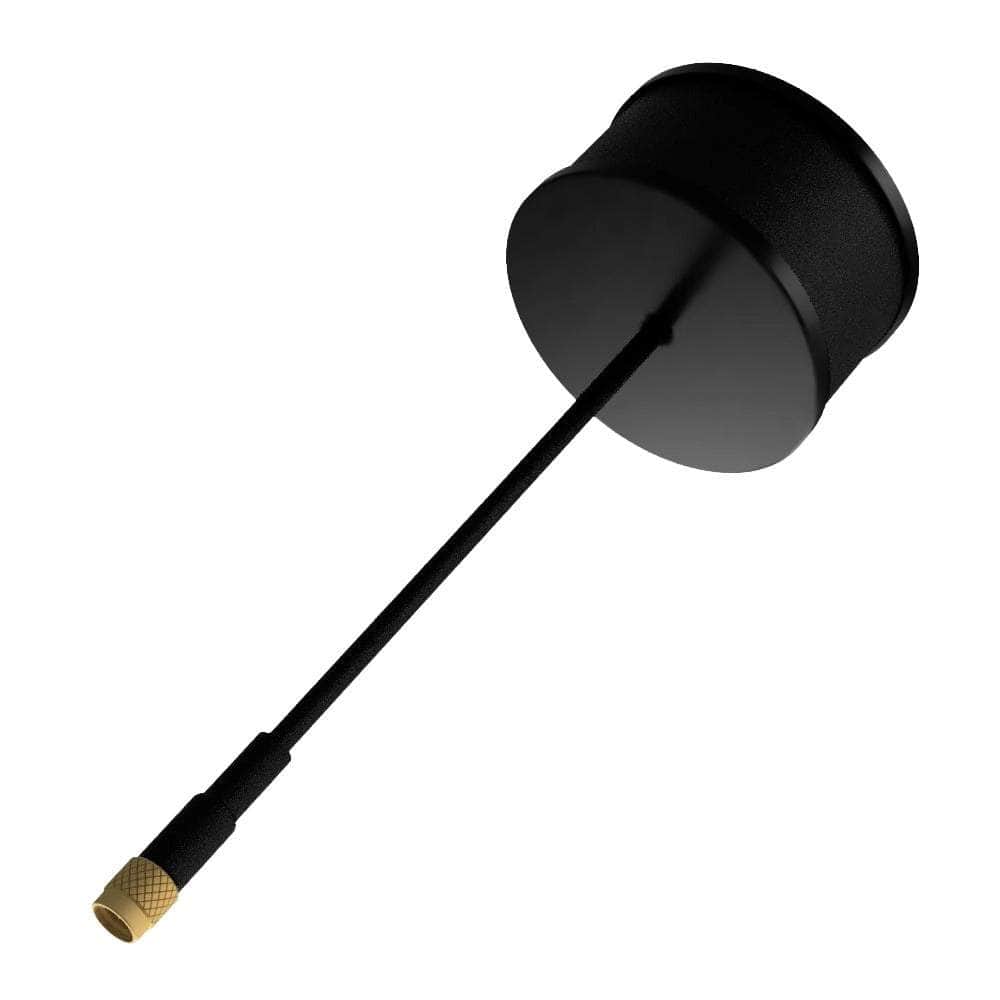

The TrueRC Singularity 915MHz SMA Antenna (RHCP) is the next evolution of the beloved Singularity! This antenna—now more compact, durable, and performance-optimized than ever. Designed for 915MHz systems, this antenna features a robust, space-saving SMA connector. Engineered with an ultra-rugged design, the updated design maintains its proven circular polarization while offering a more uniform radiation pattern for consistent, long-range performance. Get crystal clear signal with the TrueRC Singularity 915MHz SMA Antenna.

Check out all our FPV Receivers & Antennas, and all our TrueRC gear!

Features

• Improved uniformity in signal pattern for reliable coverage
• Polarization: Right-Hand Circular (RHCP)
• Compact and ruggedized design
• Frequency: 915MHz
• Connector: SMA


Specifications

• Dimensions(head): 59mm dia. X 35mm height.
• Cross-Polar Rejection: -15 to -30dB, (2.2%)
• Bandwidth: 900MHz-935MHz
• Radiation Efficiency: 99%
• Connector: True-SMA
• Cable: RG402 coax.
• Length: 175mm
• Gain: 1.9dBic
• SWR: <=1.9:1
• Weight: 24g

Includes

• 1x TrueRC Singularity 915MHz SMA Antenna (RHCP)
