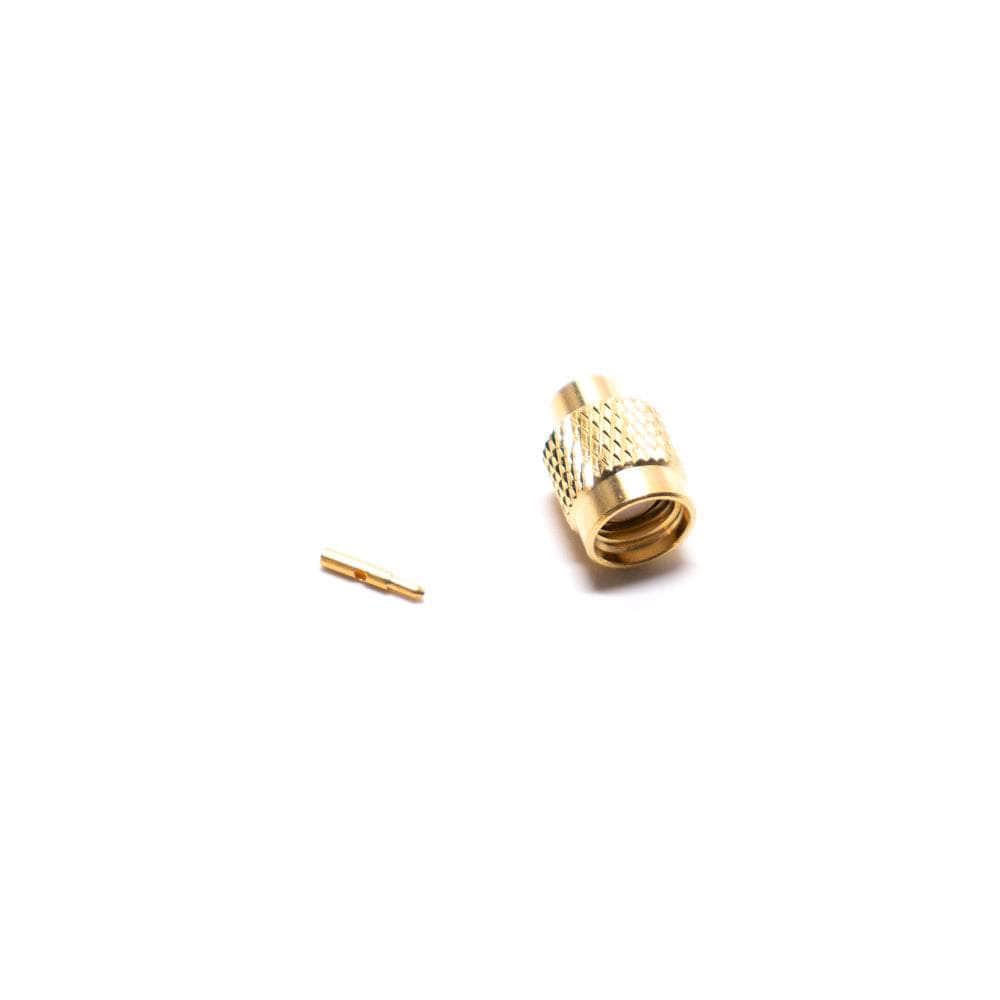

TrueRC TRUE-SMA SMA Connector for RG402
$1.99
In Stock
Pre Order
The new high quality TrueRC SMA connector, with grippy knurled finish and carefully tuned design. <0.1dB loss @5.8GHz!
This connector is sized for RG402 coaxial cable. Perfect for DIY antennas, repair or upgrade.
Check out all our pigtails, adapters and connectors, as well as the entire range of TrueRC gear!
Specifications
- Frequency – max: 12GHz
- Impedance: 50Ohm
- Weight: 2.3g
- Style: Straight
- Size: 8mm x 7mm
- Cable type: RG402 (0.141″ semi-rigid)
- Center contact: Male pin
- Body material: Brass alloy
- Body finish: Gold
Includes
- 1x TrueRC TRUE-SMA SMA Connector for RG402
