Description

The TrueRC X-21 5.8GHz panel antenna is engineered for maximum main-lobe efficiency with very low side lobes and excellent front-to-back ratio. The single-feed panel format delivers over 21 dBic at 5.8GHz across the 4.8-6.3GHz band. This high-gain antenna is suitable for UAV command and control, long-range wireless networks, and research or defense communications.

Check out all our FPV Receivers & Antennas, and all our TrueRC gear!

Features

• Very high signal gain provides extended reception range and improved signal strength at a distance
• Very low side lobes reduce unwanted noise and help maintain a clear signal
• Strong front-to-back ratio supports clearer reception from the intended direction and reduces interference from rear signals
• SMA connector ensures wide compatibility with FPV ground systems and antenna mounts

Specifications

• Frequency: 4.8-6.3GHz
• Gain @5.8GHz: 21 dBic
• Gain @5GHz: 16 dBic
• Polarization: RHCP
• Beam-width @-3dB: 15°
• Connector: SMA

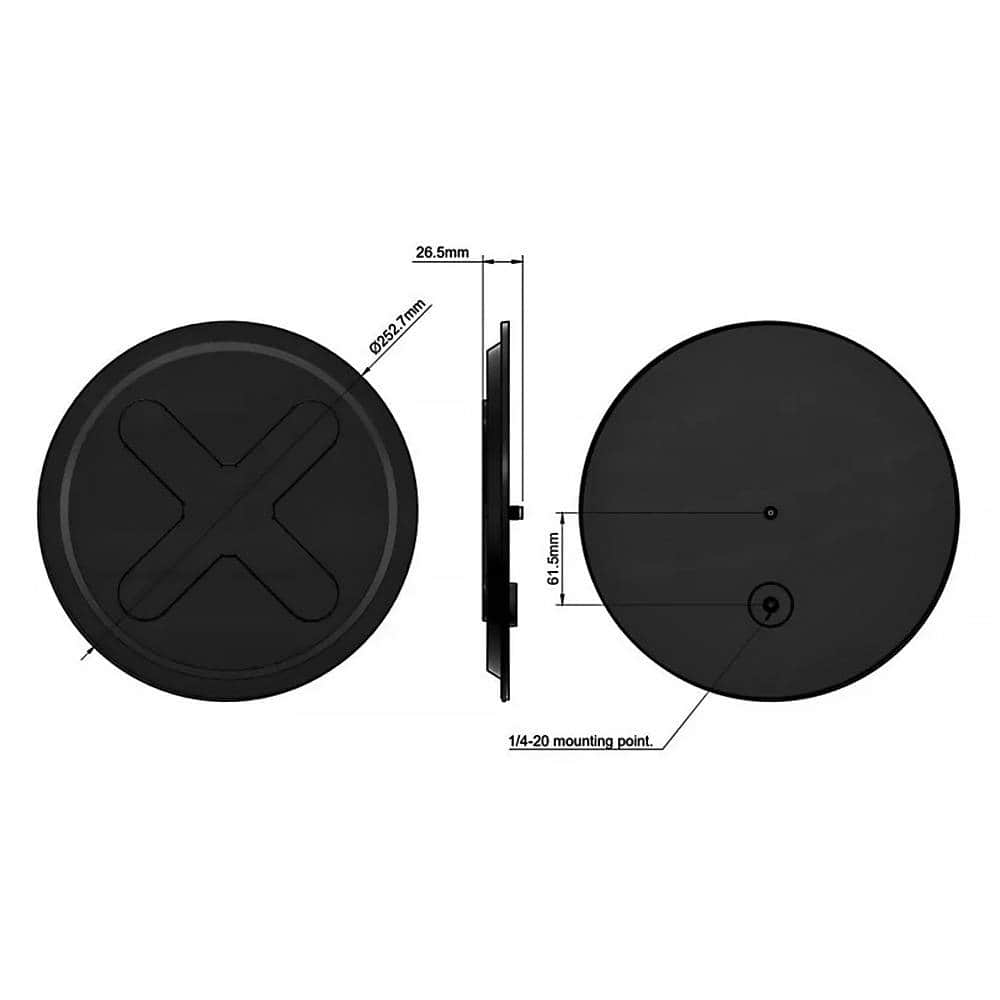

• Dimensions: 252.7mm dia. × 26.5mm
• Weight: 255g
• Mounting: 1/4-20 mounting point

Includes

• 1x TrueRC X-21 5.8GHz Antenna
