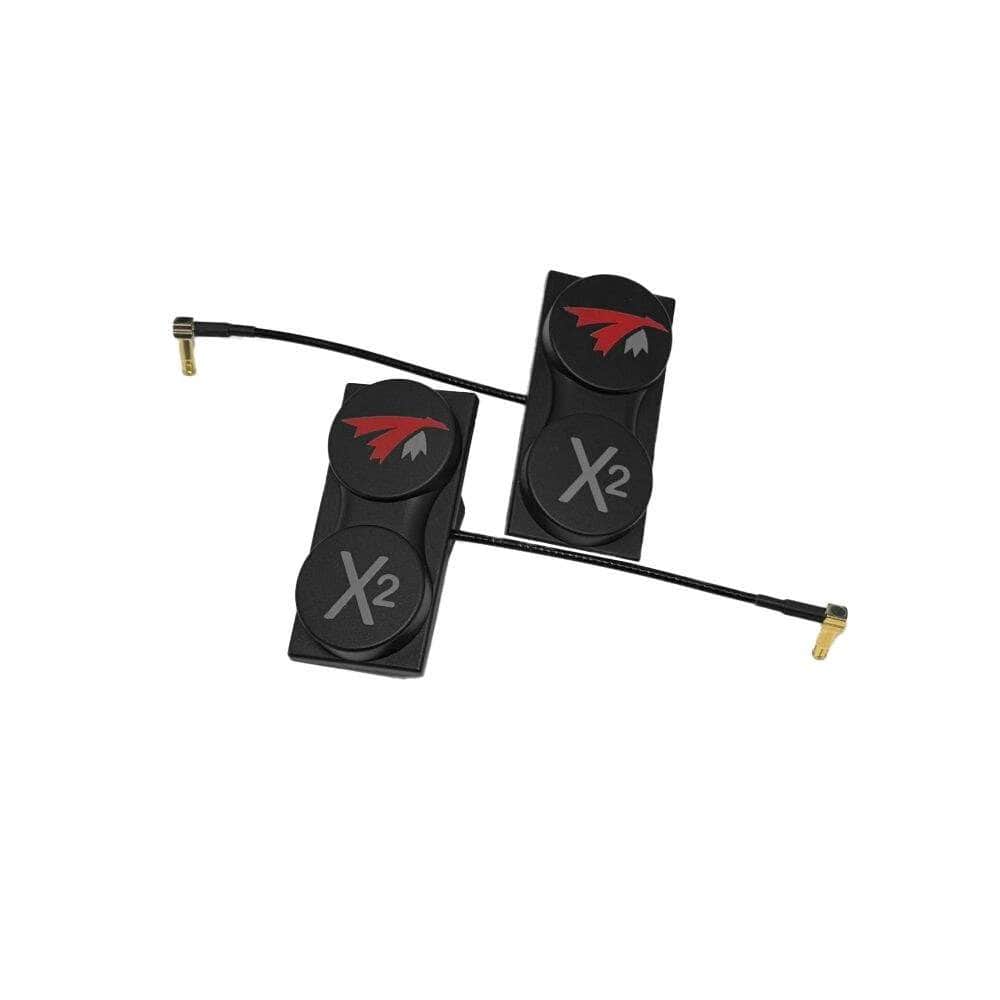

TrueRC X²-AIR 5.8GHz MK II Antenna for DJI Goggles 2 (Set of 2) - LHCP

Description

Unlock long-range performance with the TrueRC X²-AIR 5.8 MK II Antenna for DJI Goggles 2 (Set of 2)  - LCHP. They are compatible with the DJI Goggles 2. This powerful pair delivers an impressive 13 dBic gain and a combined 180° beam width for a rock-solid signal in challenging environments. Installation is fast and seamless—just peel, stick, and swap the stock antennas for the included custom MCX connectors. Fly farther, fly stronger.

Check out all our FPV Receivers & Antennas, and all our TrueRC gear!

Features

• Mounts directly to DJI Goggles 2 with adhesive
• 13 dBic gain for long range and penetration
• Wide bandwidth, works beyond 5.8GHz
• 150° beam per antenna, 180° combined
• Circularly polarized for a clear signal
• Wide horizontal beam coverage
• Low-profile, compact design
• Custom MCX connectors

Specifications

• Frequency Range: 5.1GHz – 7.0GHz
• Gain: 13 dBic
• Polarization: LHCP
• Horizontal Beam Width: 150°
• Vertical Beam Width: 62°
• Horizontal Beam @ -3dB: 75°
• Vertical Beam @ -3dB: 34°
• Connector: Custom 90° MCX
• Dimensions: 72 × 34 × 15 mm
• Weight: 20g per antenna
• Includes adhesive mount for DJI FPV Goggles 2 installation

Includes

• 2x TrueRC X²-AIR 5.8 MK II Antenna for DJI Goggles 2 (Set of 2)  - LCHP
