Swap the included patch antennas from the Shark Byte digital HD FPV system with high quality X-air circular polarized directional antennas! This is the adaptation of the renowned X-AIR into a slick low profile mount for the Shark Byte RX5. Simply pop out the white panels and stick them on for an easy upgrade and a killer look. Improved beam width of 120deg, yield an amazing flight experience in the toughest conditions. Fill the remaining ports with a pair of included singularity stubbies and performance has never been so convenient!
Compact low-profile design on your goggles, easy to store and transport
High 10 dBic for unsurpassed long range and signal penetration
Large SWR and axial ratio bandwidth, works even out of the 5.8GHz band
Specifications
TrueRC X-AIR MK II
Bandwidth: 5.1GHz-7.0GHz
Gain: 10 dBic
Polarization: RHCP
Beam-width: 120deg
Beam-width @-3dB: 68deg
Connector: U.fl
Dimensions: 34x34x15mm
Weight: 8.8g each
TrueRC Singularity Stubby
Gain:Â 1.9dbic
Polarization:Â RHCP
Cross-Polar Rejection: -15 to -30dB (1.9%)
Bandwidth:Â 5.6GHz-6.0GHz
Radiation Efficiency:Â 99%
SWR:Â <=1.5:1
Connector:Â SMA
Dimensions:Â 12.7x20mm
Weight:Â 3.7g each
Includes

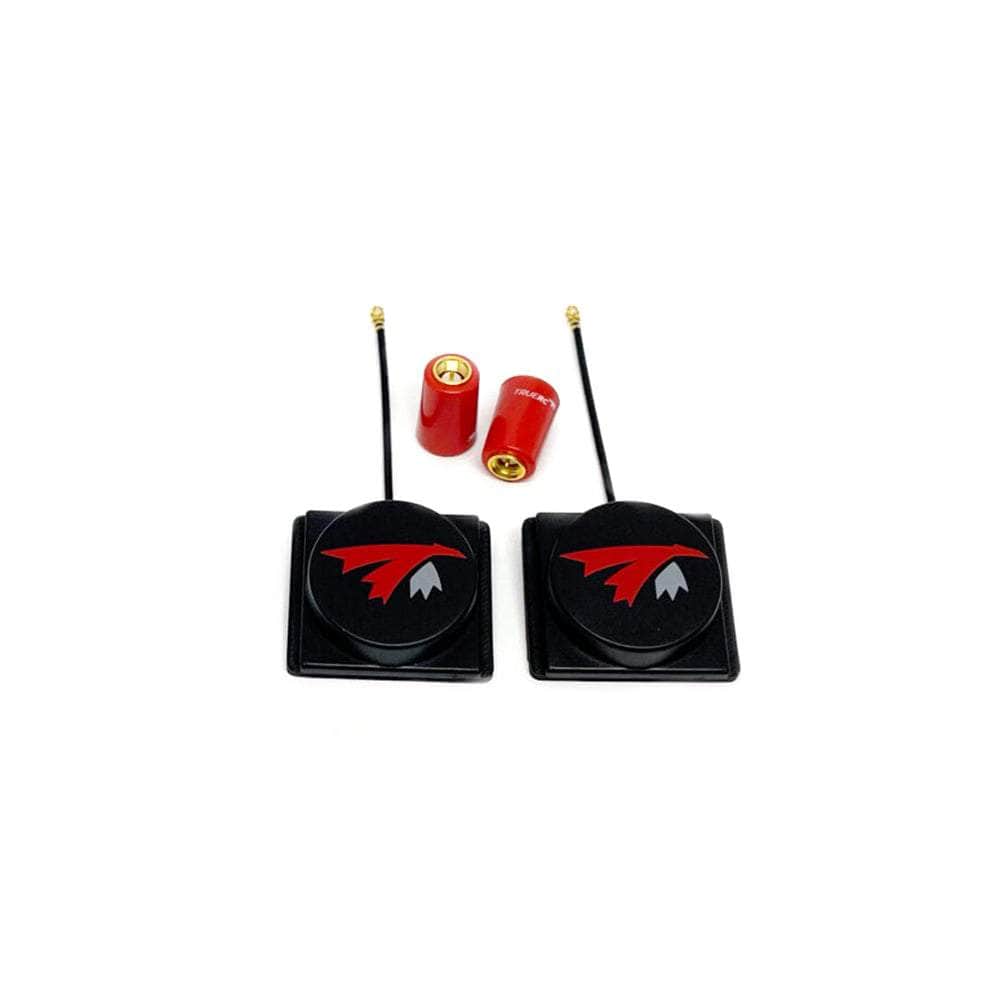

1x TrueRC X-AIR 5.8GHz MK II & Stubbies Combo for HDzero/SharkByte
More Info
SKU:
17831
Barcode:
608597253948
Overall rating: 4.857143 / 5 from 7 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Works great
"I got my shark bite VRX second hand from somebody else, and the patch and stubbies showed up before the VRX did. Did so as soon as I got the VRX I just swapped over the patches and stubbies... So I never actually flew with the stock system. However, my buddy has the HD0 goggles and stock antennas. And I think I'm getting better reception than he does. At least better range maybe? So if you have the VRX it would probably be best to get these setup"
— ZACHARY W. (5/5)
Walksnail VRX upgrade
"I got these to use for my walksnail VRX to upgrade the antennas. I used a 3D print to fit the patches in the front. It was a little tricky to position the wires but once in everything fit and works great."
— David H. (5/5)
Good upgrade!
"Product works exactly as advertised, it is a good upgrade to my digital FPV system."
— Andrew J. (5/5)
Better Range
"Solid unit my only gripe would be the mounting for the patch antennas i ended up just adding a dab of super glue to hold them down"
— Pascual B. (5/5)
Must Have for Walksnail
"Sooooooo much better than anything else, and I’ve tried so many combinations"
— Steven D. (5/5)
Nice upgrade antennas
"Easy to swap out with the original patch antennas. As others have mentioned the tape doesn't hold the antenna to the VRX that well so you may need a dab of glue to help. Other than that they are great."
— Joshua C. (4/5)
Great upgrade!
"These antennas provide an improvement in clarity and penetration. They give me the confidence to fly farther and in areas I would not before. The included adhesive is worthless however. Perhaps putting a slip where they overlap the side clips would help, but after feel off within minutes, it was too late for me. I used drops of Welder to finally secure them. Even 3M tape would hold. But the antennas are great."
— Shawn D. (5/5)
