Details
Description
More gain and more convenience! This is the adaptation of the all mighty X²-AIR into a slick low profile face mount for the DJI goggles . Simply peel the included adhesive, stick them on and throw your goggles in your bag ready for a day of flying. Improved 13dBic gain and massive combined beam width of 180deg, yield an amazing flight experience in the toughest conditions. Fill the remaining ports with a pair of included singularity stubbies and performance has never been so convenient!
Check out all our FPV Receivers & Antennas, and all our TrueRC gear!
Features
- Sector type beam shape (widest on horizontal)

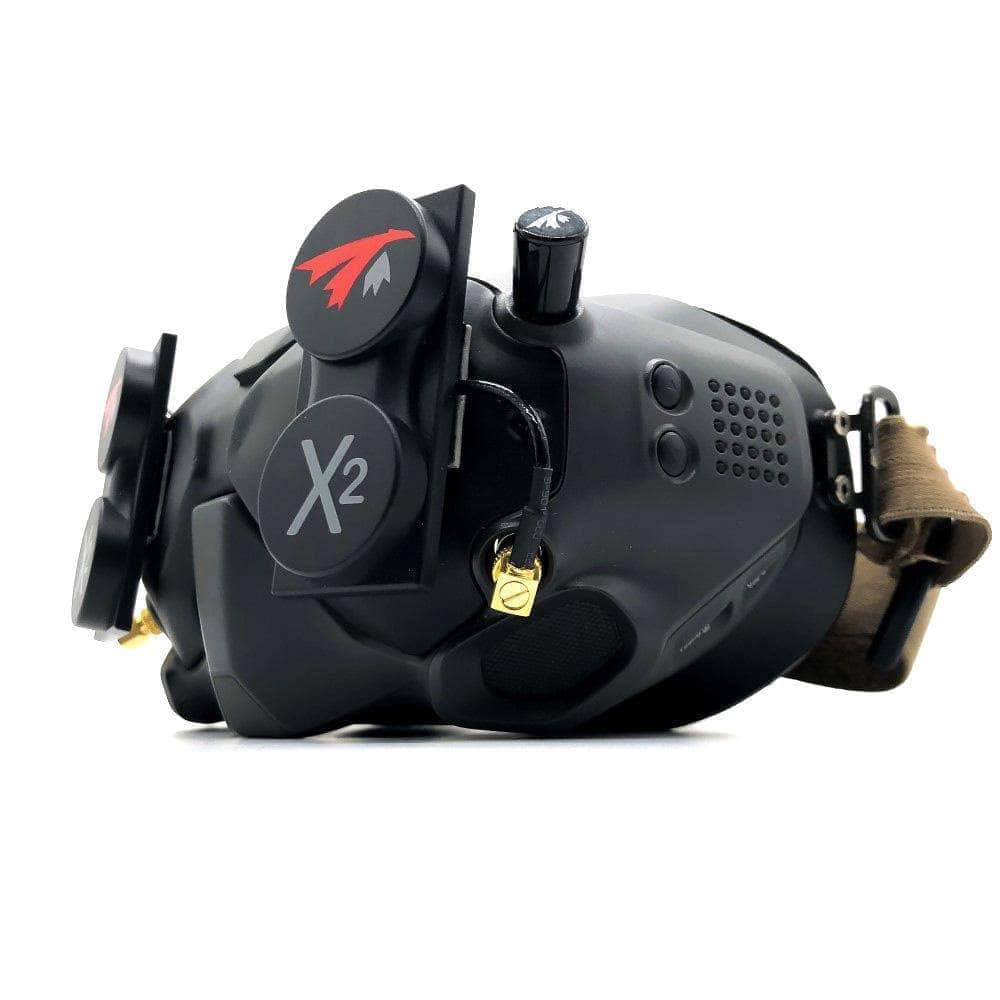

- Mount direct on DJI faceplate with included adhesive backing
- Compact low-profile design on your goggles, easy to store and transport
- High 13 dBic for unsurpassed long range and signal penetration
- Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
- Super wide 150 degree beam for each antenna combining to 180deg beam width
- Custom knurled RP-SMA connectors
- Highly compact included stubby antennas for combined directional and omnidirectional coverage
Specifications
X2-Air
- Bandwidth:Â 5.1GHz-7.0GHz
- Polarization: LHCP
- Gain:Â 13 dBic
- Beam-Width:Â 150deg
- Beam-width @-3dB:Â Â 75deg
- Antenna Dimensions:Â 72mm x 34mm x 15mm
- Connection:Â Custom knurled RP-SMA
- Weight: 20g
Stubby
- Bandwidth: 5.6GHz-6.0GHz
- Polarization: LHCP
- Gain:Â 1.9 dBic
- Radiation Efficiency: 99%
- Antenna Dimensions:Â 12.7mm x 20mm
- Connection:Â RP-SMA
- Weight: 3.7g
Includes

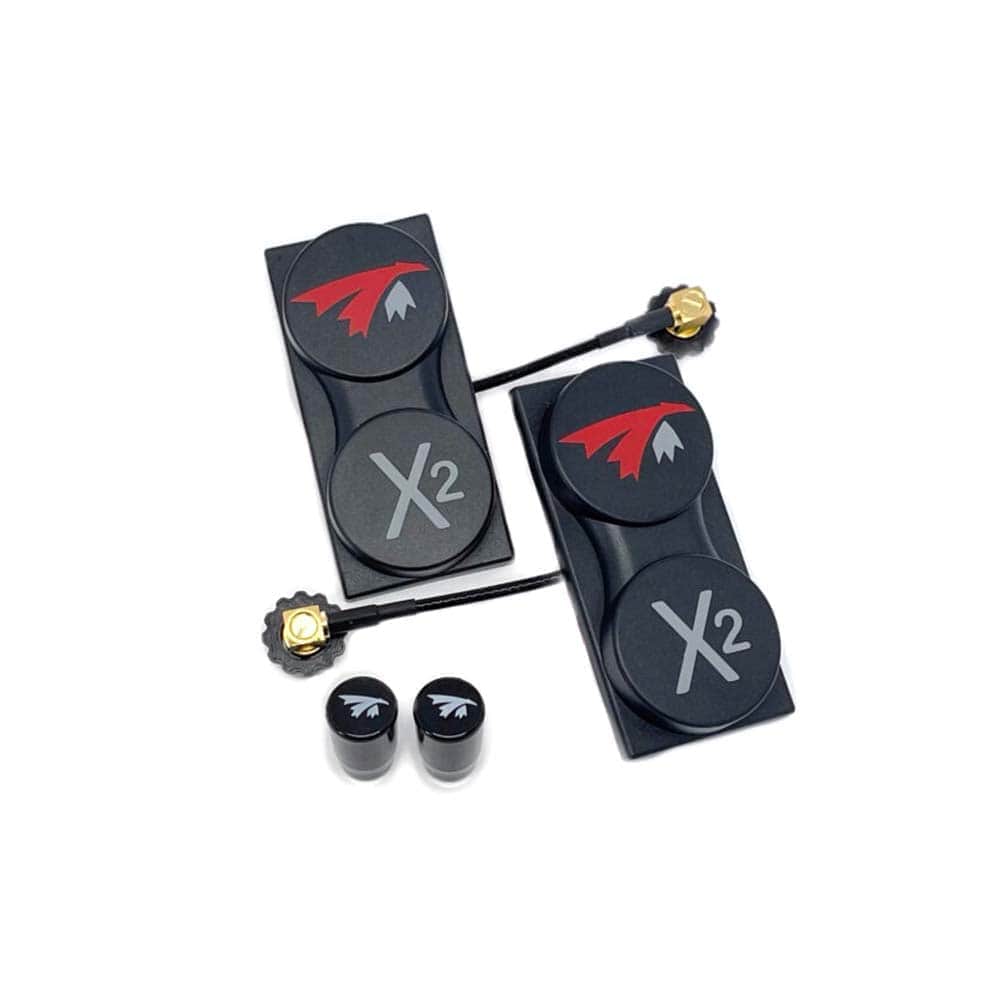

- 2x TrueRC X2-Air MKII  5.8GHz Receiver Antenna
- 2x TrueRCÂ Â Stubby 5.8GHz Receiver Antenna
More Info
-
SKU:
17604
-
Barcode:
608597253849
