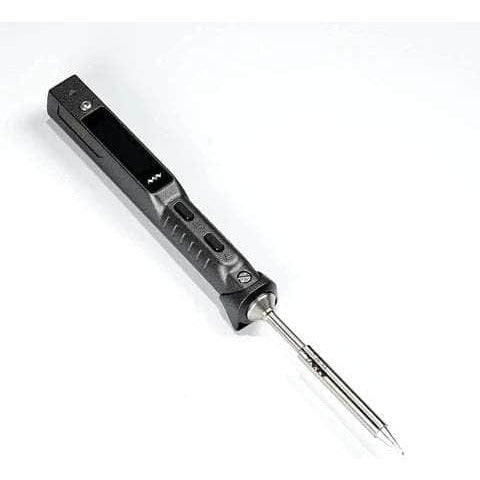

TS101 Portable Programmable Smart Soldering Iron w/ B2 Tip

TS101 Portable Programmable Smart Soldering Iron w/ B2 Tip

$56.89 - $56.89
$56.89
$56.89
$56.89 - $56.89
$56.89
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

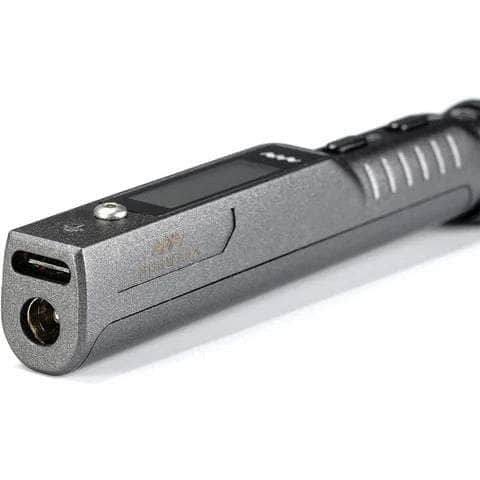

Based on TS100, TS101 has been upgraded and optimized in performance and function, to improve user experience. The TS101 and TS100 use the same soldering iron tips, so your existing TS100 soldering tips can continue to be used to this upgrade version iron. Smart Soldering Iron TS101 uses DC and PD dual power input. The power range of the DC5525 interface has been extended to DC 9-24V (up to 65W). A USB-C interface replaces the original Micro USB interface, which serves for firmware upgrades, and a standard PD power input of up to 90W. The newly added "Boost" heating function can quickly heat up in a short time to meet the welding needs of special scenes. Also, the temperature is displayed on the OLED screen, which can be accurately and easily adjusted from 122°F to 752°F (50°C to 400°C). The TS101 controller has a sharp and tough appearance, with a larger 128x32 pixel OLED screen to display more heating data.

NOTE: The Iron does not include a power supply. You WILL need a 5.5x2.5mm Barrel Connector and an XT60 to power this with your LiPo, or just pick up our cable!

Check out all our soldering equipment and our other building tools and supplies!

Features

  • DC + PD Power Input
  • Wider Bright OLED screen for clear and easy readability of information
  • DC9-24V Wide Voltage
  • Temperature control button is set on the handle allowing for easy temperature adjustments
  • Boost Mode
  • Compatible with TS100 Tips
  • Upgrade Setting Menu
  • Dynamic Detection
  • Multipurpose Anti-Slip Cap
  • Can be powered via a 3-6S LiPo for mobile use

Specifications

  • Model: TS-101
  • Color: Dark Grey
  • Material: Metal & Plastic
  • Working Voltage & Power: DC 9V-24V 9-65W Max; PD 9V-28V 9-90W Max
  • Power Input: DC 5525 Wide Voltage, PD3.1
  • Temperature Range: 50-400°C
  • Temperature Stability: ±2%
  • Length: controller: 98mm; tip: 105mm
  • DC Jack: 5.5x2.5mm
  • Weight: 33g (Controller+Tip)
  • Certifications: CE, FCC

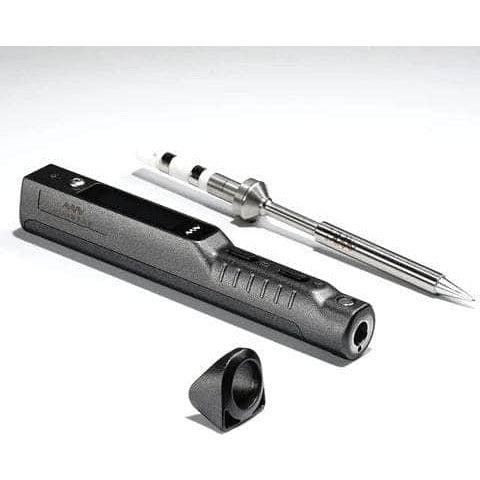

Includes

  • 1 x TS101 Controller
  • 1 x USB-C Silicone Cable
  • 1 x B2 Solder Tip
  • 1 x Anti-Slip Cap
  • 1 x Bilingual Manual in English and Chinese

 

>
