TuneRC V2 118mm Toothpick 3" Micro Frame Kit - 3mm
Original price
$12.79
-
Original price
$12.79
Original price
$12.79
$12.79
-
$12.79
Current price
$12.79
In Stock
Pre Order
$12.79

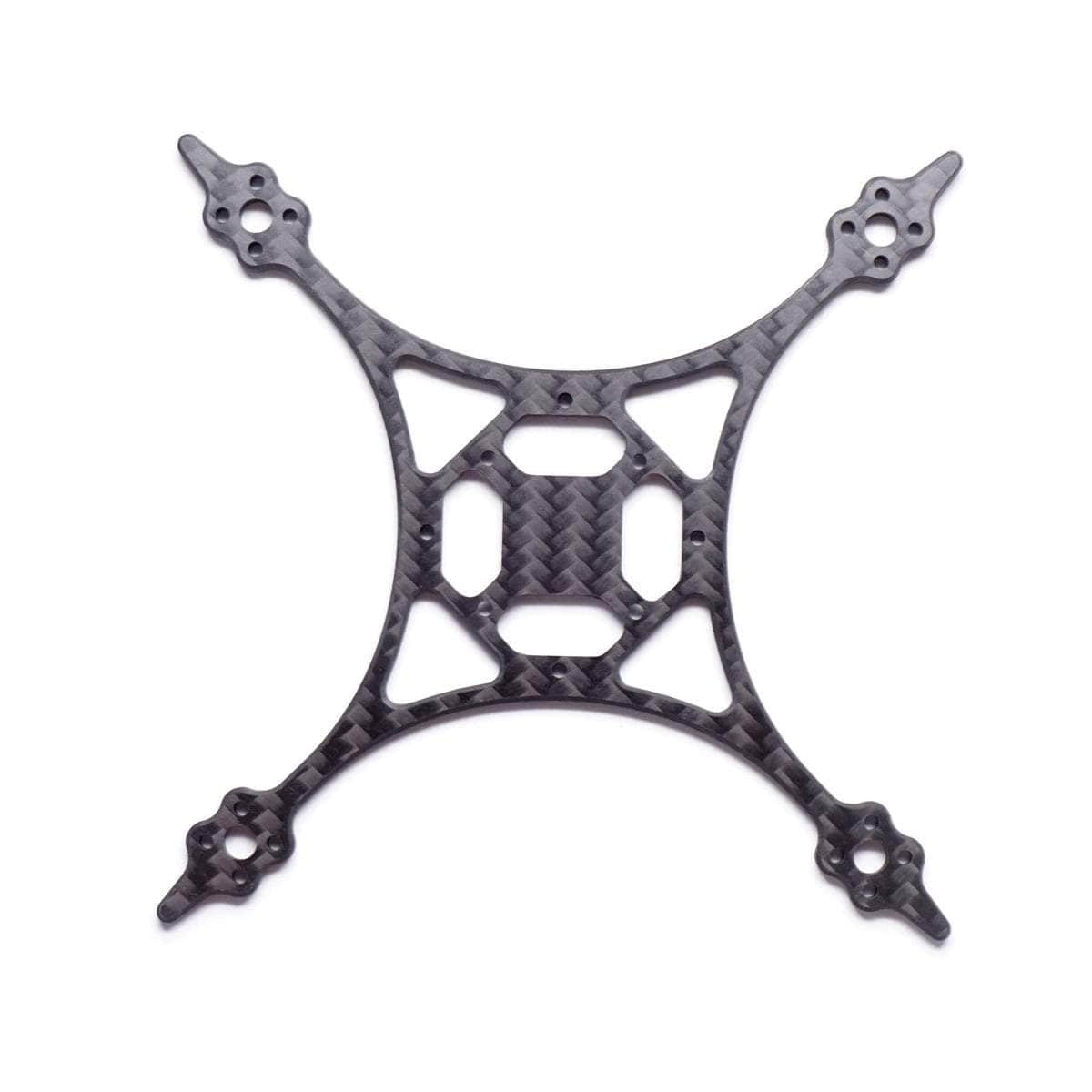

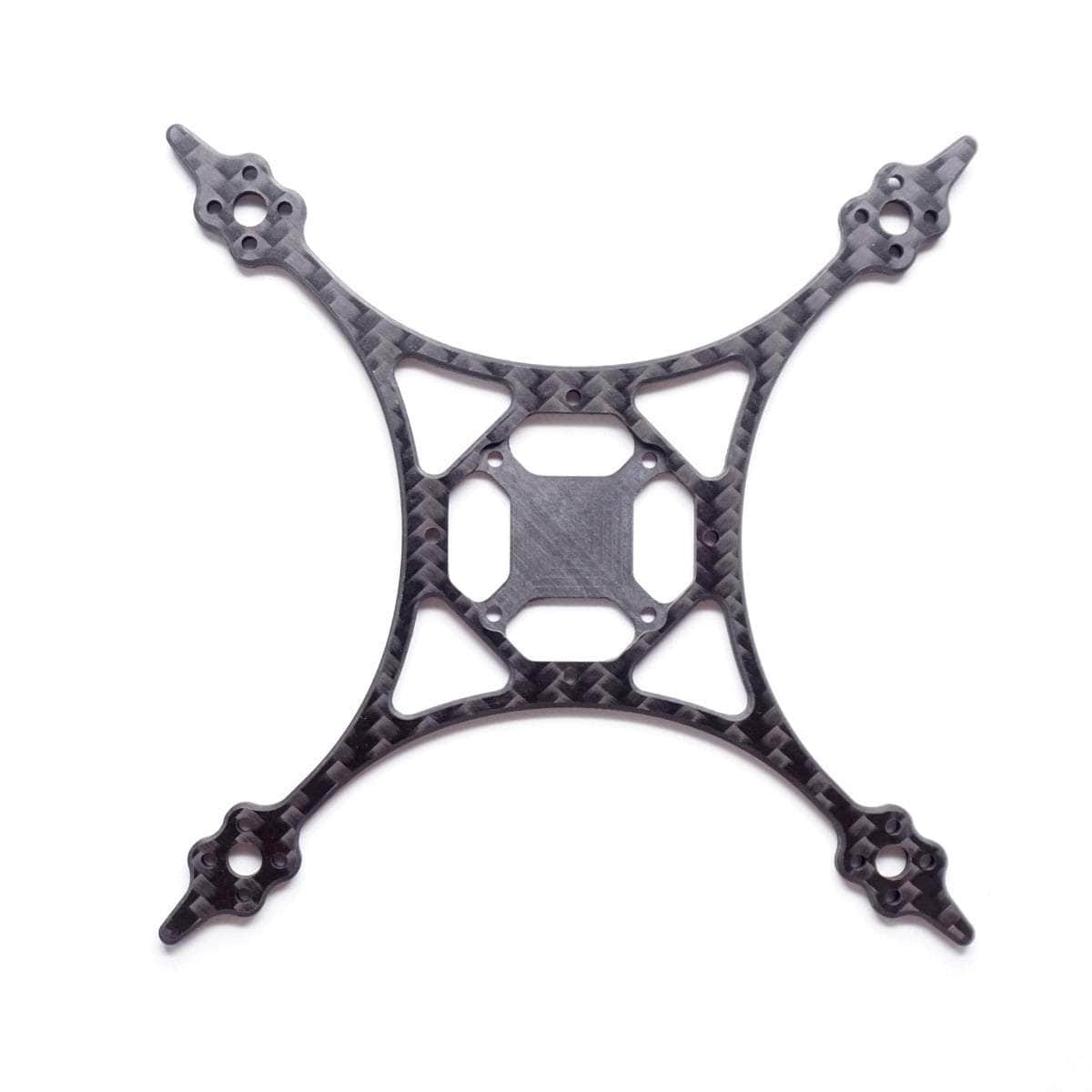

Experience improved convenience and efficiency with the TuneRC V2 118mm 3" Toothpick Frame Kit - 3mm. This updated carbon fiber frame accommodates USB FC with any orientation, while a milled center offers an ideal space for tucking a battery strap. Toothpicks are great for their lightweight performances, giving incredibly long flight times with the right build theory!
Be sure to check out all our 2'-3.5" Frames, and all our TuneRC Products!
Fits USB downwards FC Well
A dedicated room is designed to fit the USB downwards FC well, you don’t need to flip the board and remap the motor direction in Betaflight anymore.
Fits USB downwards FC Well
- A dedicated room is designed to fit the USB downwards FC well, you don’t need to flip the board and remap the motor direction in Betaflight anymore.
Milling Design to Ensure the Battery Strap Stay Flat and Clean
- We did some milling in the middle of the frame, so you can tuck the battery strap through the frame. Another step forward to get a clean build!
Specifications
- Diagonal Length: 130mm / 118mm

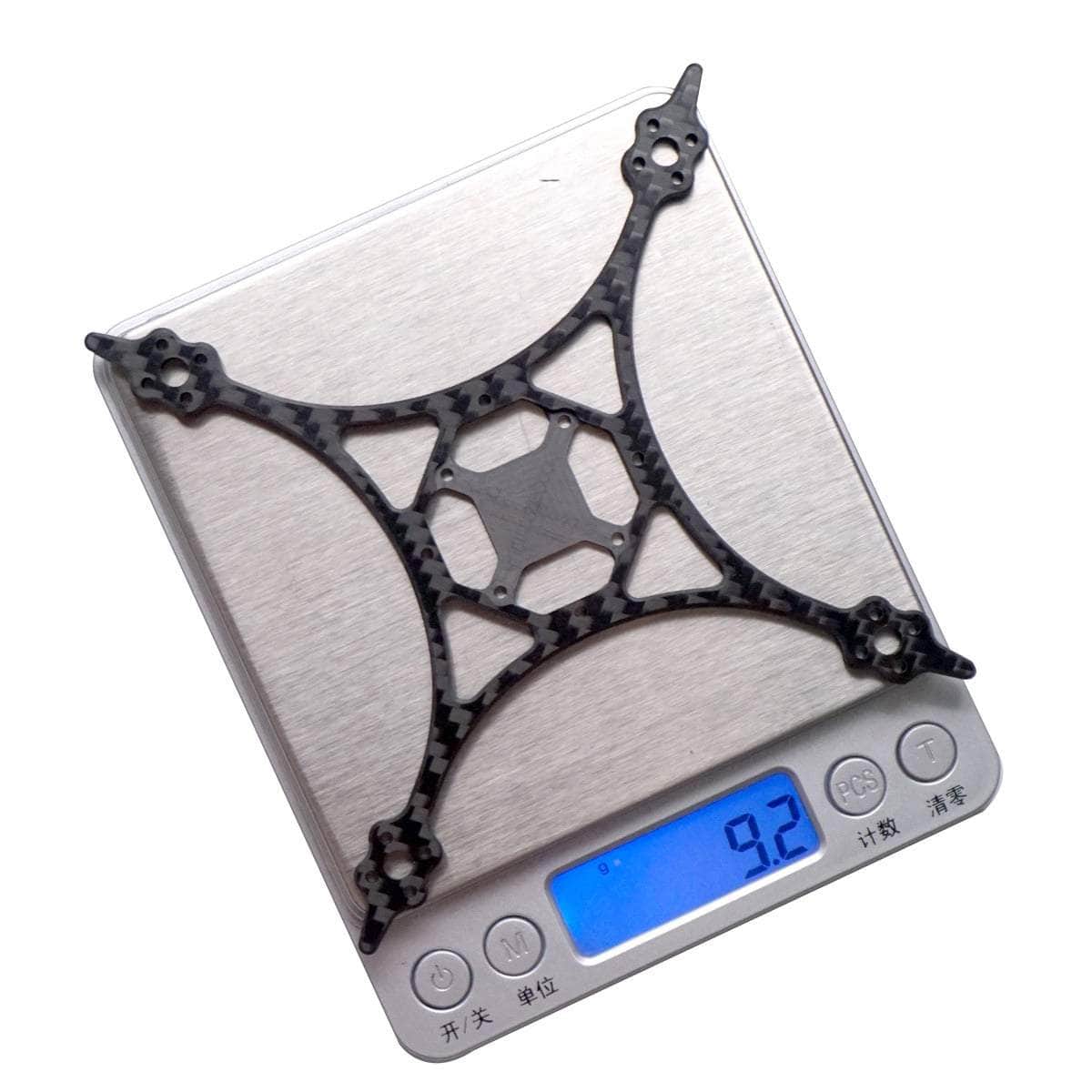

- Weight: 9.2g
- Thickness: 3mm
- Arms are well chamfered
- FC mounting holes: 20 x 20mm, 25.4 x 25.4mm
- Motor mounting holes: M2 ( diagonal 9mm )
Includes
- 1x TuneRC V2 118mm 3" micro Toothpick Frame Kit - 3mm
- 4x M2 x 18mm inner hex screws
- 4x M2 nuts
