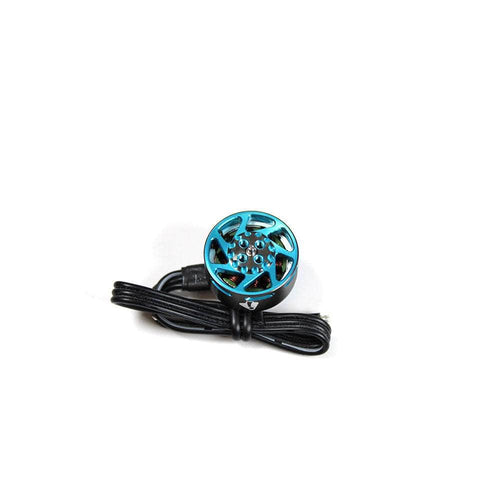

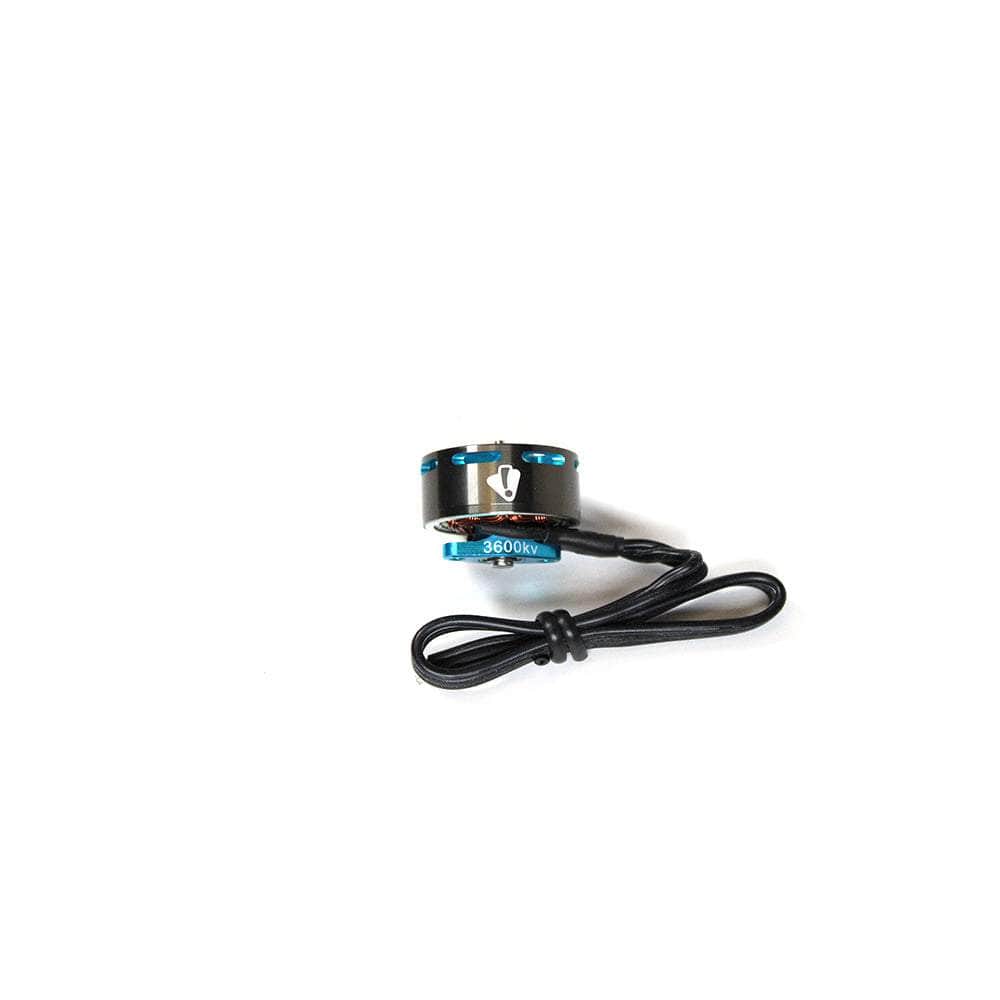

Ummagawd Aerolite 1605 3600Kv Micro Motor - Gunmetal & Blue

Check out our vast brushless motors selection, and make sure to check out our other Ummagawd products!

NOTE: The titanium screws use a M1.3 hex driver and is a 12x12 mounting configuration. This motor is designed specifically for the Ummagawd 2fiddy and the Ummagawd Grinderino frame, it may not work with other frames.

Specifications

• Kv: 3600Kv

• Installation hole position: 12×12mm，M2

• Prop mounting shaft diameter: 1.5mm

• Lead: 20#AWG 150mm

• Stator Length: 5mm

• Shaft Diameter: 3mm
• Stator Diameter: 22mm
• Idle Current: Idle Current (10 Seconds)@10V: 1.2A
• Weight: 13.8g (2cm Wires)
• Internal Resistance: 68mΩ
• Max Current (3S): 24.3A
• Max. Efficiency Current: (4-7A)>83%

• Max Continuous Power (W) 3S: 360
• Rated Voltage (Lipo): 2-4S


Includes

• 1x Ummagawd Aerolite 1605 3600Kv Motor - Gunmetal & Blue
• 1x Hardware Set
