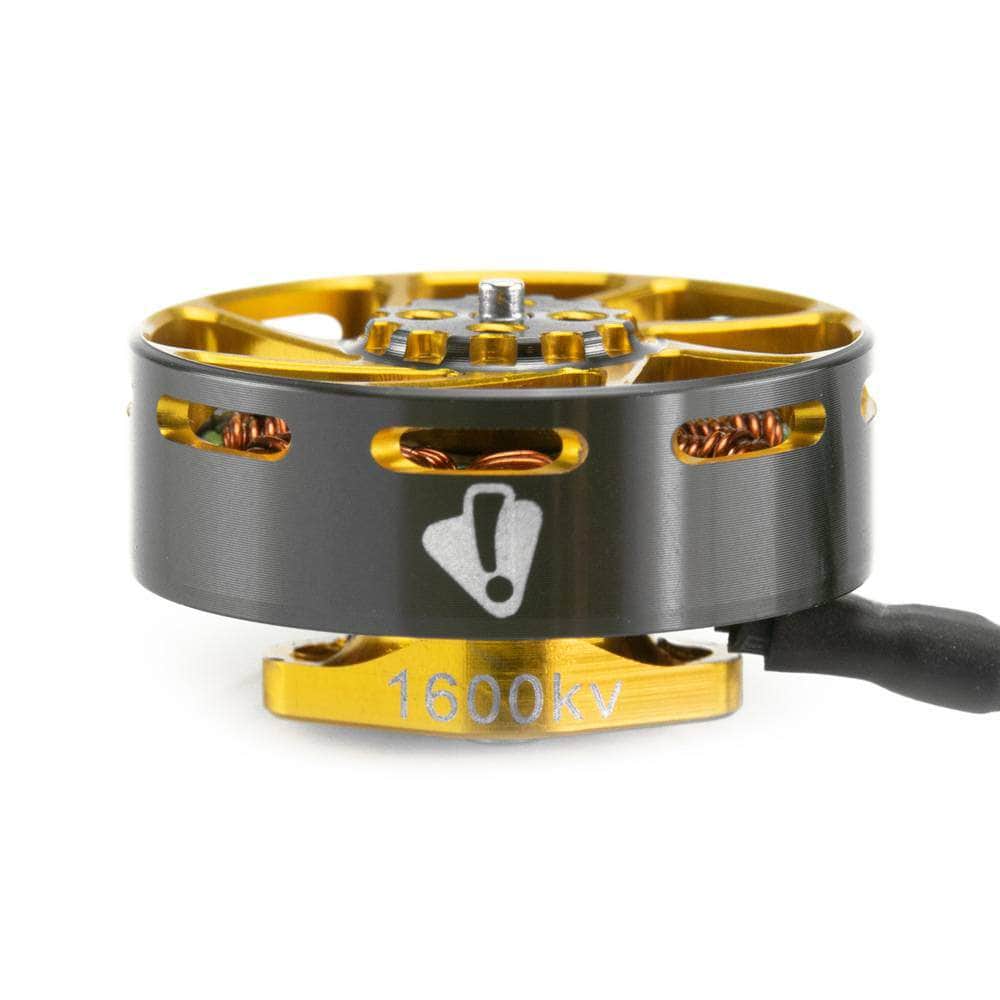

Ummagawd Aerolite 2004 1600Kv Motor

Original price $21.99 - Original price $21.99
Original price
$21.99
$21.99 - $21.99
Current price $21.99
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

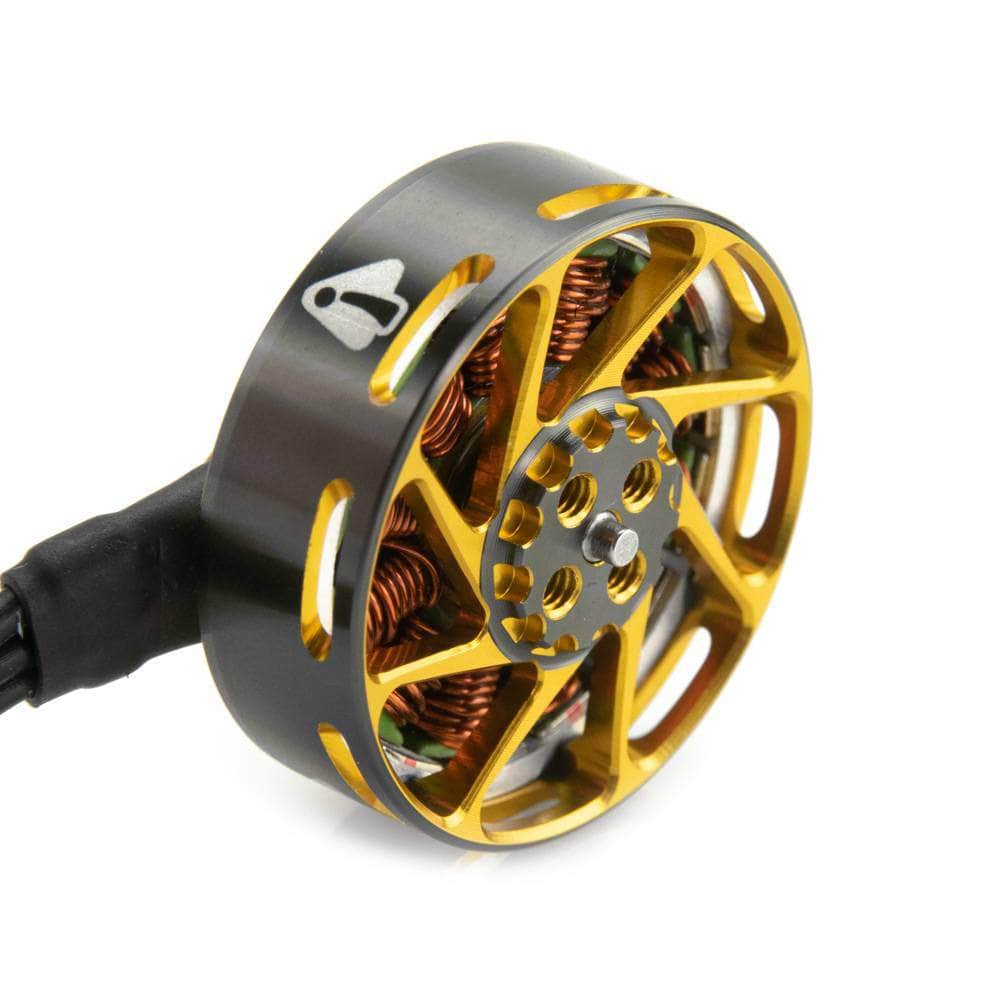

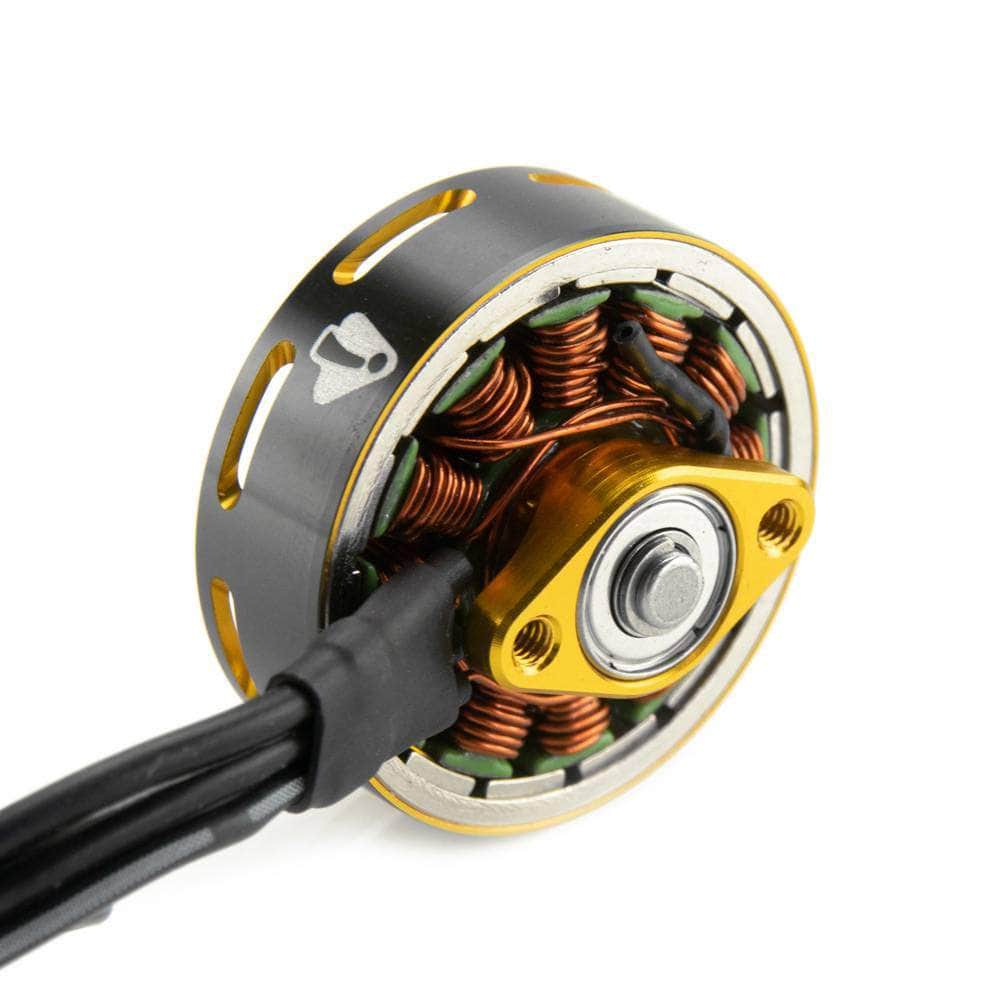

After testing a range of stator sizes and KVs, I've (umawgawd) come to the conclusion that a 2004 is the smallest size for a 5" lightweight prop and that 300g AUW target... but it has to be lightweight. So to make the motor as light as possible, I worked with the engineers at the factory to test all options. We made the motor mount use only 2 screws to secure, and thus reducing any extra weight from the base. The bell is perforated with slotted cutouts to reduce rotational mass. This adds to the motors ability to rapidly change speed, similar to the effect of lighter props.  To further reduce rotational mass, strong, yet lightweight titanium bolts are supplied to secure T-mount props. Because the prop shaft simply doesn't need to be as long as other motors it has been reduced to 1.5mm. And finally... after begging other motor factories... we now have the worlds first (on a 5 inch) "ribbon" motor wires! This will make that ultra clean build without even trying. I didn't want to build just "any" 2004 motor, it needed to be special. Speaking of special, this motor has a 3mm shaft with custom oversized 8x4x3 bearings for maximum smoothness and durability.

Browse our micro motors and the rest of our Ummagawd selection!

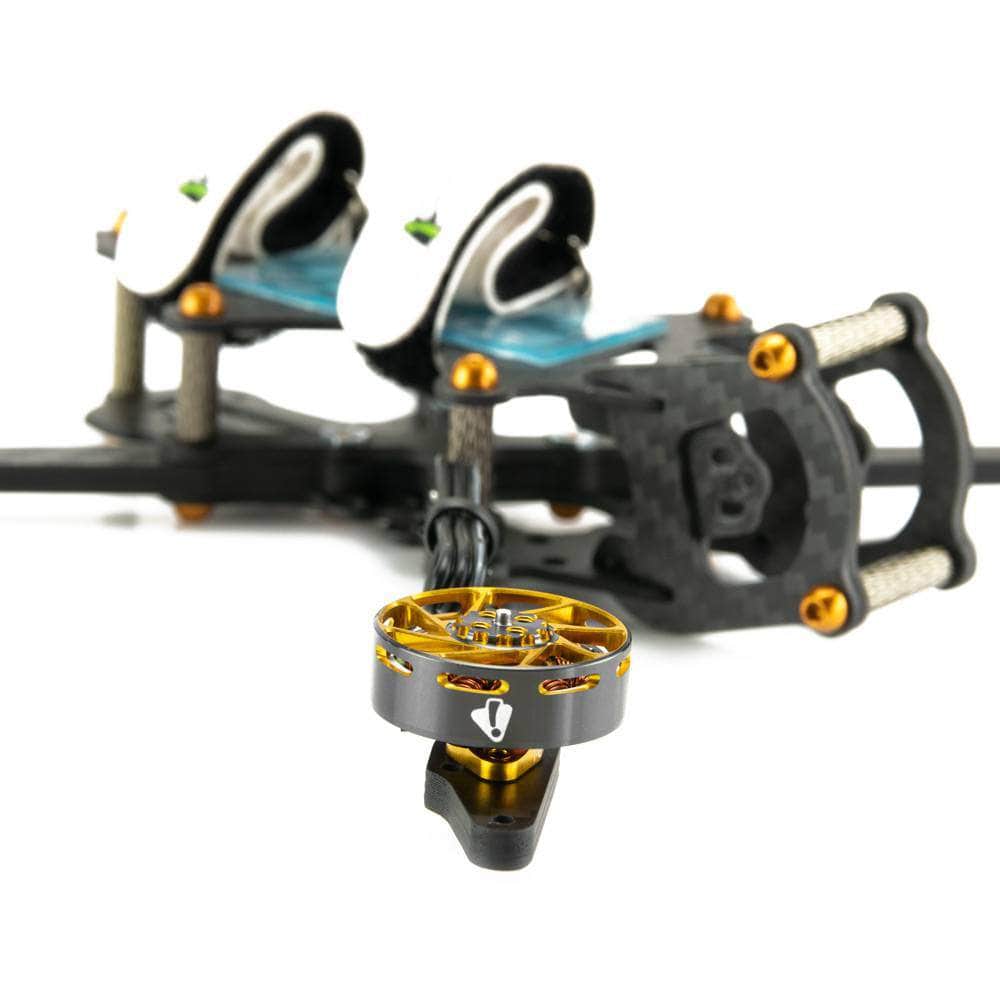

NOTE: The titanium screws use a M1.3 hex driver and is a 12x12 mounting configuration. This motor is designed specifically for the Ummagawd 2fiddy and the Ummagawd Grinderino frame, it may not work with other frames.

Specifications

  • Overall Dimension: Φ24.7×13.2mm
  • Installation hole position: 12×12mm,M2
  • prop mounting shaft diameter: 1.5mm
  • Prop: 3.5inch~5inch
  • Bearing:8x4x3
  • Shaft Diameter: 3.0mm
  • Lead Wire Size:150mm
  • slots/poles: 12N14P
  • Magnet Wire: 240℃ Enameled Wire
  • Stator Diamter:20mm
  • Stator Height: 4mm
  • Rated Voltage: 4~6S (16.8V~25.2V)
  • Weight: 18.3.g

Includes

  • 1x Ummagawd Aerolite 2004 1600KV Motor
  • Screw baggie
>
