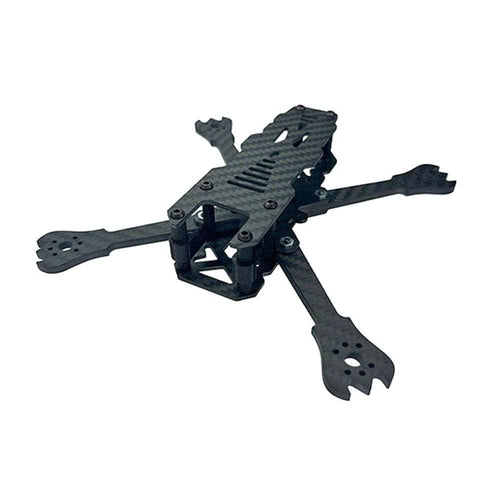

Ummagawd Botgrinder Grinderino 3.5" Micro Frame Kit

Ummagawd Botgrinder Grinderino 3.5" Micro Frame Kit

$44.95
$44.95 - $44.95
$44.95 - $44.95
$44.95
Out Of Stock
Add to Wishlist
Ask a Question

Details

Description

Once again, Botgrinder and the Ummagawd team make another absolute banger of a frame. - Imagine a Demibot-level frame but in a smaller package!  This frame will fit a single board whoop-style AIO or a 20 x 20 stack. The rear of the frame provides plenty of space to fit a VTX of your choice, and just the same, the front will accommodate any camera. Now updated to fit both 9x9 & 12x12 motor mounts! And, despite its size, it's still under 250g all-up weight!

UPDATE: The Grinderino arms are now compatible with 9x9mm motor mounting!

Be sure to check out all our 3.5" frames, as well as the rest of our Ummagawd selection!

Specifications

  • Arms: 4mm
  • Top Plate: 2mm
  • Bottom Plate: 2mm
  • Mid Plate: 2mm
  • Standoffs: 6mm OD 7075 Aluminum
  • FC Mounting: 20x20 and 25.5x25.5 (whoop style)
  • VTX Mounting: 20x20 and 25.5x25.5 (whoop style)
  • Frame Weight: 65g
  • Motor Mounting Pattern: 9mm x 9mm &12mm x 12mm

Includes

  • 1x Ummagawd Botgrinder Grinderino 3.5" Freestyle Micro Frame Kit
  • 1x Top Plate
  • 4x Arms
  • 1x Bottom Plate
  • 1x Mid Plate (with press nuts)
  • 1x Hardware Kit
  • 1x Ummagrip Battery Pad
  • 2x Battery Straps
  • 1x Set of TPU FPV Camera Mounts

Build Diagram

Ummagawd Botgrinder Grinderino 3.5" Micro Frame Kit

More Information:

  • SKU: 21542
  • Barcode: 691023522039
