Description

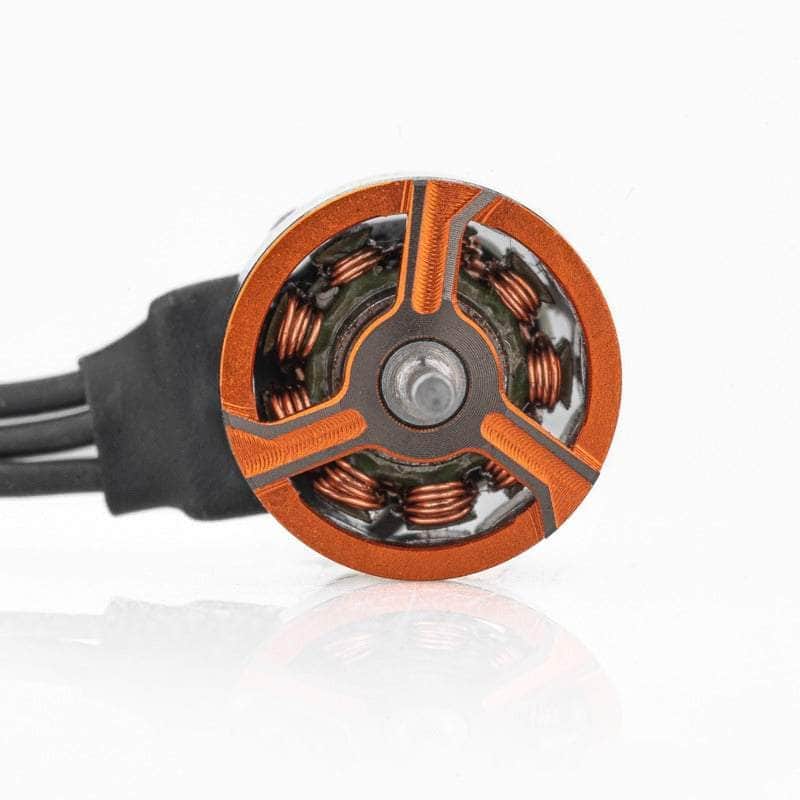

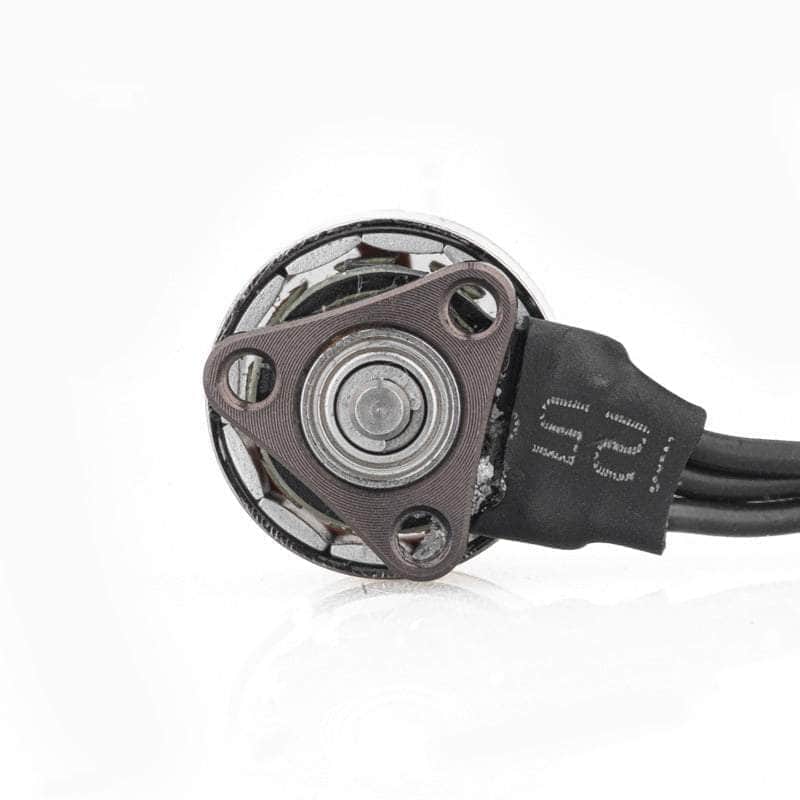

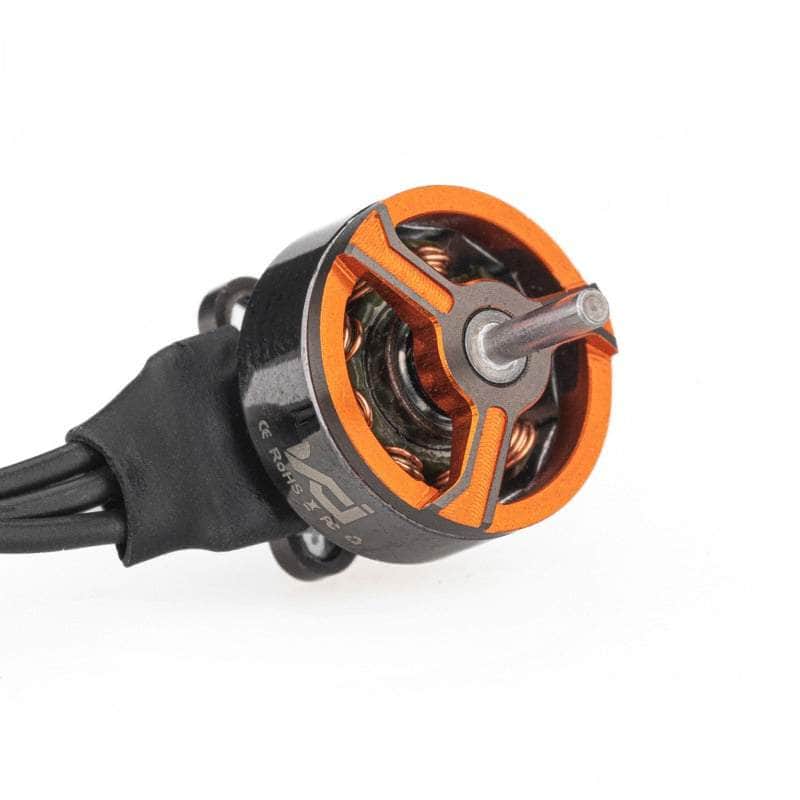

The Spark 0702 Dual-Bearing Micro/Whoop FPV Drone Racing Motor is designed with the world's fastest pilots in mind, with its dual-bearing design, this motor redefines speed, efficiency, reliability, and precision for pilots of all levels.

Experience the future of motor technology with Vulcan Innovation. Elevate your FPV experience and be part of the elite. Welcome to a new era of speed and precision.

Check out our vast brushless motors selection, as well as other VCI Hobby Products!

Features

• 4A Peak Current Draw
• Dual-Bearing Micro Motors
• Designed with Speed in mind

Specifications

• Configuration: 9S12P

• Internal Resistance: 350mO

• Shaft Length: 4.2mm

• Rated Voltage: 1S (4V)

• Peak Current: 3.3A

• Idle Current(10V): 0.4A

• Magnets: N52SH arc

• Stator Size: 07xL2mm

• Dimensions: 09xL12.2mm

• Shaft Diameter: 1mm

• Silicone Wire: 30AWG 30mm

• Max Instantaneous Power: 13.2W

• Weight(Incl. Cable): 1.53g

Includes

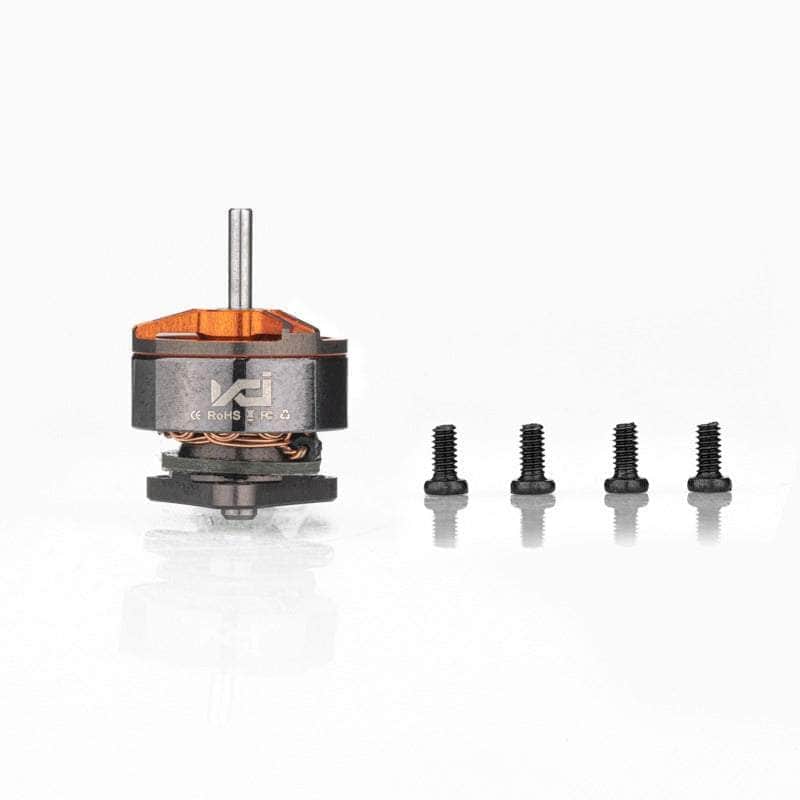

• 1x VCI Hobby Spark 0702 22000Kv Micro Motor (4 Pack)
