Description

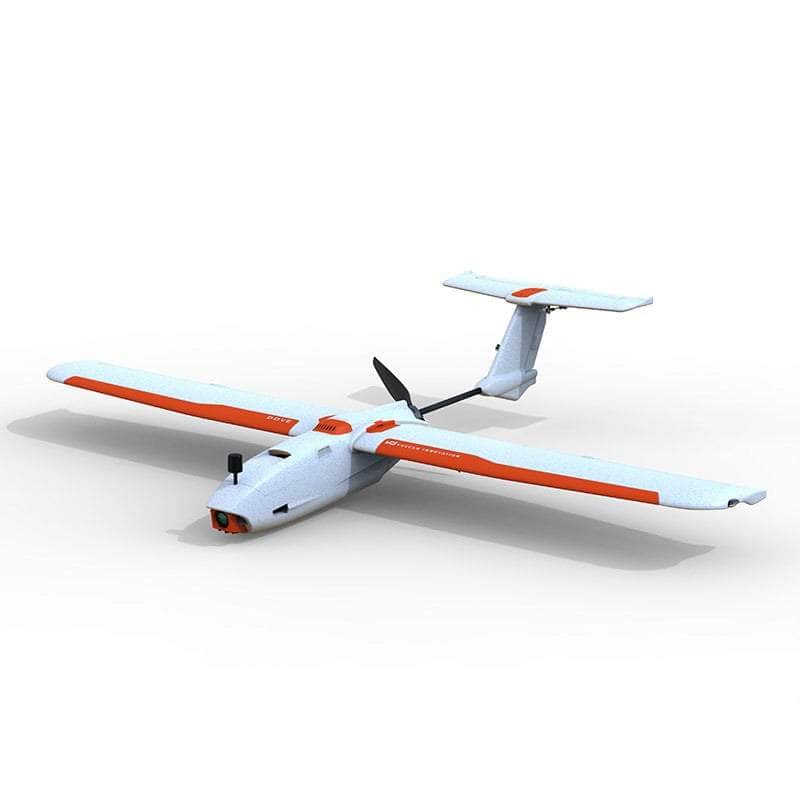

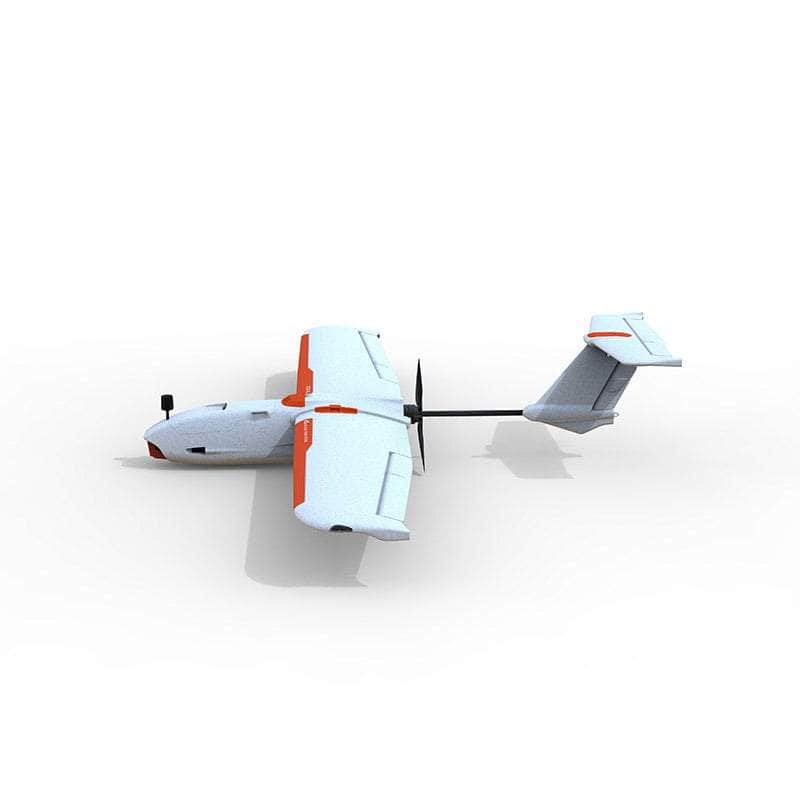

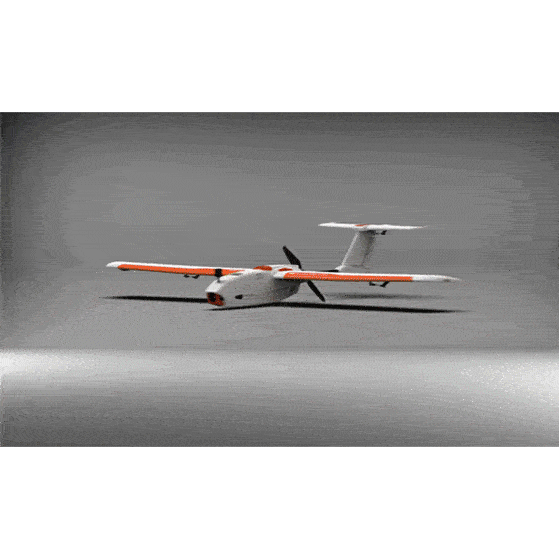

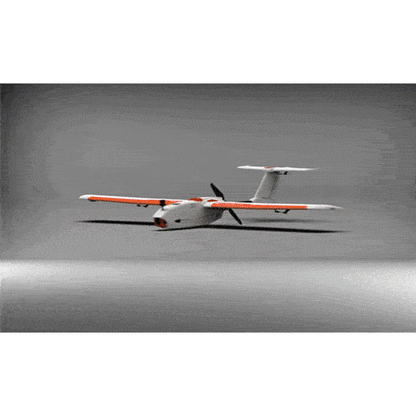

Elevate your FPV flight experience with Vulcan Innovation's advanced fixed-wing aircraft, engineered with a sleek, drag-minimized fuselage and sturdy carbon fiber build for enhanced strength and battery longevity. This model seamlessly accommodates cutting-edge DJI O3, HDZero/Walksnail, and analog video systems, bolstered by custom motors and propellers designed for peak aerodynamic performance. Quick assembly, eco-friendly materials, and night-flight illumination round out an aircraft that truly soars above the rest.

Browse the rest of our PNP wings, as well as other VCI Hobby Products!

Features

• Streamlined fuselage designed to minimize drag and extend battery life

• Supports both DJI O3, HDZero / Walksnail and Analog video transmission, with a dedicated mount for action cameras

• Main structure of the fuselage constructed from carbon fiber, offering double the strength, durability, and stability of traditional wooden materials

• Custom motor design aligns thrust directly with the fuselage centerline, eliminating propeller angle deviation and optimizing thrust output

• Custom-designed folding propellers pair seamlessly with the motors, significantly reducing flight drag and maximizing aerodynamic efficiency

• Elevated T-shaped tail designed to reduce turbulence from the propellers, ensuring the efficiency of the tail assembly through specialized design

• Integrated load-bearing wing allows the attachment of up to 600g of additional weight without modifying the power system, maintaining free flight capabilities

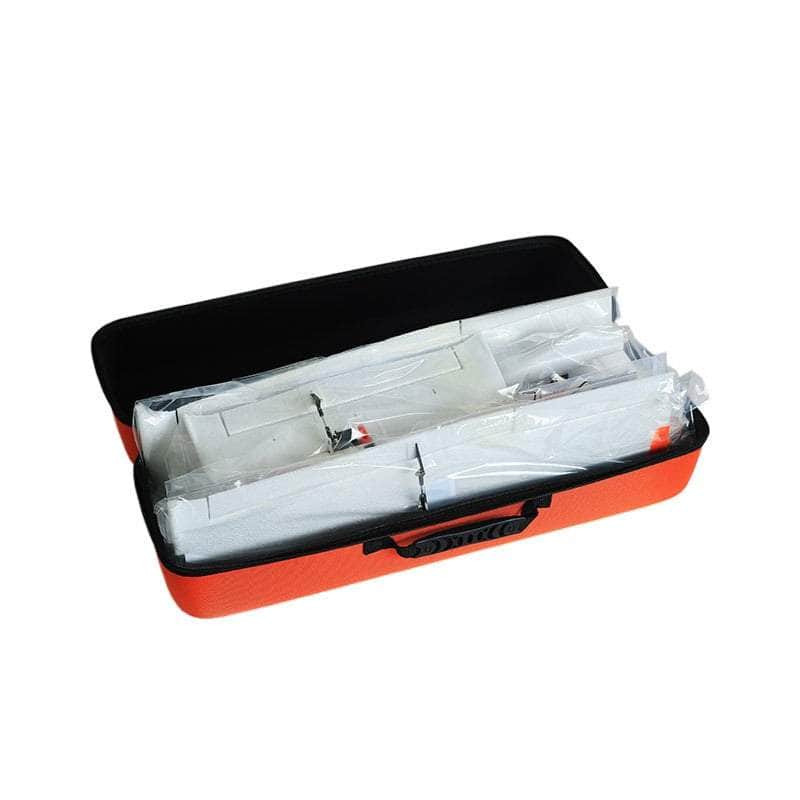

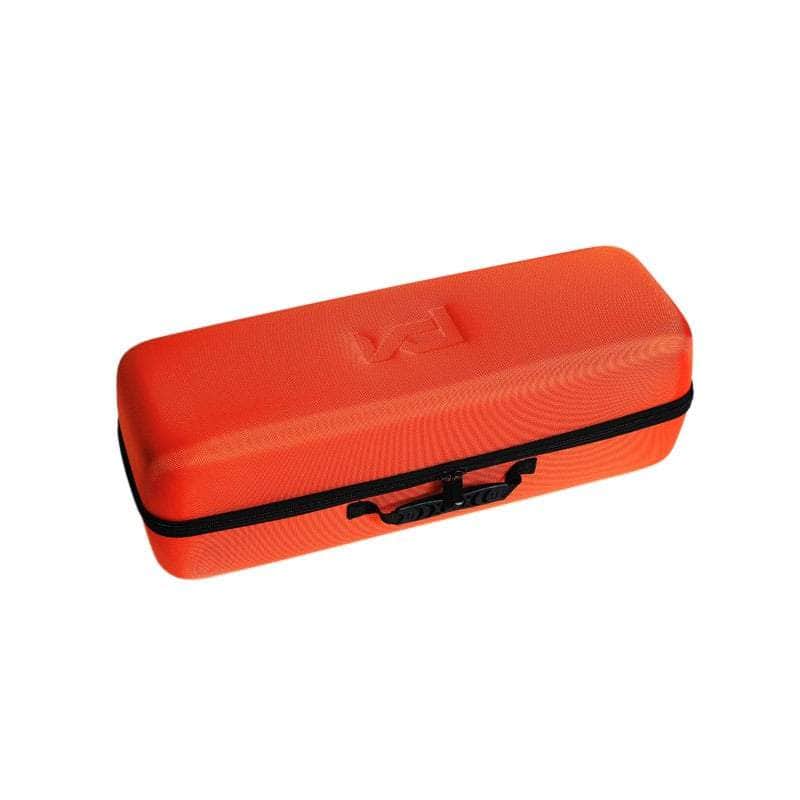

• Quick-release assembly and compact storage size, complete with a durable hard-shell case for convenient transportation and additional fuselage protection

• Equipped with dual-color lights for a visually appealing night flight experience and improved landing visibility

• Constructed with EPP materials that naturally decompose, avoiding environmental white pollution

Specifications

• Wing Span: 1050mm (41.4 inch)

• Length:745mm (29.3 inch)

• Height:185mm (7.3 inch)

• Wing Area: 14d㎡ （217 inch)

• Normal Takeoff Weight: 650g (23oz)

• Maximum Takeoff Weight: 1250g (44oz)

• Maximum Airspeed: 110KM/H (59kn)

• Stall Speed: 25KM/H (13.5kn)

• Test Data of 3S 1800 MAH LI-PO Battery:

• Maximum Cruise Time: ≥35mins

• Maximum Range: ≥25kms

• Maximum Load: 600g (21oz)

Includes

• 1x VCI PNP DOVE FPV Fixed Wing Kit - White
• Fuselage (w/ propeller, motor, ESC)

• Horizontal Stabilizer (w/elevator servo)

• Vertical Stabilizer (w/ rudder servo)

• Left Wing+Right Wing(w/ left aileron servo)

• Accessory Pack (screws, allen wrench, spare battery strap, 3M double sided tape)

• Sticker
