Description

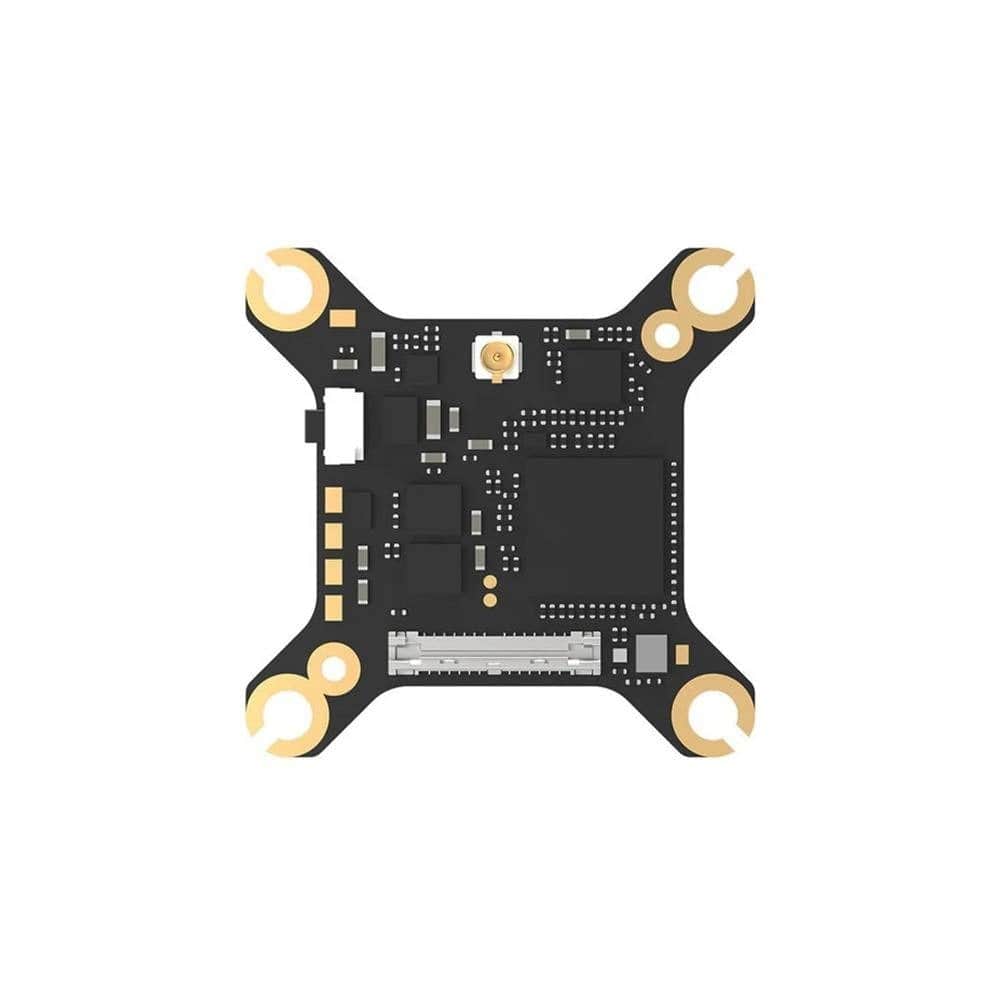

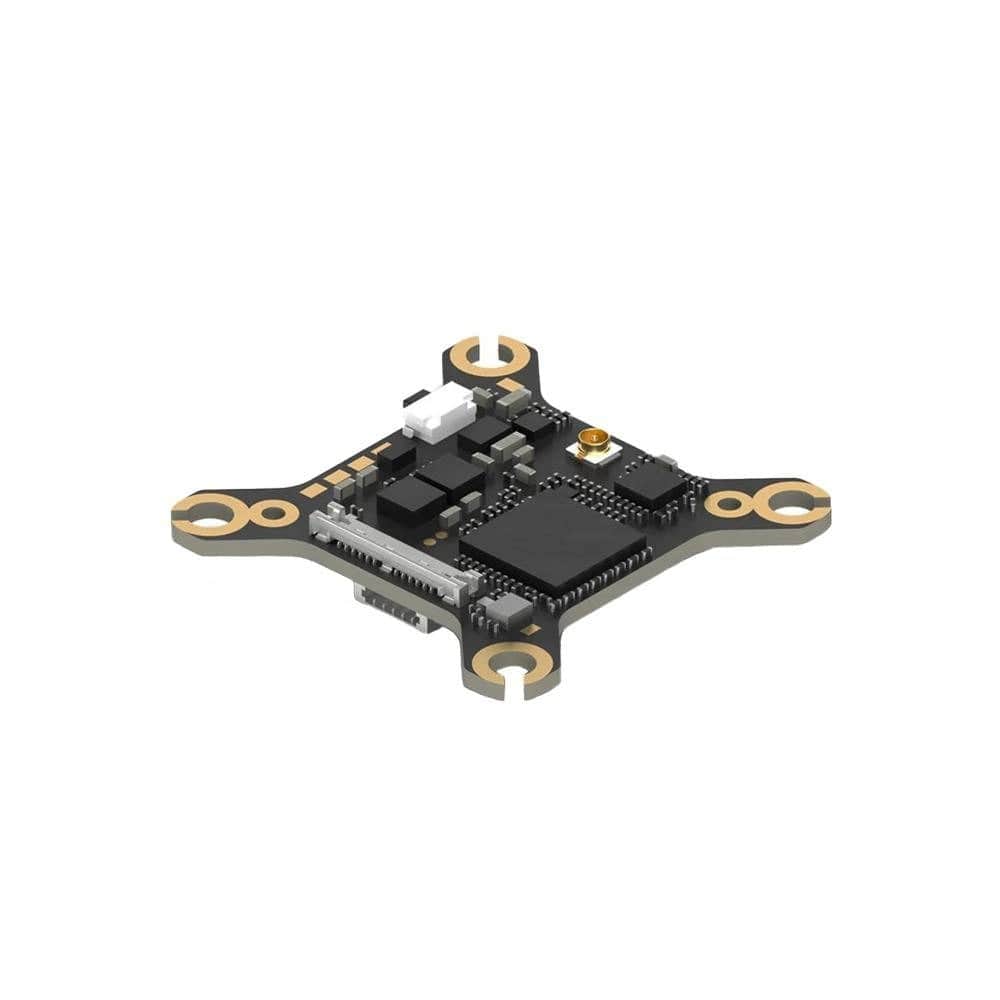

Part of the revolutionary Walksnail Ascent FPV system, the Walksnail Ascent Lite VTX Kit gives you an immersive HD experience. It delivers clear 1080P/60FPS footage in a lightweight and efficient build. Easy to set up and operate, the Walksnail Ascent Lite Kit is great for pilots who are new to digital systems and experienced professionals alike.

Check out all our Walksnail HD products and check out all our Walksnail compatible products!

Features

• Ultra-Light & Efficient: Weighs only 6g and consumes 30% less power than similar models
• Crisp 1080P Vision: Built with a 1/2.8'' image sensor, it delivers clear 1080P/60FPS footage and 35ms low latency
• Wider View, Longer Range: Get an immersive 147° FOV with a 16:9 aspect ratio and fly confidently up to 3KM
• Easy Setup, Great Value: Compatible with F4/F7/H7 flight controllers and firmware like Betaflight and Ardupilot
• Great Value Digital Entry Choice: Offering HD image and low latency at an unbeatable price

Specifications

• Model: WN13-4S09B
• Communication Frequency: 5.730-5.815 GHz
• Transmit Power (EIRP): <20dBm
• Channels: 3
• Weight: 6g (Antenna not included)
• Mounting Hole: 25mm
• Aspect Ratio: 16/9
• Resolution: 1080P/ 60fps, 720P/ 60fps
• Image Sensor: 1/2.8 inch
• Operating Bandwidth: 5M/ 10M/ 20M/ Auto
• Antenna: 1(Ipex-1)
• End-to-End Latency: Average latency 35ms
• OSD: Canvas mode
• Bitrate: 25mbps
• Supported FC Systems: Betaflight, Inav, Fettec, Kiss, ArduPilot
• Wide Voltage Input: 3V~12.6V
• I/O Interface: JST1.0 x 4 (Power cord); HSG0.8 x 5(USB)
• Dimensions:

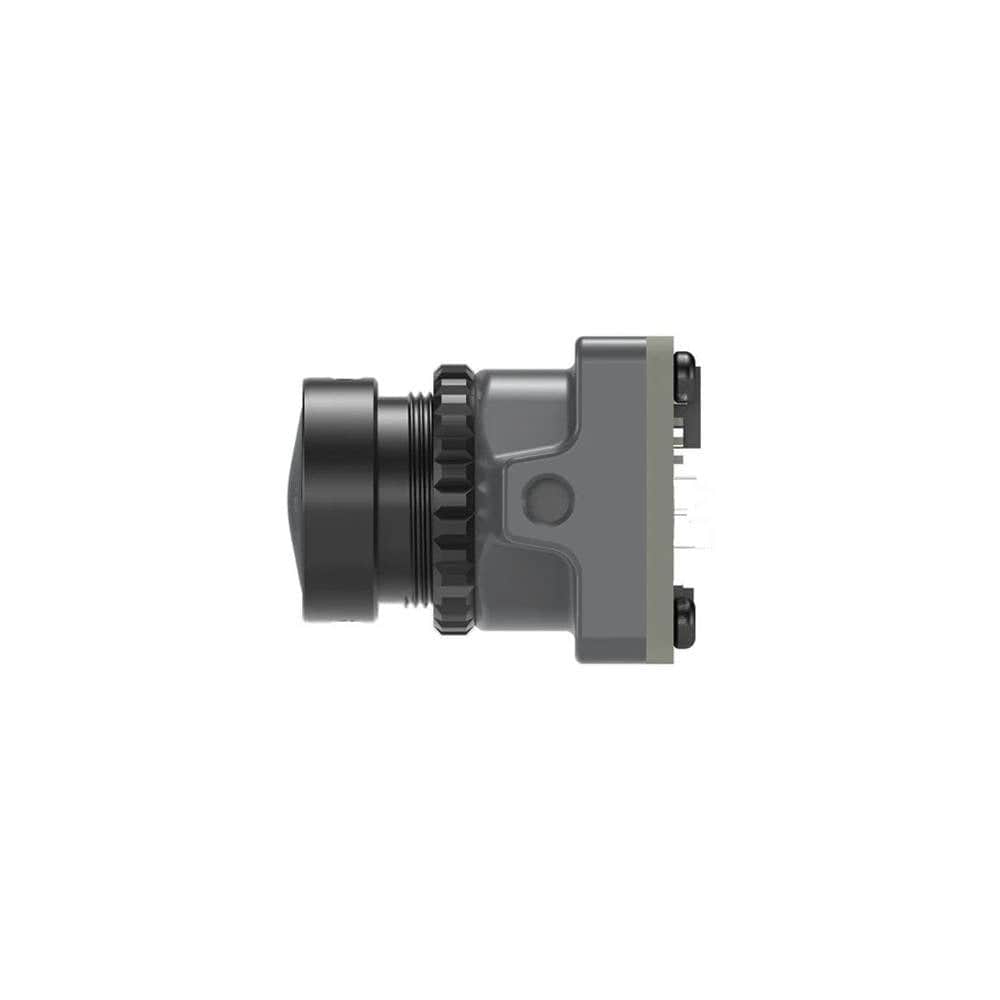

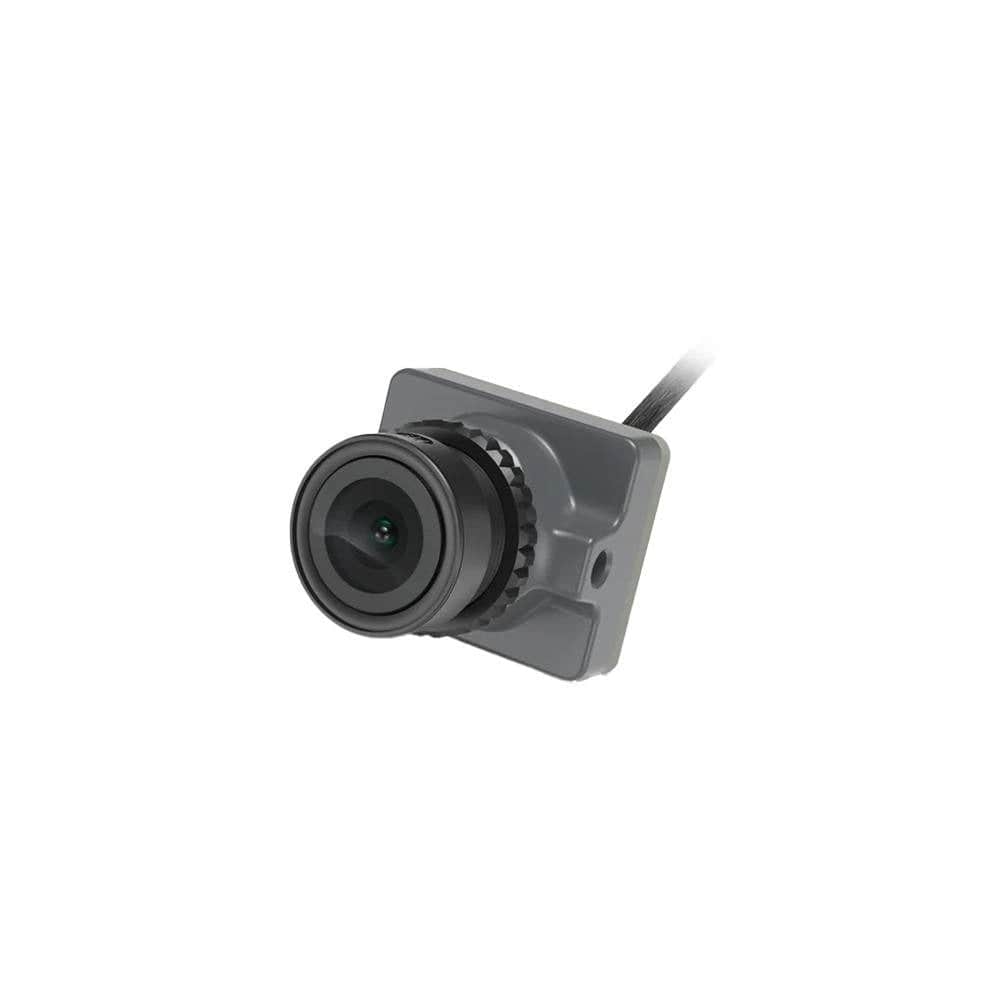

  • Camera:12 x 14 x 15mm
  • VTX: 30.5 x 30.5 x 3.5mm

Includes

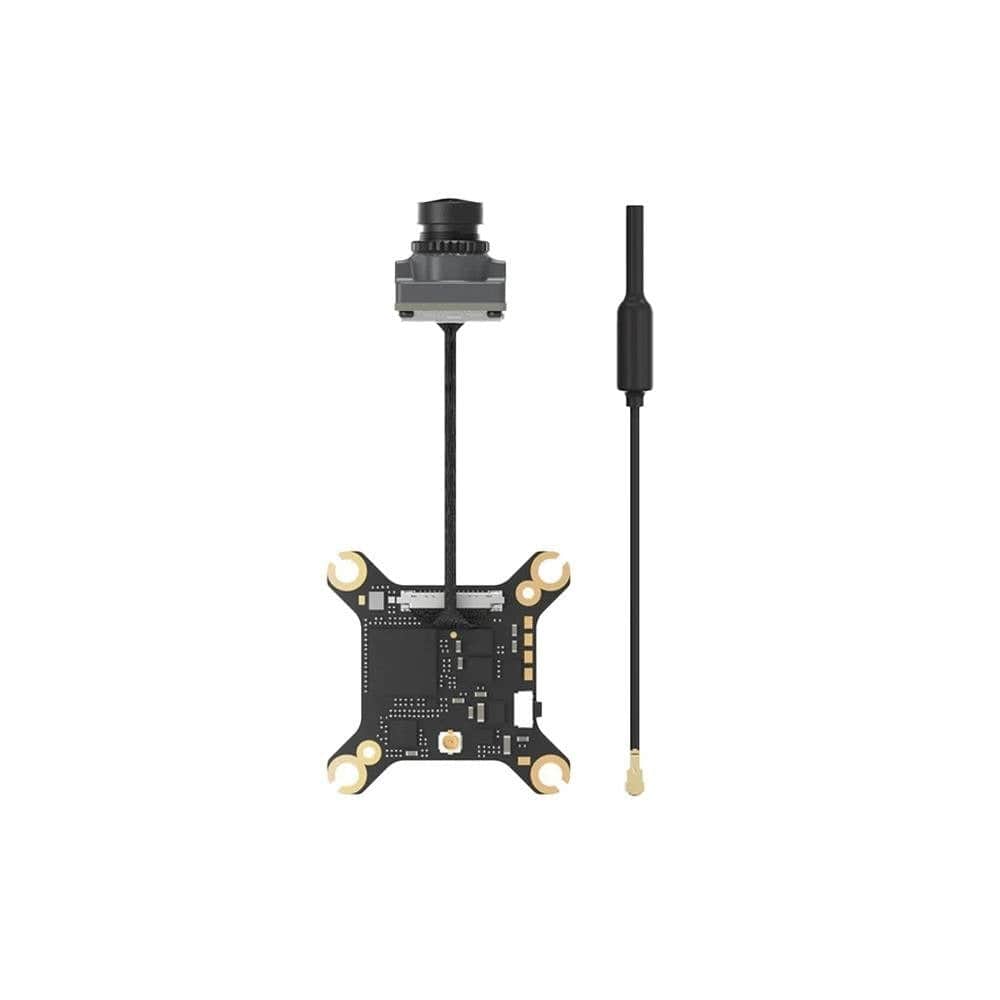

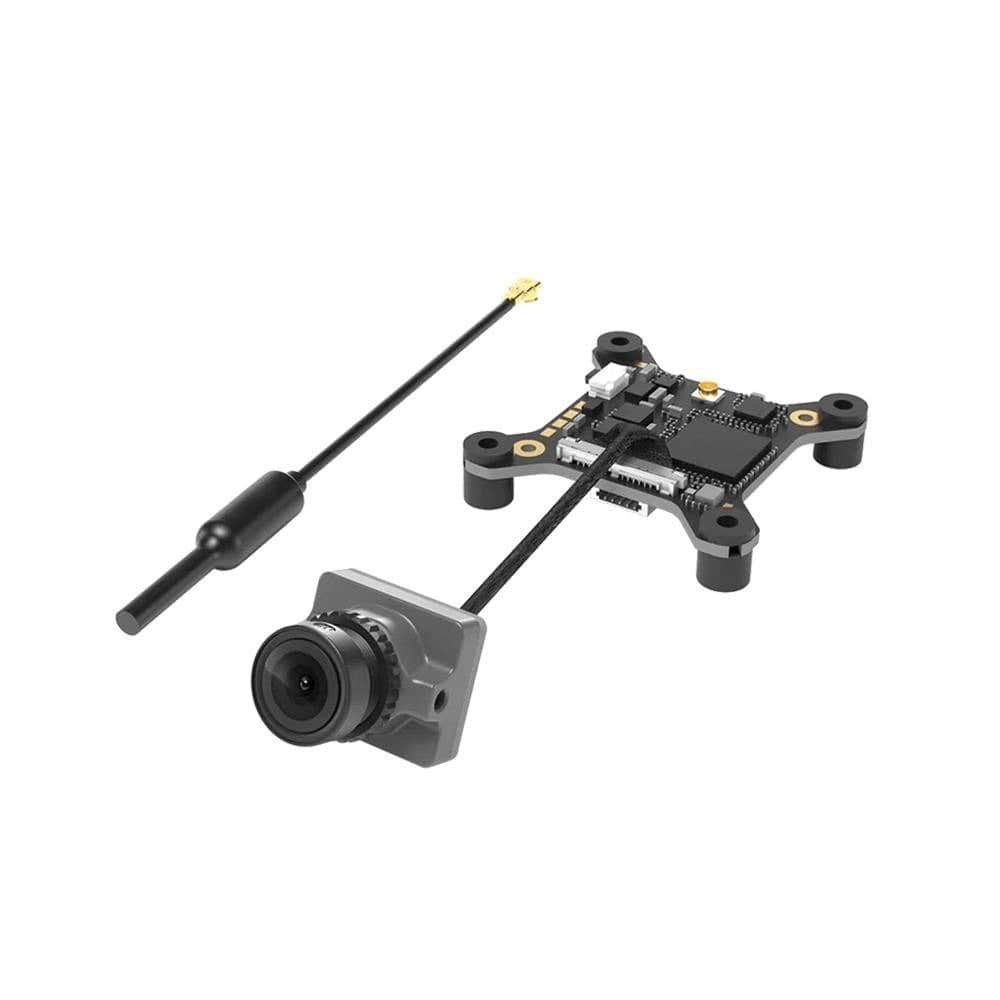

• 1x Ascent Lite Kit (Camera Included)
• 1x Antenna (IPEX)
• 1x 4-Pin Silicone Cable
• 1x USB Data Cable
• 1x Quick Start Guide
