Description

XILO AXII antennas bring you the same game-changing performance as the original Lumenier AXII antennas with superb penetration, signal strength, and clarity - now at an incredibly affordable price! XILO AXII antennas are brought to you by the same manufacturer of the orignal AXII antenna line, giving you performance you can count on.

In collaboration with renowned FPV antenna designer Hugo of TrueRC brings you one of the best-performing FPV antennas in the world. The AXII antenna is an original design that features a new RF pathway technology (unique hybrid network) allowing it to be incredibly lightweight and smaller than a host of other 5.8GHz CP antennas.

Even though the AXII is both small and lightweight, it does not sacrifice any performance. In fact, it outperforms most other antennas in all categories. Precision engineering has given this antenna a near perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII has a high max gain of 1.6dBic enabling better range and penetration. It has a wide bandwidth covering the popular FPV 5GHz band from 5.5GHz-6.0GHz, ensuring you have a clear and strong signal no matter which frequency you're on.

The AXII is designed to be ultra-durable and put up with the beatings FPV pilots put on their antennas. The entire antenna array and SMA connection are securely protected inside the outer casing. The outer shell case is made from impact-resistant polycarbonate material, and it is sealed shut to guard the antenna elements inside.

Specifications

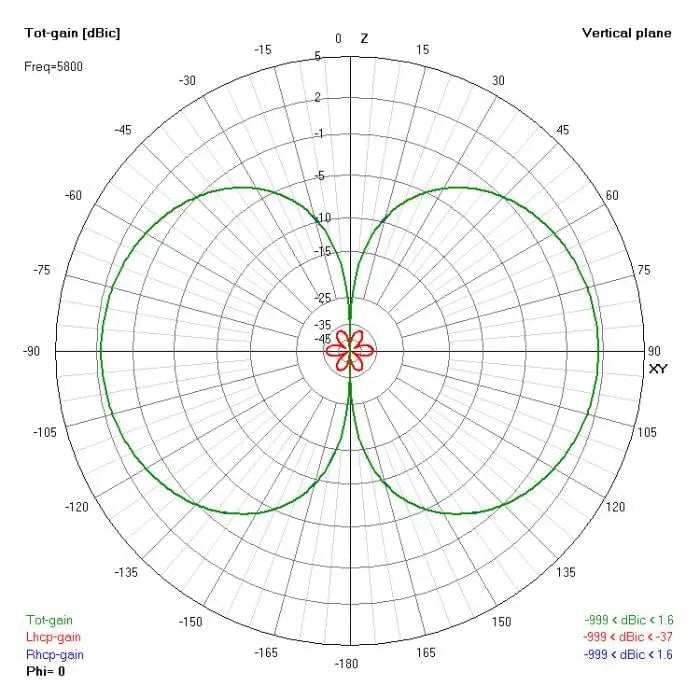

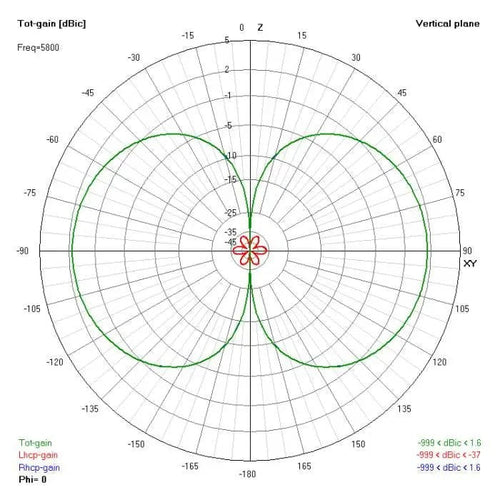

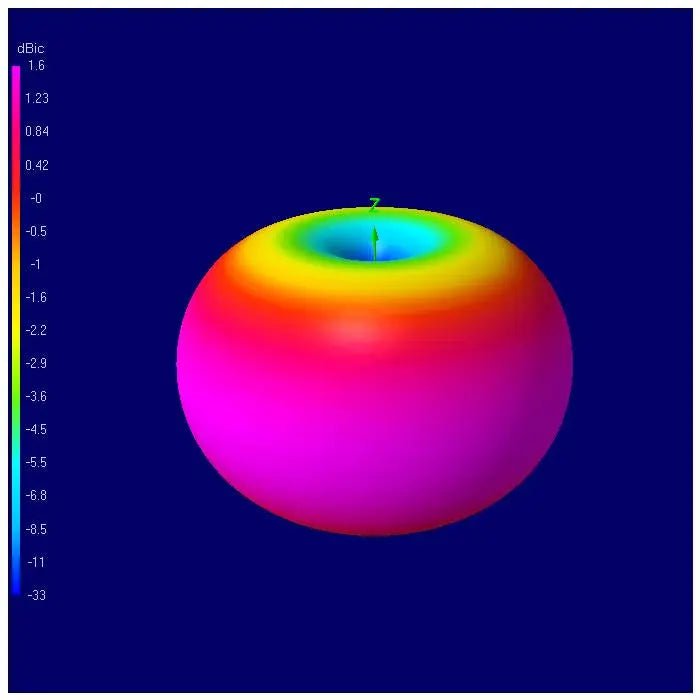

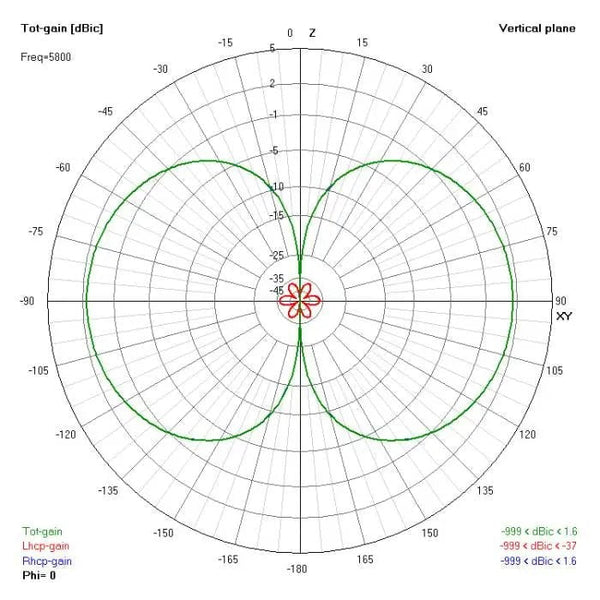

• Gain: 1.6dbic

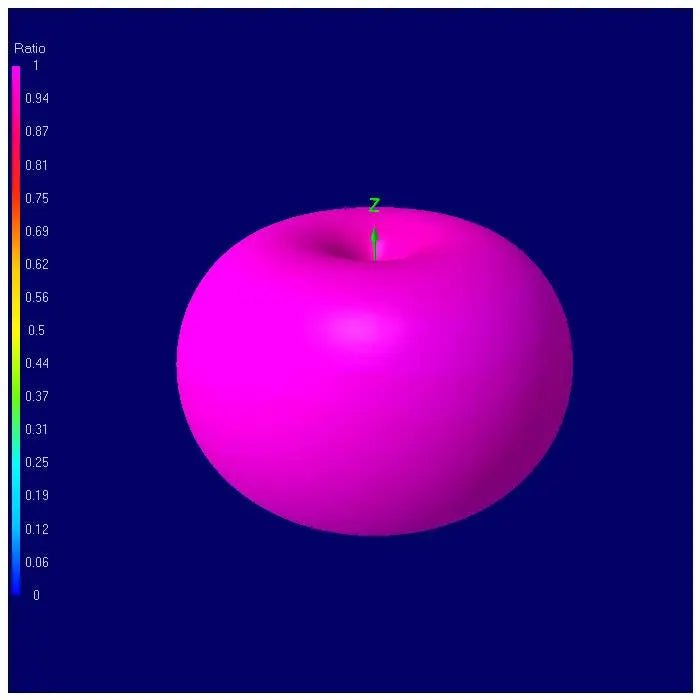

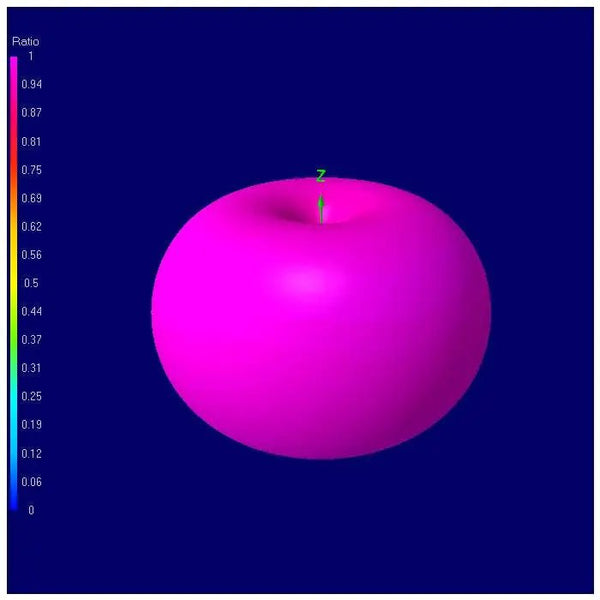

• Axial ratio: 1.0 (near perfect)
• Bandwidth: 5.5GHz-6.0GHz
• Radiation Efficiency: 98%
• SWR: <=1.5:1
• Weight: 4.8g
• Size: 24mm x 16mm
• Connector: SMA
• Works great as both a transmitting or receiving antenna
• Compatible with other styles of 5.8GHz LHCP antennas

Polarization

• Left Hand Circular (LHCP) or Right Hand Circular (RHCP)

Includes

• 1 x XILO Stubby SMA AXII 5.8GHz Antennas (LHCP/RHCP)

Design by
