Description

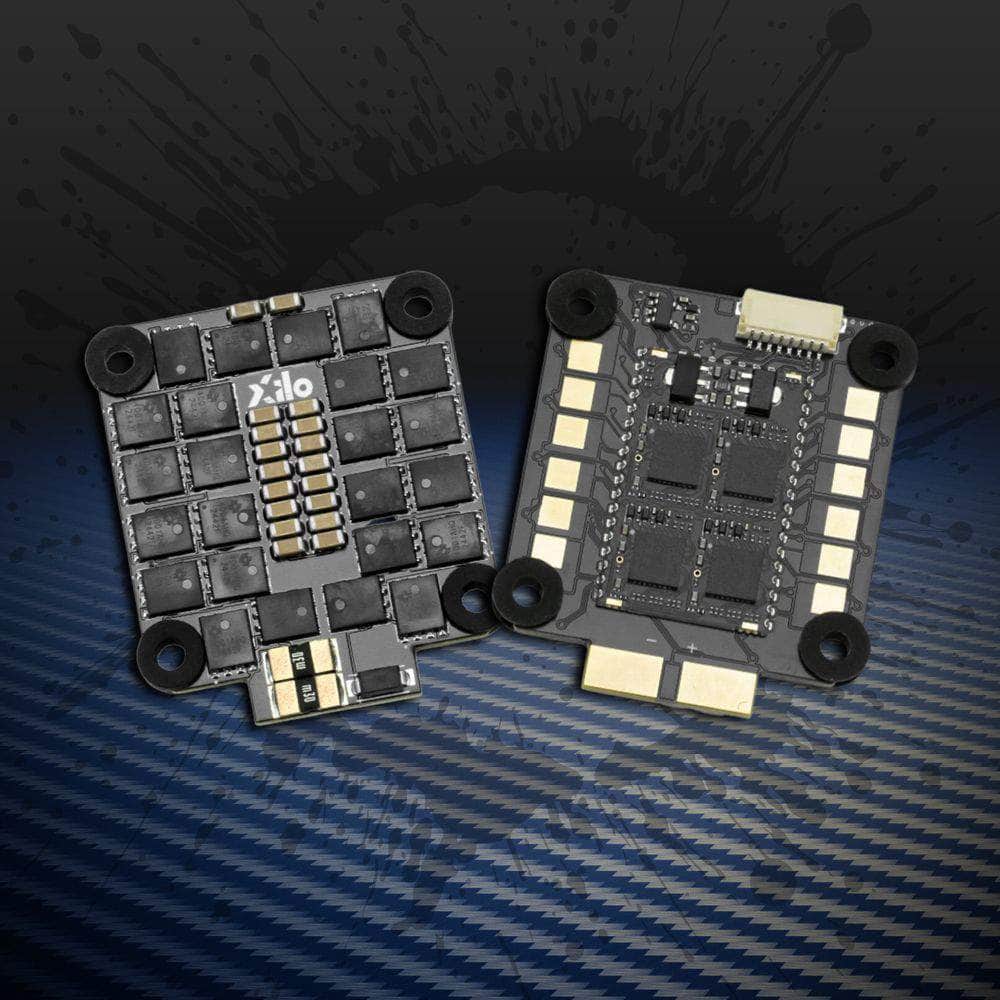

XILO Stax V3 F4 45A AM32 3-6S 4-in-1 ESC is now at RDQ! This capable and affordable ESC comes equipped with the newest AM32 firmware. 30.5x30.5 and Plug-n-Play this board is ready to pair with your favorite flight controller.

Check out all our 30x30 ESCs and the rest of our AM32 ESC collection.

Features

• Supports DSHOT 1200, Proshot, Oneshot125 (125-250us), Oneshot42(41.7-83.3us), and Multishot (5-25us). Auto-Detection
• Upgraded MOSFET, Allowing for Higher Amperage and Lower Resistance
• Synchronous Rectification Technology Adds Efficiency, Damped Light
• Adaptive Timing, Compatible with a Wide Range of Motors and KV
• Optimized PCB Layout Enhances Cooling and Performance
• Latest Gen. Firmware Using AM32 with Telemetry
• F4 Processers for Blazing Speed (future-proof)
• Powerful Regenerative Braking / Active Braking
• New and Improved Hardware
• Lightweight and Compact Size
• 3-6s LiPo Battery Compatible
• 50A Per Channel, 60A Burst
• Onboard Current Sensor
• 96K PMW Frequency
• Lightweight

V3 Updates

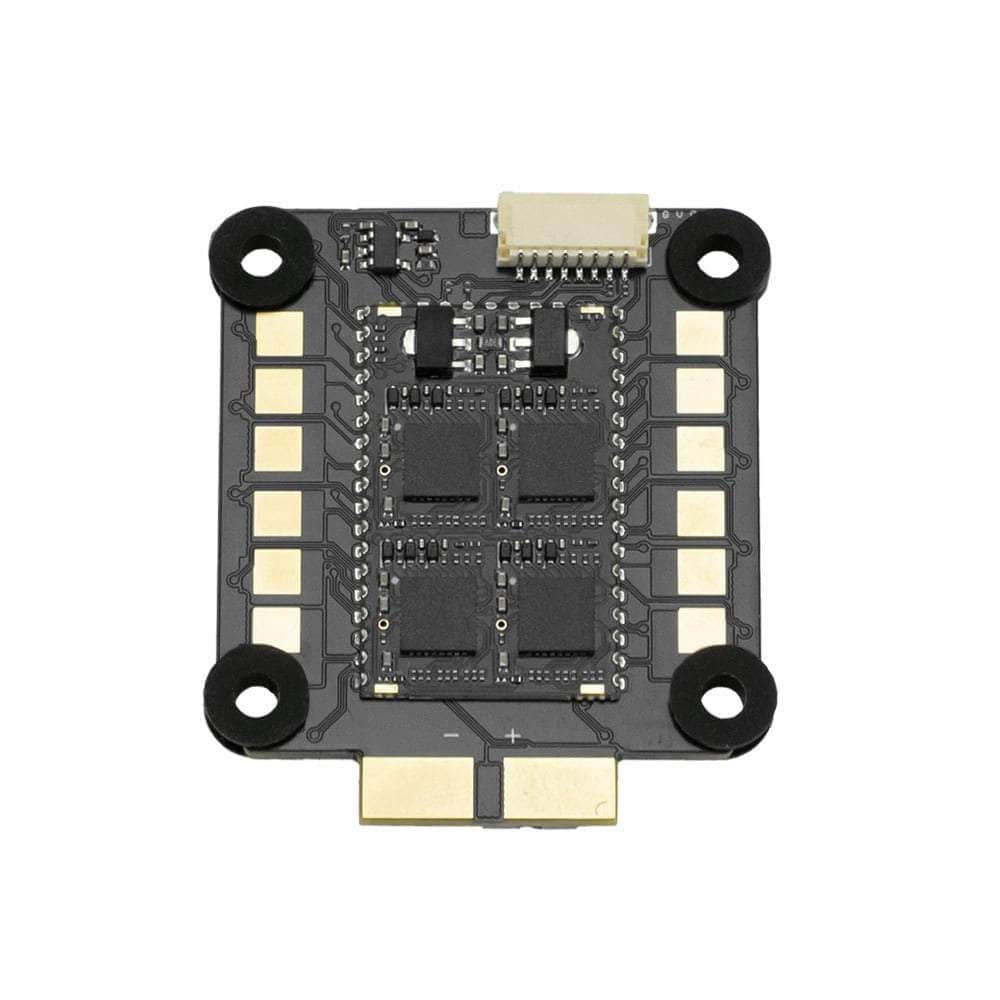

• Moved the 8-pin plug to the opposite side of the ESC (also added glue to the plug for increased strength)
• An upgraded MOSFET allows for higher amperage and lower resistance

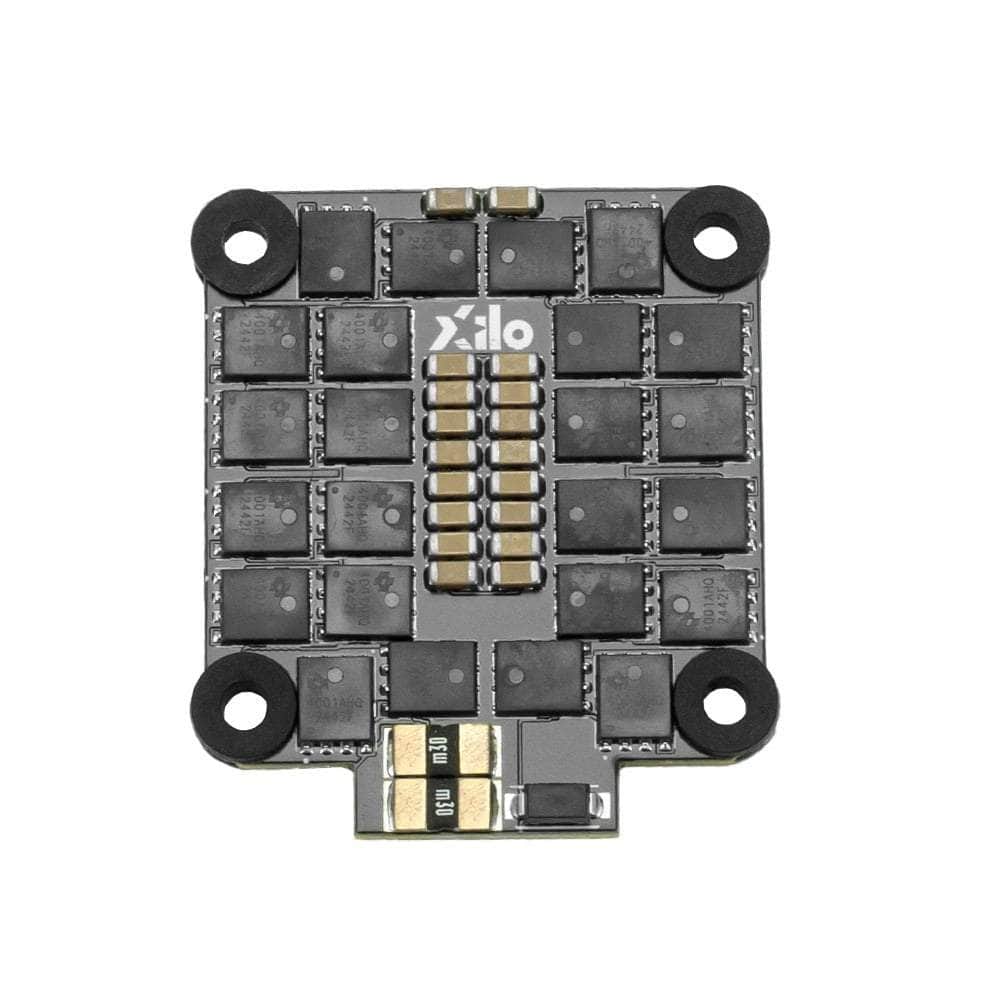

• Optimized PCB layout enhances cooling and performance
• External Capacitors Changed to 1000uF (from 470uF)
• Additional Built-in Capacitance
• New and improved hardware
• Updated F4 Processor
• 96K PMW Frequency
• Lighter

Specifications

• Dimensions: 36 x 43mm (including the power pads)
• Weight: 10g (without motor wires)
• Constant: 50 Amps (per channel)
• Mounting Holes: 30.5 x 30.5mm
• Burst: 60 Amps (per channel)
• Input: 3-6s LiPoly
• Processor: F4
• BEC: No

Links

• AM32.ca Configurator
• AM32 GitHub
• *Please remember to always use AM32.ca to modify ESC settings to match the motor poles and KV prior to first flight. Motor pole and KV match is required for all AM32 ESCs.

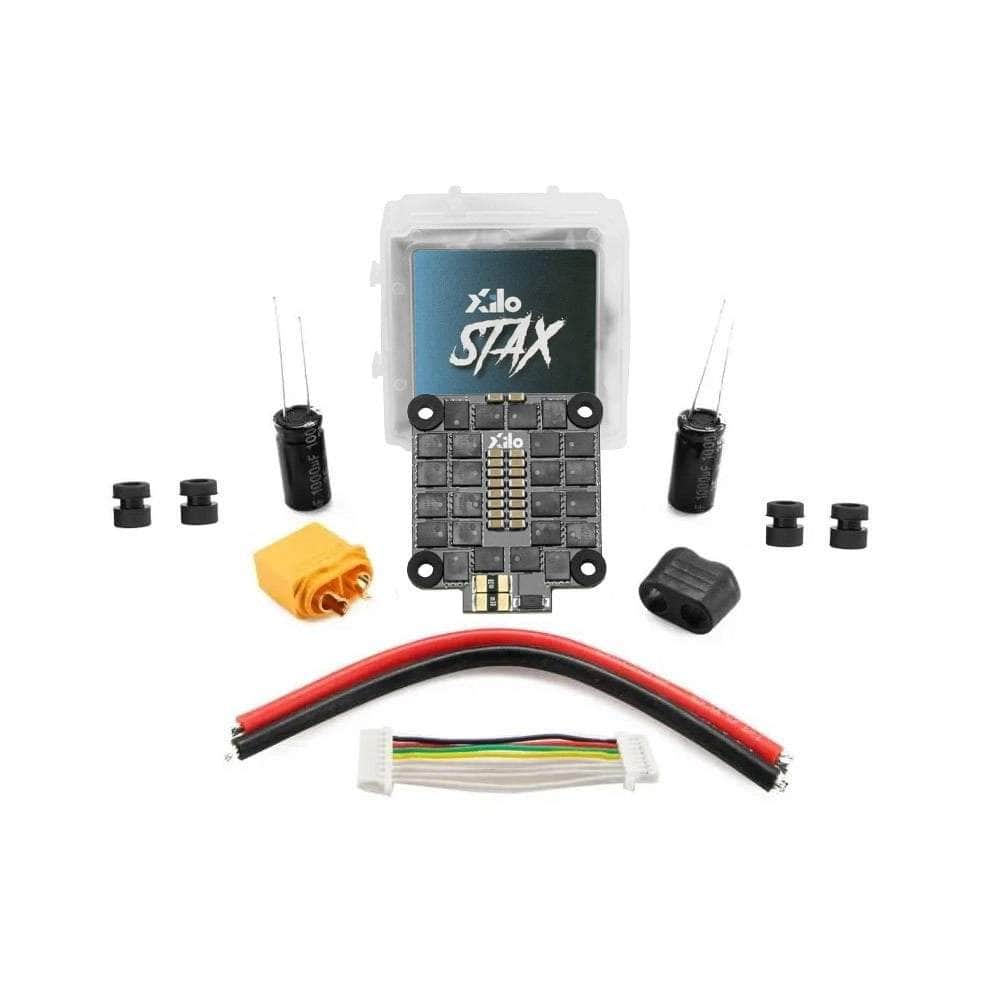

Includes

• 1x XILO Stax V3 F4 50A AM32 3-6S 4-in-1 ESC
• 2x 35v 1000uF Capacitor
• 8x Silicone Grommets
• 1x XT60 Connector
• 2x 14 AWG Wire
• 1x 8pin Harness
