Details
Description

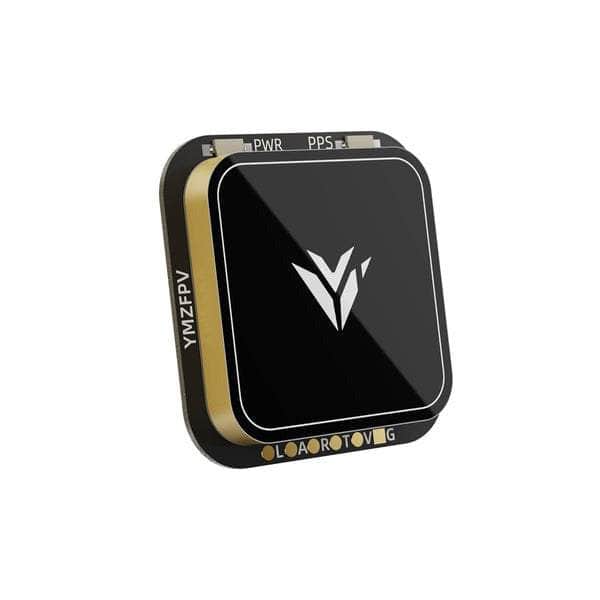

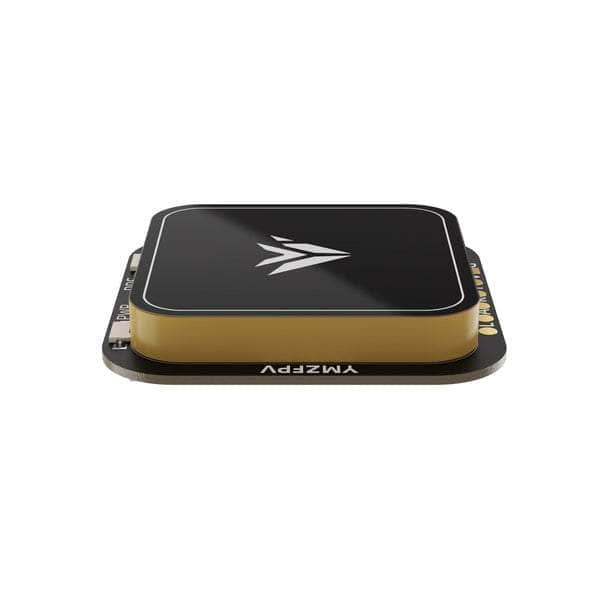

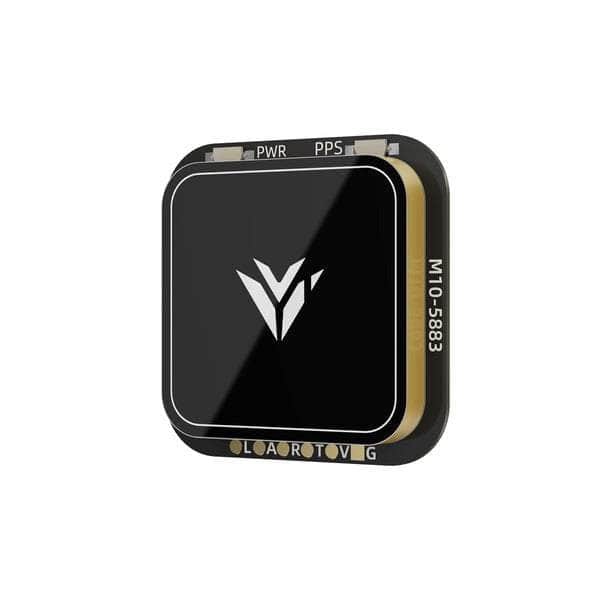

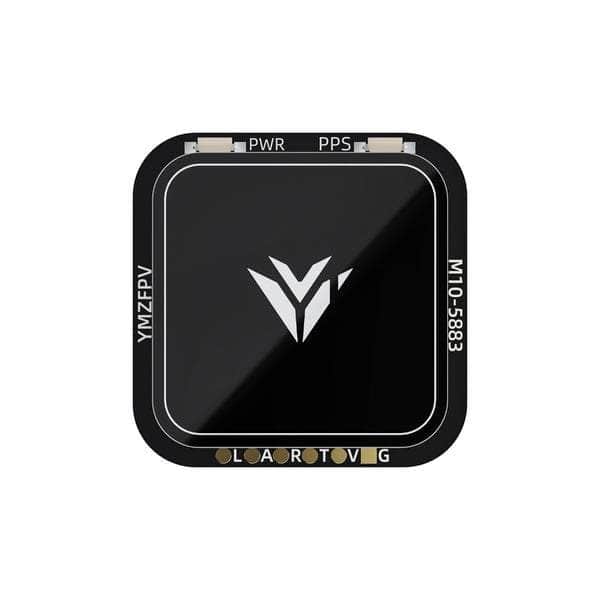

Experience superior navigation performance with the YMZFPV M10-5883 GPS (10th gen). Fast positioning, high accuracy, and strong signal reception lets you stay on course in any environment. Take the worry out of navigation with this reliable, 10th-generation GPS.
Check out our other GPS options and the rest of our YMZFPV Products
Features
- Based on the new generation of M10050 chip, this product has a fast speed for star search and high positioning accuracy.
- Using Nissan's LNA amplifier and custom the fine-tuned antenna of ceramic and three-frequency
- This product can support: GPS Galileo, BDS three kinds of satellite system positioning to meet the positioning needs of users in different countries and regions
- Built-in Flash chip, allowing you to use the U-CENTER software for personalized settings
- The onboard electronic compass provides accurate orientation
- The LED indicator of the side
- High safety, and the protection circuit is designed in 5V and GND
- The on-board farad capacitor can save the current satellite information for about 45-90min for a fast hot start
Specifications
- Model: M10-5883
- MCU-Ublox-M10050
- GNSS: GPS, Galileo, BDS
- Protocol Ublox
- Frequency: 5Hz (Max. 10Hz)
- Flash: Onboard FLASH (Modifiable)
- Tracking sensitivity: -167dBm
- Speed precision: 0.05m/s
- Maximum speed: 500m/s
- Maximum acceleration: 50000m
- Positioning accuracy: 1.5m CEP (ideal environment)
- Cold start: 26s
- Hot start: 1s
- Input voltage: 3.3V-5V
- Dimension: 29 x 29 x 8.4mm
- Weight: 12.8g
Includes
- 1xYMZFPV M10-5883 GPS w/Compass (10th gen)
More Info
- SKU: 691023476431
- Barcode: 691023476431
