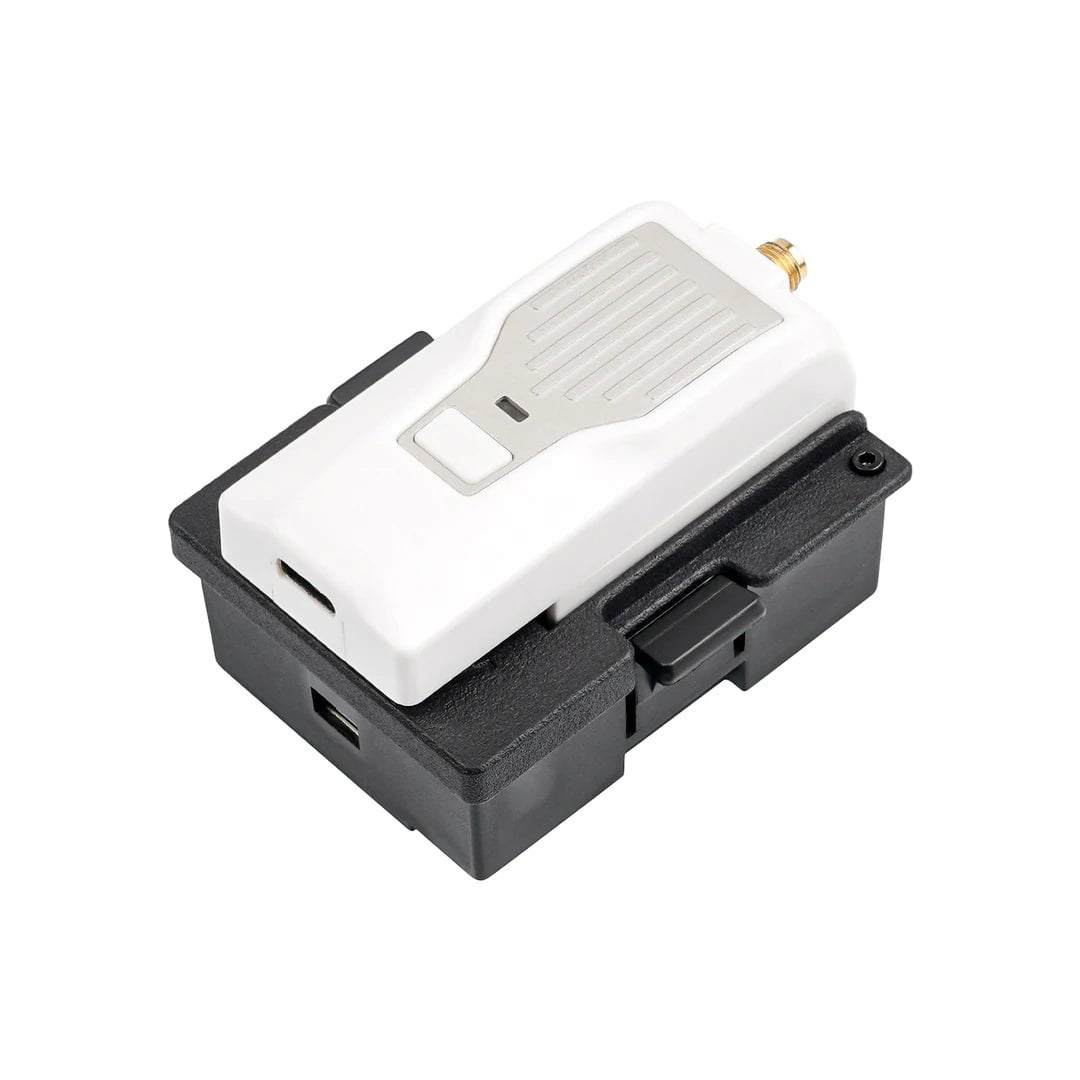

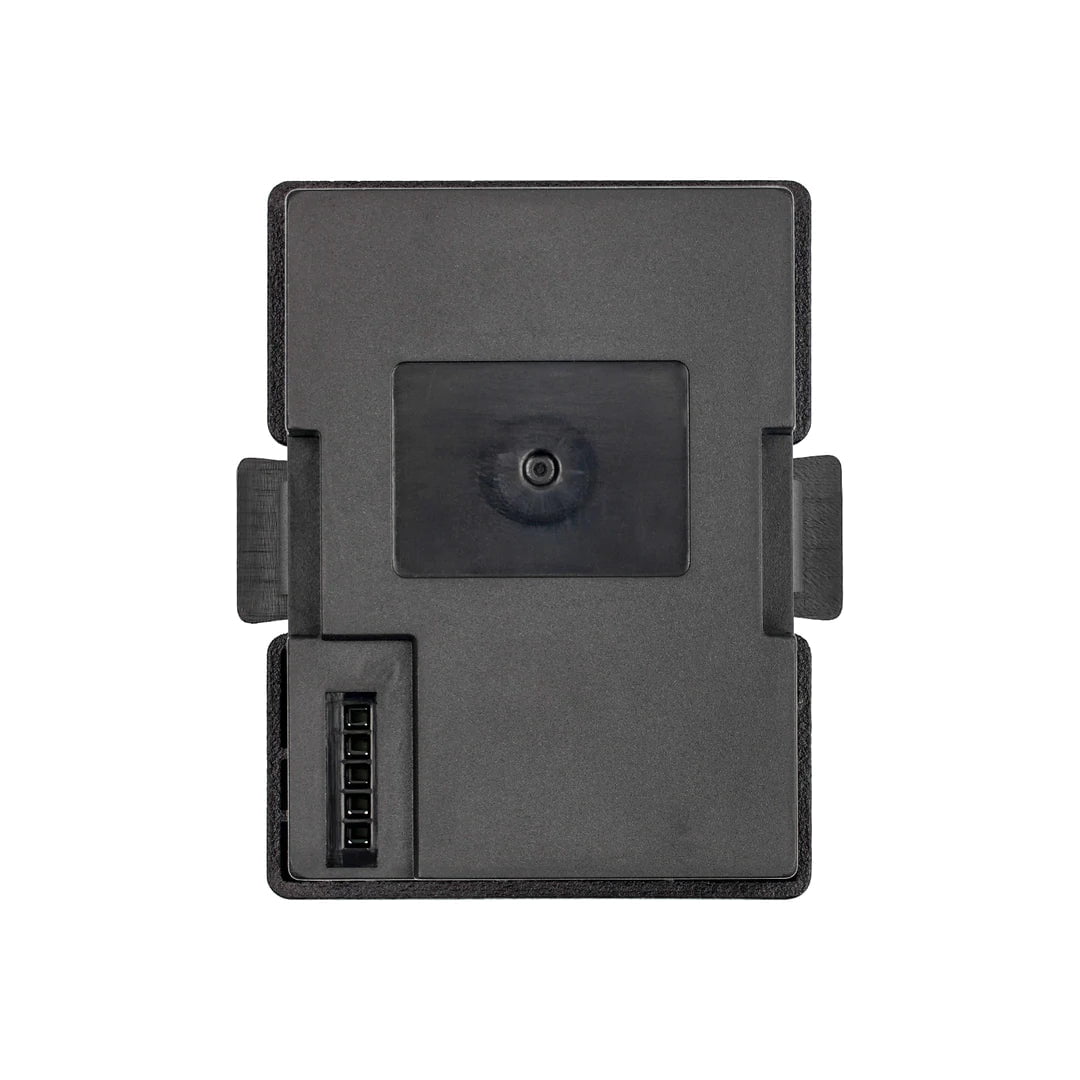

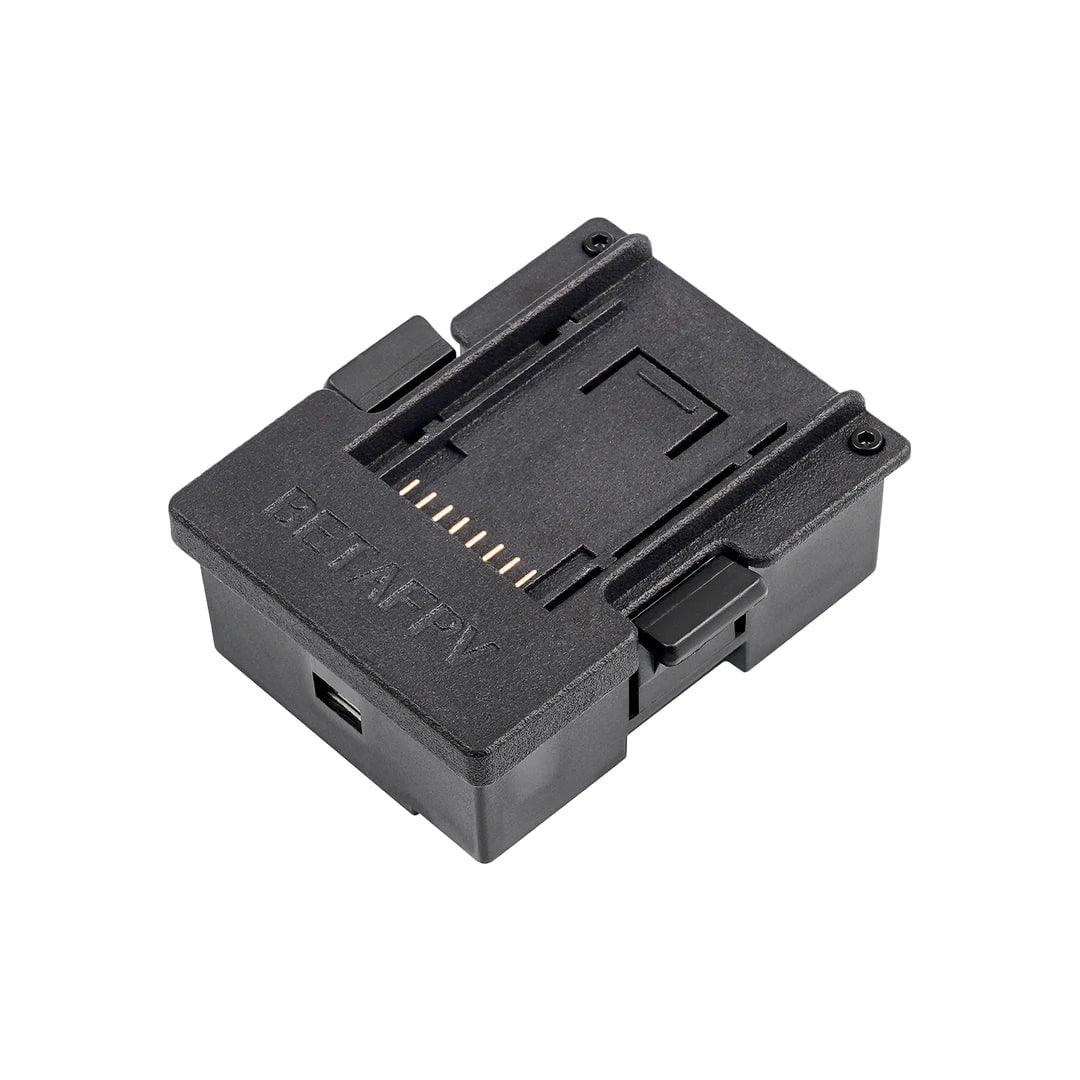

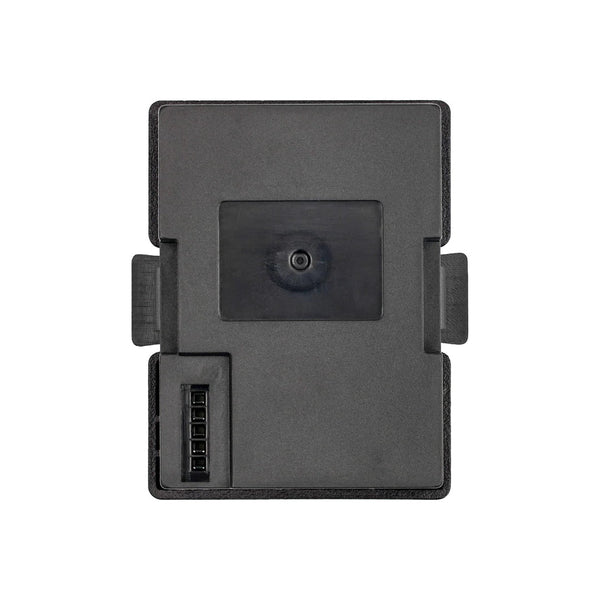

BetaFPV Micro Bay to Nano Module Adapter

BetaFPV Micro Bay to Nano Module Adapter

$14.99
$14.99
Version:
In stock
In stock
Add To Wishlist
View full details

Details

Description

Both the full adapter and PCBA only are Beta FPV's most recently updated versions.

With the use of micro to nano module adapter, a nano tx module can work on transmitters with JR module bay (aka Micro module port) easily!

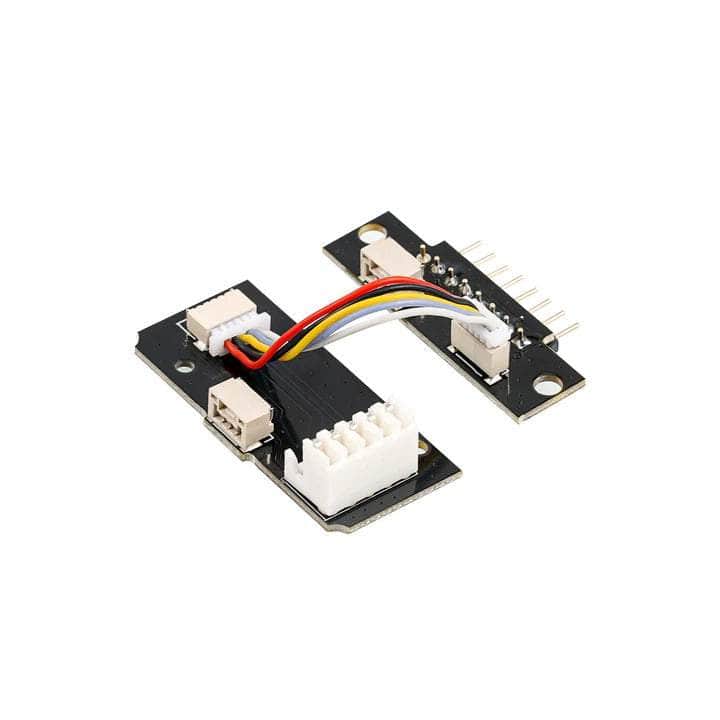

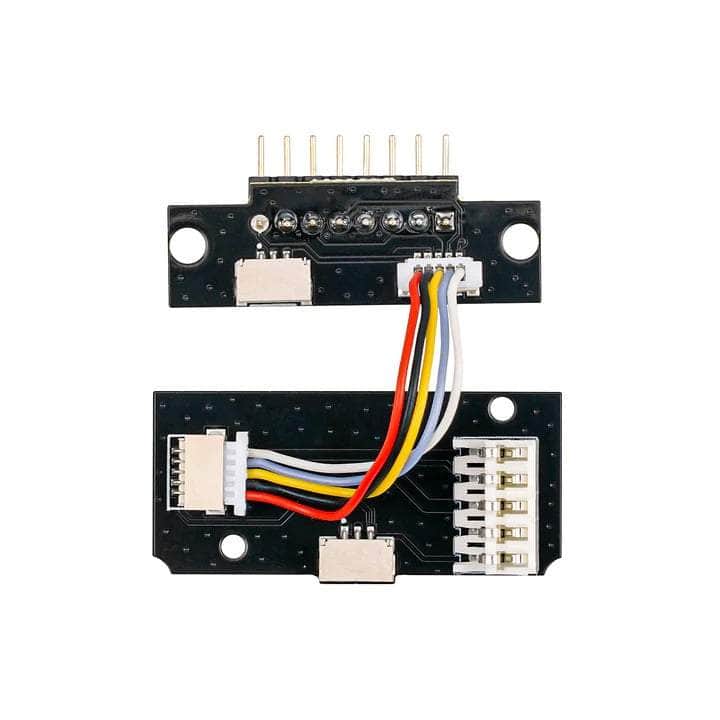

The Micro to Nano Module Adapter (PCBA) is available for those who can print the case for themselves. You can download the adapter case STL file on Beta FPV's technical support page.

This adapter is a perfect match for the BetaFPV Nano ELRS module in either 900MHz or 2.4GHz!

Check out our RC Transmitters and all our BetaFPV products!

Specifications

  • Input: JR module bay (Micro module bay)
  • Output: Nano module bay (Lite module bay)
  • Supported Radio Transmitters: Frsky X9D/X9D Plus/X12S/X10/X10S/X7/X7S,
  • Flysky TH9X, Turnigy 9XR/9XR PRO, FUTABA 16IZ, Jumper T16/T18/T18 Pro,
  • Radiomaster TX16S/TX18S, TBS Mambo
  • Supported TX Modules: BETAFPV Nano TX Module, TBS Crossfire Nano TX、Frsky XJT Lite/R9M Lite/R9M Lite Pro.
  • Dimensions: 65x48x28mm
  • Weight: 24.8g

Includes

  • 1x Micro-Nano Module Adapter or PCBA
  • 1x Converter cable

More Info

  • SKU: G23879CN1Z
  • Barcode: 728314135972


Overall rating: 4.6666665 / 5 from 21 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["adapter","works","radio","module"].

Review highlights

Reviews

It works but

"Adapter works. Let me use my nano crossfire module on my boxer. It doesn't lock in to the module bay though. So it isn't very secure."

— craig d. (3/5)

!?!?

"This HAS to come with SOME TYPE of instructions. Not possible to - do it blind."

— Sean S. (1/5)

Jr adapter

"Super helpful for using nano modules"

— Scott P. (5/5)

works fine

"works fine, need to make sure the pins clasp well"

— Walter H. (4/5)

It works

"It works"

— Robert H. (5/5)

It fits perfect in the

"It fits perfect in the bay of my TS16X ."

— Luis M. (5/5)

Very easy to setup

"Used it to put a betafpv micro elrs module on my tx12 printed my own module case for it and was easy to install"

— Colby C. (5/5)

Awesome quality

"I am very pleased with the adaptor, the build is quality and it works flawlessly"

— Albert G. (5/5)

BetaFPV Micro Bay to Nano Module Adapter

"Fit very well, worked perfectly."

— Thomas S. (5/5)

👍

"Adapter works well for what is does. Help me attach my MPM to my TX16S ELRS version."

— Miguel C. (5/5)

Q&A
