Description

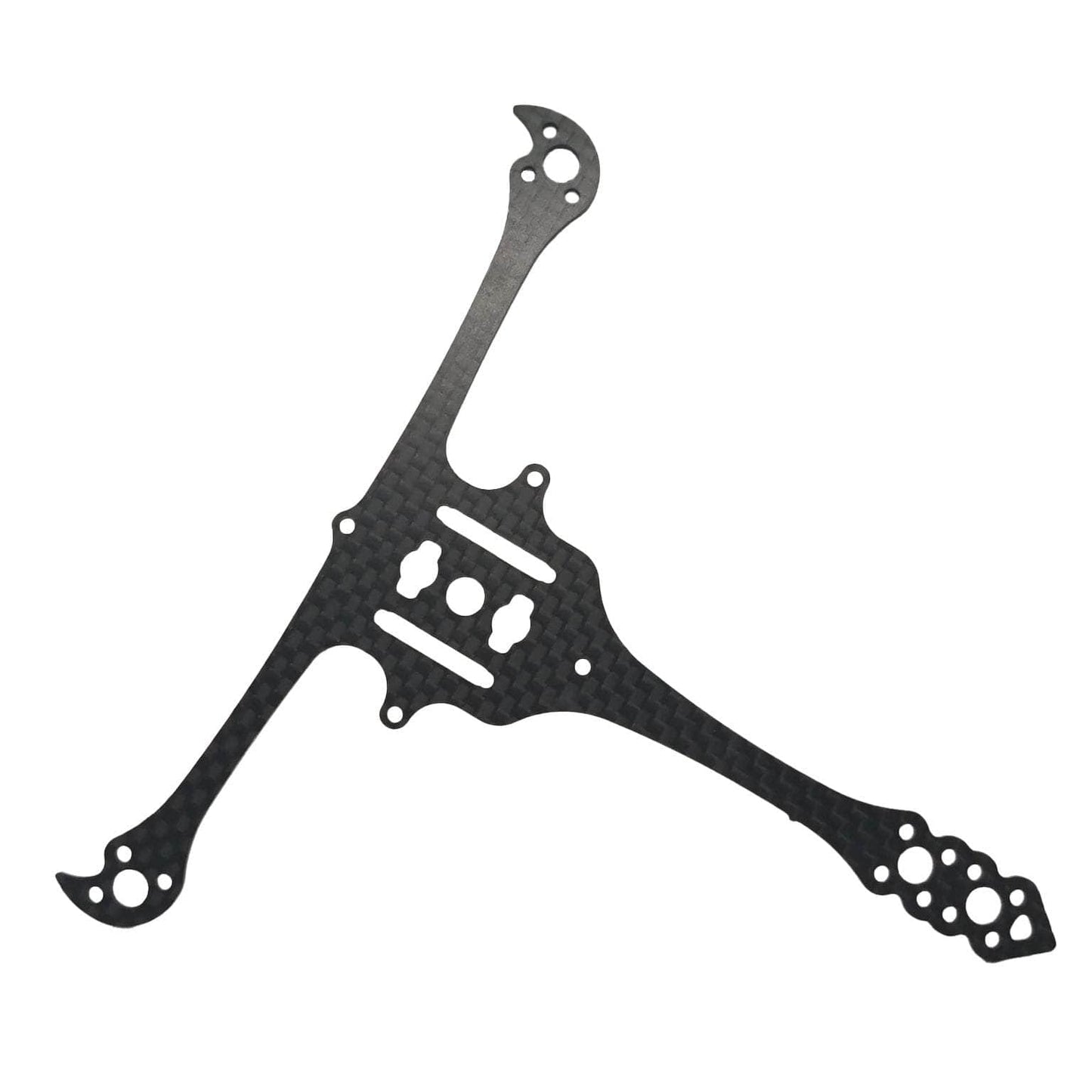

DaddyLovesQuads has always been inspired by unique and different multi-rotor configurations. Check out this Y4 style frame. It is similar to a tricopter but removes the complexity of a servo in favor of a fourth motor.

Be sure to check out all our Micro Frames, and all of our DaddyLovesQuads products!

Features

• Fits most AIO electronics
• Y4 Configuration
• 3K Carbon Fiber

Specifications

• Frame Type: Y4

• Size: 110mm (front motors) by 100mm (front to back)

• Material: 2mm 3K carbon fiber

• Weight: Approximately 6.5 grams

• Motors Supported: 11xx motors
• Props Supported: 65mm props
• Motor Mounting: 9x9mm
• Stack size: 25.5mmx25.5mm

Daddy's Recommended Build (*Not Included):

• JHEMCU F4 25a aio

• iFlight 1103 brushless motor

• Emax Avan 2.5

• XM+ Receiver

• Wolfwhoop Wt-07 camera

• FlyWoo micro LED

• Newbee drone Goober Canopy

Includes

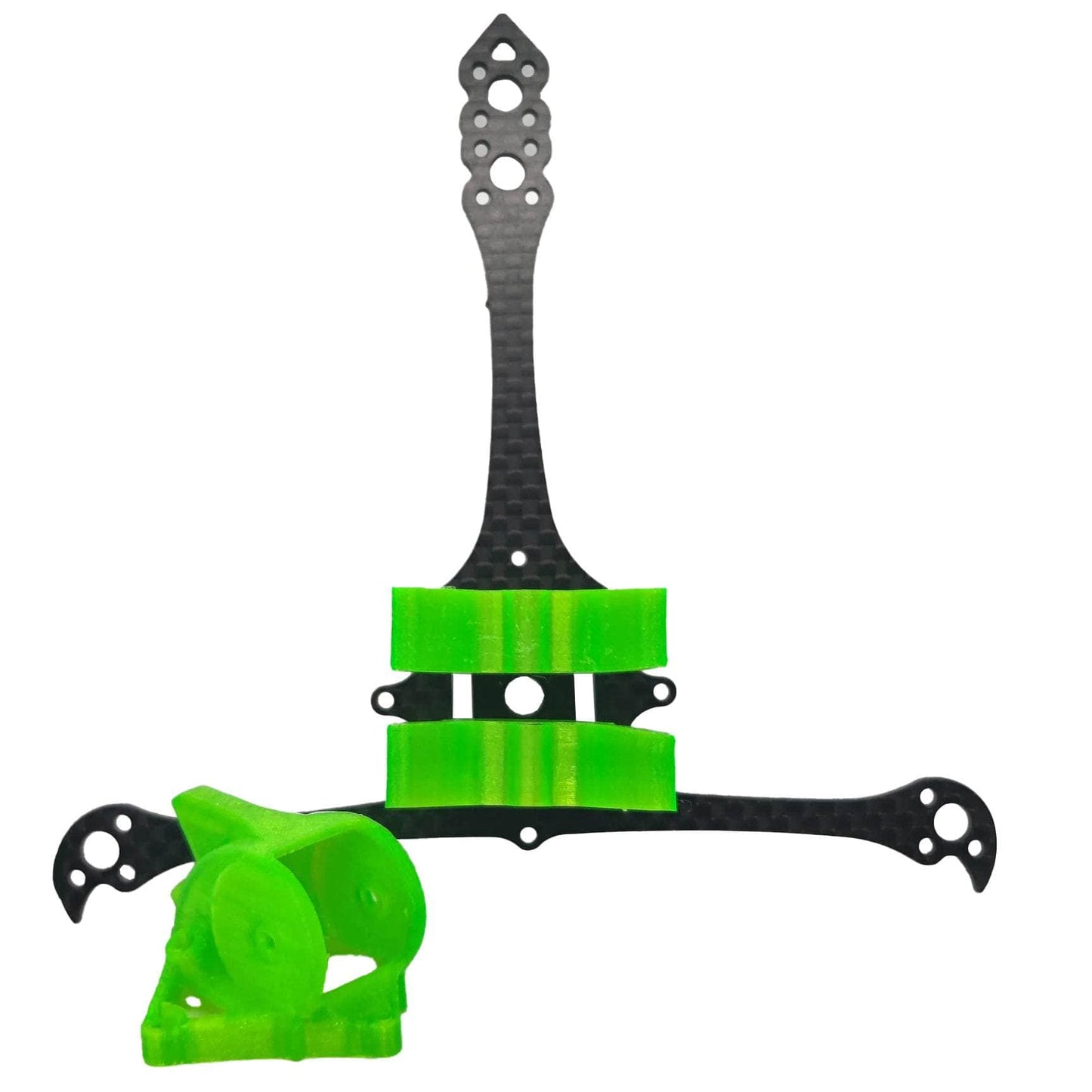

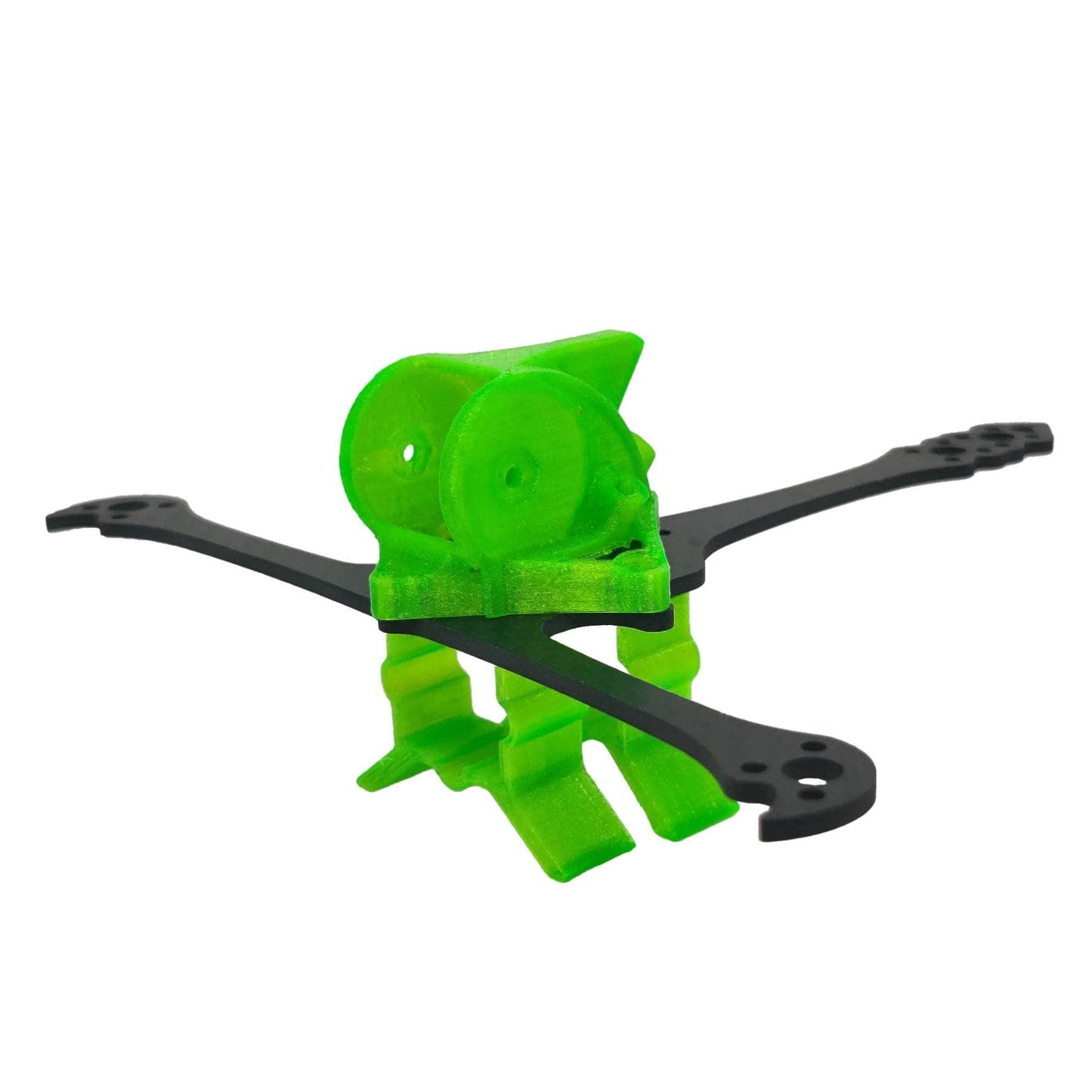

• 1x DaddyLovesQuads El Scorpion 2.5" Y4 Micro Frame

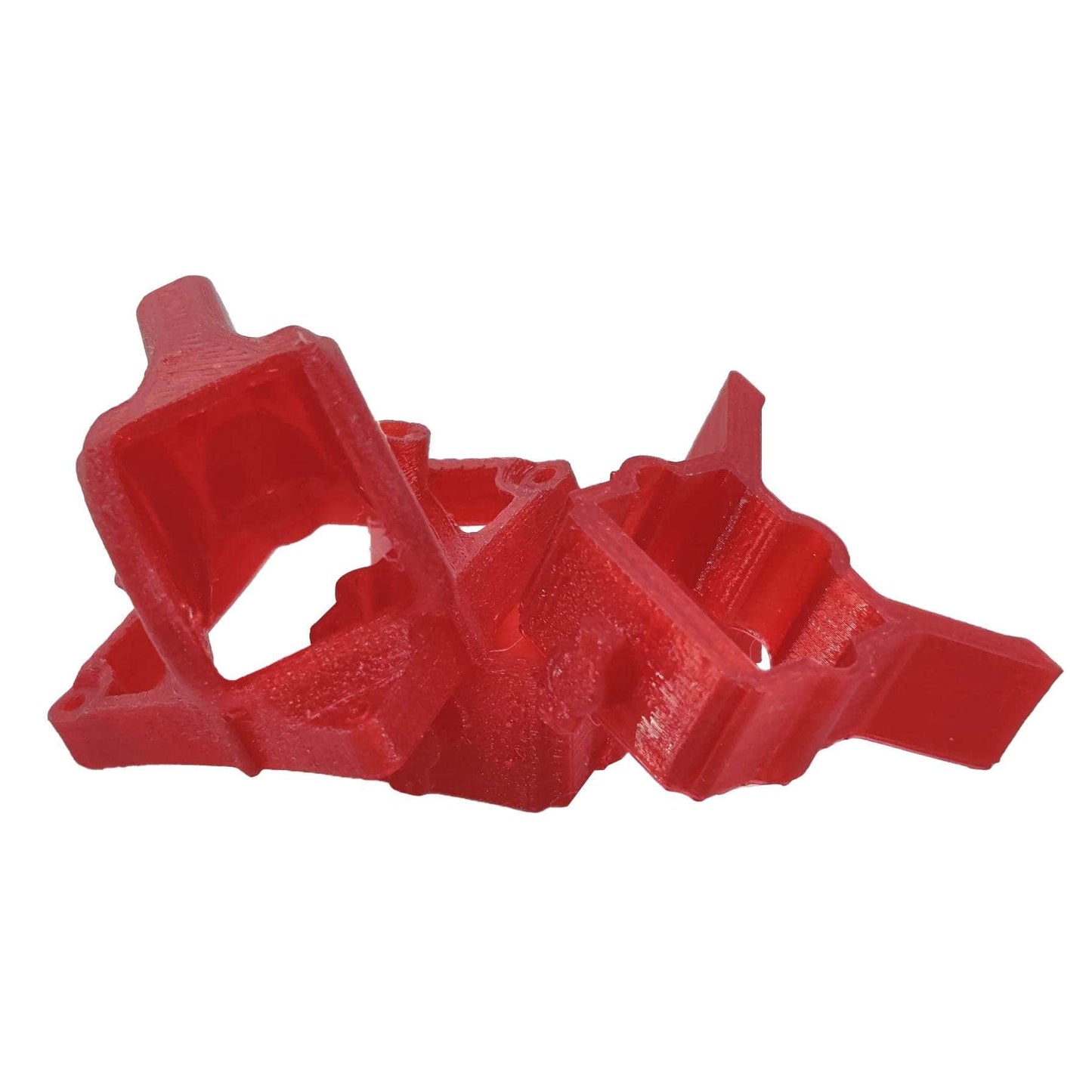

• 1x 3D printed nano camera canopy and battery mounts (2s)

• 4x 16mm M2 steel bolts

• 4x m2 lock nuts

• 4x m2 5mm nylon F-F standoff

• 4x m2 nylon nuts
