Flywoo CineRace20 HD V2 Neon LED 4S Cinewhoop (without O3 Unit) - PNP

Please note that this version is a kit and does NOT come with an O3 air unit, O3 camera and SanDisk Card.

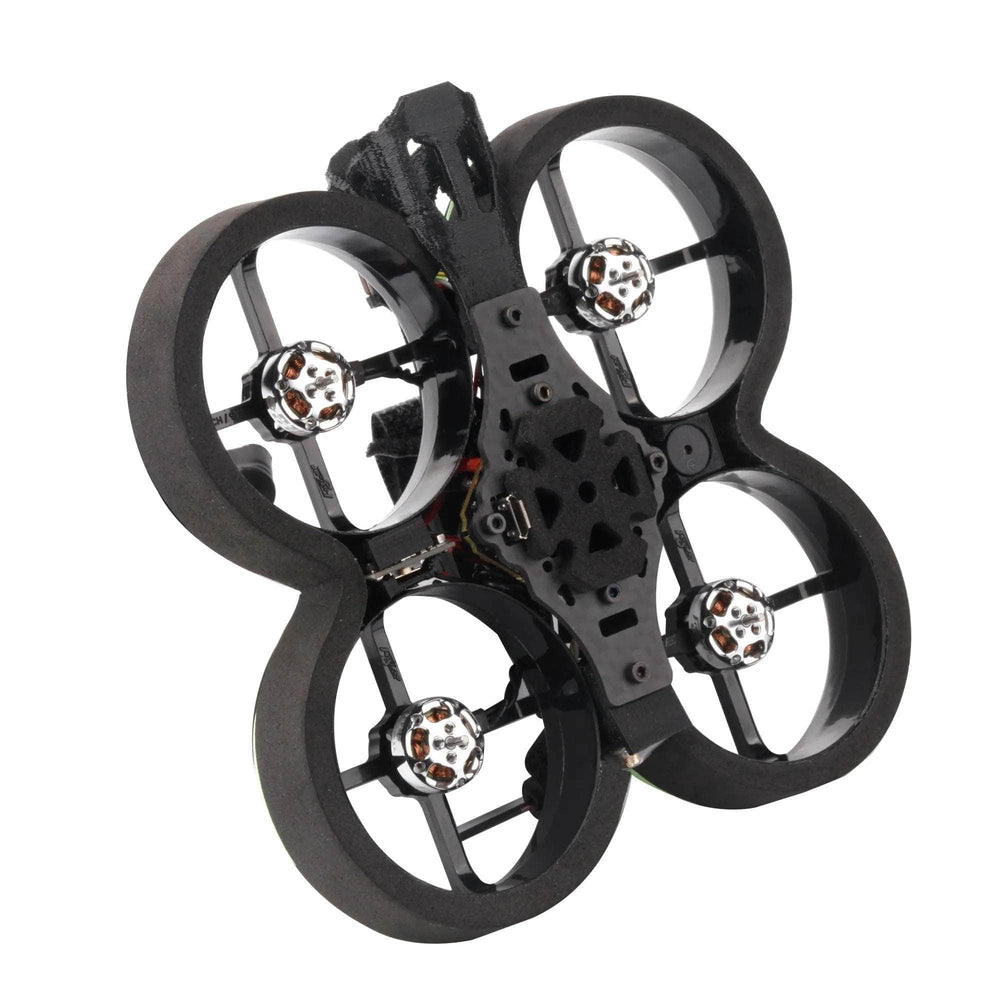

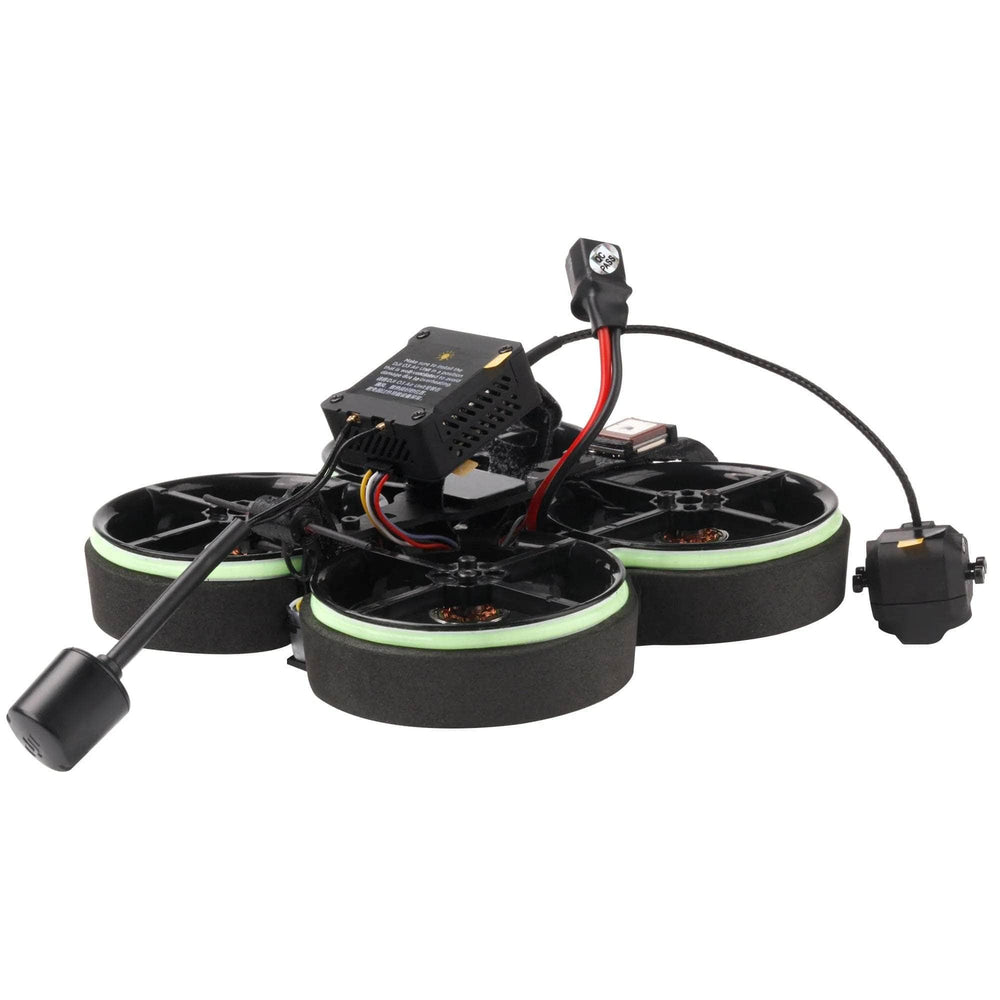

The CineRace is a double duct design, not a simple guard anymore. It can fly as flexibly as a racing drone, and as stable as Cinewhoop. All in all, this is a  drone that can not only race but also capture stable videos and at the same time achieve a super long flight time! A specially designed GM10 Nano V3 GPS module is tailored to fit the CineRace20, providing minimal weight but the ability to search up to 30 satellites. You will see on the front of the quad Flywoo engineer the use of the soft TPU material to mount the camera to prevent the jello effect, by reducing the over all vibrations in the quad.

Come see our  Cinewhoop Collection and other great products from Flywoo!

We also carry a version with the O3 Air Unit already installed here.

Features

• Almost all parts are injection molded for a more sturdy and durable quad.
• Very easy to disassemble, only fixed by two aluminum columns
• Customizable with LEDs
• GPS up to 30 satellites
• Innovative duct design
• Sub250 (even with battery)

Specifications

• Input Voltage: 4S
• Model: CineRace20 HD DJI O3 2inch (without Air Unit)
• Brand: FLYWOO
• Frame: CineRace20 O3 (Different fromCineRace20 V1.2\V2 frame )
• Charge connector: XT30
• Motor: NIN V2 1203PRO 4850Kv
• Propeller: D51-5 51mm
• Buzzer : 5PCS Active Alarm Buzzer
• GPS: GOKU GM10 Nano V3 GPS
• Weight: 139g (without battery)
• Betaflight Firmware target: FLWO/FLYWOOF405S_AIO(SMT32F405)

• Recommended Battery:
  Explorer 450mah 4S ( flight time  5mins )
  Explorer 750mah 4S ( flight time  6mins )

GOKU GN F405S 20A AIO

• Input Voltage: 2-6S Lipo
• MCU: STM32F405 BGA
• IMU: ICM42688
• OSD: BetaFlight OSD
• Blackbox: 16Mb Flash
• Baro: BMP280
• BEC: 5V
• 6 hardware UARTS (UART1,2,3,4,5,6)

• Onboard LED：4x WS2812
• Support BLHELI_S
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

FPV System

• Add your own O3 Air Unit

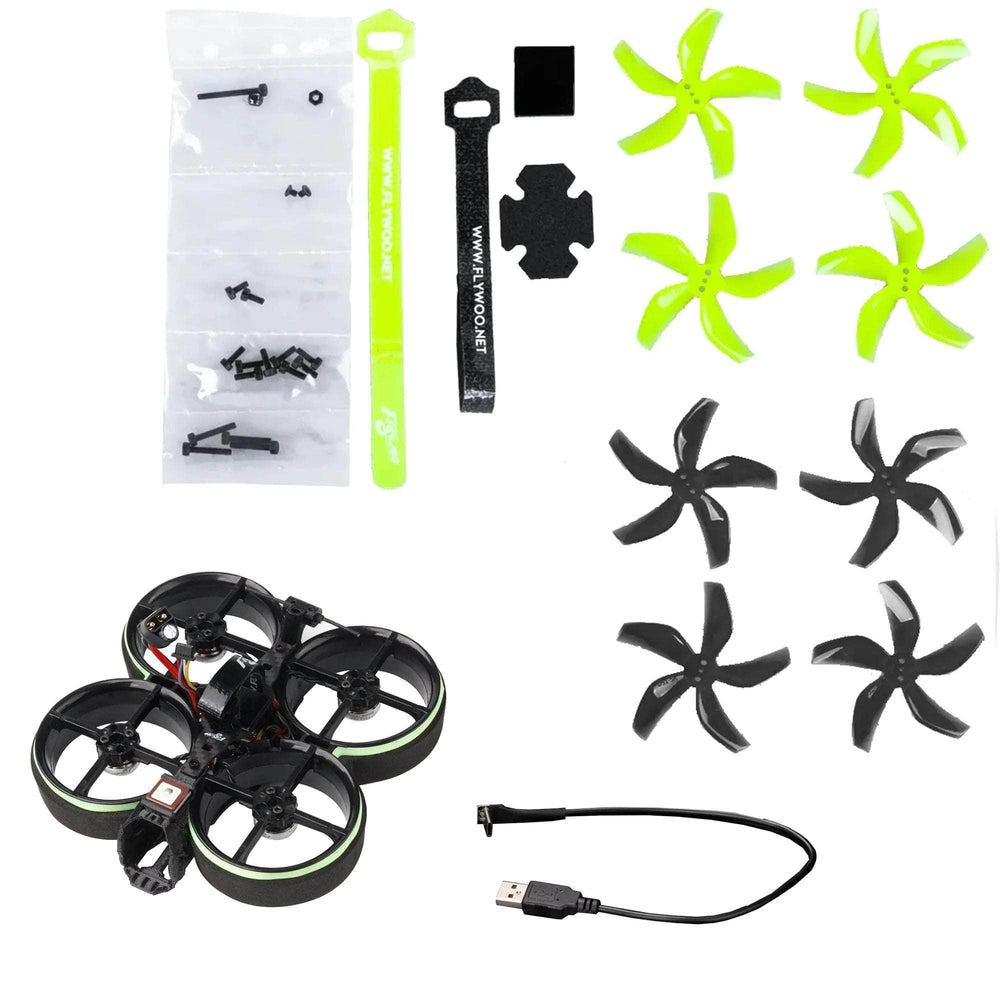

Includes

• 1 x Flywoo CineRace20 HD V2 Neon LED 4S Cinewhoop (without O3 Unit) - PNP
• 8 x D51-5 props
• 2 x Battery strap  9x150mm \ 9x200mm
• 1 x Set of screws
• 1 x 90° USB Type-C
