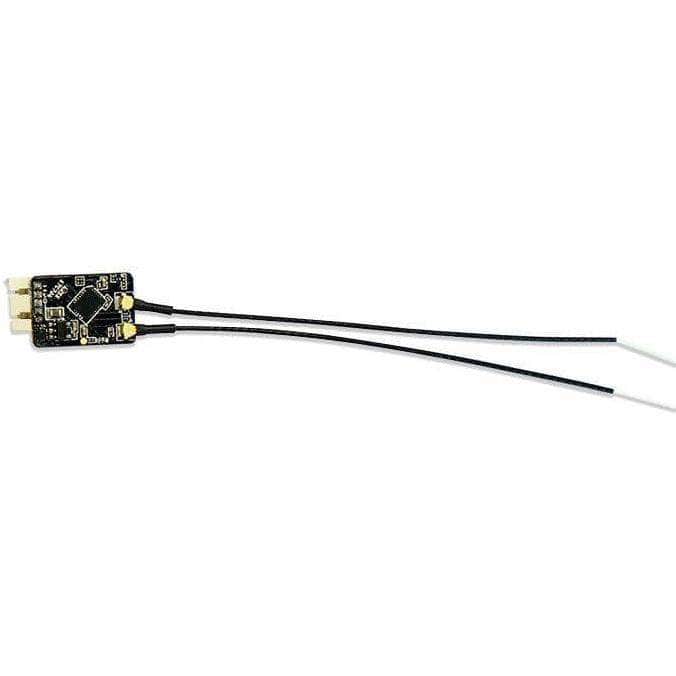

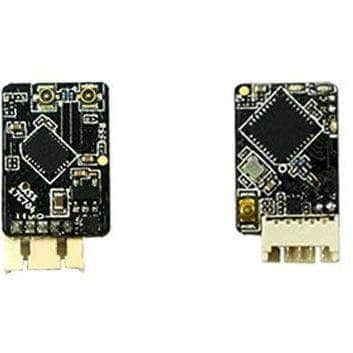

FrSky R-XSR 2.4GHz Micro Receiver

Original price $21.99 - Original price $21.99
Original price
$21.99
$21.99 - $21.99
Current price $21.99
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

Legacy 2.0 firmware available here

Love the compact design of the XM+ but need full telemetry? FrSky listened and released the R-XSR to have the best of both worlds!  The R stands for "Redundant" for its ability to be able to run a slave Rx if that's your thing...

The FrSky ultra mini receiver R-XSR is the evolution of the popular full range XSR receiver. The R-XSR is a standalone receiver with all the functionality of the full size XSR (including telemetry), but at 1/3 size and weight of XSR receiver. The RXSR also has an integrated diversity with 2x antennas for a solid RC link, and the IPEX connector makes it convenient to replace antennas.

Check out all our RC receivers, and all our FrSky products!

Features

  • Ultra mini size and light weight
  • Support telemetry and Smart Port enabled
  • Full range
  • Switchable SBUS/ CPPM signal output
  • Supports redundancy function
  • IPEX connector, replaceable antennas

Specifications

  • Dimension: 16*11*5.4mm (L*W*H)
  • Weight: 1.5g
  • Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
  • Operating Voltage Range: 4~10V
  • Firmware Upgradable
  • Compatibility: FrSky X Series modules and radios in D16 mode

Includes

  • 1x FrSky R-XSR SBUS 2.4GHz Micro Receiver

>
