Description

Replacement part for the HappyModel Crux3

Check out the HappyModel Crux3 Quad and Accessories Collection.

Specifications

• Image Sensor: 1/3" CMOS Sensor
• Horizontal Resolution: 1200 TVL
• TV System: NTSC or PAL Switchable
• IMAGE: 4:3
• Synchronization: Internal
• Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
• S/N Ratio : >52dB (AGC OFF)
• Video Output: CVBS
• Lens: 1.8mm
• Min. Illumination: 0.001Lux@F1.2
• Auto Gain Control: YES
• BLC: YES
• WDR: Global WDR
• DNR: 3D DNR
• Dimensions: 14*14mm(with bracket to 19*19mm)
• Wide Power Input: DC 3.7-18V
• Work Temperature: -20℃~+60℃

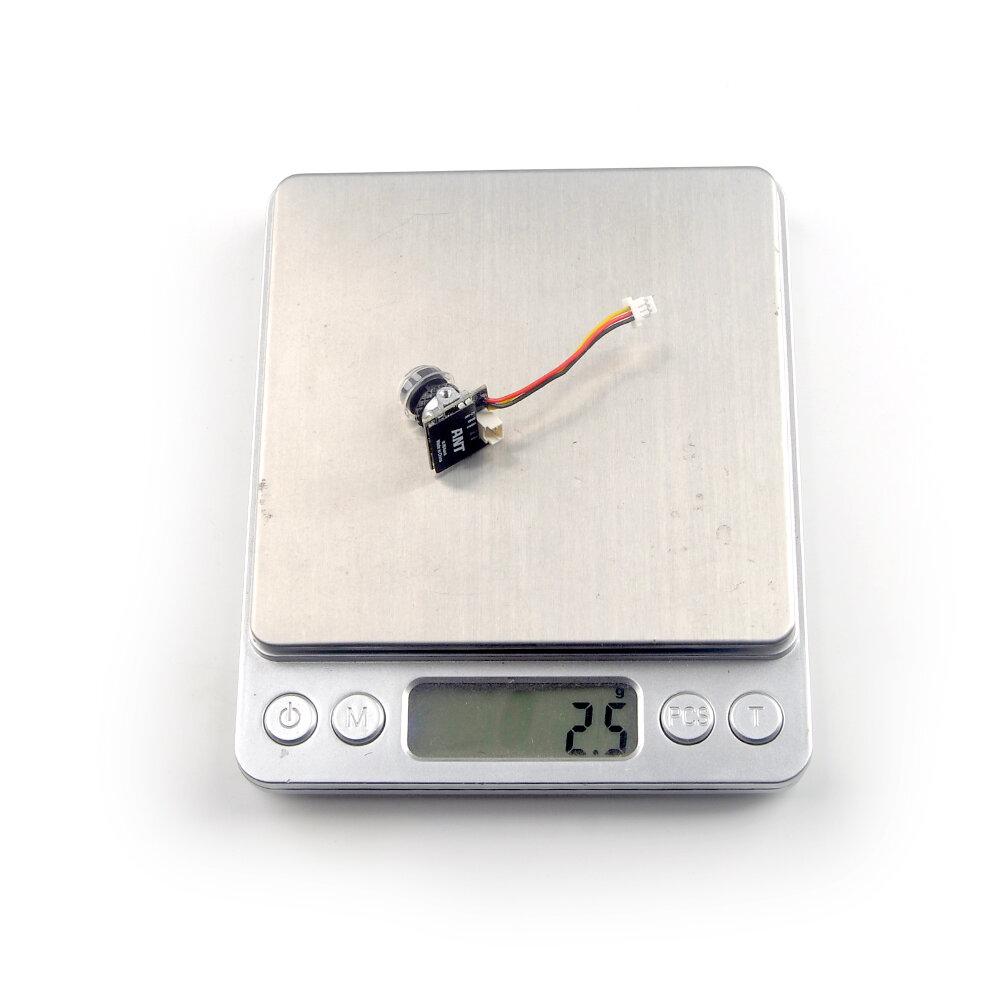

• Weight: 2g

Includes

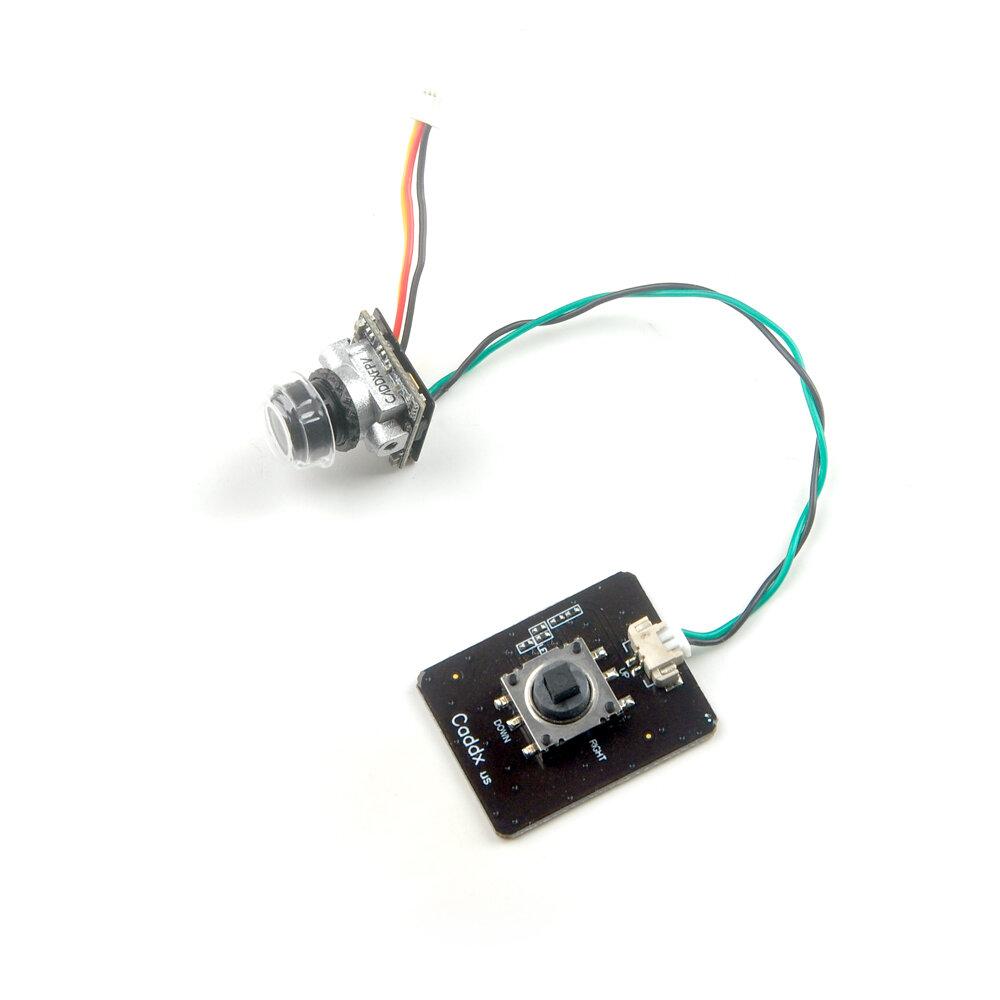

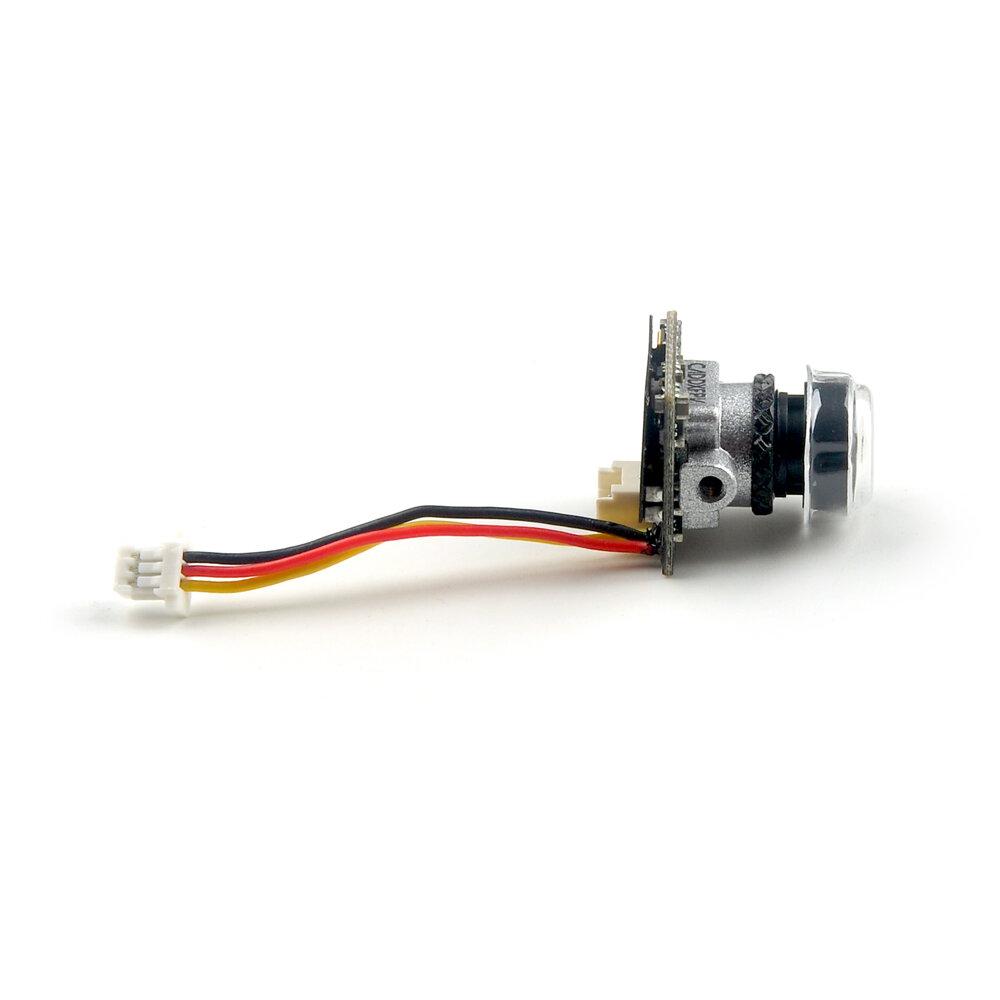

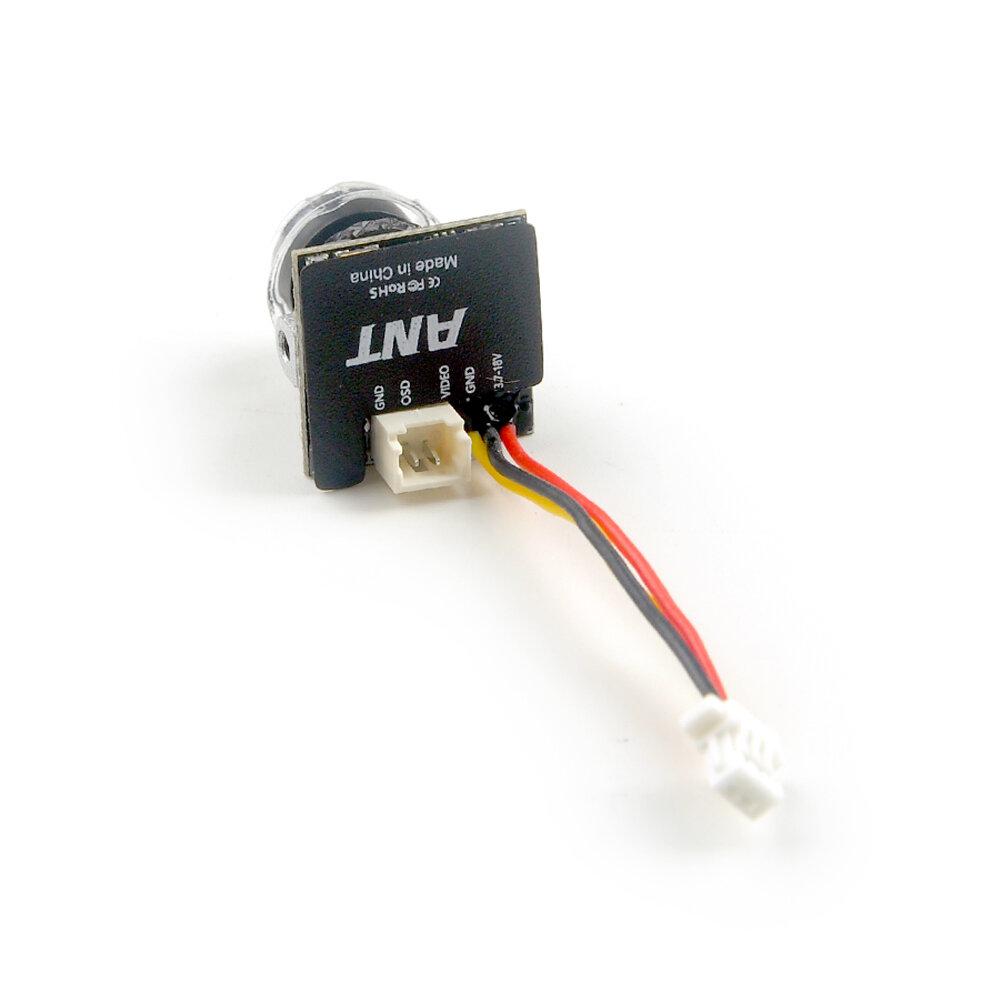

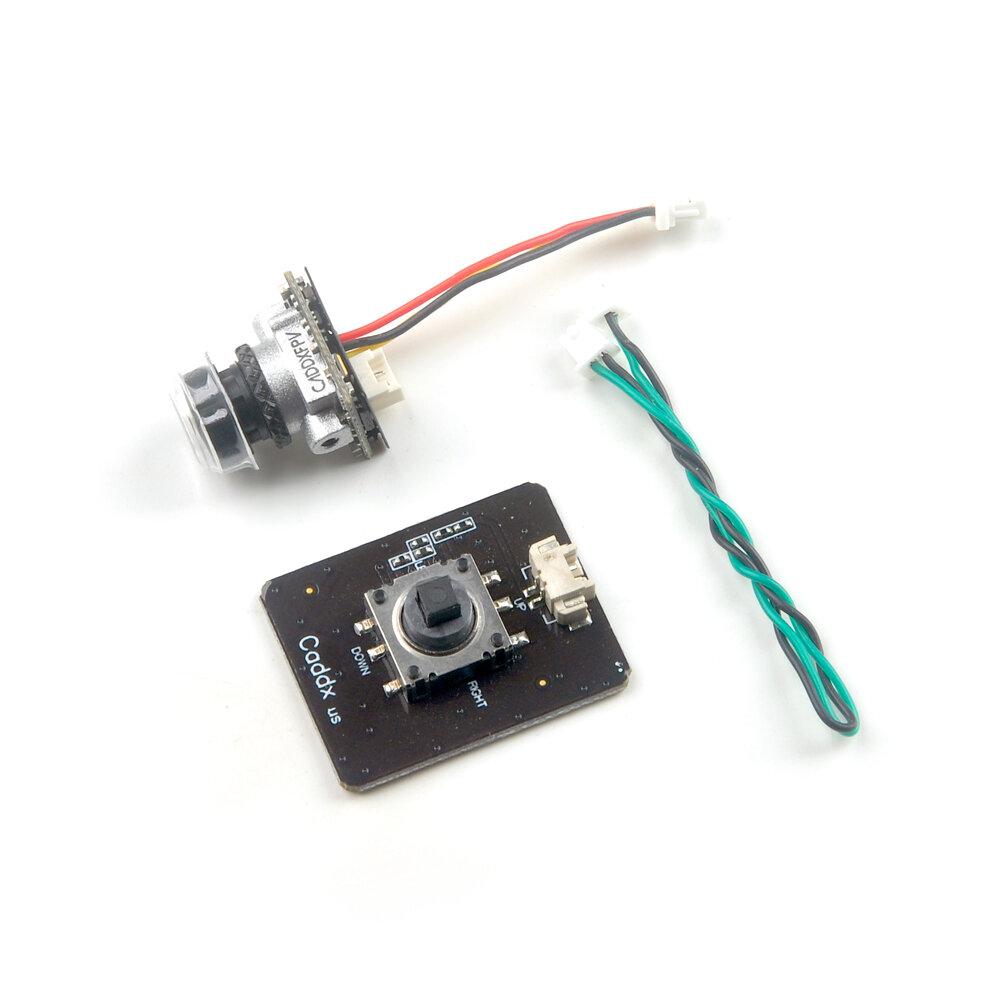

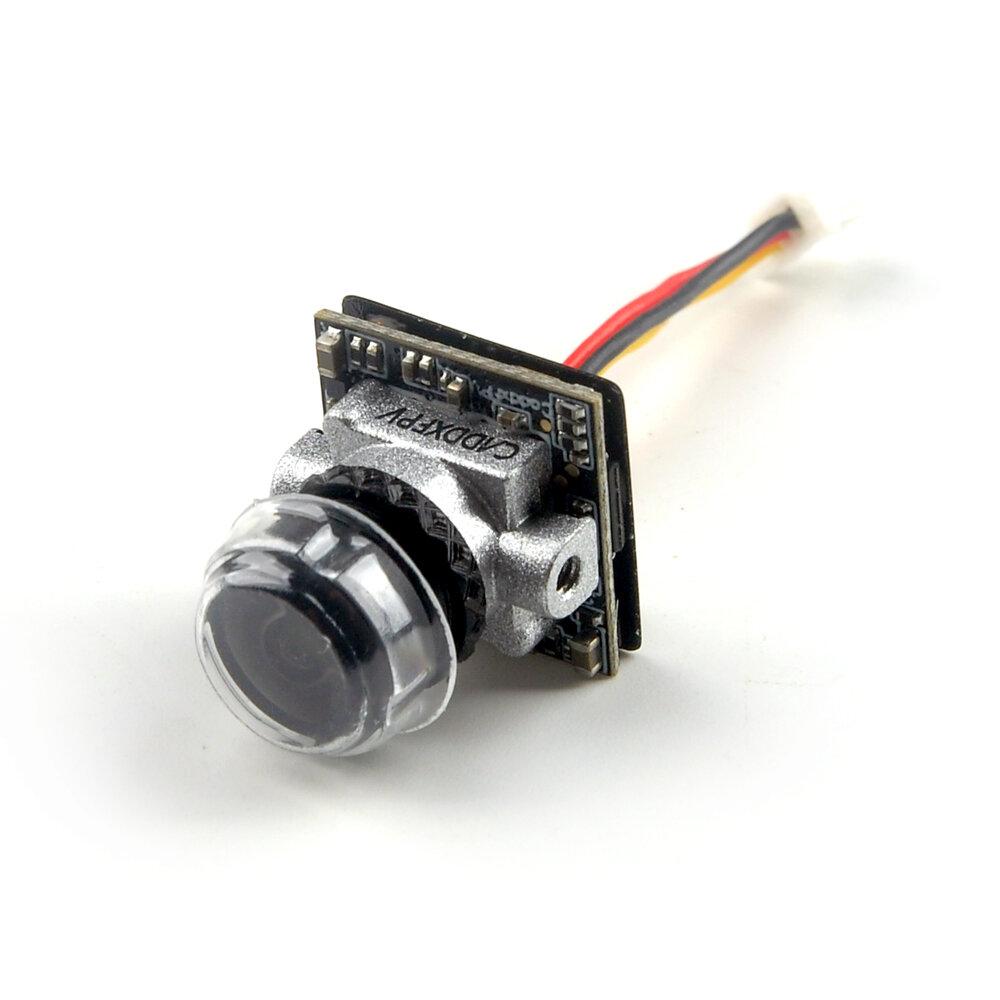

• 1x HappyModel Crux 3 Replacement Camera - Caddx Ant
