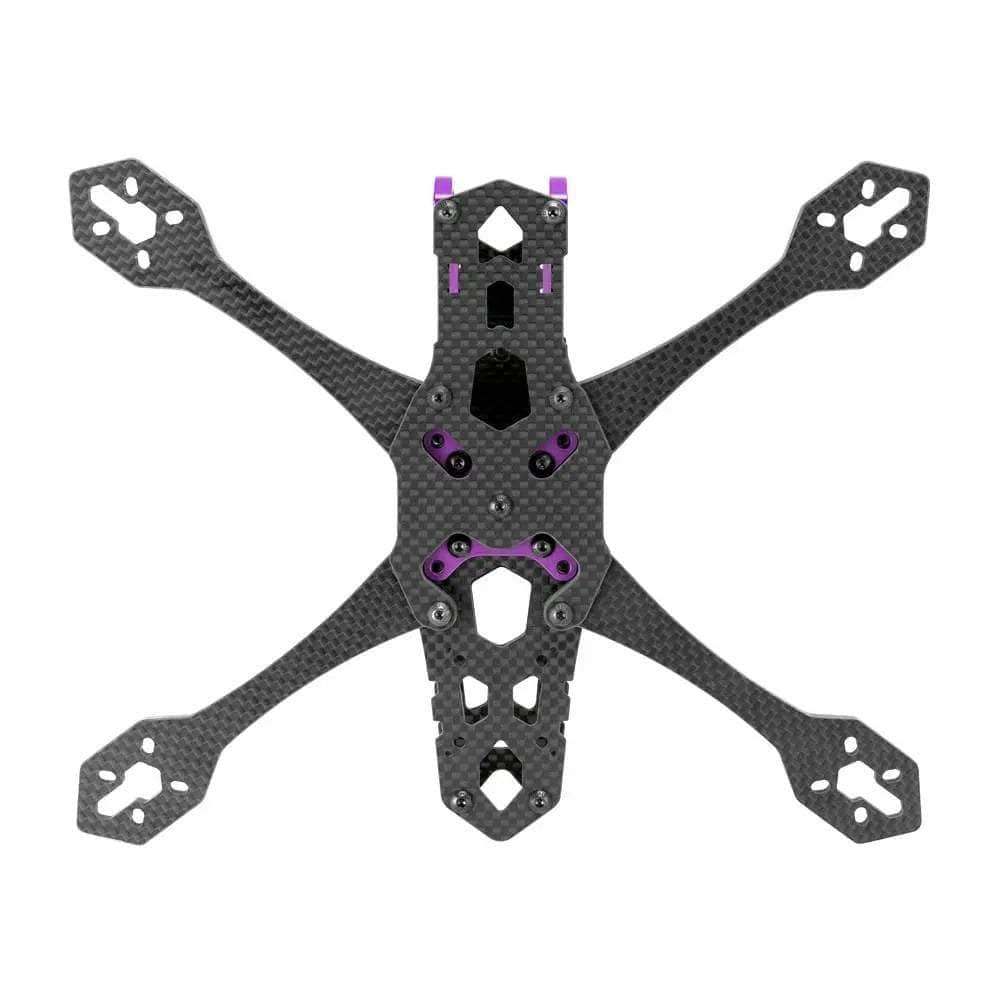

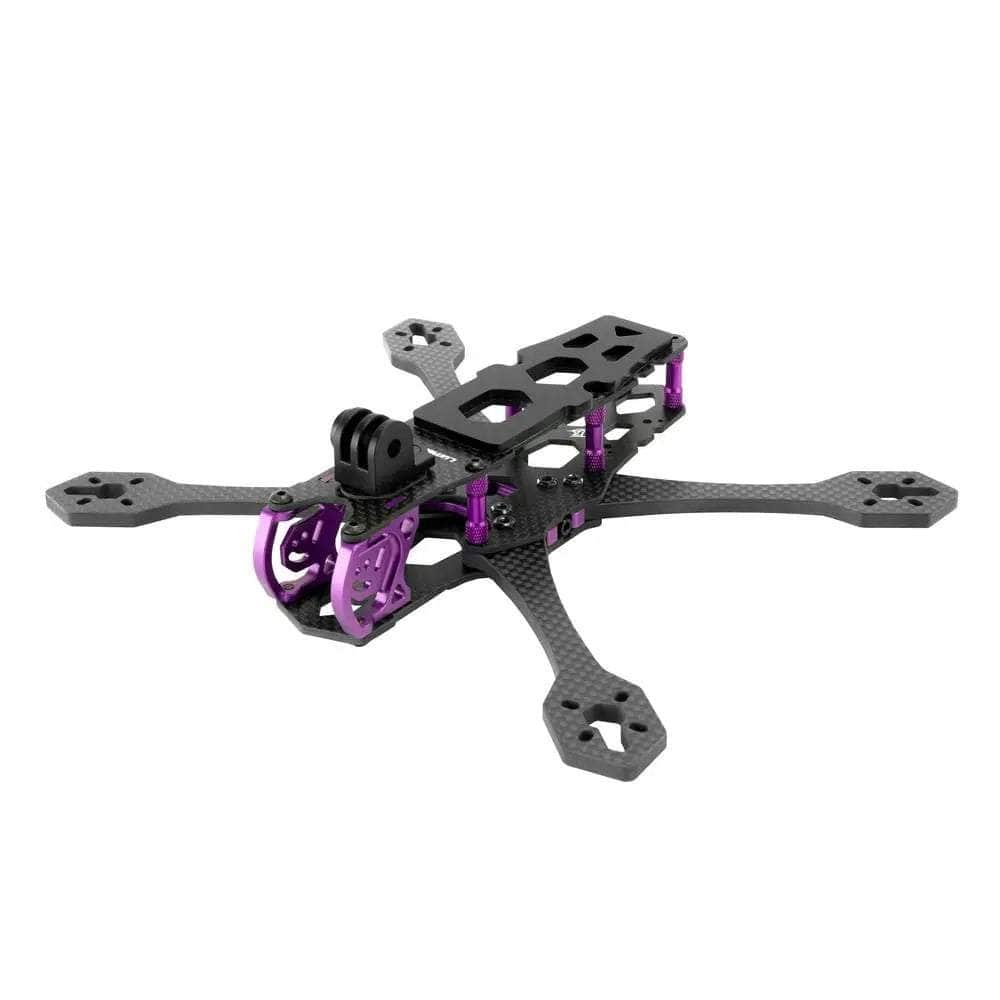

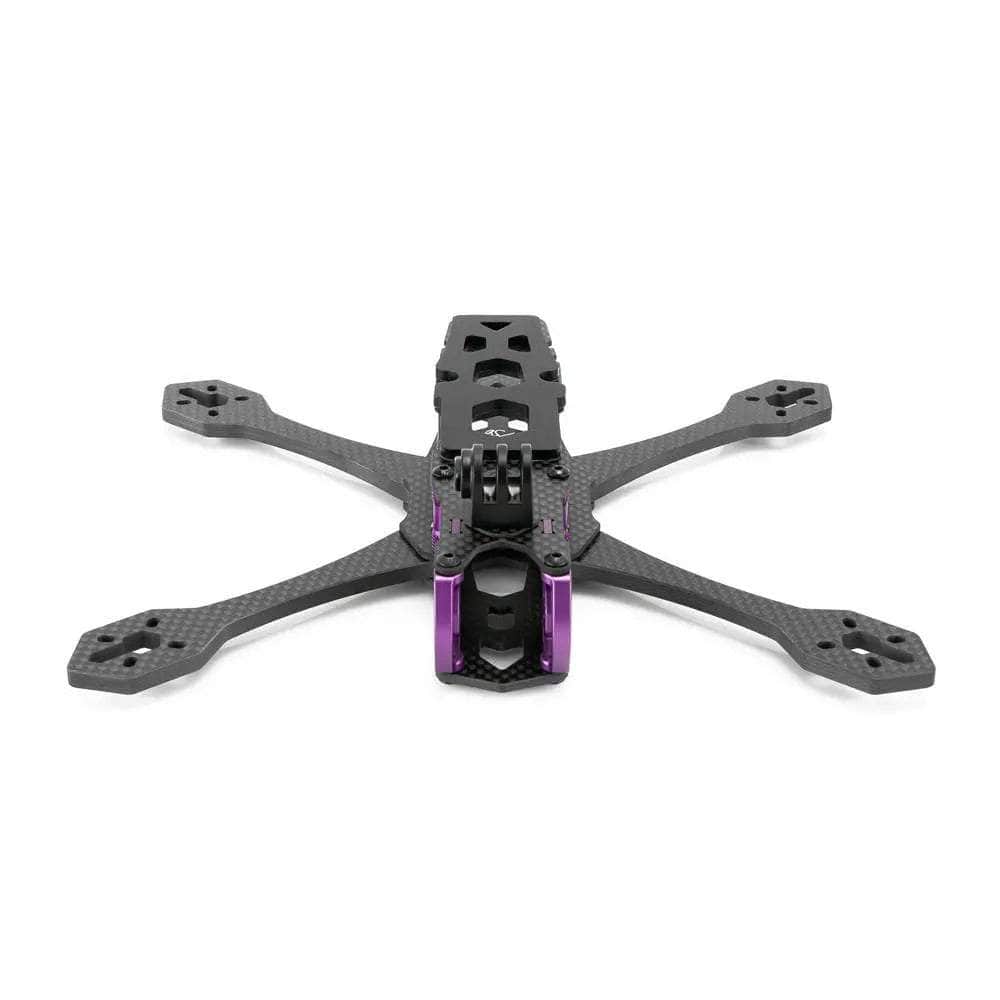

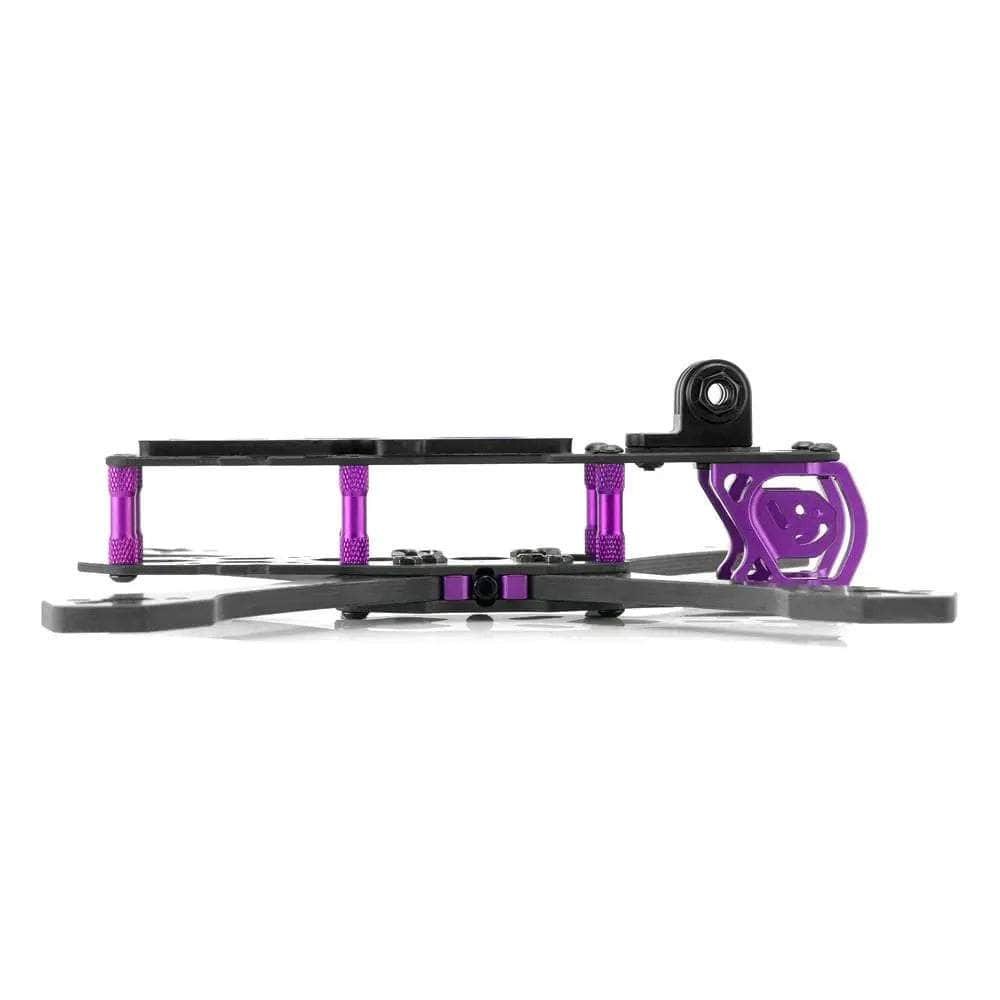

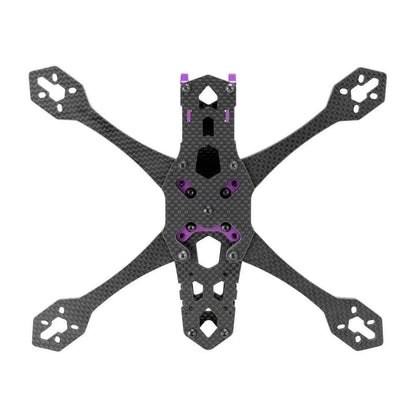

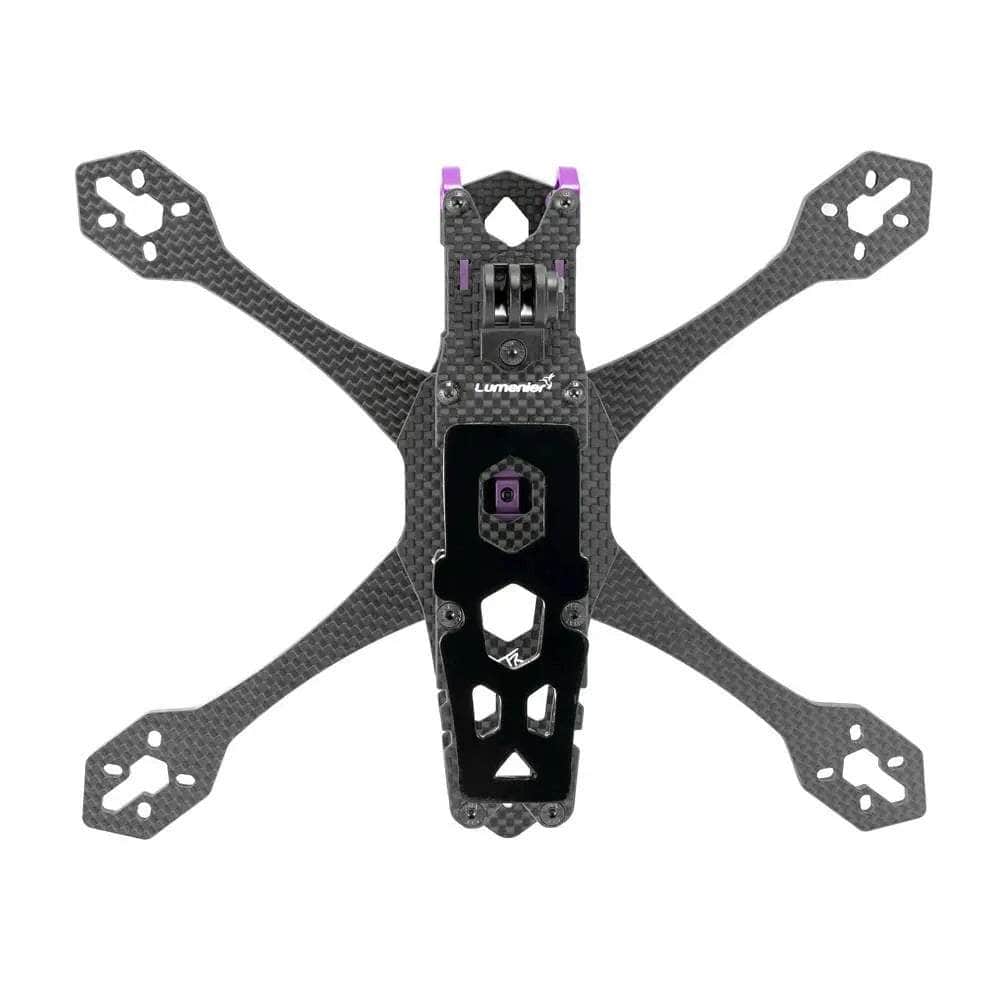

The Lumenier QAV-S 2 5" Freestyle Quadcopter Frame - Joshua Bardwell Special Edition, now at RaceDayQuads! Customize your favorite frame with the electronics of your choice!

This Lumenier frame was designed in collaboration with world-renown FPV guru Joshua Bardwell to bring you the "perfect" FPV freestyle frame. Building upon the success of the QAV-S series, the QAV-S 2 takes it a step further with an optimized design to save weight, X-Lock arm retention for added strength and rigidity, an aluminum FPV camera mount, injection molded GoPro mount, O3 compatibility, and much more!

Make sure to check out our other Pre-Built quads and our Lumenier product selection!

Need the full DIY Kit with all the parts to build the drone?
Beginner DIY FPV Drone Kit - QAV-S 2 Joshua Bardwell SE 5” - Analog
Beginner DIY FPV Drone Kit - QAV-S 2 Joshua Bardwell SE 5” - HD Ready

Features

• Made in Collaboration with FPV expert Joshua Bardwell

• Frame made of High-Quality Lumenier components

• Backward-compatible mounting patterns

• Aluminum FPV Camera Side Plates

• Injection-Molded GoPro Mount

• O3 Compatible Mounts

• X-Lock Mechanism

**Note:  This frame fits the O3, Vista, Walksnail, or Analog units in rear-mounting orientation. HDZero Freestyle fits in a center-mounted orientation with a rear-mounted FC or ESC.

DURABILITY

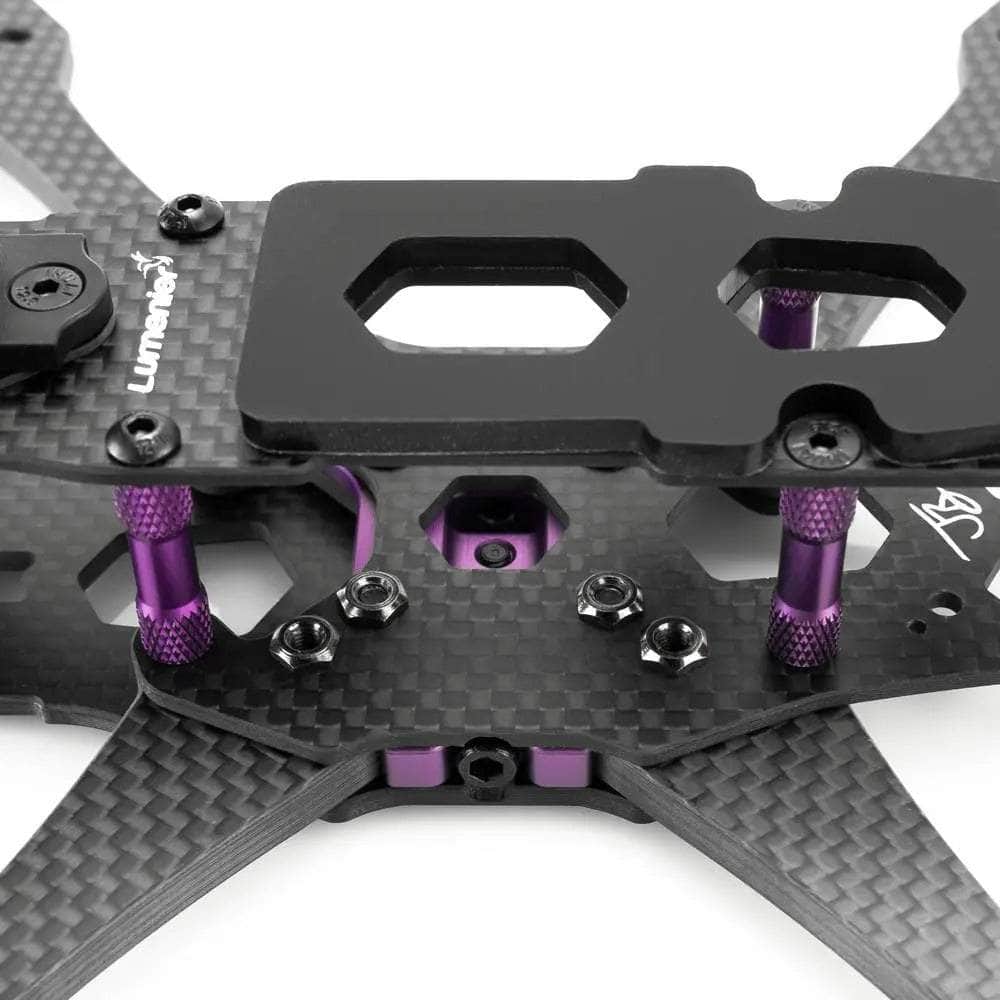

The QAV-S 2 is a 5-inch freestyle airframe that is ultra-durable, easy to work on, and locked in to perform and provide the best flight feel. The QAV-S 2 has many small details that were well-thought-out - including premium Lumenier carbon fiber with finished and chamfered edges on all the plates, and 7075 colored aluminum standoffs to give the quad a sleek look.

INNOVATIONS
The QAV-S 2 brings several innovations to the table. The first innovation is the arm locking system which includes a hinge with a press nut that secures the arms and requires just one screw to swap the arm. This is a convenient feature when maintenance is needed. The second feature is a split bottom plate that gives enough room for a micro camera, while also reducing the rear deck space for components. Lastly, the QAV-S 2 has isolated 20x20 and 30x30 stack mounting in the center (and 20x20 mounting in the rear) that lets you take care of your electronics stack without the need to alter the frame structure and overall build.

X-LOCK MECHANISM

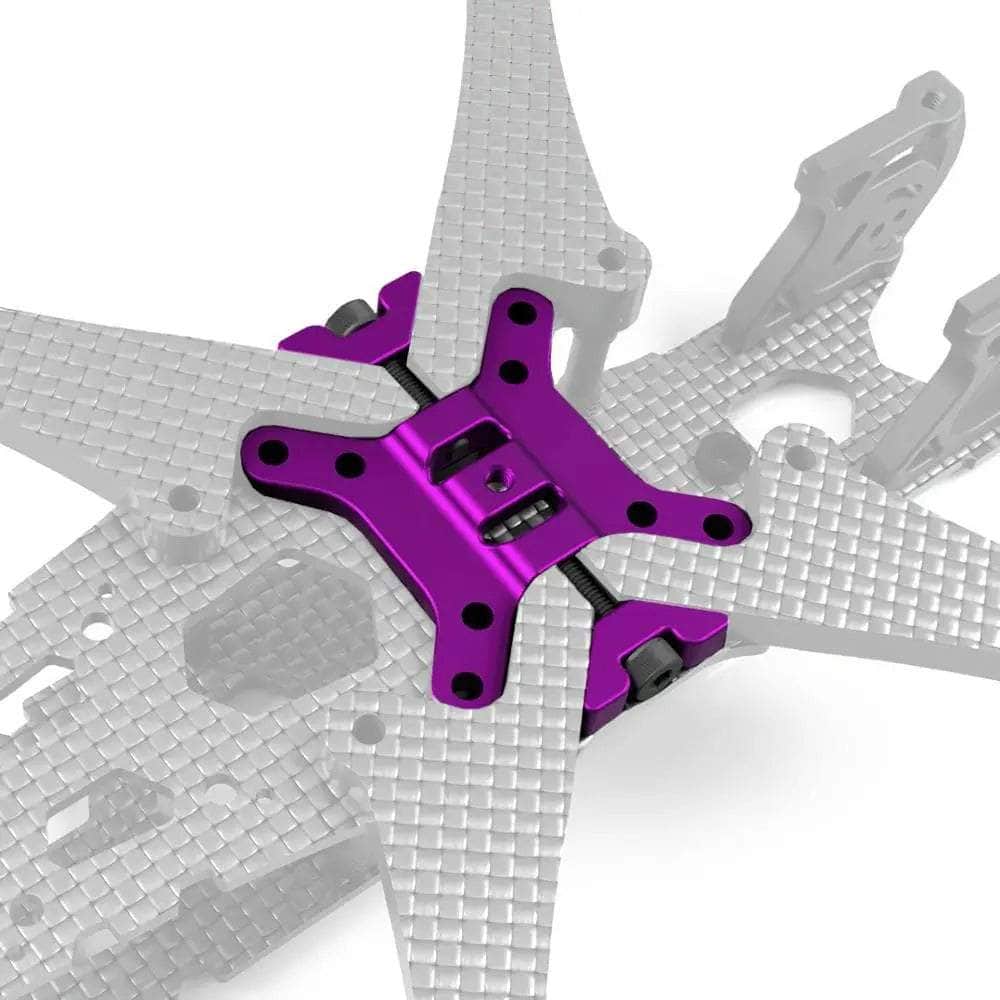

The QAV-S 2 introduces a new lateral X-Lock arm system. This all aluminum arm locking system improves on the QAV-S design in both rigidity and ease-of-use, providing two-axis clamping that is mechanically isolated from the main plates and flight controller stack. The new lock system also allows the arms to fold with only one screw for easy transportation.

ALUMINUM FPV CAMERA PLATES
The new FPV camera mounting solution offers excellent camera protection and support for a range of cameras. The use of a unique interlocking system allows for minimal hardware, and strengthens the front end while staying light weight.

INJECTION MOLDED GOPRO MOUNT
The QAV-S 2 uses the same GoPro mount pattern used by other Lumenier frames, allowing a durable injection molded GoPro mount to attach with a single screw.

BACKWARD-COMPATIBLE MOUNTING PATTERNS
For those who still want to use printed GoPro and antenna mounts the QAV-S 2 maintains the same mounting pattern and standoff placement. All mounts for the previous QAV-S* and Bardwell Special Edition frames will fit without modification.

*QAV-S JohnnyFPV Special Edition mounts are not compatible

O3 COMPATIBLE MOUNTS
The rear plate adds 25.5 M1.6 mount holes to allow direct mounting of the O3 air unit to the frame. This frame can also house the Vista/Walksnail/Analog system in rear-mounting orientation. (HDZero works in center-mounting orientation with FC or ESC in the rear.)

Specifications

• Weight: 124g (without HD camera mount, 130g with)

• Standoffs: 7075 Aluminum (Purple)

• Arm: 5mm 3K Carbon Fiber

• Screws:  Steel 12.9 grade

• X-Plate: Aluminum

• Frame Size: 220mm

Lumenier QAV-S 2 Bardwell Manual

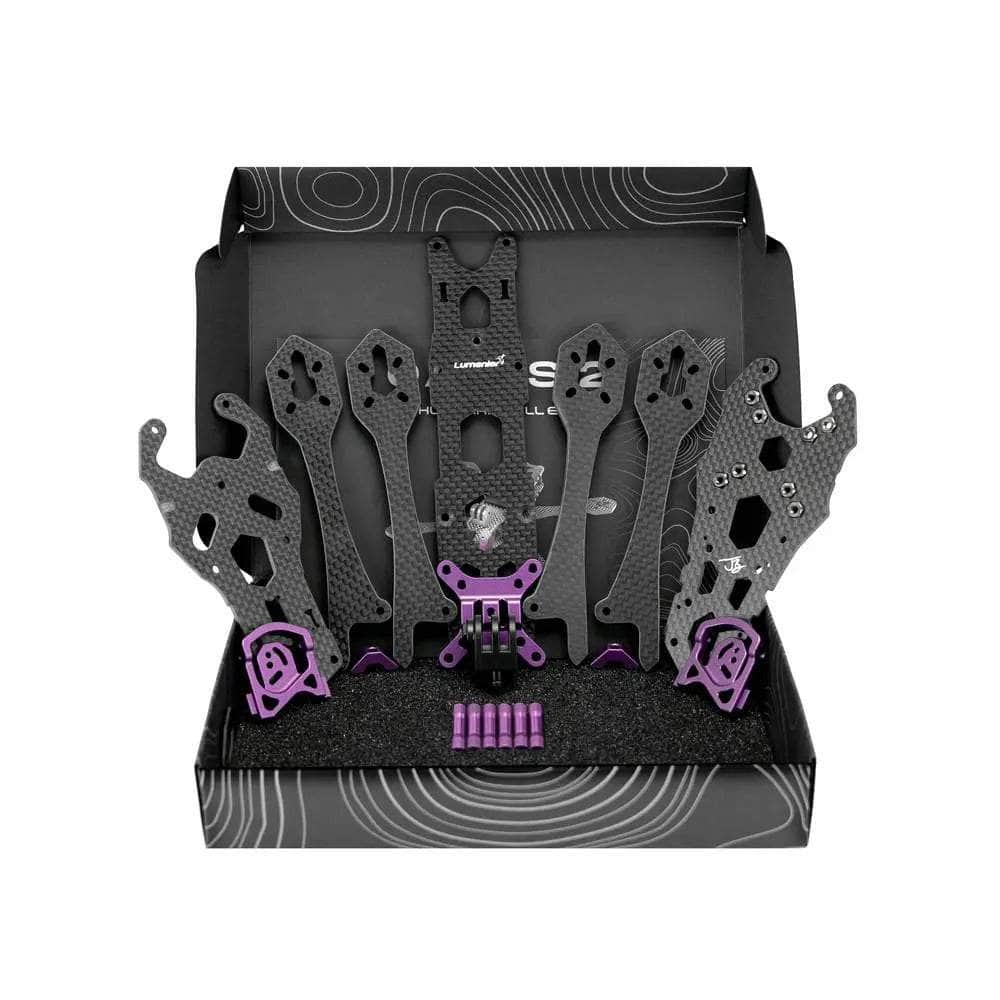

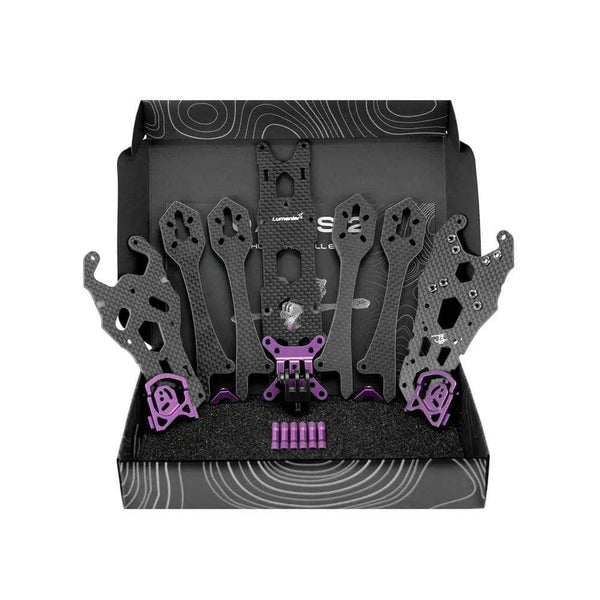

Includes

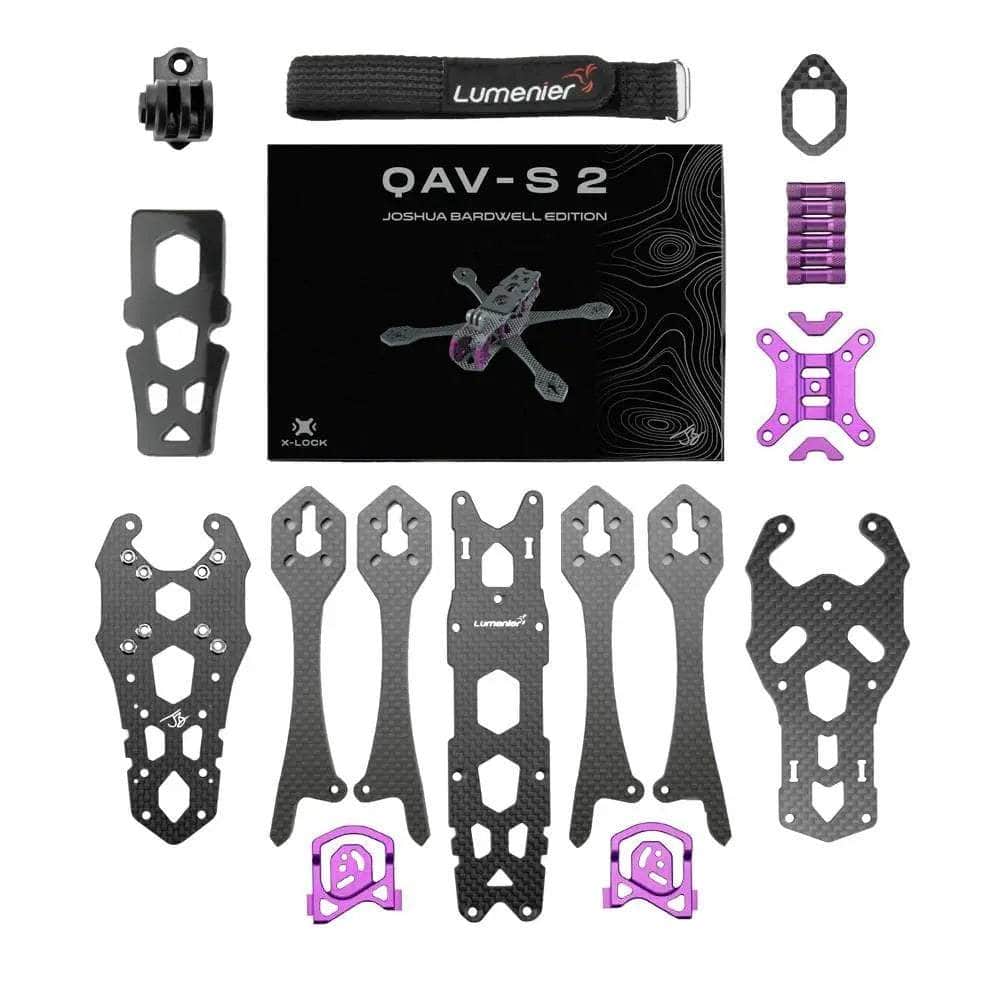

• Lumenier QAV-S 2 Joshua Bardwell SE 5” Frame Kit

  • 1x Bardwell QAV-S 2 Pro Mount Spacer Plate 1mm

  • 2x Bardwell QAV-S 2 Aluminum Arm Wedge 5mm

  • 1x Bardwell QAV-S 2 Aluminum FC Isolator 5mm

  • 1x Bardwell QAV-S 2 Split Plate Front 2.5mm

  • 1x Bardwell QAV-S 2 Split Plate Rear 2mm

  • 4x Bardwell QAV-S 2 5 Inch Arm 5mm

  • 1x Lumenier Battery Strap 16x220mm

  • 1x Bardwell QAV-S 2 Top Plate 2mm

  • 1x Bardwell QAV-S 2 Battery Pad

  • 1x FPV Camera Mount Right

  • 1x FPV Camera Mount Left

  • 6x Knurled Standoff

  • 1x GoPro Mount

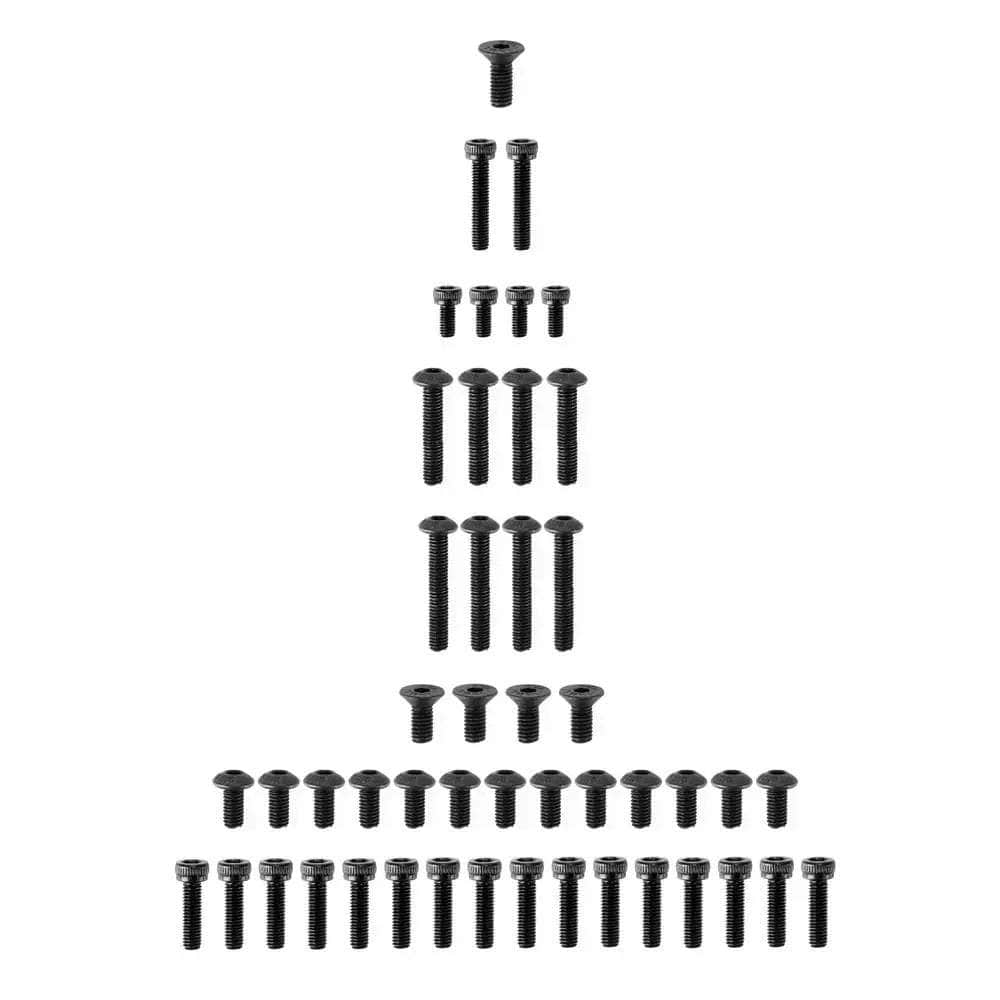

  • 1x Hardware Set
