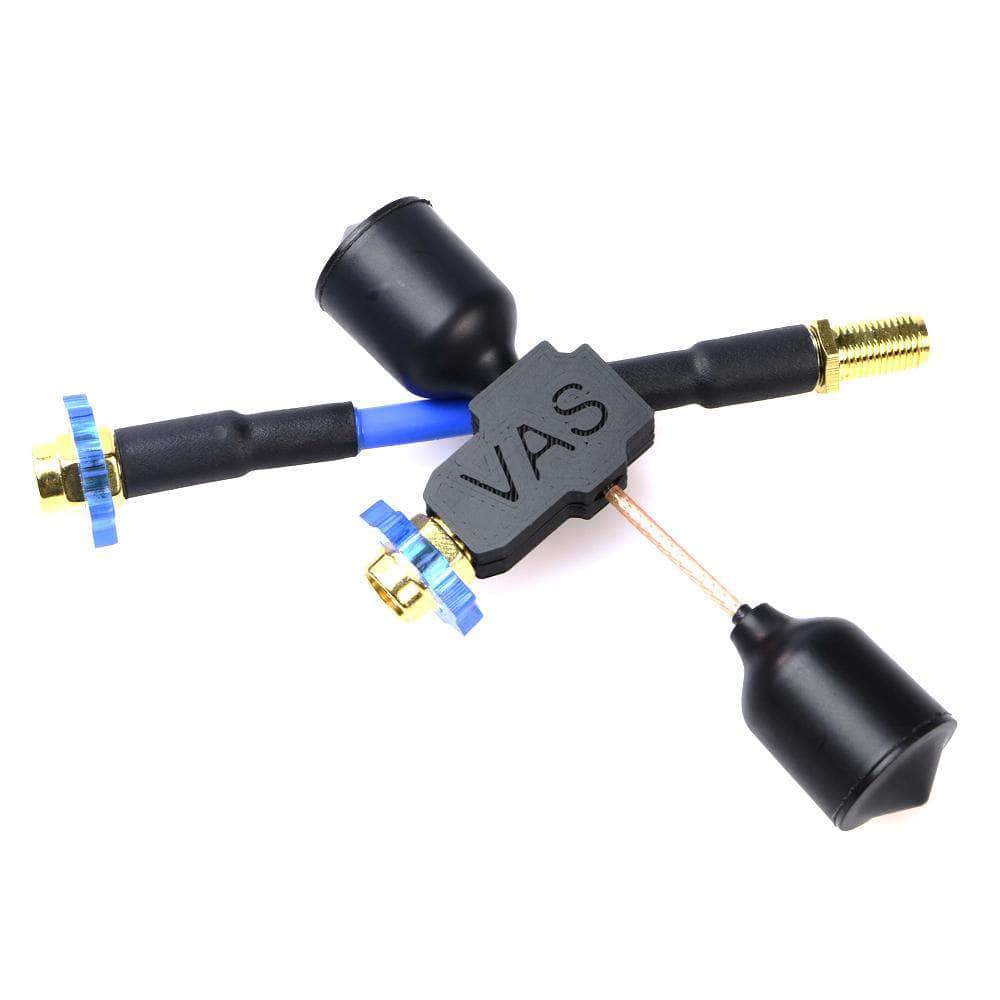

VAS SkyHammer 5.8GHz SMA Receiver Antenna - RHCP

VAS SkyHammer 5.8GHz SMA Receiver Antenna - RHCP

$29.95
$29.95
Polarization:
In stock
In stock
Add To Wishlist
View full details

Details

Description

Long range and 360 degrees of coverage in one, the Sky Hammer is a true long range omni-directional antenna!  Designed by IBCrazy, the Sky Hammer utilizes a pair of high performance Minion Pro antennas precisely phased and impedance matched to achieve 5.25dbic of gain and 360 degrees of coverage.  The stacking and phasing takes the unused vertical coverage of a single antenna and pushes it outward along the horizon right where you need it.  While typically considered to be a receiver antenna, the Sky Hammer can be mounted on a long range quad for exploring places where other antennas simply cannot reach.

Check out all our FPV receiver antennas, and our selection of VAS gear!

Specifications

  • Gain: 5.25dbic
  • Axial Ratio: 0.94 (measured)
  • Horizontal coverage: 360 degrees
  • Vertical coverage: +/- 20 degrees
  • Bandwidth: 5400-6100 MHz

Includes

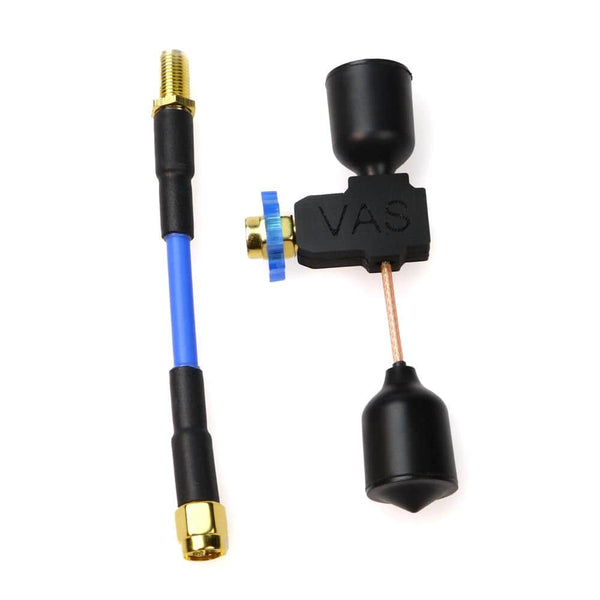

  • 1x VAS SkyHammer 5.8GHz SMA Receiver Antenna - RHCP
  • 1x SMA Extension

More Info

  • SKU: 11226
  • Barcode: 691023481091


Overall rating: 4.7884617 / 5 from 52 reviews.

AI Generated Review Summary

The VAS SkyHammer 5.8GHz SMA Receiver Antenna offers exceptional long-range and 360-degree coverage, enhancing video quality and range. Customers praise its performance and ability to improve video feed quality, making it a top choice for long-range applications.

Summary topics

  • Antenna Performance (32%): Many customers expressed satisfaction with the VAS antennas, praising their performance and ability to improve video quality.
  • Video Quality (16%): A significant number of customers appreciated the excellent video quality and long-range coverage of the video equipment.
  • Video Feed Quality (9%): Customers expressed appreciation for the VAS Sky Hammer's video feed, stating it was the best they've ever experienced.
  • Range and Penetration (27%): A significant number of customers brought up the fantastic range and penetration of the VAS SkyHammer.
  • Coverage (18%): A significant number of customers stated that the SkyHammer has by far the best coverage they've seen.

Review topics: ["quality","improvement","shipping","cover","works","buy","antenna","range","video","receiver","signal","environment","addition","omni","trees","axii","breakup","patch","penetration"].

Review highlights

  • "Video signal was amazing with zero breakup and had excellent range and cover." — Jason D.
  • "They are made of high quality materials, have superior range above other antennas." — Nick S.
  • "I've only had a few flights with the SkyHammer, but the quality of the video is good with little breakup and good range." — Steven S.

Reviews

"Antennas work great!.. super fast shipping"

— Mike (5/5)

Excellent

"The range is amazing, but if I'm not crazy it seems to be reduced if the bottom part isn't hanging directly below. 10/10 though."

— Nicholas H. (5/5)

Great penetration

"While most have moved on to digital, I'm still sporting analog and this is a great goggle antenna!"

— Hector G. (5/5)

Great for freestyle

"Great for freestyle"

— Chad M. (5/5)

Skyhammer

"Always fast service from GetFPV. Antenna really improved my video quality. Would highly recommend it."

— Lynn F. (5/5)

Amazing Reception

"I am getting much better results with the SkyHammer antenna than the VAS black cannon. I've never been able to fly so well to the sides or behind myself before. Worth every penny!"

— Brent K. (5/5)

Works well.

"This antenna was paired with a menace directional patch on my skyzone 04x pro's with the steadyview receiver v3.3. Overall weather outside with my 3.5" or inside with a nano quad I have a better picture in comparison to using the omi antenna from my ev800d's (round one with yellow ring). I can see an improvement so I am happy with my purchase."

— Brian L. (5/5)

The best I have ever used.

"I have used these on both analog and digital setups, and they are, hands down, the best circular polarized antennas I have ever used. Fantastic range and penetration. Thy are bigger, and a bit more awkward than stubby antennas, but the improvement is worth it. They are excellent in every way."

— Christopher N. (5/5)

Great

"This antenna works great. Great range. Thank you"

— Victor C. (5/5)

Crystal clear

"360 long range, I’m in love"

— Deja D. (5/5)

Q&A

This might be a silly question, but is there any problem mounting this vertical? I have Headplay goggles with the SMA connector on the top.
You will have better reception using a 90 degree angle adapter with this.
If it's a long range antenna, well how far is long range? It doesn't say.
That depends on many factors, such as the video transmitter output power, the vtx antenna and orientation, elevation of the receiver antenna above ground, local rf noise and obstructions. It can also be used to transmit or receive and would perform differently in each role. [This](http://www.maxmyrange.com/) is a pretty handy calculator for rough estimates, and [this](https://www.truerc.ca/news/rf-link-budget-2) is a great article on link budget. Being an omni antenna, it doesn't receive as far in a single direction as a directional antenna. As an RX antenna I'd say 2 to 4 miles.
