Fractal Engineering Fractal 65 Micro/Whoop Frame Kit - Lite Kit + Mob6 Blue

Original price $24.98
Original price $24.98 - Original price $24.98
Original price $24.98
Current price $23.99
$23.99 - $23.99
Current price $23.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

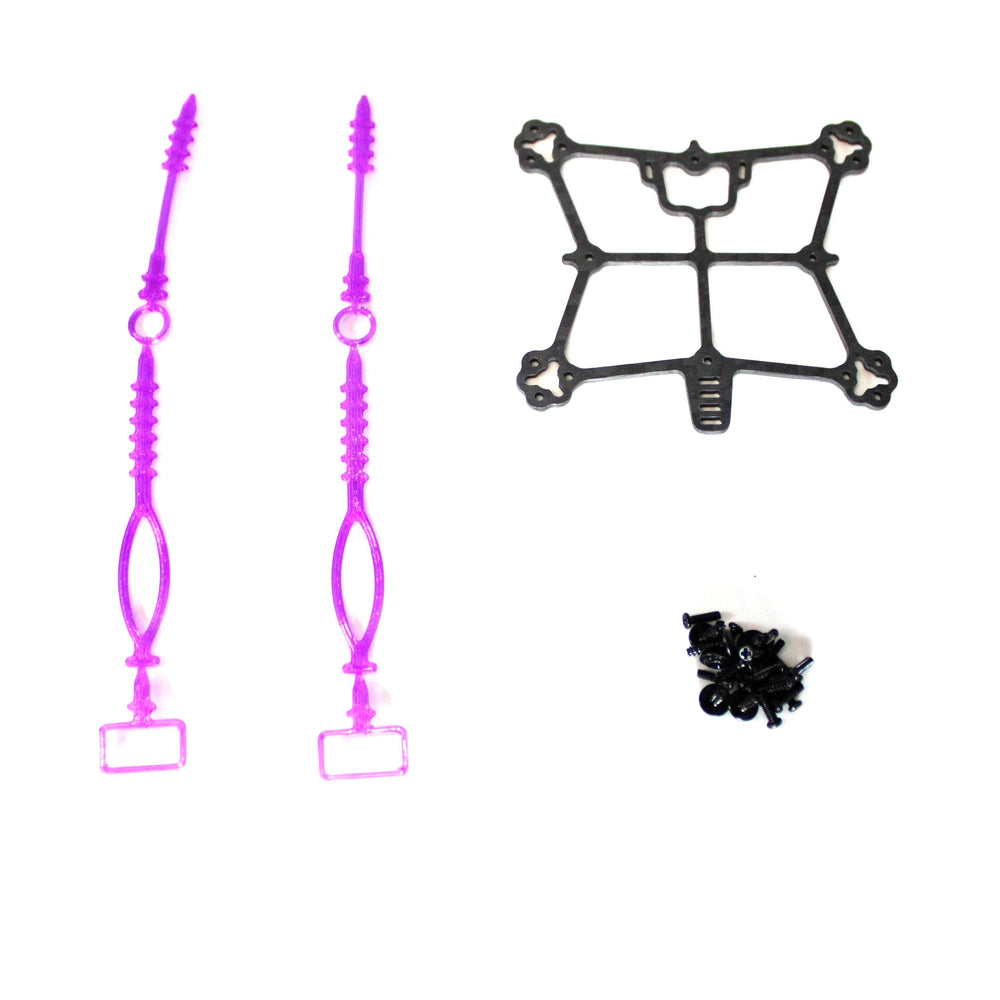

Are you a whoop racer seeking the best performance with no reliability sacrifice? An FPV pilot wanting a solid frame with fast maintenance? Or after a tough frame to keep you airborne, instead of flimsy nylon frames?  If you answer yes to any of those, then the Fractal 65 was designed for you! This kit contains all you need to construct your craft - it's compatible with most parts and has a 25.5x25.5mm mount for the AIO and motor mounts for 3xM1.4x6.6mm and 3xM1.6x5.5.

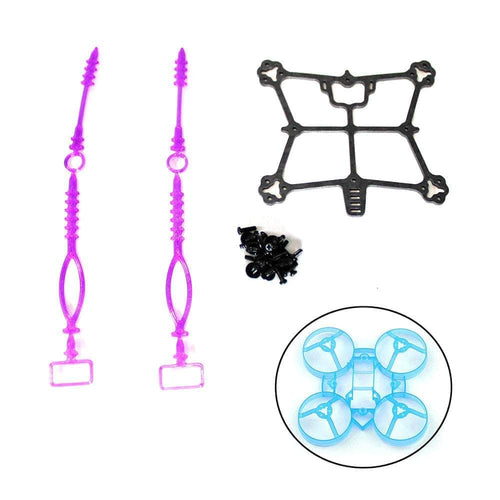

Choose between getting the Fractal 65 Whoop Micro Frame Lite Kit, which does not come with ducts, or grab a combo of the Fractal 65 Whoop Micro Frame kit and HappyModel Mobula6 Whoop frame.

Note: You're gonna want to cut ducts from either an NBD, BetaFPV, or Happymodel 65mm whoop frame, and that will serve as your protection for your motor and propellers. This also allows you to replace a single duct where-as standard whoop frames need to be fully replaced when a single duct breaks.

Check out our other Micro frames, and our Fractal Engineering Products!

Check out these other Fractal Kits with a Whoop Frame included!

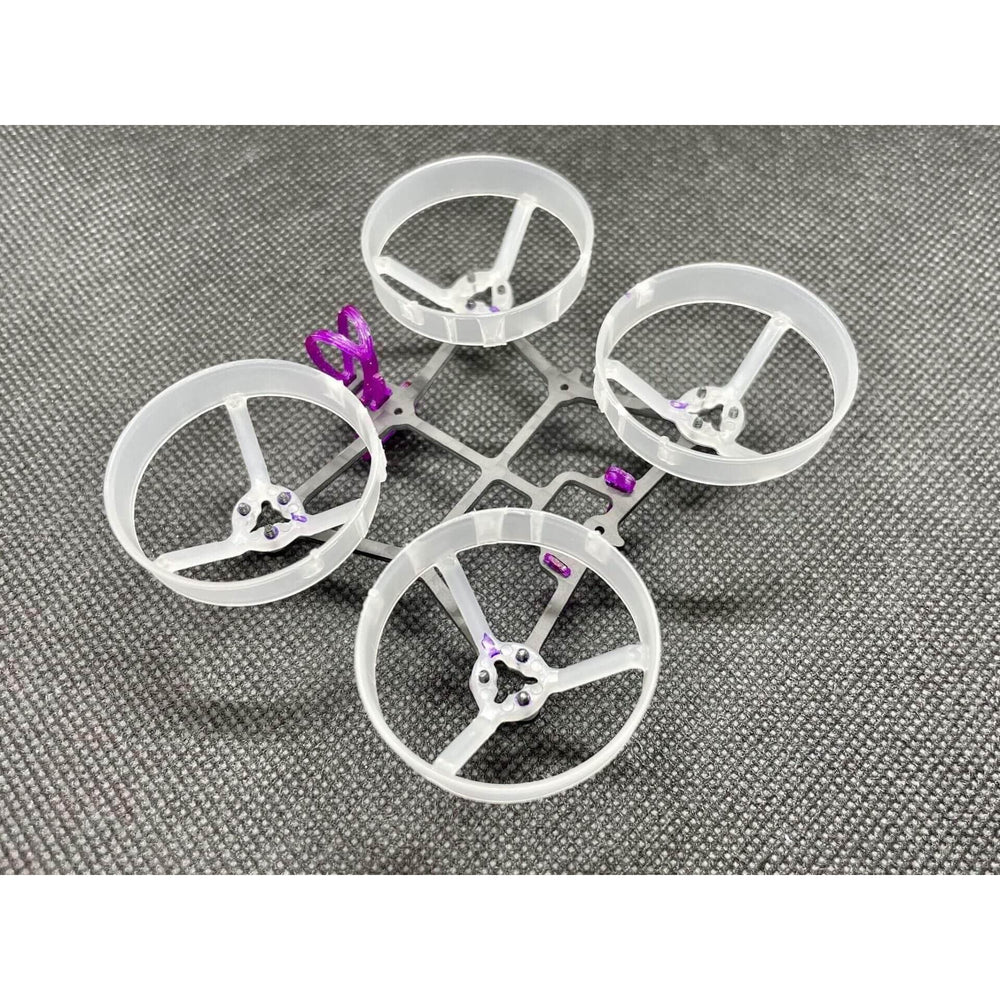

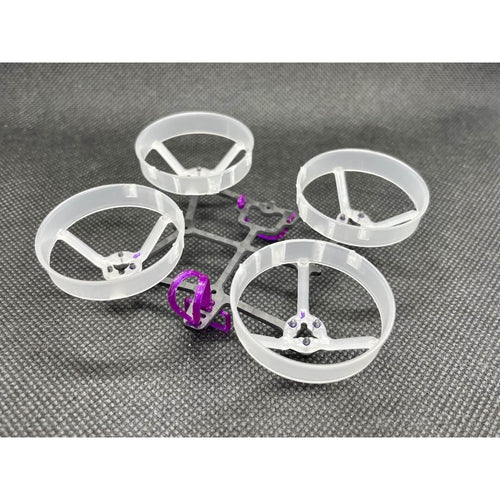

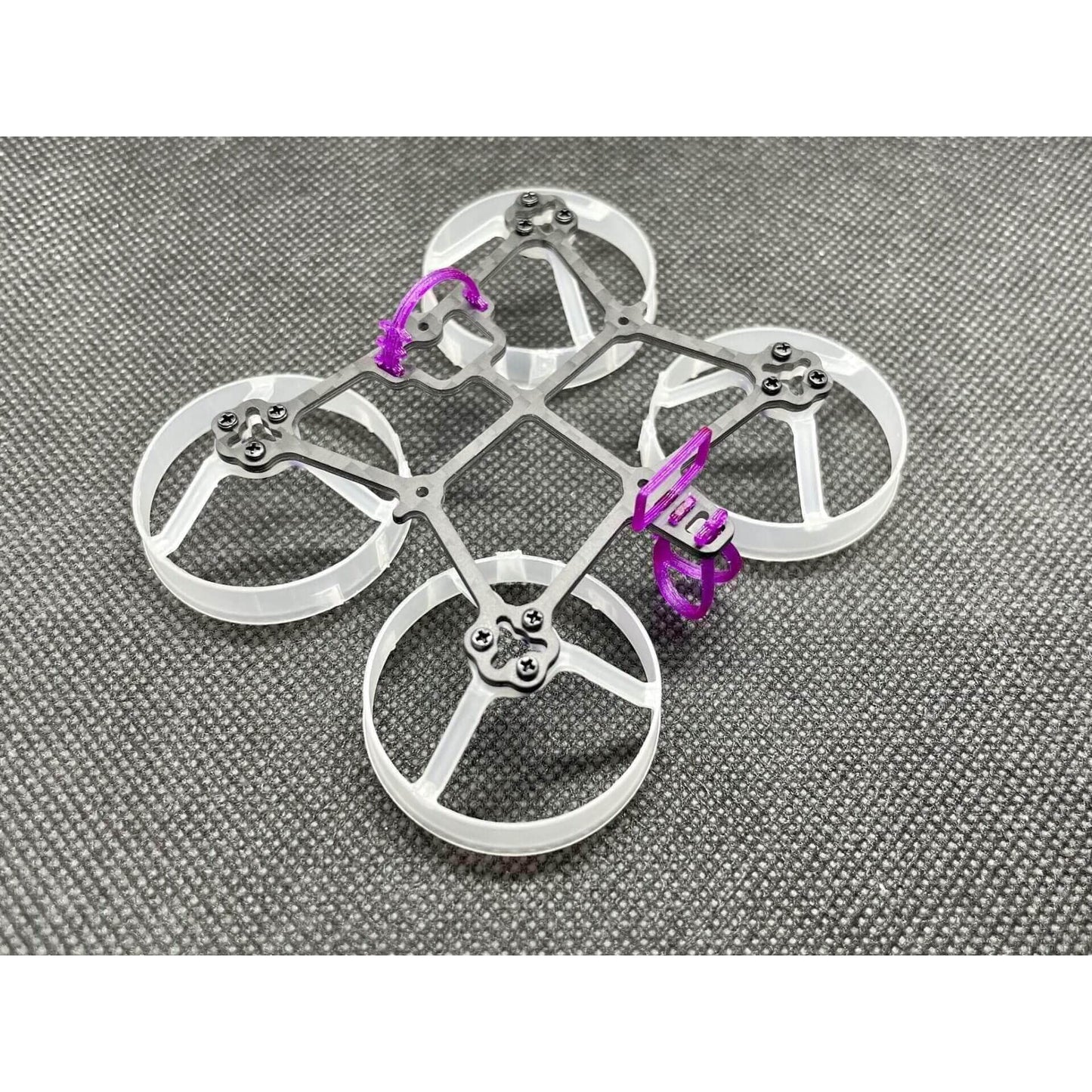

  • 65mm diagonal, squished X geometry, for 31mm props
  • 1.5mm Carbon Fiber / Individual Nylon ducts hybrid construction
  • Low-profile camera mount, no props in view, no tilt offset
  • Low Center of gravity, by bringing the AIO closer to the frame/motors
  • Allows mounting with USB pointing up for easy accelerometer calibration
  • No need for a canopy as all electronics are tucked safely between the ducts
  • Maximum rigidity where it matters most; connecting the motors to the FC
  • Easy maintenance, break one duct, replace only the single duct

Recommended Part List

 FEA optimization test preformed ensuring the stress gets spread out across the whole structure without concentrations


  • CF Weight: 1.6g
  • Motor Bolt Pattern: 6mm Tri-Mount & 5.5mm Tri-Mount
  • Stack Size: 25x25mm


  • 1x Fractal Engineering Fractal 65 Micro Frame Kit - Lite Kit + Mob6 Blue
