Details
Description
Are you a whoop racer seeking the best performance with no reliability sacrifice? An FPV pilot wanting a solid frame with fast maintenance? Or after a tough frame to keep you airborne, instead of flimsy nylon frames? If you answer yes to any of those, then the Fractal 65 was designed for you! This kit contains all you need to construct your craft - it's compatible with most parts and has a 25.5x25.5mm mount for the AIO and motor mounts for 3xM1.4x6.6mm and 3xM1.6x5.5.

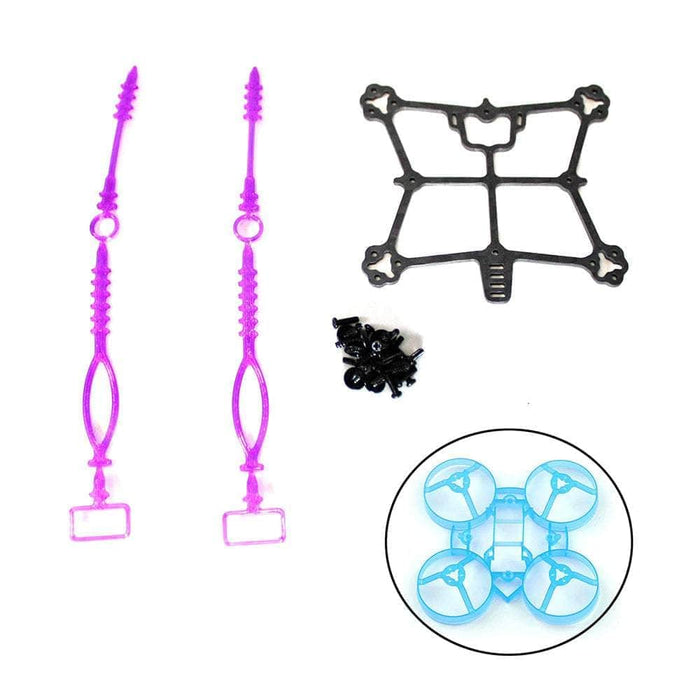

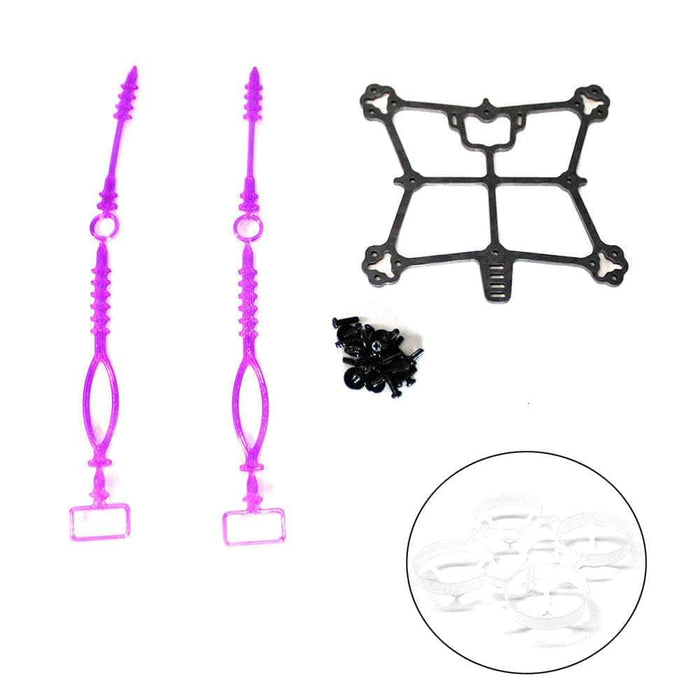

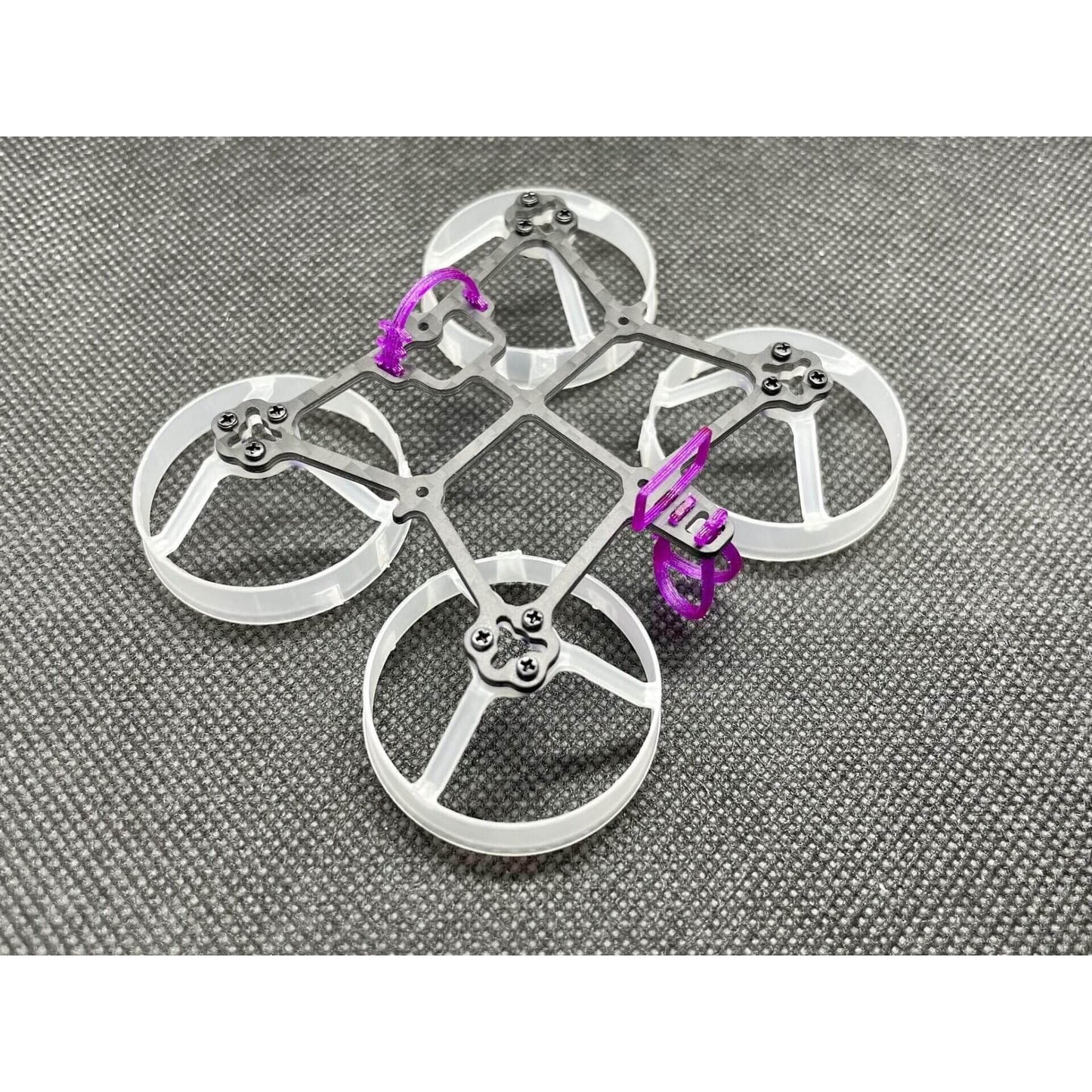

Choose between getting the Fractal 65 Whoop Micro Frame Lite Kit, which does not come with ducts, or grab a combo of the Fractal 65 Whoop Micro Frame kit and HappyModel Mobula6 Whoop frame.
Note: You're gonna want to cut ducts from either an NBD, BetaFPV, or Happymodel 65mm whoop frame, and that will serve as your protection for your motor and propellers. This also allows you to replace a single duct where-as standard whoop frames need to be fully replaced when a single duct breaks.
Check out our other Micro frames, and our Fractal Engineering Products!
*This Kit does not come with ducts. Check out these Fractal Kits with a Whoop Frame included!
Features
- 65mm diagonal, squished X geometry, for 31mm props
- 1.5mm Carbon Fiber / Individual Nylon ducts hybrid construction
- Low-profile camera mount, no props in view, no tilt offset
- Low Center of gravity, by bringing the AIO closer to the frame/motors
- Allows mounting with USB pointing up for easy accelerometer calibration
- No need for a canopy as all electronics are tucked safely between the ducts
- Maximum rigidity where it matters most; connecting the motors to the FC
- Easy maintenance, break one duct, replace only the single duct
Recommended Part List
- Gemfan Durable 1210 Bi-Blade 31mm Micro/Whoop Prop 8 Pack (1mm Shaft)
-
Gemfan 1219-3 Durable Tri-Blade 31mm Micro/Whoop Prop 8 Pack (1mm Shaft) - Choose Your Color
-
HappyModel EX 0802 19000Kv Whoop/Micro Motor for Mobula6 HD - CW
-
HappyModel EX 0802 25000Kv Whoop/Micro Motor for Mobula6 HD - CW
-
HappyModel RunCam Nano 3 800TVL CMOS FPV Camera w/ Holes & Plug for Mobula6
- HappyModel Diamond 1S F4 AIO Flight Controller w/ 5A 8Bit 4in1 ESC & 400mW VTX - ELRS SPI
-
HappyModel SuperBee F4 Lite AIO Whoop Flight Controller - Choose Version
-
HappyModel CrossF4 F411 1-2S 5A 8Bit AIO Whoop Flight Controller - ELRS 2.4GHz
FEA optimization test preformed ensuring the stress gets spread out across the whole structure without concentrations
Specifications
- CF Weight: 1.6g
- Motor Bolt Pattern: 6mm Tri-Mount & 5.5mm Tri-Mount
- Stack Size: 25x25mm
Includes
- 1x Fractal Engineering Fractal 65 Micro Frame Kit - Choose Your Version
More Info
- SKU: FCEG-LITE-65-FK
- Barcode: 6910236000825
