Diatone Mamba F405 DJI MK2 3-6S 30x30 Stack/Combo for DJI (F405 HD FC / 50A 4in1 ESC)

$85.00
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $60 or more
Add to Wishlist

Diatone took one of their fan-favorite stacks and gave it an upgrade. The new layout allows for more component combinations while keeping the same tight footprint as the original. No matter what your needs are this is the stack that can keep up with them.

Check out our other great Diatone products, and DJI compatible parts.

Features

  • 6 UARTS
  • Through-hole soldering pads
  • Included XT60 pigtail
  • Included flight controller soft mounts
  • Easy DJI connection

Specifications

Diatone Mamba F405 DJI MK2 Flight Controller

  • MCU: STM32F405RGT6
  • Gyro: MPU6000
  • Barometer: Yes
  • OSD: Yes
  • Blackbox: 16mb Flash Memory
  • UARTS: 6 Ports
  • ESC Software: DSHot300/600/1200
  • ESC Telemetry: Yes
  • LED Controller: 4 Set 2812 LED
  • Input Voltage: 3-6s (12.6-25.2v)
  • BEC: 3.3V 0.5A / 5V 3A / 9V 3A
  • Mounting: 30x30mm M3

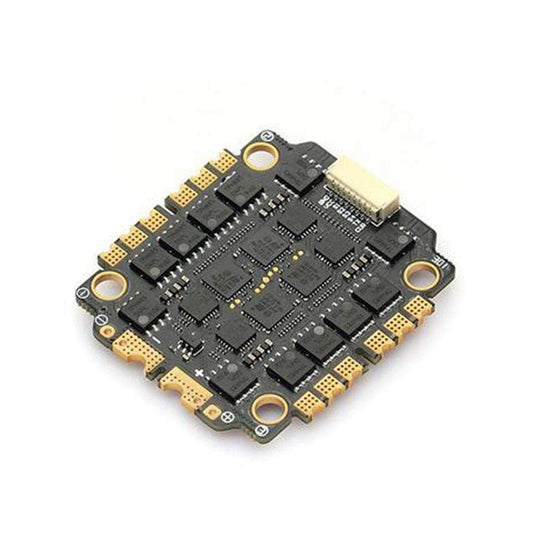

Diatone Mamba F50_BLS 50A 3-6S 4in1 ESC

  • Input Voltage: 3-6s (12.6-25.2V)
  • Continuous Current: 50Ax4
  • Burst Current: 60A (10s)
  • BEC: No
  • Software: DShot300/600
  • BLHeli_S CH40
  • TVS Protection: Yes
  • Mounting: 30x30mm M3

Includes

  • 1x Diatone Mamba F405 DJI MK2 Flight Controller
  • 1x Diatone Mamba F50_BLS 50A 3-6S 4in1 ESC
